SPEC® MPIM2007 Result

Copyright 2006-2010 Standard Performance Evaluation Corporation

Intel Corporation

Endeavor (Intel Xeon E5462, 2.80 GHz)

SPECmpiM_peak2007 = Not Run

MPI2007 license: 13 Test date: Sep-2008
Test sponsor: Intel Corporation Hardware Availability: Dec-2007
Tested by: Pavel Shelepugin Software Availability: Aug-2008

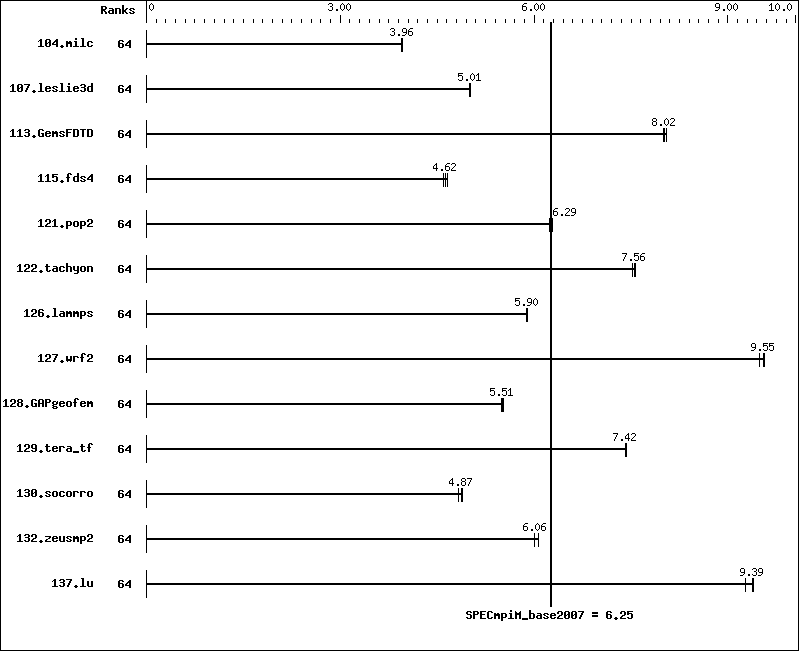

Benchmark results graph

Results Table

Benchmark Base Peak
Ranks Seconds Ratio Seconds Ratio Seconds Ratio Ranks Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
104.milc 64 395 3.96 397 3.95 395 3.97
107.leslie3d 64 1042 5.01 1043 5.01 1042 5.01
113.GemsFDTD 64 787 8.02 788 8.00 783 8.05
115.fds4 64 422 4.62 424 4.60 419 4.66
121.pop2 64 656 6.29 656 6.29 662 6.23
122.tachyon 64 372 7.53 369 7.57 370 7.56
126.lammps 64 494 5.90 494 5.90 495 5.89
127.wrf2 64 817 9.55 821 9.49 814 9.57
128.GAPgeofem 64 375 5.51 374 5.53 376 5.50
129.tera_tf 64 373 7.42 373 7.42 374 7.41
130.socorro 64 789 4.83 780 4.89 783 4.87
132.zeusmp2 64 512 6.06 512 6.06 517 6.00
137.lu 64 392 9.39 391 9.40 396 9.27
Hardware Summary
Type of System: Homogeneous
Compute Node: Endeavor Node
Interconnects: IB Switch
Gigabit Ethernet
File Server Node: Panasas Fileserver
Total Compute Nodes: 8
Total Chips: 16
Total Cores: 64
Total Threads: 64
Total Memory: 128 GB
Base Ranks Run: 64
Minimum Peak Ranks: --
Maximum Peak Ranks: --
Software Summary
C Compiler: Intel C++ Compiler 10.1 for Linux (10.1.018)
C++ Compiler: Intel C++ Compiler 10.1 for Linux (10.1.018)
Fortran Compiler: Intel Fortran Compiler 10.1 for Linux (10.1.018)
Base Pointers: 64-bit
Peak Pointers: 64-bit
MPI Library: Intel MPI Library 3.1 for Linux (3.1.038)
Other MPI Info: None
Pre-processors: No
Other Software: Intel MPI Library 3.1 for Linux Multi-Purpose
Daemon (MPD)

Node Description: Endeavor Node

Hardware
Number of nodes: 8
Uses of the node: compute
Vendor: Intel
Model: SR1560SF
CPU Name: Intel Xeon CPU E5462
CPU(s) orderable: 1-2 chips
Chips enabled: 2
Cores enabled: 8
Cores per chip: 4
Threads per core: 1
CPU Characteristics: 1600 MHz FSB
CPU MHz: 2800
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (FBDIMM 16x1-GB 667 MHz)
Disk Subsystem: Seagate Barracuda ES 250 GB ST3250620NS
Other Hardware: None
Adapter: Intel (ESB2) 82563EB Dual-Port Gigabit Ethernet
Controller
Number of Adapters: 1
Slot Type: PCI-Express x8
Data Rate: 1Gbps Ethernet
Ports Used: 1
Interconnect Type: Ethernet
Adapter: Mellanox MHGH28-XTC
Number of Adapters: 1
Slot Type: PCIe x16 Gen2
Data Rate: InfiniBand 4x DDR
Ports Used: 1
Interconnect Type: InfiniBand
Software
Adapter: Intel (ESB2) 82563EB Dual-Port Gigabit Ethernet
Controller
Adapter Driver: e1000
Adapter Firmware: None
Adapter: Mellanox MHGH28-XTC
Adapter Driver: OFED 1.3.1
Adapter Firmware: 2.5.0
Operating System: RedHat EL 4 Update 4
Local File System: Linux/ext3
Shared File System: DirectFlow
System State: Multi-User
Other Software: PBS Pro 8.0

Node Description: Panasas Fileserver

Hardware
Number of nodes: 1
Uses of the node: fileserver
Vendor: Panasas
Model: ActiveStor 3050
CPU Name: --
CPU(s) orderable: 1-2 chips
Chips enabled: 1
Cores enabled: 1
Cores per chip: 1
Threads per core: 1
CPU Characteristics: --
CPU MHz: 0
Primary Cache: None
Secondary Cache: None
L3 Cache: None
Other Cache: None
Memory: 1 MB
Disk Subsystem: 140 disks, 250GB/disk, 35TB total, 7 Shelves
Other Hardware: None
Adapter: --
Number of Adapters: 1
Slot Type: --
Data Rate: 1Gbps Ethernet
Ports Used: 4
Interconnect Type: Ethernet
Software
Adapter: --
Adapter Driver: --
Adapter Firmware: N/A
Operating System: 2.3.7.a-195733.1
Local File System: PanFS
Shared File System: DirectFlow
System State: Multi-User
Other Software: None

Interconnect Description: IB Switch

Hardware
Vendor: Cisco
Model: Cisco SFS 7024D
Switch Model: Cisco SFS 7024D
Number of Switches: 1
Number of Ports: 288
Data Rate: InfiniBand 4x DDR
Firmware: 4.1.1.1.11
Topology: Single switch
Primary Use: MPI traffic

Interconnect Description: Gigabit Ethernet

Hardware
Vendor: Cisco
Model: Cisco Catalyst 4510
Switch Model: Cisco Catalyst 4510
Number of Switches: 1
Number of Ports: 332
Data Rate: 1Gbps Ethernet
Firmware: --
Topology: Star
Primary Use: Cluster File System

General Notes

Required alternate sources:
   129.tera_tf: fixbuffer
Optional alternate sources:
   104.milc: calloc
   113.GemsFDTD: maxprocandstop

Base Compiler Invocation

C benchmarks:

 mpiicc

C++ benchmarks:

126.lammps:  mpiicpc

Fortran benchmarks:

 mpiifort

Benchmarks using both Fortran and C:

 mpiicc   mpiifort

Base Portability Flags

121.pop2:  -DSPEC_MPI_CASE_FLAG
126.lammps:  -DMPICH_IGNORE_CXX_SEEK
127.wrf2:  -DSPEC_MPI_CASE_FLAG   -DSPEC_MPI_LINUX
130.socorro:  -DSPEC_EIGHT_BYTE_LONG

Base Optimization Flags

C benchmarks:

 -O3   -xT   -ipo   -no-prec-div

C++ benchmarks:

126.lammps:  -O3   -xT   -ipo   -no-prec-div

Fortran benchmarks:

 -O3   -xT   -ipo   -no-prec-div

Benchmarks using both Fortran and C:

 -O3   -xT   -ipo   -no-prec-div

The flags file that was used to format this result can be browsed at
http://www.spec.org/mpi2007/results/flags/EM64T_Intel101_flags.20100413.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/mpi2007/results/flags/EM64T_Intel101_flags.20100413.xml.
