SPEC® MPIM2007 Result

QLogic, TeamHPC

QLogic Benchmark Cluster
with TeamHPC compute nodes

SPECmpiM_peak2007 = Not Run

SPECmpiM_base2007 = 13.1

MPI2007 license:	0018	Test date:	Jul-2008
Test sponsor:	QLogic Corporation	Hardware Availability:	May-2008
Tested by:	QLogic Performance Engineering	Software Availability:	Jul-2008

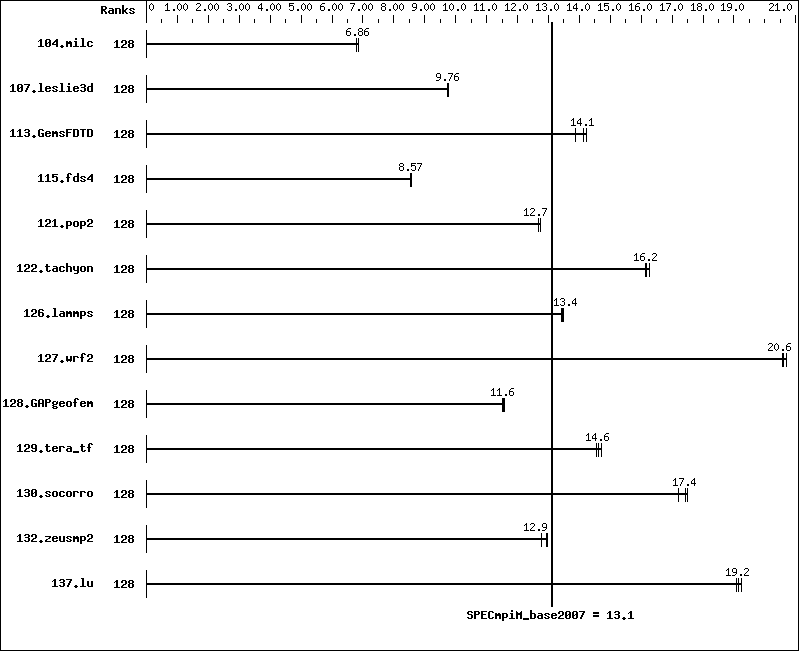

Results Table

Benchmark	Base							Peak
Benchmark	Ranks	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Ranks	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
104.milc	128	230	6.79	228	6.86	228	6.87
107.leslie3d	128	534	9.78	535	9.75	535	9.76
113.GemsFDTD	128	444	14.2	454	13.9	446	14.1
115.fds4	128	227	8.58	228	8.57	228	8.55
121.pop2	128	324	12.7	324	12.8	326	12.7
122.tachyon	128	172	16.3	173	16.1	173	16.2
126.lammps	128	217	13.4	217	13.4	216	13.5
127.wrf2	128	378	20.6	376	20.7	379	20.6
128.GAPgeofem	128	178	11.6	179	11.5	179	11.6
129.tera_tf	128	189	14.6	188	14.7	190	14.6
130.socorro	128	218	17.5	222	17.2	219	17.4
132.zeusmp2	128	239	13.0	243	12.8	240	12.9
137.lu	128	192	19.2	191	19.2	193	19.1

Hardware Summary
Type of System:	Homogeneous
Compute Node:	TeamHPC RM2UDSEB-DG
Interconnect:	QLogic InfiniBand HCAs and switches
File Server Node:	FusionSA
Head Node:	FusionSA
Total Compute Nodes:	16
Total Chips:	32
Total Cores:	128
Total Threads:	128
Total Memory:	256 GB
Base Ranks Run:	128
Minimum Peak Ranks:	--
Maximum Peak Ranks:	--

Software Summary
C Compiler:	Intel C Compiler for Linux Version 10.1, Build 20080312
C++ Compiler:	Intel C++ Compiler for Linux Version 10.1, Build 20080312
Fortran Compiler:	Intel Fortran Compiler for Linux Version 10.1, Build 20080312
Base Pointers:	64-bit
Peak Pointers:	64-bit
MPI Library:	QLogic MPI 2.2
Other MPI Info:	None
Pre-processors:	No
Other Software:	QLogic InfiniPath 2.2 (OFED 1.3)

Node Description: TeamHPC RM2UDSEB-DG

Hardware
Number of nodes:	16
Uses of the node:	compute
Vendor:	TeamHPC
Model:	RM2UDSEB-DG (Asus DSEB-DG motherboard)
CPU Name:	Intel Xeon E5472
CPU(s) orderable:	1-2 chips
Chips enabled:	2
Cores enabled:	8
Cores per chip:	4
Threads per core:	1
CPU Characteristics:	Quad-Core, 3.0GHz, 1600MHz FSB
CPU MHz:	3000
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache:	None
Other Cache:	None
Memory:	16 GB (8x2GB PC2-6400 FB-DIMMs)
Disk Subsystem:	1 x 80GB SATA II with 8MB cache
Other Hardware:	None
Adapter:	QLogic QLE7280 InfiniBand DDR (PCIe x16 Gen1 2.5 GT/s)
Number of Adapters:	1
Slot Type:	PCIe x16 Gen2
Data Rate:	InfiniBand 4x DDR
Ports Used:	1
Interconnect Type:	InfiniBand

Software
Adapter:	QLogic QLE7280 InfiniBand DDR (PCIe x16 Gen1 2.5 GT/s)
Adapter Driver:	QLogic InfiniPath 2.2 (OFED 1.3)
Adapter Firmware:	None
Operating System:	CentOS release 5 (x86_64) Kernel 2.6.18-53.1.14.el5
Local File System:	ext3
Shared File System:	NFSv3 IPoIB
System State:	Multi-user, run level 3
Other Software:	None

Node Description: FusionSA

Hardware
Number of nodes:	1
Uses of the node:	head, file server
Vendor:	Western Scientific
Model:	FusionSA (storage appliance) with Tyan Thunder n6650W (S2915) motherboard and LSI Logic MegaRAID SAS 8408E RAID controller
CPU Name:	AMD Opteron 2218
CPU(s) orderable:	1,2 chip
Chips enabled:	2
Cores enabled:	4
Cores per chip:	2
Threads per core:	1
CPU Characteristics:	--
CPU MHz:	2600
Primary Cache:	64 KB I + 64 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
L3 Cache:	None
Other Cache:	None
Memory:	16 GB (8 x 2 GB PC2-5300 ECC)
Disk Subsystem:	8 x 73 GB SAS 3Gb/s 15K RPM
Other Hardware:	None
Adapter:	QLogic QLE7240 InfiniBand DDR (PCIe x8 Gen1 2.5 GT/s)
Number of Adapters:	1
Slot Type:	PCIe x16 Gen1 (x8 signal)
Data Rate:	InfiniBand 4x DDR
Ports Used:	1
Interconnect Type:	InfiniBand

Software
Adapter:	QLogic QLE7240 InfiniBand DDR (PCIe x8 Gen1 2.5 GT/s)
Adapter Driver:	QLogic InfiniPath 2.2 (OFED 1.3)
Adapter Firmware:	None
Operating System:	Red Hat Enterprise Linux AS release 4 (Update 5) Kernel 2.6.9-55.ELsmp
Local File System:	Software RAID 0, ext3
Shared File System:	None
System State:	Multi-User
Other Software:	None

Interconnect Description: QLogic InfiniBand HCAs and switches

Hardware
Vendor:	QLogic
Model:	QLogic 7200 Series TrueScale HCAs,
Switch Model:	QLogic SilverStorm 9024 Switch
Number of Switches:	1
Number of Ports:	24
Data Rate:	InfiniBand 4x DDR
Firmware:	Switch chassis: firmware version 4.2 Switch silicon: Anafa II Firmware 1.0.4
Topology:	Star, one switch
Primary Use:	MPI, file server

General Notes

Required alternate sources:
   129.tera_tf: fixbuffer
Alternate source:
   104.milc:    calloc
Enabled 4K IB MTUs with QLogic SilverStorm 9024 switch
   parameter setting "ismChassisSetMtu 5"
BIOS parameter Snoop Filter set to "Disabled" on the compute nodes
The mpirun  rcfile contained "ulimit -s unlimited"
