SPEC® MPIM2007 Result

Copyright 2006-2010 Standard Performance Evaluation Corporation

SGI

SGI Altix ICE 8200EX
(Xeon Processor X5472 3GHz)

SPECmpiM_peak2007 = Not Run

MPI2007 license: 037 Test date: Jun-2008
Test sponsor: ZIH Hardware Availability: Mar-2008
Tested by: Matthias Jurenz Software Availability: Apr-2008

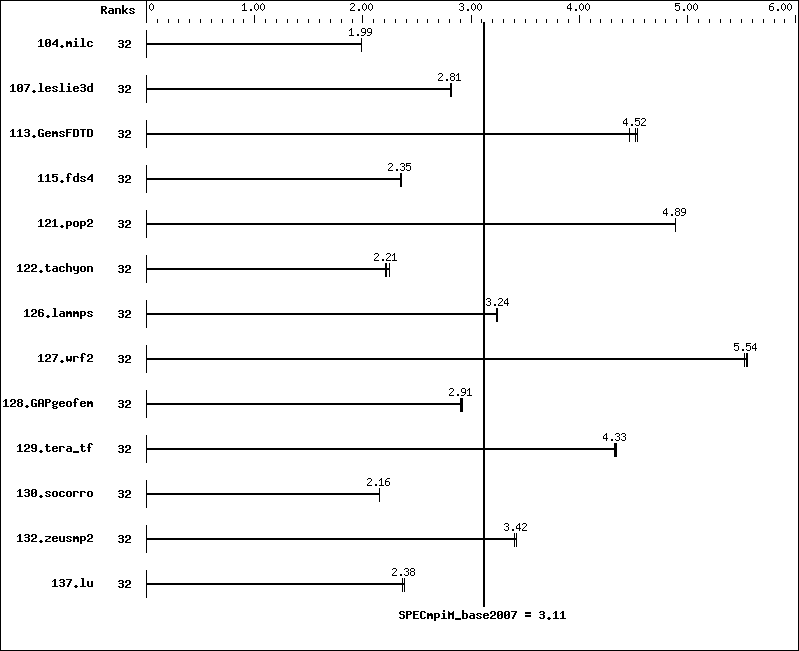

Benchmark results graph

Results Table

Benchmark Base Peak
Ranks Seconds Ratio Seconds Ratio Seconds Ratio Ranks Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
104.milc 32 788 1.99 788 1.99 788 1.99
107.leslie3d 32 1854 2.82 1855 2.81 1856 2.81
113.GemsFDTD 32 1391 4.53 1394 4.52 1412 4.47
115.fds4 32 830 2.35 831 2.35 828 2.36
121.pop2 32 844 4.89 844 4.89 845 4.88
122.tachyon 32 1244 2.25 1263 2.21 1268 2.21
126.lammps 32 901 3.23 899 3.24 901 3.24
127.wrf2 32 1410 5.53 1404 5.55 1406 5.54
128.GAPgeofem 32 706 2.92 711 2.90 710 2.91
129.tera_tf 32 637 4.34 640 4.32 639 4.33
130.socorro 32 1770 2.16 1770 2.16 1770 2.16
132.zeusmp2 32 912 3.40 907 3.42 908 3.42
137.lu 32 1540 2.39 1554 2.37 1544 2.38
Hardware Summary
Type of System: Homogenous
Compute Node: SGI Altix ICE 8200EX Compute Node
Interconnects: InfiniBand (MPI)
InfiniBand (I/O)
File Server Node: SGI InfiniteStorage NEXIS 2000 SAS
Head Node: SGI Altix ICE 8200EX Head Node
Total Compute Nodes: 4
Total Chips: 8
Total Cores: 32
Total Threads: 32
Total Memory: 64 GB
Base Ranks Run: 32
Minimum Peak Ranks: --
Maximum Peak Ranks: --
Software Summary
C Compiler: Intel C
Applications Version 10.1 (Build 20080112)
C++ Compiler: Intel C++
Applications Version 10.1 (Build 20080112)
Fortran Compiler: Intel Fortran
Applications Version 10.1 (Build 20080112)
Base Pointers: 64-bit
Peak Pointers: 64-bit
MPI Library: SGI Message Passing Toolkit (MPT) Version 1.19
Other MPI Info: None
Pre-processors: None
Other Software: None

Node Description: SGI Altix ICE 8200EX Compute Node

Hardware
Number of nodes: 4
Uses of the node: compute
Vendor: SGI
Model: Altix ICE 8200EX (Xeon Processor X5472 3GHz)
CPU Name: Intel Xeon X5472
CPU(s) orderable: 1-2 chips
Chips enabled: 2
Cores enabled: 8
Cores per chip: 4
Threads per core: 1
CPU Characteristics: Quad Core, 3.0GHz, 1600MHz system bus
CPU MHz: 3000
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (8*2GB PC2-6400 CL5-5-5 FB-DIMMs)
Disk Subsystem: NFS
Other Hardware: None
Adapter: Mellanox MT26418 ConnectX IB DDR
(PCIe x8 Gen2 5 GT/s)
Number of Adapters: 1
Slot Type: PCIe x8 Gen2
Data Rate: InfiniBand 4x DDR
Ports Used: 2
Interconnect Type: InfiniBand
Software
Adapter: Mellanox MT26418 ConnectX IB DDR
(PCIe x8 Gen2 5 GT/s)
Adapter Driver: OFED 1.3.0 (mlx4_ib.ko 0.01)
Adapter Firmware: 2.3.0
Operating System: SLES10 SP1
Local File System: NFS (v3)
Shared File System: NFS (RDMA InfiniBand, NAS Nexis2000)
System State: Multi-user, run level 3
Other Software: SGI ProPack 5 SP4

Node Description: SGI Altix ICE 8200EX Head Node

Hardware
Number of nodes: 1
Uses of the node: head
Vendor: SGI
Model: Altix ICE 8200EX (Xeon Processor X5365 3GHz)
CPU Name: Intel Xeon X5365
CPU(s) orderable: 1-2 chips
Chips enabled: 2
Cores enabled: 8
Cores per chip: 4
Threads per core: 1
CPU Characteristics: Quad Core, 3.0GHz, 1333MHz system bus
CPU MHz: 3000
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (8*2GB PC2-6400 CL5-5-5 FB-DIMMs)
Disk Subsystem: Seagate Cheetah 15K.5 147GB SAS (ST3146855SS)
Other Hardware: None
Adapter: Mellanox MT25208 InfiniHost III Ex (rev 20)
(PCIe x8 Gen1 2.5 GT/s)
Number of Adapters: 1
Slot Type: PCIe x8 Gen1
Data Rate: InfiniBand 4x DDR
Ports Used: 1
Interconnect Type: InfiniBand
Software
Adapter: Mellanox MT25208 InfiniHost III Ex (rev 20)
(PCIe x8 Gen1 2.5 GT/s)
Adapter Driver: OFED 1.3.0 (mlx4_ib.ko 0.01)
Adapter Firmware: 5.2.0
Operating System: SLES10 SP1
Local File System: XFS
Shared File System: NFS (RDMA InfiniBand, NAS Nexis2000)
System State: Multi-user, run level 3
Other Software: SGI ProPack 5 SP4

Node Description: SGI InfiniteStorage NEXIS 2000 SAS

Hardware
Number of nodes: 1
Uses of the node: fileserver
Vendor: SGI
Model: InfiniteStorage NEXIS 2000 SAS
CPU Name: Intel Xeon 5140
CPU(s) orderable: 1-2 chips
Chips enabled: 2
Cores enabled: 4
Cores per chip: 2
Threads per core: 1
CPU Characteristics: Dual Core, 2.33GHz, 1333MHz system bus
CPU MHz: 2333
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 32 GB
Disk Subsystem: 72 disks, 280GB/disk, 10TB total, 6 Shelves
(striped RAID 5)
Other Hardware: None
Adapter: Mellanox MT25204 InfiniHost III Lx (rev 20)
(PCIe x8 Gen1 2.5 GT/s)
Number of Adapters: 1
Slot Type: PCIe x8 Gen1
Data Rate: InfiniBand 4x DDR
Ports Used: 1
Interconnect Type: InfiniBand
Software
Adapter: Mellanox MT25204 InfiniHost III Lx (rev 20)
(PCIe x8 Gen1 2.5 GT/s)
Adapter Driver: OFED 1.2.6 (ib_mthca.ko 0.08)
Adapter Firmware: 1.2.0
Operating System: SLES10 SP1
Local File System: XFS
Shared File System: None
System State: Multi-user, run level 3
Other Software: SGI ProPack 5 SP2
SGI InfiniteStorage Appliance Manager 4
SGI XVM 4.2.2.1
XFS 64-bit journaled file system

Interconnect Description: InfiniBand (MPI)

Hardware
Vendor: Mellanox Technologies
Model: MT26418 ConnectX
Switch Model: Mellanox MT47396 InfiniScale III
Number of Switches: 8
Number of Ports: 24
Data Rate: InfiniBand 4x DDR
Firmware: 1.3.0
Topology: Hypercube with express links
Primary Use: MPI traffic

Interconnect Description: InfiniBand (I/O)

Hardware
Vendor: Mellanox Technologies
Model: MT26418 ConnectX
Switch Model: Mellanox MT47396 InfiniScale III
Number of Switches: 8
Number of Ports: 24
Data Rate: InfiniBand 4x DDR
Firmware: 1.3.0
Topology: Hypercube with express links
Primary Use: I/O traffic

General Notes

 srcalt's:
   104.milc: calloc
   113.GemsFDTD: maxprocandstop
   127.wrf2: fixcalling
   129.tera_tf: fixbuffer
   130.socorro: second_underscore

 Environment:
   export MPI_REQUEST_MAX=65536
     Determines the maximum number of nonblocking sends and
     receives that can simultaneously exist for any single MPI
     process.  MPI generates an error message if this limit
     (or the default, if not set) is exceeded.  Default:  16384
   export MPI_TYPE_MAX=32768
     Determines the maximum number of data types that can
     simultaneously exist for any single MPI process.
     MPI generates an error message if this limit (or the default,
     if not set) is exceeded.  Default:  8192
   export MPI_BUFS_PER_HOST=512
     Determines the number of shared message buffers (16 KB each)
     that MPI is to allocate for each host. These buffers are used
     to send and receive long inter-host messages.
     Default:  32 pages (1 page = 16KB)
   export MPI_NUM_QUICKS=16
     Controls the number of other ranks that a rank can receive from
     over InfiniBand using a short message fast path. This is 8 by
     default and can be any value between 0 and 32.

   ulimit -s unlimited
     Removes limits on the maximum size of the automatically-
     extended stack region of the current process and each
     process it creates.

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

126.lammps:  icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

121.pop2:  -DSPEC_MPI_CASE_FLAG
127.wrf2:  -DSPEC_MPI_LINUX   -DSPEC_MPI_CASE_FLAG

Base Optimization Flags

C benchmarks:

 -O3   -xT   -ipo   -no-prec-div

C++ benchmarks:

126.lammps:  -O3   -xT   -ipo   -ansi-alias   -no-prec-div

Fortran benchmarks:

 -O3   -xT   -ipo   -no-prec-div

Benchmarks using both Fortran and C:

 -O3   -xT   -ipo   -no-prec-div

Base Other Flags

C benchmarks:

 -I/opt/sgi-mpt/1.19/include   -L/opt/sgi-mpt/1.19/lib64   -lmpi

C++ benchmarks:

126.lammps:  -I/opt/sgi-mpt/1.19/include   -L/opt/sgi-mpt/1.19/lib64   -lmpi

Fortran benchmarks:

 -I/opt/sgi-mpt/1.19/include   -L/opt/sgi-mpt/1.19/lib64   -lmpi

Benchmarks using both Fortran and C:

 -I/opt/sgi-mpt/1.19/include   -L/opt/sgi-mpt/1.19/lib64   -lmpi

The flags file that was used to format this result can be browsed at
http://www.spec.org/mpi2007/flags/EM64T_Intel101_flags.20080611.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/mpi2007/flags/EM64T_Intel101_flags.20080611.xml.
