SPEC® MPIM2007 Result

Copyright 2006-2010 Standard Performance Evaluation Corporation

SGI

SGI Altix 4700 Bandwidth System (Itanium 2
Processor 9040 1.6GHz/18M)

SPECmpiM_peak2007 = Not Run

MPI2007 license: 4 Test date: May-2007
Test sponsor: SGI Hardware Availability: Jul-2006
Tested by: SGI Software Availability: Apr-2007

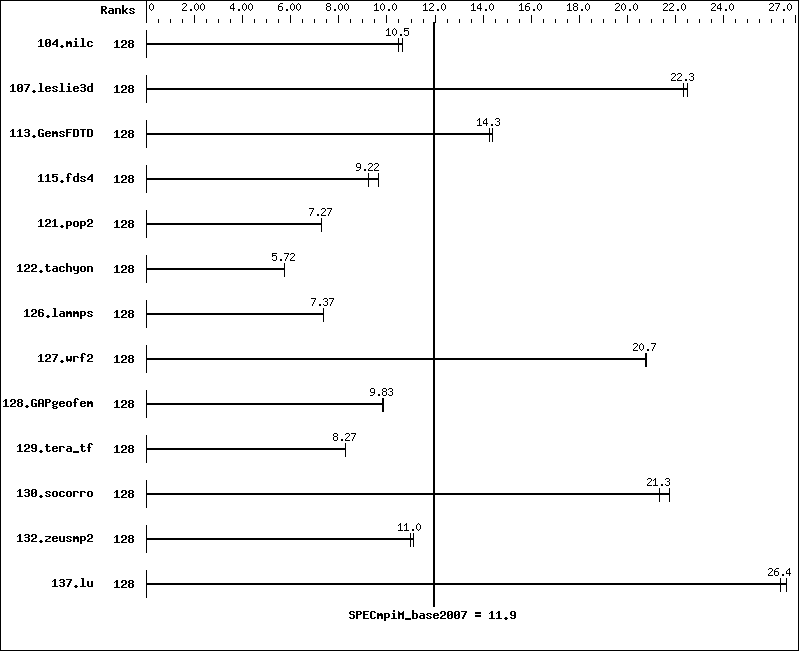

Benchmark results graph

Results Table

Benchmark Base Peak
Ranks Seconds Ratio Seconds Ratio Seconds Ratio Ranks Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
104.milc 128 149 10.5  147 10.7
107.leslie3d 128 234 22.3  232 22.5
113.GemsFDTD 128 438 14.4  442 14.3
115.fds4 128 211 9.22 202 9.67
121.pop2 128 567 7.27 567 7.28
122.tachyon 128 489 5.72 489 5.72
126.lammps 128 395 7.37 396 7.37
127.wrf2 128 376 20.7  375 20.8
128.GAPgeofem 128 210 9.83 209 9.88
129.tera_tf 128 334 8.28 335 8.27
130.socorro 128 176 21.7  179 21.3
132.zeusmp2 128 282 11.0  280 11.1
137.lu 128 139 26.4  138 26.6
Hardware Summary
Type of System: SMP
Compute Node: SMP
File Server Node: SMP
Total Compute Nodes: 1
Total Chips: 64
Total Cores: 128
Total Threads: 128
Total Memory: 512 GB
Base Ranks Run: 128
Minimum Peak Ranks: --
Maximum Peak Ranks: --
Software Summary
C Compiler: Intel C Itanium Compiler for Itanium-based
Applications Version 9.1 (Build 20070320)
C++ Compiler: Intel C++ Itanium Compiler for Itanium-based
Applications Version 9.1 (Build 20070320)
Fortran Compiler: Intel Fortran Itanium Compiler for Itanium-based
Applications Version 9.1 (Build 20070320)
Base Pointers: 64-bit
Peak Pointers: 64-bit
MPI Library: SGI Message Passing Toolkit (MPT) Version 1.15
Other MPI Info: None
Pre-processors: None
Other Software: None

Node Description: SMP

Hardware
Number of nodes: 1
Uses of the node: compute, file server
Vendor: SGI
Model: SGI Altix 4700 Bandwidth System (Itanium 2
Processor 9040 1.6GHz/18M)
CPU Name: Dual-Core Intel Itanium 2 9040
CPU(s) orderable: 1-512 chips
Chips enabled: 64
Cores enabled: 128
Cores per chip: 2
Threads per core: 1
CPU Characteristics: 533MHz FSB
CPU MHz: 1600
Primary Cache: 16 KB I + 16 KB D on chip per core
Secondary Cache: 1 MB I + 256 KB D on chip per core
L3 Cache: 9 MB I+D on chip per core
Other Cache: None
Memory: 512 GB (8*1GB DDR2-400 DIMMS per 2 core module)
Disk Subsystem: 36 x 73 GB FibreChannel (Seagate Cheetah 15k rpm)
Other Hardware: None
Adapter: None
Number of Adapters: 0
Slot Type: Not applicable
Data Rate: Not applicable
Ports Used: 0
Interconnect Type: None
Software
Adapter: None
Adapter Driver: Not applicable
Adapter Firmware: Not applicable
Operating System: SUSE Linux Enterprise Server 10 +
SGI ProPack 5 Service Pack 1
Local File System: 36 x 73 GB FibreChannel (Seagate Cheetah 15k rpm)
Shared File System: None
System State: Multi-user
Other Software: None

General Notes

 setenv MPI_DSM_DISTRIBUTE 1
      Ensures that each MPI process gets a unique CPU and physical
      memory on the node with which that CPU is associated.  The
      CPUs are chosen by simply starting at cpuset-relative CPU 0
      and incrementing until all MPI processes have been forked.
 setenv MPI_REQUEST_MAX 65536
      Determines the maximum number of nonblocking sends and
      receives that can simultaneously exist for any single MPI
      process.  MPI generates an error message if this limit
      (or the default, if not set) is exceeded.  Default:  16384
 limit stacksize unlimited
      Removes limits on the maximum size of the automatically-
      extended stack region of the current process and each
      process it creates.

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

126.lammps:  icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

121.pop2:  -DSPEC_MPI_CASE_FLAG
127.wrf2:  -DSPEC_MPI_LINUX   -DSPEC_MPI_CASE_FLAG

Base Optimization Flags

C benchmarks:

 -O3   -ipo   -IPF-fp-relaxed   -lmpi

C++ benchmarks:

126.lammps:  -O3   -ipo   -IPF-fp-relaxed   -ansi-alias   -lmpi

Fortran benchmarks:

 -O3   -ipo   -IPF-fp-relaxed   -lmpi

Benchmarks using both Fortran and C:

 -O3   -ipo   -IPF-fp-relaxed   -lmpi

The flags file that was used to format this result can be browsed at
http://www.spec.org/mpi2007/results/flags/Intel-ic91-ipf.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/mpi2007/results/flags/Intel-ic91-ipf.xml.
