SPEC® MPIM2007 Result

Copyright 2006-2010 Standard Performance Evaluation Corporation

Hewlett Packard Company

HP Proliant BL460c blade Cluster Platform 3000BL

SPECmpiM_peak2007 = Not Run

MPI2007 license: 0001 Test date: May-2007
Test sponsor: Hewlett-Packard Company Hardware Availability: May-2007
Tested by: HPCD Software Availability: May-2007

SPEC has determined that this result was not in compliance with the SPEC
MPI2007 run and reporting rules. Specifically, the result did not meet the
requirement for baseline optimization flags to not use assertion flags (the
flag -fno-alias is a violation of this rule). The result was found to be
performance neutral compared to runs without -fno-alias. Replacement
results could not be produced because of system access limitations.

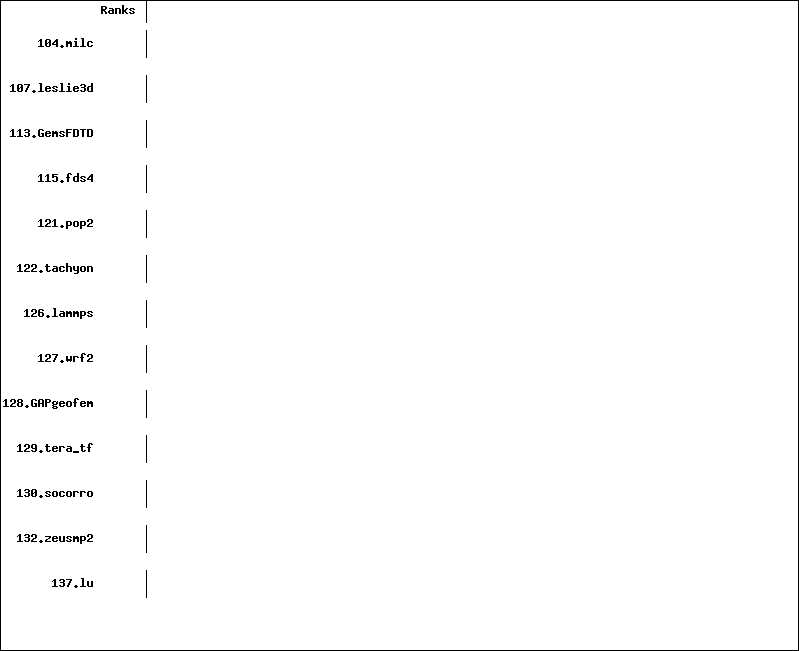

Benchmark results graph

Results Table

Benchmark Base Peak
Ranks Seconds Ratio Seconds Ratio Seconds Ratio Ranks Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
104.milc NC NC NC NC NC NC NC
107.leslie3d NC NC NC NC NC NC NC
113.GemsFDTD NC NC NC NC NC NC NC
115.fds4 NC NC NC NC NC NC NC
121.pop2 NC NC NC NC NC NC NC
122.tachyon NC NC NC NC NC NC NC
126.lammps NC NC NC NC NC NC NC
127.wrf2 NC NC NC NC NC NC NC
128.GAPgeofem NC NC NC NC NC NC NC
129.tera_tf NC NC NC NC NC NC NC
130.socorro NC NC NC NC NC NC NC
132.zeusmp2 NC NC NC NC NC NC NC
137.lu NC NC NC NC NC NC NC
Hardware Summary
Type of System: Homogenous
Compute Node: HP XC Cluster
Interconnect: DDR InfiniBand
File Server Node: HP ProLiant DL380 G4 file server
Total Compute Nodes: 8
Total Chips: 16
Total Cores: 32
Total Threads: 32
Total Memory: 64 GB
Base Ranks Run: 32
Minimum Peak Ranks: --
Maximum Peak Ranks: --
Software Summary
C Compiler: Intel C 9.1.045
C++ Compiler: Intel C++ 9.1.045
Fortran Compiler: Intel Fortran 9.1.040
Base Pointers: 64-bit
Peak Pointers: 64-bit
MPI Library: HP-MPI 2.2.5
Other MPI Info: None
Pre-processors: No
Other Software: None

Node Description: HP XC Cluster

Hardware
Number of nodes: 8
Uses of the node: compute
Vendor: Hewlett-Packard Company
Model: XC3000
CPU Name: Intel Xeon 5160
CPU(s) orderable: 1-2 chips
Chips enabled: 2
Cores enabled: 4
Cores per chip: 2
Threads per core: 1
CPU Characteristics: 1333 MHz FSB
CPU MHz: 3000
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 8 GB
Disk Subsystem: Ext 3
Other Hardware: None
Adapter: PCI-Express DDR InfiniBand HCA
Number of Adapters: 1
Slot Type: Mezzanine - PCIe x8
Data Rate: Infiniband 4x DDR
Ports Used: 1
Interconnect Type: InfiniBand
Software
Adapter: PCI-Express DDR InfiniBand HCA
Adapter Driver: Voltiare GridStack 3.5.5_25
Adapter Firmware: Hp 1.2
Operating System: Redhat 4 Update 4
Local File System: VXFS
Shared File System: NFS
System State: Multi User
Other Software: None

Node Description: HP ProLiant DL380 G4 file server

Hardware
Number of nodes: 1
Uses of the node: file server
Vendor: Hewlett-Packard Company
Model: DL380 G4
CPU Name: Intel Xeon
CPU(s) orderable: 1-2 chips
Chips enabled: 2
Cores enabled: 2
Cores per chip: 1
Threads per core: 1
CPU Characteristics: None
CPU MHz: 3800
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 6 GB
Disk Subsystem: SCSI
Other Hardware: None
Adapter: PCI-Express DDR InfiniBand HCA
Number of Adapters: 1
Slot Type: PCIe x4
Data Rate: Infiniband 4x DDR
Ports Used: 1
Interconnect Type: InfiniBand
Software
Adapter: PCI-Express DDR InfiniBand HCA
Adapter Driver: Voltiare GridStack 3.5.5_25
Adapter Firmware: Hp 1.2
Operating System: Redhat 4 Update 4
Local File System: 2 x 146GB Ultra320 SCSI 10k RPM Disks RAID 0+1
Shared File System: N/A
System State: Multi User
Other Software: None

Interconnect Description: DDR InfiniBand

Hardware
Vendor: Voltaire
Model: ISR
Switch Model: HP 4X DDR IB Switch Module for HP BladeSystem
C-Class
Number of Switches: 1
Number of Ports: 16
Data Rate: Infiniband 4x DDR
Firmware: 1.30
Switch Model: Voltaire 24 port External switch for
subnet management ISR 9024
Number of Switches: 1
Number of Ports: 24
Data Rate: Infiniband 4x DDR
Firmware: 0.8.6
Topology: two level, 1 for subnet manager, and 1 for leaf.
Primary Use: MPI and file system traffic

General Notes

To run spec mpi2007 on XC3000 cluster.
module load mpi
. ./shrc
. /opt/intel/fc/9.1.040/bin/ifortvars.sh
. /opt/intel/cc/9.1.045/bin/iccvars.sh
runspec -c linux_amd_intel medium  --reportable --ranks=NN --define CMD_PREFIX= --define MPIRUN_OPTIONS= --flagsurl=hpmpi-intel.xml -o cfg,txt,html,check
cluster launch performed via slurm's srun
  submit=  \$MPI_ROOT/bin/mpirun  -srun $command

Base Compiler Invocation

C benchmarks:

 mpicc -mpicc icc

C++ benchmarks:

126.lammps:  mpiCC -mpicxx icpc

Fortran benchmarks:

107.leslie3d:  mpif90 -mpif90 ifort
113.GemsFDTD:  mpif90 -mpif90 ifort
115.fds4:  mpif90 -mpif90 ifort
129.tera_tf:  mpif90 -mpif90 ifort
132.zeusmp2:  mpif90 -mpif90 ifort
137.lu:  mpif90 -mpif90 ifort

Benchmarks using both Fortran and C (except as noted below):

 mpicc -mpicc icc   mpif90 -mpif90 ifort

Base Portability Flags

121.pop2:  -DSPEC_MPI_CASE_FLAG
127.wrf2:  -DSPEC_MPI_LINUX   -DSPEC_MPI_CASE_FLAG

Base Optimization Flags

C benchmarks:

 -O3   -no-prec-div   -ftz   -fno-alias   -xT

C++ benchmarks:

126.lammps:  -O3   -no-prec-div   -ftz   -fno-alias   -xT

Fortran benchmarks:

107.leslie3d:  -O3   -no-prec-div   -ftz   -fno-alias   -xT
113.GemsFDTD:  -O3   -no-prec-div   -ftz   -fno-alias   -xT
115.fds4:  -O3   -no-prec-div   -ftz   -fno-alias   -xT
129.tera_tf:  -O3   -no-prec-div   -ftz   -fno-alias   -xT
132.zeusmp2:  -O3   -no-prec-div   -ftz   -fno-alias   -xT
137.lu:  -O3   -no-prec-div   -ftz   -fno-alias   -xT

Benchmarks using both Fortran and C:

121.pop2:  -O3   -no-prec-div   -ftz   -fno-alias   -xT
127.wrf2:  Same as 121.pop2
128.GAPgeofem:  Same as 121.pop2
130.socorro:  Same as 121.pop2

The flags file that was used to format this result can be browsed at
http://www.spec.org/mpi2007/flags/MPI2007_flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/mpi2007/flags/MPI2007_flags.xml.
