SPEC Seal of Reviewal SPECmail2001 Result
Copyright © 1999-2001 Standard Performance Evaluation Corporation
MIO Mail Server 3.30 SPECmail2001 msgs/min = 1,000
SPEC license # 000071 Tested by:
Mobile Internet (Mobico)		 Test date:
Jul-2002		 Hardware Avail:
Sep-2001		 Software Avail:
Jun-2002

1,000 SPECmail2001 messages per minute is equivalent to 200,000 SPECmail2001_users.

Detail Summary | General Notes

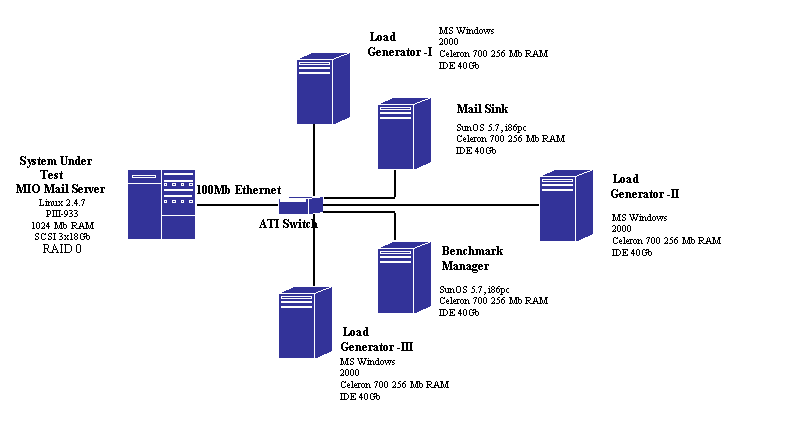

System configurations: SMTP Server,POP3 Server,Message Store | Benchmark Manager, Mail Sink | Load Generator I, Load Generator II, Load Generator III | Configuration diagram


Summary Results
Function Response
time limit
(seconds)		 Required
Percentage
Compliant		 Percentage Compliant
80% 100% 120%
SMTP Connect 5 >95% 100.00% 100.00% 70.24%
SMTP Data 5 >95% 98.80% 96.91% 24.99%
POP Connect 5 >95% 100.00% 100.00% 44.27%
POP Status 5 >95% 100.00% 100.00% 100.00%
POP Retrieve 5 >95% 100.00% 100.00% 99.79%
POP Delete 5 >95% 100.00% 100.00% 100.00%
Delivery Time 60 >95% 99.37% 99.74% 65.95%
Error Rate NA <1% 0.00% 0.00% 20.11%

SMTP Server,POP3 Server,Message Store (1 system)
Software
Mio Mail Server: 3.30 Operating System: Red Hat Linux 7.2 (kernel 2.4.7-10)
Availability: Jun-2002 File System: ext2
Hardware
Vendor: Intel CPU: Intel PIII
Model Name: STL2 Server Board+RAID Board SRC231UL CPU MHz: 933
Availability: Jan-2001 CPUs Enabled: 1 core, 1 chip, 1 core/chip
Disk Subsystem: 3 x 18GB SCSI Primary Cache: 16KB(I) + 16KB(D) on chip
Memory (MB): 1024 Secondary Cache: 256KB
Network: Intel 10/100 Pro Other Cache: N/A
# of Systems: 1 Other: RAID-0
Notes / Tuning Information
Tuning (/etc/sysctl.conf):
net.ipv4.tcp_fin_timeout=60
fs.file-max=32678

Benchmark Manager, Mail Sink (2 systems)
Software
JVM: Sun JDK v1.2.1 (native threads,sunwjit) Operating System: SunOS 5.7 i86pc
Availability: Sep-2001 File System: UFS
Hardware
Vendor: CPU: Celeron
Model Name: CPU MHz: 700
Availability: Sep-2001 CPUs Enabled: 1 core, 1 chip, 1 core/chip
Disk Subsystem: 1 x 40GB Primary Cache: 16KbI + 16KbD
Memory (MB): 256 Secondary Cache: 256Kb Unified On-Chip
Network: Intel 10/100 Pro Other Cache: N/A
# of Systems: 2 Other: N/A
Notes / Tuning Information


















Load Generator I, Load Generator II,  Load Generator III (3 systems)







Software



JVM:
Sun Java 2 SDK SE v1.3.1_01 (symc)
Operating System:
Microsoft Windows 2000




Availability:
Sep-2001
File System:
NTFS











Hardware



Vendor:

CPU:
Celeron




Model Name:

CPU MHz:
700




Availability:
Sep-2001
CPUs Enabled:
1 core, 1 chip, 1 core/chip




Disk Subsystem:
1 x 40GB
Primary Cache:
16KbI + 16KbD




Memory (MB):
256
Secondary Cache:
256Kb Unified On-Chip




Network:
Intel 10/100 Pro
Other Cache:
N/A




# of Systems:
3
Other:
N/A












Notes / Tuning Information






Set the following registry parameter:
HKEY_LOCAL_MACHINE/SYSTEM/CurrentControlSet/Services/Tcpip/Parameters
MaxUserPort = 0xfffe



















General Notes / Tuning Information





-Network connectivity
ATI FS708 8-port ethernet switch 1/100Mb
-Install software package
  pkgadd -d MIOserv.pkg
and start standart configuration creation script
cd mio/bin
./makedefconf.sh
./admcmd -def -s servman setprop autostart mqueue,smtp,pop3
./admcmd -def -s general setprop msg_daemon_mode 1
./admcmd -def -s general setprop max_mbox_size_unit 1
./admcmd -def -s general setprop max_mbox_size 104857600
./admcmd -def -s general setprop max_num_recps 100
./admcmd -def -s pop3 setprop minprocs  2
./admcmd -def -s pop3 setprop threads   200
./admcmd -def -s pop3 setprop incpercent 100
./admcmd -def -s pop3 setprop log_level 2
./admcmd -def -s smtp setprop minprocs  2
./admcmd -def -s smtp setprop threads   200
./admcmd -def -s smtp setprop incpercent 100
./admcmd -def -s smtp setprop log_level 2
./admcmd -def -s smtp setprop direct_delivery 1
./admcmd -def -s mqueue setprop max_local_channels    50
./admcmd -def -s mqueue setprop max_remote_channels   50
./admcmd -def -s mqueue setprop jobs_per_leaf   50
./admcmd -def -s mqueue setprop log_level 2

The SUT requires an APC Smart UPS 1400.









For questions about this result, please contact the tester.

For other inquiries, please contact
webmaster@spec.org

Copyright © 1999-2001 Standard Performance Evaluation Corporation



First published at SPEC.org on 31-Jul-2002


Benchmark run on Tue Jul 16 00:58:22 GMT-03:00 2002 by SPECmail2001 v1.00

Report generated on Mon Apr 25 17:24:38 EDT 2005 by SPECmail2001 v1.05 HTML Formatter
