SPECjbb2015 Report for jbb2015-20250205-01540 : 317621 max-jOPS ; 273220 critical-jOPS

SUT Description

Hardware hw_1
Name	Hyper SuperServer SYS-212H-TN
Vendor	Supermicro
Vendor URL	https://www.supermicro.com
Available	Feb-2025
Model	X14SBH
Form Factor	2U
CPU Name	Intel Xeon 6787P
CPU Characteristics	86 Core, 2.0 GHz, 336 MB L3 Cache (Turbo Boost Technology up to 3.8 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	1
Cores Per System	86
Cores Per Chip	86
Threads Per System	172
Threads Per Core	2
Version	1.2 (01/24/2025)
CPU Frequency (MHz)	2000
Primary Cache	64 KB(I) + 48 KB(D) per core
Secondary Cache	2 MB (I+D) per core
Tertiary Cache	336 MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 480 GB M.2 NVMe SSD
File System	xfs
Memory Amount (GB)	512
# and size of DIMM(s)	8 x 64 GB
Memory Details	64 GB 2Rx4 PC5-8800
# and type of Network Interface Cards (NICs)	2 x 1Gbit NICs
Power Supply Quantity and Rating (W)	1 x PWS-1K63A-1R
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP6
Vendor	SUSE
Vendor URL	https://www.suse.com/
Version	6.4.0-150600.21-default
Available	Jun-2024
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 23.0.2
Vendor	Oracle
Vendor URL	http://www.oracle.com/
Version	Java HotSpot 64-bit Server VM, version 23.0.2
Available	Jan-2025
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Settings: Workload Profile=HPC
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(2), jvm_TxInjector_1(2)
OS Image Description	os_1
Tuning	tuned-adm profile throughput-performance systemctl stop systemd-update-utmp-runlevel.service echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled echo 56000000 > /sys/kernel/debug/sched/latency_ns echo 180000 > /sys/kernel/debug/sched/min_granularity_ns echo 750 > /sys/kernel/debug/sched/migration_cost_ns echo 1000000 > /sys/kernel/debug/sched/wakeup_granularity_ns echo 12 > /sys/kernel/debug/sched/nr_migrate ulimit -v 800000000 ulimit -m 800000000 ulimit -l 800000000 ulimit -n 1024000
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	Used numactl to interleave memory on all CPUs numactl --interleave=all
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-server -Xms235G -Xmx235G -Xmn232G -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelGC -XX:ParallelGCThreads=86 -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:MaxTenuringThreshold=15 -XX:TargetSurvivorRatio=95 -XX:-UsePerfData -Xnoclassgc -XX:SurvivorRatio=64 -XX:InitialCodeCacheSize=25m -XX:InlineSmallCode=10k
Tuning	Used numactl to affinitize one Backend JVM to one NUMA node Group1: numactl --cpunodebind=0 --localalloc Group2:numactl --cpunodebind=1 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	Used numactl to affinitize one Backend JVM to one NUMA node Group1: numactl --cpunodebind=0 --localalloc Group2:numactl --cpunodebind=1 --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	313386	317621	321856	326091	330326

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	226569	260449	281624	294329	311268	273220

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	8470 / 12705	- / 4235	- / 4235	- / 4235	- / 4235	- / 4235
1000us	317621 / -	105874 / 21175	4235 / 8470	4235 / 8470	4235 / 8470	- / 4235
5000us	317621 / -	317621 / -	304916 / 300681	275272 / 266802	199043 / 203278	12705 / 16940
10000us	317621 / -	317621 / -	317621 / -	304916 / 300681	224452 / 228687	12705 / 16940
25000us	317621 / -	317621 / -	317621 / -	309151 / 313386	258332 / 262567	21175 / 16940
50000us	317621 / -	317621 / -	317621 / -	317621 / 313386	283742 / 279507	127048 / 50819
75000us	317621 / -	317621 / -	317621 / -	317621 / -	296446 / 292212	182103 / 165163
100000us	317621 / -	317621 / -	317621 / -	317621 / -	309151 / 313386	224452 / 203278
200000us	317621 / -	317621 / -	317621 / -	317621 / -	317621 / -	287977 / 279507
500000us	317621 / -	317621 / -	317621 / -	317621 / -	317621 / -	317621 / 296446
1000000us	317621 / -	317621 / -	317621 / -	317621 / -	317621 / -	317621 / -

Number of probes

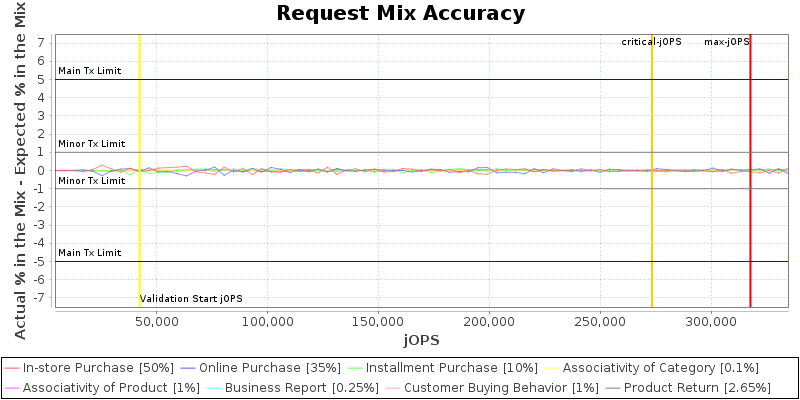

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

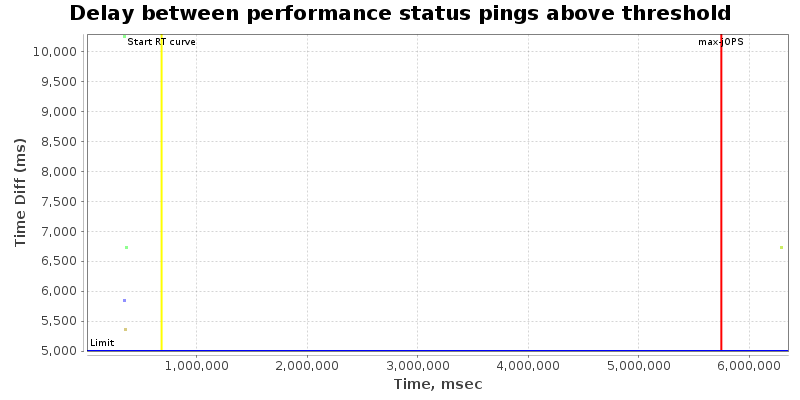

Delay between performance status pings during RT Curve (Response-Throughput Curve)

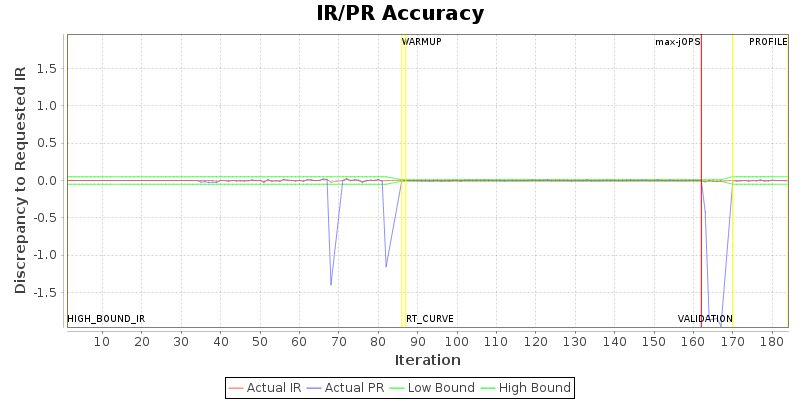

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.client.pool.size	256	232
specjbb.comm.connect.selector.runner.count	0	21
specjbb.comm.connect.timeouts.connect	60000	600000
specjbb.comm.connect.timeouts.read	60000	600000
specjbb.comm.connect.timeouts.write	60000	600000
specjbb.comm.connect.worker.pool.max	256	172
specjbb.comm.connect.worker.pool.min	1	1
specjbb.controller.host	localhost	localhost
specjbb.controller.port	24000	24000
specjbb.controller.type	HBIR_RT	HBIR_RT
specjbb.customerDriver.threads	64	{=75, probe=69, saturate=85}
specjbb.forkjoin.workers	172	{Tier1=166, Tier2=1, Tier3=11}
specjbb.group.count	1	2
specjbb.mapreducer.pool.size	172	86
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 423495 IR

High-bound (settled) is 352946 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.04, Feb 16, 2024]

Supermicro Hyper SuperServer SYS-212H-TN	317621 SPECjbb2015-MultiJVM max-jOPS 273220 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Supermicro	Test Sponsor: Supermicro	Test location: Taipei, Taiwan	Test date: Jan 30, 2025
SPEC license #: 001176	Hardware Availability: Feb-2025	Software Availability: Jan-2025	Publication: Mon Feb 24 16:09:44 EST 2025

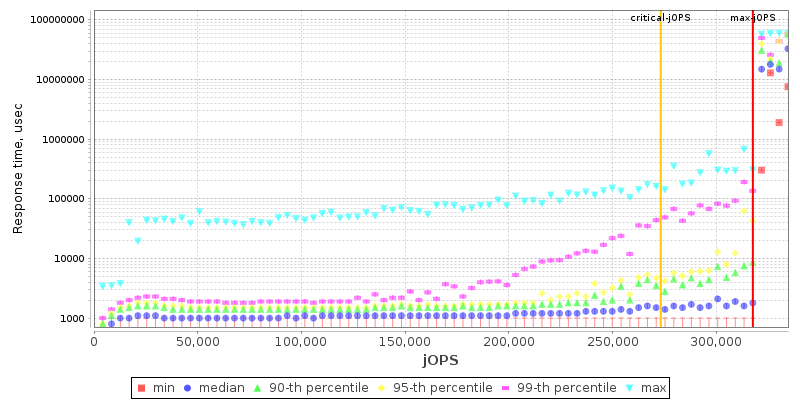

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host (# of groups: 2) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
