SPECjbb2015 Report for jbb2015-20250205-01539 : 614126 max-jOPS ; 544855 critical-jOPS

SUT Description

Hardware hw_1
Name	QuantaGrid D55Q-2U
Vendor	Quanta Cloud Technology
Vendor URL	https://www.qct.io/
Available	Feb-2025
Model	QuantaGrid D55Q-2U
Form Factor	2U
CPU Name	Intel Xeon 6787P
CPU Characteristics	86 Core, 2.00 GHz, 336 MB L3 Cache (Turbo Boost Technology up to 3.80 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	172
Cores Per Chip	86
Threads Per System	344
Threads Per Core	2
Version	3A13.QCT001 01/16/2025
CPU Frequency (MHz)	2000
Primary Cache	64 KB(I)+48 KB(D) per core
Secondary Cache	2 MB (I+D) per core
Tertiary Cache	336 MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 960GB NVMe SSD
File System	xfs
Memory Amount (GB)	1024
# and size of DIMM(s)	16 x 64 GB
Memory Details	2Rx4 DDR5 MRDIMM 8000 MT/s
# and type of Network Interface Cards (NICs)	2 x 25 Gbit NICs
Power Supply Quantity and Rating (W)	2 x 1600W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP6
Vendor	SUSE
Vendor URL	https://www.suse.com/
Version	6.4.0-150600.21-default
Available	Jun-2024
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 23.0.2
Vendor	Oracle
Vendor URL	http://www.oracle.com/
Version	Java HotSpot 64-bit Server VM, version 23.0.2
Available	Jan-2025
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Configuration: Power Performance Tuning=BIOS Controls EPB ENERGY_PERF_BIAS_CFG mode=Performance C1 to C1e Promotion=Disable ACPI C6x Enumeration=Disable
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description	os_1
Tuning	cpupower -c all frequency-set -g performance tuned-adm profile latency-performance systemctl stop systemd-update-utmp-runlevel.service echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled echo 56000000 > /sys/kernel/debug/sched/latency_ns echo 180000 > /sys/kernel/debug/sched/min_granularity_ns echo 750 > /sys/kernel/debug/sched/migration_cost_ns echo 1000000 > /sys/kernel/debug/sched/wakeup_granularity_ns echo 12 > /sys/kernel/debug/sched/nr_migrate ulimit -n 1024000 ulimit -v 800000000 ulimit -m 800000000 ulimit -l 800000000
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	numactl used to interleave the controller amongst all available nodes, eg: numactl --interleave=all
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-server -Xms235G -Xmx235G -Xmn232G -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelGC -XX:ParallelGCThreads=86 -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:MaxTenuringThreshold=15 -XX:TargetSurvivorRatio=95 -XX:-UsePerfData -Xnoclassgc -XX:SurvivorRatio=64 -XX:InitialCodeCacheSize=25m -XX:InlineSmallCode=10k
Tuning	Used numactl to affinitize each Backend JVM to each NUMA node Group1: numactl --cpunodebind=0 --localalloc Group2: numactl --cpunodebind=1 --localalloc Group3: numactl --cpunodebind=2 --localalloc Group4: numactl --cpunodebind=3 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	Used numactl to affinitize each Injector JVM to each NUMA node Group1: numactl --cpunodebind=0 --localalloc Group2:numactl --cpunodebind=1 --localalloc Group3: numactl --cpunodebind=2 --localalloc Group4:numactl --cpunodebind=3 --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	607067	614126	621185	628244	635303

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	468242	518830	562361	582360	603537	544855

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	7059 / 14118	- / 7059	- / 7059	- / 7059	- / 7059	- / 7059
1000us	614126 / -	14118 / 21177	7059 / 14118	7059 / 14118	- / 7059	- / 7059
5000us	614126 / -	614126 / -	585890 / 592949	564714 / 571773	409417 / 324710	14118 / 21177
10000us	614126 / -	614126 / -	614126 / -	585890 / 592949	472948 / 458830	28236 / 21177
25000us	614126 / -	614126 / -	614126 / -	600008 / 607067	515301 / 522360	42354 / 21177
50000us	614126 / -	614126 / -	614126 / -	614126 / -	571773 / 557655	232944 / 63530
75000us	614126 / -	614126 / -	614126 / -	614126 / -	585890 / 578831	310592 / 225885
100000us	614126 / -	614126 / -	614126 / -	614126 / -	600008 / 607067	409417 / 303534
200000us	614126 / -	614126 / -	614126 / -	614126 / -	614126 / -	543537 / 522360
500000us	614126 / -	614126 / -	614126 / -	614126 / -	614126 / -	614126 / -
1000000us	614126 / -	614126 / -	614126 / -	614126 / -	614126 / -	614126 / -

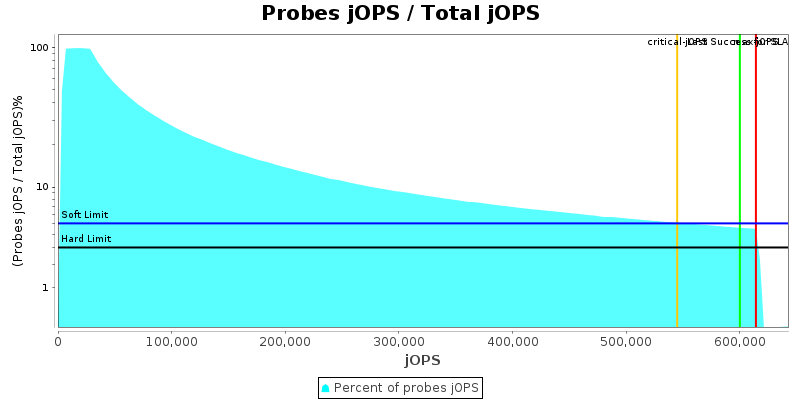

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

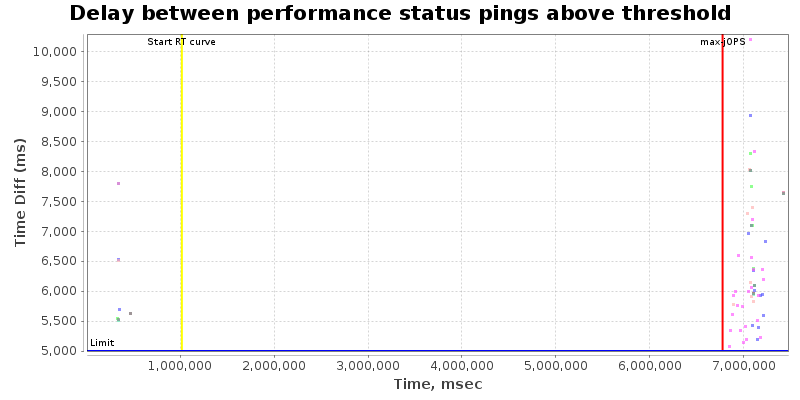

Delay between performance status pings during RT Curve (Response-Throughput Curve)

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM2	Group3.Backend.beJVM	Group3.TxInjector.txiJVM3	Group4.Backend.beJVM	Group4.TxInjector.txiJVM4
specjbb.comm.connect.client.pool.size	256	232	256	256	256	256	256	256	256	256
specjbb.comm.connect.selector.runner.count	0	22	0	0	0	0	0	0	0	0
specjbb.comm.connect.timeouts.connect	60000	600000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.read	60000	600000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.write	60000	600000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.worker.pool.max	256	344	256	256	256	256	256	256	256	256
specjbb.comm.connect.worker.pool.min	1	1
specjbb.controller.type	HBIR_RT	HBIR_RT
specjbb.customerDriver.threads	64	{=75, probe=69, saturate=85}
specjbb.forkjoin.workers	344	{Tier1=167, Tier2=1, Tier3=11}
specjbb.group.count	1	4
specjbb.mapreducer.pool.size	344	86

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 705892 IR

High-bound (settled) is 667436 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.04, Feb 16, 2024]

Quanta Cloud Technology QuantaGrid D55Q-2U	614126 SPECjbb2015-MultiJVM max-jOPS 544855 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Quanta Computer Inc.	Test Sponsor: Quanta Computer Inc.	Test location: Taoyuan, TW	Test date: Feb 02, 2025
SPEC license #: 9050	Hardware Availability: Feb-2025	Software Availability: Jan-2025	Publication: Mon Feb 24 16:09:44 EST 2025
