SPECjbb2015
Copyright © 2015-2024 Standard Performance Evaluation Corporation
Supermicro Hyper A+ Server AS -2125HS-TNR 267681 SPECjbb2015-Composite max-jOPS
247734 SPECjbb2015-Composite critical-jOPS
Tested by: Supermicro Test Sponsor: Supermicro Test location: San Jose, California Test date: October 20, 2024
SPEC license #: 001176 Hardware Availability: Nov-2022 Software Availability: Sep-2024 Publication: Thu Nov 14 16:59:31 EST 2024
Benchmark Results Summary

SPECjbb2015-Composite: Single JVM/Single Host
(# of groups: 2)

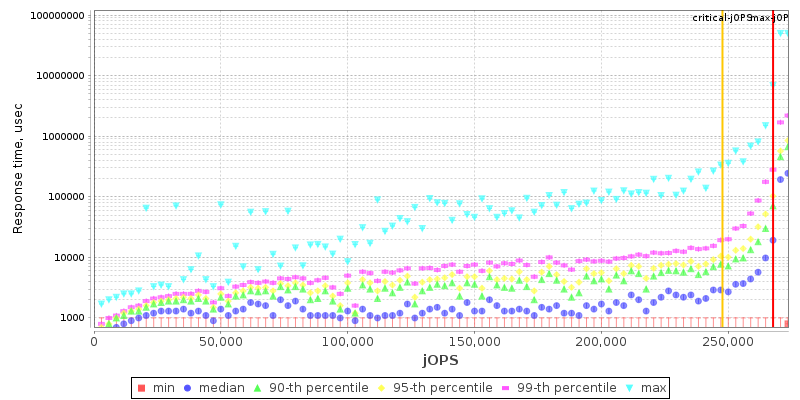

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorSupermicro
Vendor URLhttps://www.supermicro.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores64
Total Threads128
Total Memory Amount (GB)1536
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameHyper A+ Server AS -2125HS-TNR
VendorSupermicro
Vendor URLhttps://www.supermicro.com/
AvailableNov-2022
ModelHyper A+ Server AS -2125HS-TNR
Form Factor2U
CPU NameAMD EPYC 9374F
CPU Characteristics32 Core, 3.85GHz, 256MB L3 Cache (Max. Boost Clock up to 4.3GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System64
Cores Per Chip32
Threads Per System128
Threads Per Core2
Version1.9a 06/21/2024
CPU Frequency (MHz)3850
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache1MB (I+D) per core
Tertiary Cache256MB (I+D) on chip per chip
Other CacheNone
Disk1 x 480GB NVMe PCIe Gen4.0
File Systembtrfs
Memory Amount (GB)1536
# and size of DIMM(s)24 x 64GB
Memory Details64GB 2Rx4 PC5-38400R
# and type of Network Interface Cards (NICs)1 x 1 GbE NIC
Power Supply Quantity and Rating (W)1 x 1600w
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP6
VendorSUSE
Vendor URLhttps://www.suse.com/
Version6.4.0-150600.23.22-default
AvailableSep-2024
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 22.0.2
VendorOracle
Vendor URLhttps://www.oracle.com/
VersionJava HotSpot 64-bit Server VM, version 22.0.2
AvailableJul-2024
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning

Bios Settings:

  • NUMA nodes per socket = NPS2
  • Determinism Control = Manual
  • Determinism Slider = Power
  • L1 Stream HW Prefetcher = Disable
  • L2 Stream HW Prefetcher = Disable
  • xGMI Link Configuration = 4 xGMI Links
  • 4 Link xGMI max speed = 32Gbps
  • TDP Control = Manual
  • TDP = 400
  • PPT Control = Manual
  • PPT = 400
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning

  • cpupower -c all frequency-set -g performance
  • tuned-adm profile throughput-performance
  • ulimit -n 1024000
  • echo 950000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 20000000 > /proc/sys/kernel/sched_latency_ns
  • echo 40000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 1000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 40000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 128 > /proc/sys/kernel/sched_nr_migrate
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 1 > /proc/sys/kernel/numa_balancing
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line

-Xms1420g -Xmx1420g -Xmn1400g -server -XX:+UseParallelGC -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:MaxTenuringThreshold=5 -XX:-UseAdaptiveSizePolicy -XX:ParallelGCThreads=128 -XX:SurvivorRatio=120 -XX:TargetSurvivorRatio=95 -XX:+UseNUMA -XX:-UseAdaptiveNUMAChunkSizing -XX:+UseTransparentHugePages -XX:InlineSmallCode=11k -XX:TLABAllocationWeight=2 -XX:ThreadStackSize=140 -XX:AutoBoxCacheMax=32 -XX:OnStackReplacePercentage=100
Tuning

Used numactl to run on all available nodes

  • numactl --cpunodebind=0-3 --interleave=0-3
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 261798 264739 267681 270623 273564
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 210321 251502 257385 260327 263268 247734
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 102954 / 20591 2942 / 5883 - / 2942 - / 2942 - / 2942 - / 2942
1000us 241207 / 73539 126487 / 20591 8825 / 11766 8825 / 11766 5883 / 8825 - / 2942
5000us 264739 / 267681 258856 / 261798 220616 / 179435 217675 / 141194 173551 / 105896 52948 / 20591
10000us 267681 / - 264739 / 267681 255915 / 258856 244149 / 247090 208850 / 211792 100013 / 20591
25000us 267681 / - 267681 / - 261798 / 264739 258856 / 261798 250032 / 252973 108837 / 20591
50000us 267681 / - 267681 / - 264739 / 267681 261798 / 264739 255915 / 258856 167668 / 20591
75000us 267681 / - 267681 / - 267681 / - 264739 / 267681 258856 / 261798 188259 / 111779
100000us 267681 / - 267681 / - 267681 / - 264739 / 267681 261798 / 264739 205908 / 179435
200000us 267681 / - 267681 / - 267681 / - 267681 / - 264739 / 267681 241207 / 226499
500000us 267681 / - 267681 / - 267681 / - 267681 / - 267681 / - 255915 / 252973
1000000us 267681 / - 267681 / - 267681 / - 267681 / - 267681 / - 261798 / 264739
Number of probes
Probes jOPS / Total jOPS

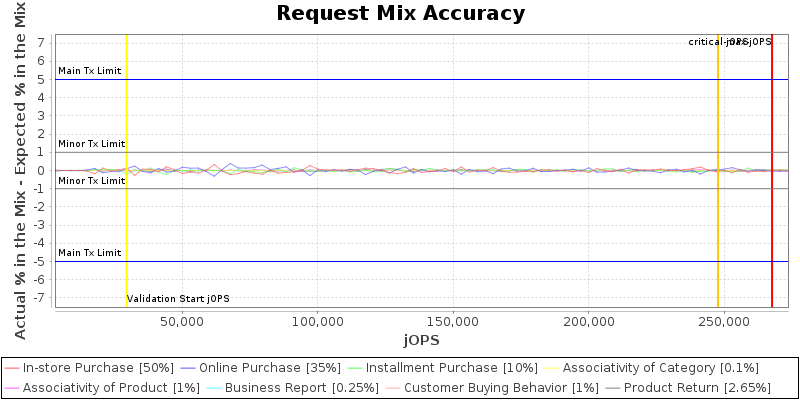

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

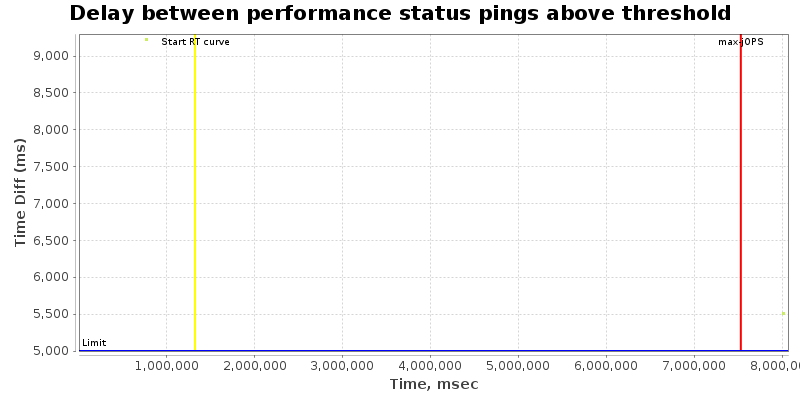

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.controller.rtcurve.warmup.step 0.1 0.2
specjbb.customerDriver.threads 64 {probe=72, saturate=128}
specjbb.forkjoin.workers 128 {Tier1=70, Tier2=1, Tier3=12}
specjbb.group.count 1 2
specjbb.heartbeat.period 10000 50000
specjbb.heartbeat.threshold 100000 500000
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 294155 IR
High-bound (settled) is 291115 IR
