SPECjbb2015
Copyright © 2015-2024 Standard Performance Evaluation Corporation
Supermicro Hyper A+ Server AS -2126HS-TN 529479 SPECjbb2015-Composite max-jOPS
500849 SPECjbb2015-Composite critical-jOPS
Tested by: Supermicro Test Sponsor: Supermicro Test location: San Jose, California Test date: October 01, 2024
SPEC license #: 001176 Hardware Availability: Oct-2024 Software Availability: Jul-2024 Publication: Thu Oct 17 11:43:39 EDT 2024
Benchmark Results Summary

SPECjbb2015-Composite: Single JVM/Single Host
(# of groups: 4)

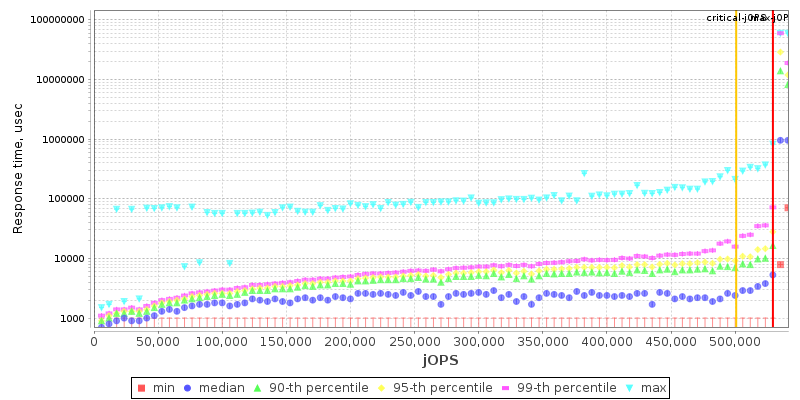

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorSupermicro
Vendor URLhttps://www.supermicro.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores192
Total Threads384
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameHyper A+ Server AS -2126HS-TN
VendorSupermicro
Vendor URLhttps://www.supermicro.com
AvailableOct-2024
ModelH14DSH
Form Factor2U
CPU NameAMD EPYC 9965
CPU Characteristics192 core, 2.25GHz, 384MB L3 Cache (Max. Boost Clock up to 3.7GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System192
Cores Per Chip192
Threads Per System384
Threads Per Core2
Version1.1 09/09/2024
CPU Frequency (MHz)2250
Primary Cache32KB(I)+48KB(D) per core
Secondary Cache1MB (I+D) per core
Tertiary Cache384MB (I+D) on chip per chip
Other CacheNone
Disk1 x 3.84 TB NVMe PCIe Gen5.0
File Systembtrfs
Memory Amount (GB)768
# and size of DIMM(s)12 x 64GB
Memory Details64GB 2Rx4 DDR5 RDIMM 6400 MHz, running at 6000 MHz.
# and type of Network Interface Cards (NICs)1 x 1 GbE NIC
Power Supply Quantity and Rating (W)2 x 1600w
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP6
VendorSUSE
Vendor URLhttp://suse.com/
Version6.4.0-150600.23.17-default
AvailableAug-2024
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 22.0.2
VendorOracle
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-bit Server VM, version 22.0.2
AvailableJul-2024
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning

BIOS Settings:

  • NUMA nodes per socket = NPS2
  • Determinism Control = Manual
  • Determinism Slider = Power
  • L1 Stream HW Prefetcher = Disable
  • L2 Stream HW Prefetcher = Disable
  • TDP Control = Manual
  • TDP = 500
  • PPT Control = Manual
  • PPT = 500
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning

  • cpupower -c all frequency-set -g performance
  • tuned-adm profile throughput-performance
  • ulimit -n 1024000

  • echo 950000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 100000 > /proc/sys/kernel/sched_latency_ns
  • echo 40000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 100000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 40000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 128 > /proc/sys/kernel/sched_nr_migrate
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 1 > /proc/sys/kernel/numa_balancing
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line

-Xms715g -Xmx715g -Xmn705g -server -XX:+UseParallelGC -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:MaxTenuringThreshold=15 -XX:-UseAdaptiveSizePolicy -XX:ParallelGCThreads=384 -XX:SurvivorRatio=40 -XX:TargetSurvivorRatio=95 -XX:-UseNUMA -XX:-UseAdaptiveNUMAChunkSizing -XX:+UseTransparentHugePages -XX:InlineSmallCode=11k -XX:TLABAllocationWeight=2 -XX:ThreadStackSize=180 -XX:AutoBoxCacheMax=32 -XX:OnStackReplacePercentage=100
Tuning

Used numactl to run on all available nodes

  • numactl --cpunodebind=0-1 --interleave=0-1
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 517713 523596 529479 535362 541245
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 414758 514771 526537 529479 529479 500849
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 35299 / 17649 - / 5883 - / 5883 - / 5883 - / 5883 - / 5883
1000us 511830 / 94130 41182 / 47065 11766 / 17649 5883 / 11766 - / 5883 - / 5883
5000us 529479 / - 523596 / 529479 341220 / 300038 270623 / 241207 200025 / 205908 35299 / 17649
10000us 529479 / - 529479 / - 517713 / 523596 500063 / 505947 417700 / 411817 105896 / 17649
25000us 529479 / - 529479 / - 529479 / - 523596 / 529479 511830 / 517713 105896 / 17649
50000us 529479 / - 529479 / - 529479 / - 529479 / - 523596 / 529479 105896 / 17649
75000us 529479 / - 529479 / - 529479 / - 529479 / - 529479 / - 252973 / 176493
100000us 529479 / - 529479 / - 529479 / - 529479 / - 529479 / - 376518 / 294155
200000us 529479 / - 529479 / - 529479 / - 529479 / - 529479 / - 482414 / 382401
500000us 529479 / - 529479 / - 529479 / - 529479 / - 529479 / - 523596 / 529479
1000000us 529479 / - 529479 / - 529479 / - 529479 / - 529479 / - 529479 / -

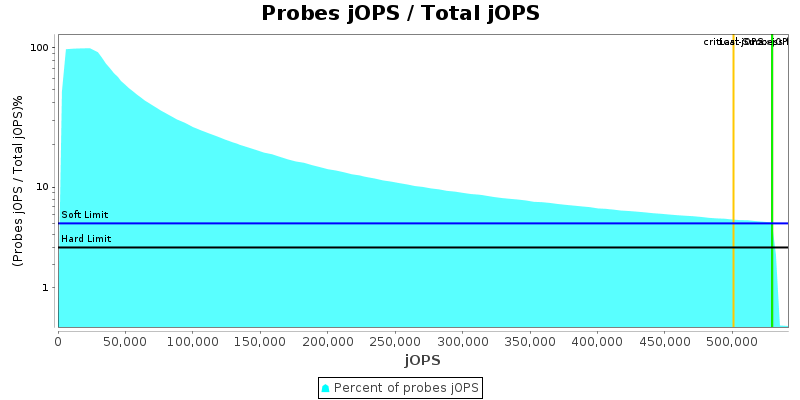

Number of probes
Probes jOPS / Total jOPS

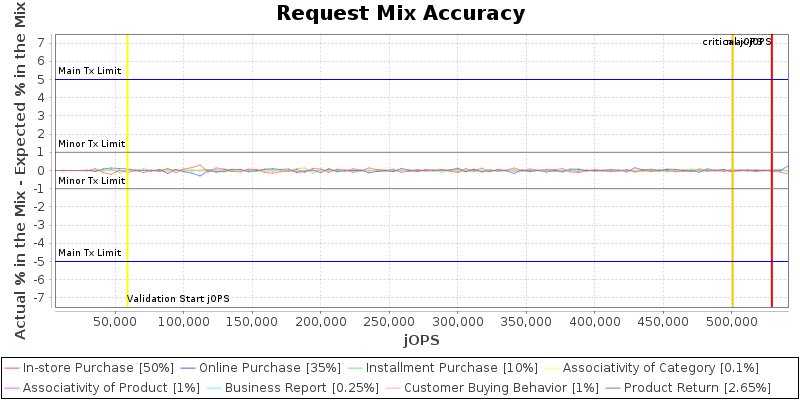

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

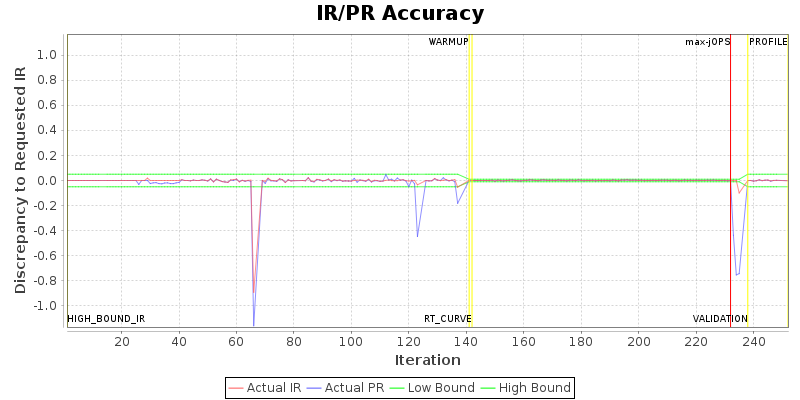

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 4
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.controller.rtcurve.warmup.step 0.1 0.2
specjbb.customerDriver.threads 64 {probe=68}
specjbb.forkjoin.workers 384 {Tier1=93, Tier2=1, Tier3=12}
specjbb.group.count 1 4
specjbb.heartbeat.period 10000 50000
specjbb.heartbeat.threshold 100000 500000
specjbb.mapreducer.pool.size 384 4
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 588310 IR
High-bound (settled) is 556263 IR
