SPECjbb2015 Report for jbb2015-20241002-01451 : 828952 max-jOPS ; 448796 critical-jOPS

SUT Description

Hardware hw_1
Name	Dell Inc. PowerEdge R6725
Vendor	Dell Inc.
Vendor URL	http://www.dell.com/
Available	Nov-2024
Model	PowerEdge R6725
Form Factor	1U Rack
CPU Name	AMD EPYC 9655
CPU Characteristics	96 core, 2.60 GHz, 384 MB L3 Cache (Max. Boost Clock up to 4.50GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	192
Cores Per Chip	96
Threads Per System	384
Threads Per Core	2
Version	0.2.4
CPU Frequency (MHz)	2600
Primary Cache	32 KB (I) + 48 KB (D) per core
Secondary Cache	1 MB (I+D) on chip per core
Tertiary Cache	384 MB (I+D) on chip per chip
Other Cache	None
Disk	1 X M.2 SSD 480GB (Boss card)
File System	xfs
Memory Amount (GB)	1536
# and size of DIMM(s)	24 x 64 GB
Memory Details	64 GB 2Rx4 PC5-6400B-R (slots A1-12, B1-12 populated), running at 6000 MT/s
# and type of Network Interface Cards (NICs)	1 X Broadcom BCM57504 NetXtreme-E Ethernet 25Gbit/s quad port
Power Supply Quantity and Rating (W)	1 x 1500
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP6
Vendor	SUSE
Vendor URL	https://www.suse.com
Version	6.4.0-150600.21-default
Available	Jun-2024
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle JAVA SE 22.0.2
Vendor	Oracle
Vendor URL	https://www.oracle.com
Version	Java HotSpot 64-bit Server VM, version 22.0.2
Available	Jul-2024
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Driver Description

Hardware hw_2
Name	Dell Inc. PowerEdge R6725
Vendor	Dell Inc.
Vendor URL	http://www.dell.com/
Available	Nov-2024
Model	PowerEdge R6725
Form Factor	1U Rack
CPU Name	AMD EPYC 9655
CPU Characteristics	96 core, 2.60 GHz, 384 MB L3 Cache (Max. Boost Clock up to 4.50GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	192
Cores Per Chip	96
Threads Per System	384
Threads Per Core	2
Version	0.2.4
CPU Frequency (MHz)	2600
Primary Cache	32 KB (I) + 48 KB (D) per core
Secondary Cache	1 MB (I+D) on chip per core
Tertiary Cache	384 MB (I+D) on chip per chip
Other Cache	None
Disk	1 X M.2 SSD 480GB (Boss card)
File System	xfs
Memory Amount (GB)	1536
# and size of DIMM(s)	24 x 64 GB
Memory Details	64 GB 2Rx4 PC5-6400B-R (slots A1-12, B1-12 populated), running at 6000 MT/s
# and type of Network Interface Cards (NICs)	1 X Broadcom BCM57504 NetXtreme-E Ethernet 25Gbit/s quad port
Power Supply Quantity and Rating (W)	1 x 1500
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_2
Name	SUSE Linux Enterprise Server 15 SP6
Vendor	SUSE
Vendor URL	https://www.suse.com
Version	6.4.0-150600.21-default
Available	Jun-2024
Bitness	64
Notes	None
Java Virtual Machine jvm_2
Name	Oracle JAVA SE 22.0.2
Vendor	Oracle
Vendor URL	https://www.oracle.com
Version	Java HotSpot 64-bit Server VM, version 22.0.2
Available	Jul-2024
Bitness	64
Notes	None
Other Software other_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Backend_1 : Backend
Driver
- Hardware config_2
  - OS Image os_Image_2
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	Non-virtual
Tuning	Dram Refresh Delay - Performance DIMM Self Healing (Post Package Repair) on Uncorrectable Memory Error - Disabled Correctable Error Logging - Disabled Virtualization Technology - Disabled L2 Stream HW Prefetcher - Disabled NUMA Nodes Per Socket - 4 L3 cache as NUMA Domain- Enabled TDP Control- Manual Customized cTDP - 400 Customized PPT - 400 System Profile - Custom CPU Power Management - Maximum Performance C-States - Disabled Determinism Control- Manual Determinism Slider - Power Determinism
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Backend_1(24)
OS Image Description	os_1
Tuning	echo 960000 > /proc/sys/kernel/sched_rt_runtime_us echo 800000000 > /proc/sys/kernel/sched_latency_ns echo 40000 > /proc/sys/kernel/sched_migration_cost_ns echo 910000000 > /proc/sys/kernel/sched_min_granularity_ns echo 2000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 9000 > /proc/sys/kernel/sched_nr_migrate echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/vm/numa_stat echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/enabled echo always > /sys/kernel/mm/transparent_hugepage/defrag
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms31g -Xmx31g -Xmn29g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:ParallelGCThreads=16 -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=12 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=11k -XX:MaxGCPauseMillis=100 -XX:LoopUnrollLimit=200 -XX:+UseTransparentHugePages -XX:TLABAllocationWeight=2 -XX:ThreadStackSize=140 -XX:CompileThresholdScaling=120 -XX:CICompilerCount=4 -XX:AutoBoxCacheMax=32 -XX:OnStackReplacePercentage=100 -XX:TLABSize=1m -XX:MinTLABSize=1m -XX:-ResizeTLAB -XX:TLABWasteTargetPercent=1 -XX:TLABWasteIncrement=1 -XX:YoungPLABSize=1m -XX:OldPLABSize=1m
Tuning	Used numactl to affinitize each Backend JVM to 8 Cores / 16 Threads: Group1: numactl --physcpubind=0-7,192-199 --localalloc Group2: numactl --physcpubind=8-15,200-207 --localalloc Group3: numactl --physcpubind=16-23,208-215 --localalloc Group4: numactl --physcpubind=24-31,216-223 --localalloc Group5: numactl --physcpubind=32-39,224-231 --localalloc Group6: numactl --physcpubind=40-47,232-239 --localalloc Group7: numactl --physcpubind=48-55,240-247 --localalloc Group8: numactl --physcpubind=56-63,248-255 --localalloc Group9: numactl --physcpubind=64-71,256-263 --localalloc Group10: numactl --physcpubind=72-79,264-271 --localalloc Group11: numactl --physcpubind=80-87,272-279 --localalloc Group12: numactl --physcpubind=88-95,280-287 --localalloc Group13: numactl --physcpubind=96-103,288-295 --localalloc Group14: numactl --physcpubind=104-111,296-303 --localalloc Group15: numactl --physcpubind=112-119,304-311 --localalloc Group16: numactl --physcpubind=120-127,312-319 --localalloc Group17: numactl --physcpubind=128-135,320-327 --localalloc Group18: numactl --physcpubind=136-143,328-335 --localalloc Group19: numactl --physcpubind=144-151,336-343 --localalloc Group20: numactl --physcpubind=152-159,344-351 --localalloc Group21: numactl --physcpubind=160-167,352-359 --localalloc Group22: numactl --physcpubind=168-175,360-367 --localalloc Group23: numactl --physcpubind=176-183,368-375 --localalloc Group24: numactl --physcpubind=184-191,376-383 --localalloc
Notes	None

Driver config_2 Configuration

Hardware
OS Images	os_Image_2(1)
Hardware Description	hw_2
Number of Systems	1
SW Environment	Non-virtual
Tuning	Dram Refresh Delay - Performance DIMM Self Healing (Post Package Repair) on Uncorrectable Memory Error - Disabled Correctable Error Logging - Disabled Virtualization Technology - Disabled L2 Stream HW Prefetcher - Disabled NUMA Nodes Per Socket - 4 L3 cache as NUMA Domain- Enabled TDP Control- Manual Customized cTDP - 400 Customized PPT - 400 System Profile - Custom CPU Power Management - Maximum Performance C-States - Disabled Determinism Control- Manual Determinism Slider - Power Determinism
Notes	None

OS Image os_Image_2
JVM Instances	jvm_Ctr_1(1), jvm_TxInjector_1(24)
OS Image Description	os_2
Tuning	echo 960000 > /proc/sys/kernel/sched_rt_runtime_us echo 800000000 > /proc/sys/kernel/sched_latency_ns echo 40000 > /proc/sys/kernel/sched_migration_cost_ns echo 910000000 > /proc/sys/kernel/sched_min_granularity_ns echo 2000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 9000 > /proc/sys/kernel/sched_nr_migrate echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/vm/numa_stat echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/enabled echo always > /sys/kernel/mm/transparent_hugepage/defrag
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_2
Command Line	-Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=2
Tuning	Used numactl to interleave memory on all CPUs numactl --interleave=all
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_2
Command Line	-Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=2
Tuning	Used numactl to affinitize each TxInjector JVM to 8 Cores / 16 Threads : Group1: numactl --physcpubind=0-7,192-199 --localalloc Group2: numactl --physcpubind=8-15,200-207 --localalloc Group3: numactl --physcpubind=16-23,208-215 --localalloc Group4: numactl --physcpubind=24-31,216-223 --localalloc Group5: numactl --physcpubind=32-39,224-231 --localalloc Group6: numactl --physcpubind=40-47,232-239 --localalloc Group7: numactl --physcpubind=48-55,240-247 --localalloc Group8: numactl --physcpubind=56-63,248-255 --localalloc Group9: numactl --physcpubind=64-71,256-263 --localalloc Group10: numactl --physcpubind=72-79,264-271 --localalloc Group11: numactl --physcpubind=80-87,272-279 --localalloc Group12: numactl --physcpubind=88-95,280-287 --localalloc Group13: numactl --physcpubind=96-103,288-295 --localalloc Group14: numactl --physcpubind=104-111,296-303 --localalloc Group15: numactl --physcpubind=112-119,304-311 --localalloc Group16: numactl --physcpubind=120-127,312-319 --localalloc Group17: numactl --physcpubind=128-135,320-327 --localalloc Group18: numactl --physcpubind=136-143,328-335 --localalloc Group19: numactl --physcpubind=144-151,336-343 --localalloc Group20: numactl --physcpubind=152-159,344-351 --localalloc Group21: numactl --physcpubind=160-167,352-359 --localalloc Group22: numactl --physcpubind=168-175,360-367 --localalloc Group23: numactl --physcpubind=176-183,368-375 --localalloc Group24: numactl --physcpubind=184-191,376-383 --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Pass	Fail	Fail
jOPS	809215	819084	828952	838821	848689

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	319081	368094	447877	527415	656254	448796

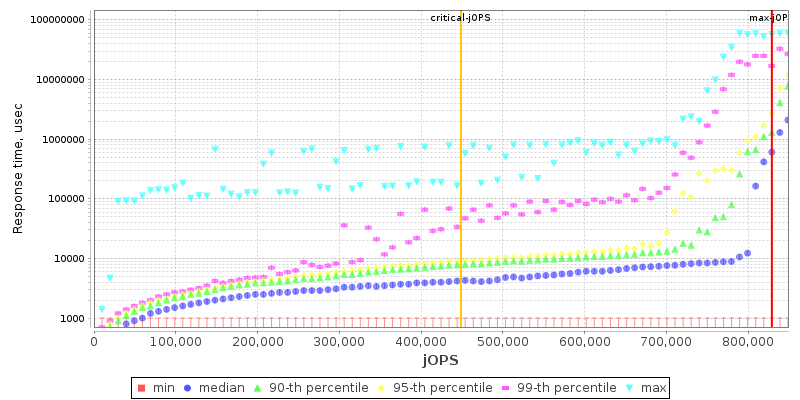

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	69079 / 78948	19737 / 29605	- / 9868	- / 9868	- / 9868	- / 9868
1000us	286186 / 296054	59211 / 69079	29605 / 39474	29605 / 39474	19737 / 29605	- / 9868
5000us	799347 / 809215	532898 / 542766	286186 / 296054	246712 / 256580	207238 / 217107	19737 / 29605
10000us	809215 / 819084	779610 / 789478	582240 / 592109	493424 / 503292	325660 / 305923	19737 / 29605
25000us	819084 / 828952	799347 / 809215	730268 / 740136	690794 / 700662	394739 / 305923	19737 / 29605
50000us	819084 / 828952	799347 / 809215	769741 / 779610	700662 / 710531	493424 / 375002	19737 / 29605
75000us	819084 / 828952	799347 / 809215	769741 / 779610	710531 / 720399	562503 / 483556	19737 / 29605
100000us	819084 / 828952	799347 / 809215	779610 / 789478	710531 / 720399	661188 / 651320	49342 / 59211
200000us	828952 / -	809215 / 819084	779610 / 789478	730268 / 740136	700662 / 710531	473687 / 148027
500000us	828952 / -	819084 / 828952	789478 / 799347	779610 / 789478	730268 / 720399	562503 / 148027
1000000us	828952 / -	828952 / -	809215 / 819084	799347 / 809215	740136 / 750004	710531 / 720399

Number of probes

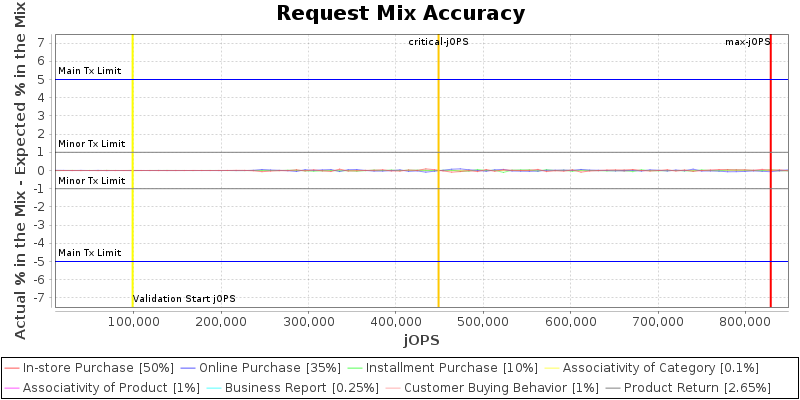

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

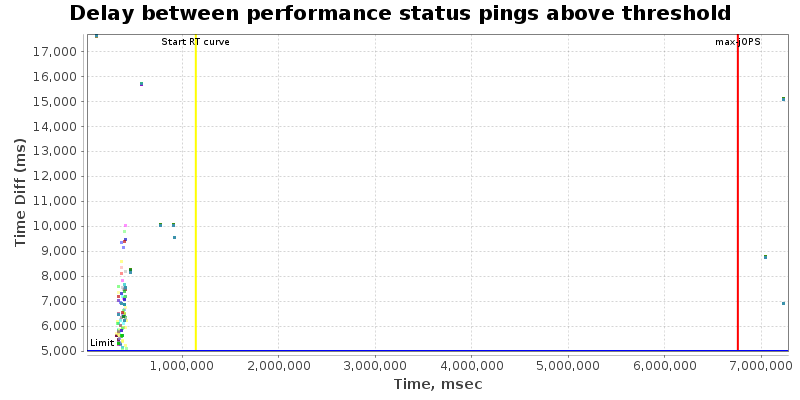

Delay between performance status pings during RT Curve (Response-Throughput Curve)

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group10.Backend.beJVM	Group10.TxInjector.txiJVM1	Group11.Backend.beJVM	Group11.TxInjector.txiJVM1	Group12.Backend.beJVM	Group12.TxInjector.txiJVM1	Group13.Backend.beJVM	Group13.TxInjector.txiJVM1	Group14.Backend.beJVM	Group14.TxInjector.txiJVM1	Group15.Backend.beJVM	Group15.TxInjector.txiJVM1	Group16.Backend.beJVM	Group16.TxInjector.txiJVM1	Group17.Backend.beJVM	Group17.TxInjector.txiJVM1	Group18.Backend.beJVM	Group18.TxInjector.txiJVM1	Group19.Backend.beJVM	Group19.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group20.Backend.beJVM	Group20.TxInjector.txiJVM1	Group21.Backend.beJVM	Group21.TxInjector.txiJVM1	Group22.Backend.beJVM	Group22.TxInjector.txiJVM1	Group23.Backend.beJVM	Group23.TxInjector.txiJVM1	Group24.Backend.beJVM	Group24.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1	Group5.Backend.beJVM	Group5.TxInjector.txiJVM1	Group6.Backend.beJVM	Group6.TxInjector.txiJVM1	Group7.Backend.beJVM	Group7.TxInjector.txiJVM1	Group8.Backend.beJVM	Group8.TxInjector.txiJVM1	Group9.Backend.beJVM	Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	256	320		320		320		320		320		320		320		320		320		320		320		320		320		320		320		320		320		320		320		320		320		320		320		320
specjbb.comm.connect.selector.runner.count	0	5		0		0		0		0		0		0		0		0		0		0		0		0		0		0		0		0		0		0		0		0		0		0		0		0
specjbb.comm.connect.timeouts.connect	60000	900000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.read	60000	800000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.write	60000	800000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.worker.pool.max	256	256	320		320		320		320		320		320		320		320		320		320		320		320		320		320		320		320		320		320		320		320		320		320		320		320
specjbb.comm.connect.worker.pool.min	1	1	32	16	32	16	32	16	32	16	32	16	32	16	32	16	32	16	32	16	32	16	32	16	32	16	32	16	32	16	32	16	32	16	32	16	32	16	32	16	32	16	32	16	32	16	32	16	32	16
specjbb.controller.host	localhost	192.168.0.5
specjbb.controller.maxir.maxFailedPoints	3	1
specjbb.customerDriver.threads	64	{probe=80, saturate=120, service=70}
specjbb.forkjoin.workers	384	{Tier1=170, Tier2=15, Tier3=20}
specjbb.group.count	1	24
specjbb.heartbeat.period	10000	400000
specjbb.heartbeat.threshold	100000	4000000
specjbb.mapreducer.pool.size	384	5
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 986848 IR

High-bound (settled) is 886670 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.04, Feb 16, 2024]

Dell Inc. PowerEdge R6725	828952 SPECjbb2015-Distributed max-jOPS 448796 SPECjbb2015-Distributed critical-jOPS
Tested by: Dell Inc.	Test Sponsor: Dell Inc.	Test location: Round Rock, TX	Test date: Sep 29,2024
SPEC license #: 6573	Hardware Availability: Nov-2024	Software Availability: Jul-2024	Publication: Thu Oct 10 13:03:35 EDT 2024
