SPECjbb2015 Report for jbb2015-20241001-01448 : 899251 max-jOPS ; 766701 critical-jOPS

SUT Description

Hardware hw_1
Name	Dell Inc. PowerEdge R7725
Vendor	Dell Inc.
Vendor URL	http://www.dell.com/
Available	Nov-2024
Model	PowerEdge R7725
Form Factor	2U Rack
CPU Name	AMD EPYC 9755
CPU Characteristics	128 core, 2.70 GHz, 512 MB L3 Cache (Max. Boost Clock up to 4.10GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	256
Cores Per Chip	128
Threads Per System	512
Threads Per Core	2
Version	0.2.4
CPU Frequency (MHz)	2700
Primary Cache	32 KB (I) + 48 KB (D) per core
Secondary Cache	1 MB (I+D) per core
Tertiary Cache	512 MB (I+D) on chip per chip
Other Cache	None
Disk	1 X M.2 SSD 480GB (Boss card)
File System	xfs
Memory Amount (GB)	1536
# and size of DIMM(s)	24 x 64 GB
Memory Details	64 GB 2Rx4 PC5-6400B-R (slots A1-12, B1-12 populated), running at 6000 MT/s
# and type of Network Interface Cards (NICs)	1 X Broadcom BCM57504 NetXtreme-E Ethernet 25Gbit/s quad port
Power Supply Quantity and Rating (W)	1 x 1500
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP6
Vendor	SUSE
Vendor URL	https://suse.com/
Version	6.4.0-150600.21-default
Available	Jun-2024
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle JAVA SE 22.0.2
Vendor	Oracle
Vendor URL	http://www.oracle.com/
Version	Java HotSpot 64-bit Server VM, version 22.0.2
Available	Jul-2024
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Driver Description

Hardware hw_2
Name	Dell Inc. PowerEdge R7725
Vendor	Dell Inc.
Vendor URL	https://www.dell.com/
Available	Nov-2024
Model	PowerEdge R7725
Form Factor	2U Rack
CPU Name	AMD EPYC 9965
CPU Characteristics	192 core, 2.25 GHz, 384 MB L3 Cache (Max. Boost Clock up to 3.70GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	384
Cores Per Chip	192
Threads Per System	768
Threads Per Core	2
Version	0.2.4
CPU Frequency (MHz)	2250
Primary Cache	32 KB (I) + 48 KB (D) per core
Secondary Cache	1 MB (I+D) per core
Tertiary Cache	384 MB (I+D) on chip per chip
Other Cache	None
Disk	1 x M.2 SSD 480GB (Boss card)
File System	xfs
Memory Amount (GB)	1536
# and size of DIMM(s)	24 x 64 GB
Memory Details	64 GB 2Rx4 PC5-6400B-R (slots A1-12, B1-12 populated), running at 6000 MT/s
# and type of Network Interface Cards (NICs)	1 x Broadcom BCM57504 NetXtreme-E Ethernet 25Gbit/s Quad Port
Power Supply Quantity and Rating (W)	1 x 1500
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_2
Name	SUSE Linux Enterprise Server 15 SP6
Vendor	SUSE
Vendor URL	https://suse.com/
Version	6.4.0-150600.21-default
Available	Jun-2024
Bitness	64
Notes	None
Java Virtual Machine jvm_2
Name	Oracle JAVA SE 22.0.2
Vendor	Oracle
Vendor URL	https://www.oracle.com/
Version	Java HotSpot 64-bit Server VM, version 22.0.2
Available	Jul-2024
Bitness	64
Notes	None
Other Software other_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Backend_1 : Backend
Driver
- Hardware config_2
  - OS Image os_Image_2
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	Non-Virtual
Tuning	Dram Refresh Delay - Performance DIMM Self Healing (Post Package Repair) on Uncorrectable Memory Error - Disabled Correctable Error Logging - Disabled Virtualization Technology - Disabled L2 Stream HW Prefetcher - Disabled NUMA Nodes Per Socket - 2 L3 cache as NUMA Domain- Disabled TDP Control- Manual Customized cTDP - 500 Customized PPT - 500 System Profile - Custom CPU Power Management - Maximum Performance C-States - Disabled Determinism Control- Manual Determinism Slider - Power Determinism
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Backend_1(12)
OS Image Description	os_1
Tuning	echo 950000 > /proc/sys/kernel/sched_rt_runtime_us echo 150000000 > /proc/sys/kernel/sched_latency_ns echo 80000 > /proc/sys/kernel/sched_migration_cost_ns echo 350000 > /proc/sys/kernel/sched_min_granularity_ns echo 300000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 32 > /proc/sys/kernel/sched_nr_migrate echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/vm/numa_stat echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/enabled echo always > /sys/kernel/mm/transparent_hugepage/defrag
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms120g -Xmx120g -Xmn118g -server -XX:MetaspaceSize=256m -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:+UseParallelGC -XX:SurvivorRatio=100 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=43 -XX:MaxTenuringThreshold=15 -XX:InitialCodeCacheSize=25m -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=200 -XX:+UseCompressedOops -XX:ObjectAlignmentInBytes=32 -XX:+UseTransparentHugePages -XX:TLABAllocationWeight=55 -XX:ThreadStackSize=512 -XX:CompileThresholdScaling=120
Tuning	Used numactl to affinitize three Backend JVMs to NUMA nodes: Group1: numactl --cpunodebind=0 --localalloc Group2: numactl --cpunodebind=0 --localalloc Group3: numactl --cpunodebind=0 --localalloc Group4: numactl --cpunodebind=1 --localalloc Group5: numactl --cpunodebind=1 --localalloc Group6: numactl --cpunodebind=1 --localalloc Group7: numactl --cpunodebind=2 --localalloc Group8: numactl --cpunodebind=2 --localalloc Group9: numactl --cpunodebind=2 --localalloc Group10: numactl --cpunodebind=3 --localalloc Group11: numactl --cpunodebind=3 --localalloc Group12: numactl --cpunodebind=3 --localalloc
Notes	None

Driver config_2 Configuration

Hardware
OS Images	os_Image_2(1)
Hardware Description	hw_2
Number of Systems	1
SW Environment	Non-Virtual
Tuning	Dram Refresh Delay - Performance DIMM Self Healing (Post Package Repair) on Uncorrectable Memory Error - Disabled Correctable Error Logging - Disabled Virtualization Technology - Disabled L2 Stream HW Prefetcher - Disabled NUMA Nodes Per Socket - 2 L3 cache as NUMA Domain- Disabled TDP Control- Manual Customized cTDP - 500 Customized PPT - 500 System Profile - Custom CPU Power Management - Maximum Performance C-States - Disabled Determinism Control- Manual Determinism Slider - Power Determinism
Notes	None

OS Image os_Image_2
JVM Instances	jvm_Ctr_1(1), jvm_TxInjector_1(12)
OS Image Description	os_2
Tuning	echo 950000 > /proc/sys/kernel/sched_rt_runtime_us echo 150000000 > /proc/sys/kernel/sched_latency_ns echo 80000 > /proc/sys/kernel/sched_migration_cost_ns echo 350000 > /proc/sys/kernel/sched_min_granularity_ns echo 300000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 32 > /proc/sys/kernel/sched_nr_migrate echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/vm/numa_stat echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/enabled echo always > /sys/kernel/mm/transparent_hugepage/defrag
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_2
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning	Used numactl to interleave memory on all CPUs numactl --interleave=all
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_2
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning	Used numactl to affinitize three TxInjector JVMs to NUMA nodes: Group1: numactl --cpunodebind=0 --localalloc Group2: numactl --cpunodebind=0 --localalloc Group3: numactl --cpunodebind=0 --localalloc Group4: numactl --cpunodebind=1 --localalloc Group5: numactl --cpunodebind=1 --localalloc Group6: numactl --cpunodebind=1 --localalloc Group7: numactl --cpunodebind=2 --localalloc Group8: numactl --cpunodebind=2 --localalloc Group9: numactl --cpunodebind=2 --localalloc Group10: numactl --cpunodebind=3 --localalloc Group11: numactl --cpunodebind=3 --localalloc Group12: numactl --cpunodebind=3 --localalloc
Notes	None

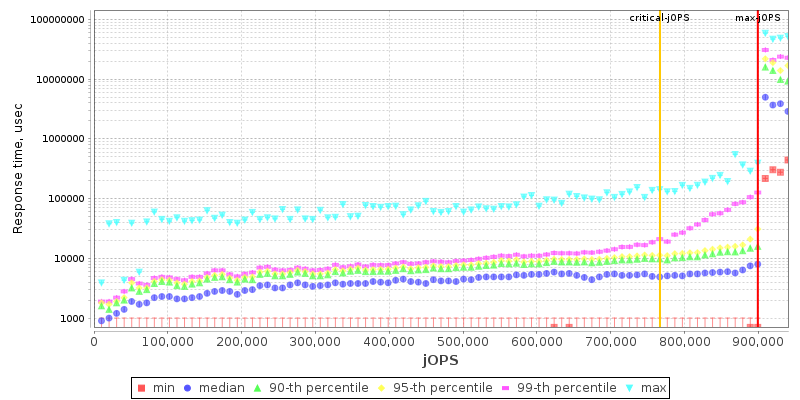

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	889032	899251	909470	919688	929907

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	526266	791954	832829	863485	883922	766701

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	- / 10219	- / 10219	- / 10219	- / 10219	- / 10219	- / 10219
1000us	71531 / 81750	20438 / 30656	- / 10219	- / 10219	- / 10219	- / 10219
5000us	899251 / -	766407 / 572251	214594 / 224813	214594 / 163500	194156 / 153281	40875 / 20438
10000us	899251 / -	899251 / -	776626 / 786845	694876 / 705094	521157 / 531376	61313 / 20438
25000us	899251 / -	899251 / -	899251 / -	889032 / 899251	786845 / 797063	61313 / 20438
50000us	899251 / -	899251 / -	899251 / -	899251 / -	827720 / 837938	347438 / 81750
75000us	899251 / -	899251 / -	899251 / -	899251 / -	858376 / 868595	602907 / 337219
100000us	899251 / -	899251 / -	899251 / -	899251 / -	878813 / 889032	684657 / 582469
200000us	899251 / -	899251 / -	899251 / -	899251 / -	899251 / -	858376 / 837938
500000us	899251 / -	899251 / -	899251 / -	899251 / -	899251 / -	899251 / 868595
1000000us	899251 / -	899251 / -	899251 / -	899251 / -	899251 / -	899251 / -

Number of probes

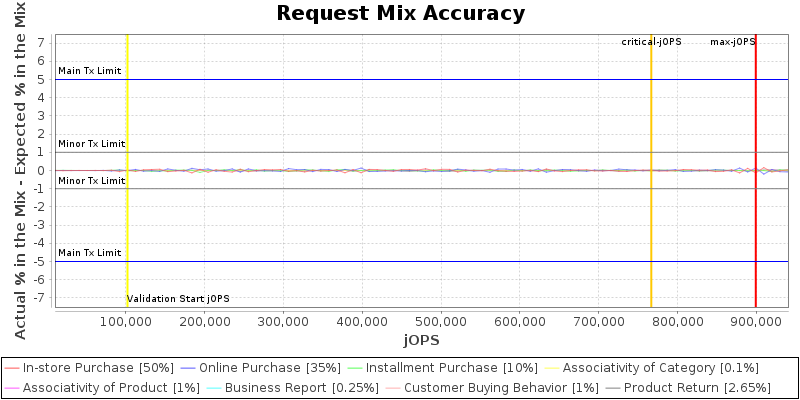

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

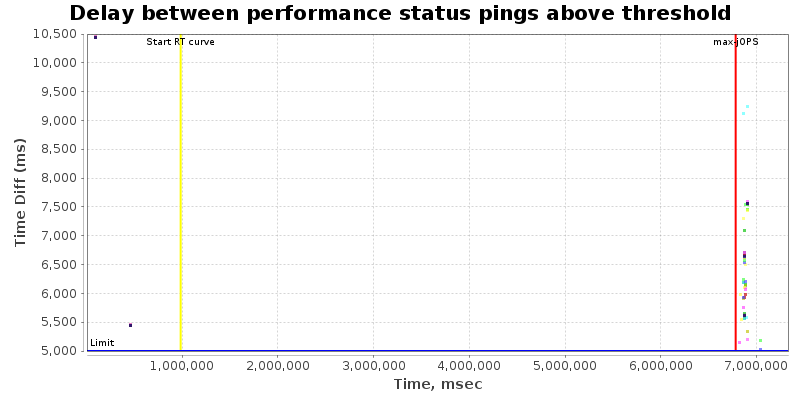

Delay between performance status pings during RT Curve (Response-Throughput Curve)

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group10.Backend.beJVM	Group10.TxInjector.txiJVM1	Group11.Backend.beJVM	Group11.TxInjector.txiJVM1	Group12.Backend.beJVM	Group12.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1	Group5.Backend.beJVM	Group5.TxInjector.txiJVM1	Group6.Backend.beJVM	Group6.TxInjector.txiJVM1	Group7.Backend.beJVM	Group7.TxInjector.txiJVM1	Group8.Backend.beJVM	Group8.TxInjector.txiJVM1	Group9.Backend.beJVM	Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	256	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120
specjbb.comm.connect.selector.runner.count	0	8	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4
specjbb.comm.connect.worker.pool.max	256	256	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120
specjbb.comm.connect.worker.pool.min	1	1	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24
specjbb.controller.host	localhost	100.71.148.122
specjbb.forkjoin.workers	768	{Tier1=140, Tier2=1, Tier3=10}
specjbb.group.count	1	12
specjbb.heartbeat.period	10000	400000
specjbb.heartbeat.threshold	100000	4000000
specjbb.mapreducer.pool.size	768	16
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 1021876 IR

High-bound (settled) is 966239 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.04, Feb 16, 2024]

Dell Inc. PowerEdge R7725	899251 SPECjbb2015-Distributed max-jOPS 766701 SPECjbb2015-Distributed critical-jOPS
Tested by: Dell Inc.	Test Sponsor: Dell Inc.	Test location: Round Rock, TX	Test date: Sep 29,2024
SPEC license #: 6573	Hardware Availability: Nov-2024	Software Availability: Jul-2024	Publication: Thu Oct 10 13:03:35 EDT 2024
