SPECjbb2015 Report for jbb2015-20240930-01441 : 84482 max-jOPS ; 17333 critical-jOPS

SUT Description

Hardware hw_1
Name	Dell Inc. PowerEdge R7715
Vendor	Dell Inc.
Vendor URL	http://www.dell.com/
Available	Nov-2024
Model	PowerEdge R7715
Form Factor	2U Rack
CPU Name	AMD EPYC 9135
CPU Characteristics	16 core, 3.65 GHz, 64 MB (I+D) L3 Cache (Max. Boost Clock up to 4.30GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	1
Cores Per System	16
Cores Per Chip	16
Threads Per System	32
Threads Per Core	2
Version	0.2.4
CPU Frequency (MHz)	3650
Primary Cache	32 KB (I) + 48 KB (D) per core
Secondary Cache	1 MB (I+D) per core
Tertiary Cache	64 MB (I+D) on chip per chip
Other Cache	None
Disk	1 x M.2 SSD 480GB (Boss card)
File System	ntfs
Memory Amount (GB)	768
# and size of DIMM(s)	12 x 64 GB
Memory Details	64 GB 2Rx4 PC5-6400B-R (slots A1-12 populated), running at 5200 MT/s
# and type of Network Interface Cards (NICs)	1 x Broadcom BCM57504 NetXtreme-E Ethernet 25Gbit/s quad port
Power Supply Quantity and Rating (W)	1 x 1500
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Windows Server 2022 Standard
Vendor	Microsoft
Vendor URL	https://www.microsoft.com/
Version	Version 21H2(OS Build 20348.1251)
Available	Nov-2022
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle JAVA SE 22.0.2
Vendor	Oracle
Vendor URL	https://www.oracle.com
Version	Java HotSpot 64-bit Server VM, version 22.0.2
Available	Jul-2024
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Driver Description

Hardware hw_2
Name	Dell Inc. PowerEdge R6715
Vendor	Dell Inc.
Vendor URL	http://www.dell.com/
Available	Nov-2024
Model	PowerEdge R6715
Form Factor	1U Rack
CPU Name	AMD EPYC 9355P
CPU Characteristics	32 core, 3.55 GHz, 256 MB L3 Cache (Max. Boost Clock up to 4.40GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	1
Cores Per System	32
Cores Per Chip	32
Threads Per System	64
Threads Per Core	2
Version	0.2.4
CPU Frequency (MHz)	3550
Primary Cache	32 KB (I) + 48 KB (D) per core
Secondary Cache	1 MB (I+D) per core
Tertiary Cache	256 MB (I+D) on chip per chip
Other Cache	None
Disk	1 x M.2 SSD 480GB (Boss card)
File System	ntfs
Memory Amount (GB)	768
# and size of DIMM(s)	12 x 64 GB
Memory Details	64 GB 2Rx4 PC5-6400B-R (slots A1-12 populated), running at 6000 MT/s
# and type of Network Interface Cards (NICs)	1 x Broadcom BCM57504 NetXtreme-E Ethernet 25Gbit/s quad port
Power Supply Quantity and Rating (W)	1 x 1500
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_2
Name	Windows Server 2022 Standard
Vendor	Microsoft
Vendor URL	https://www.microsoft.com/
Version	Version 21H2(OS Build 20348.1251)
Available	Nov-2022
Bitness	64
Notes	None
Java Virtual Machine jvm_2
Name	Oracle JAVA SE 22.0.2
Vendor	Oracle
Vendor URL	https://www.oracle.com
Version	Java HotSpot 64-bit Server VM, version 22.0.2
Available	Jul-2024
Bitness	64
Notes	None
Other Software other_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Backend_1 : Backend
Driver
- Hardware config_2
  - OS Image os_Image_2
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	Non-virtual
Tuning	Dram Refresh Delay - Performance DIMM Self Healing (Post Package Repair) on Uncorrectable Memory Error - Disabled Correctable Error Logging - Disabled Virtualization Technology - Disabled L2 Stream HW Prefetcher - Disabled NUMA Nodes Per Socket - 4 L3 cache as NUMA Domain- Disabled Control- Manual Customized cTDP - 280 Customized PPT - 280 System Profile - Custom CPU Power Management - Maximum Performance C-States - Disabled Determinism Control- Manual Determinism Slider - Power Determinism
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Backend_1(4)
OS Image Description	os_1
Tuning	Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534 Power Options is set to High performance Lock Pages in Memory is Enabled Processor scheduling is set to Programs
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms120g -Xmx120g -Xmn118g -server -XX:MetaspaceSize=256m -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:+UseParallelGC -XX:SurvivorRatio=100 -XX:TargetSurvivorRatio=100 -XX:ParallelGCThreads=8 -XX:MaxTenuringThreshold=15 -XX:InitialCodeCacheSize=25m -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=200 -XX:+UseCompressedOops -XX:ObjectAlignmentInBytes=32 -XX:ThreadStackSize=512 -XX:CompileThresholdScaling=120 -XX:CICompilerCount=4 -Xnoclassgc
Tuning	affinitized each Backend JVM to a single memory node: Group1: start /b /NODE 0 Group2: start /b /NODE 1 Group3: start /b /NODE 2 Group4: start /b /NODE 3
Notes	None

Driver config_2 Configuration

Hardware
OS Images	os_Image_2(1)
Hardware Description	hw_2
Number of Systems	1
SW Environment	Non-virtual
Tuning	Dram Refresh Delay - Performance DIMM Self Healing (Post Package Repair) on Uncorrectable Memory Error - Disabled Correctable Error Logging - Disabled Virtualization Technology - Disabled L2 Stream HW Prefetcher - Disabled NUMA Nodes Per Socket - 4 L3 cache as NUMA Domain- Disabled Control- Manual Customized cTDP - 280 Customized PPT - 280 System Profile - Custom CPU Power Management - Maximum Performance C-States - Disabled Determinism Control- Manual Determinism Slider - Power Determinism
Notes	None

OS Image os_Image_2
JVM Instances	jvm_Ctr_1(1), jvm_TxInjector_1(4)
OS Image Description	os_2
Tuning	Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534 Power Options is set to High performance Lock Pages in Memory is Enabled Processor scheduling is set to Programs
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_2
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=4
Tuning	None
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_2
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=4
Tuning	None
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	83553	84482	85410	86338	87267

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	6963	18103	22590	22590	24323	17333

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	- / 928	- / 928	- / 928	- / 928	- / 928	- / 928
1000us	928 / 1857	- / 928	- / 928	- / 928	- / 928	- / 928
5000us	23209 / 24138	10212 / 6499	3713 / 4642	2785 / 3713	2785 / 3713	1857 / 2785
10000us	23209 / 24138	12997 / 13926	10212 / 8355	6499 / 7427	6499 / 7427	5570 / 3713
25000us	25066 / 25994	23209 / 24138	19496 / 20424	18567 / 19496	17639 / 18567	13926 / 3713
50000us	60344 / 52917	25066 / 25994	24138 / 25066	24138 / 25066	23209 / 21353	22281 / 3713
75000us	68699 / 63129	30636 / 27851	25066 / 25994	24138 / 25066	23209 / 21353	22281 / 3713
100000us	73341 / 71484	51989 / 48275	25066 / 25994	25066 / 25994	25066 / 21353	22281 / 3713
200000us	82625 / 81697	70556 / 71484	57559 / 56631	51989 / 52917	46418 / 34350	29708 / 3713
500000us	84482 / -	84482 / -	82625 / 81697	80768 / 81697	73341 / 74270	57559 / 3713
1000000us	84482 / -	84482 / -	84482 / -	84482 / -	83553 / 84482	75198 / 71484

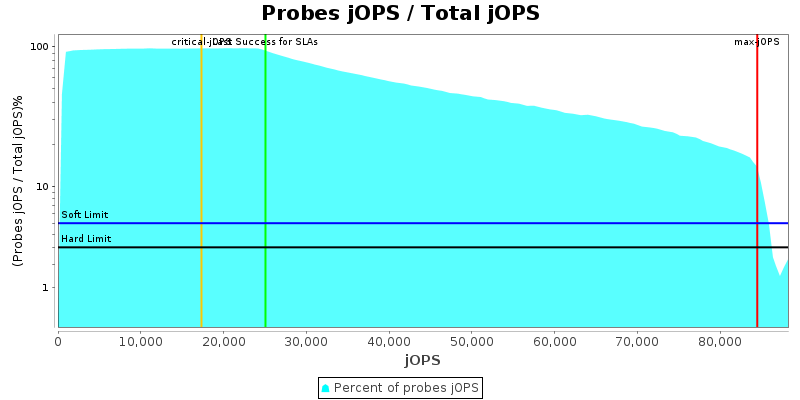

Number of probes

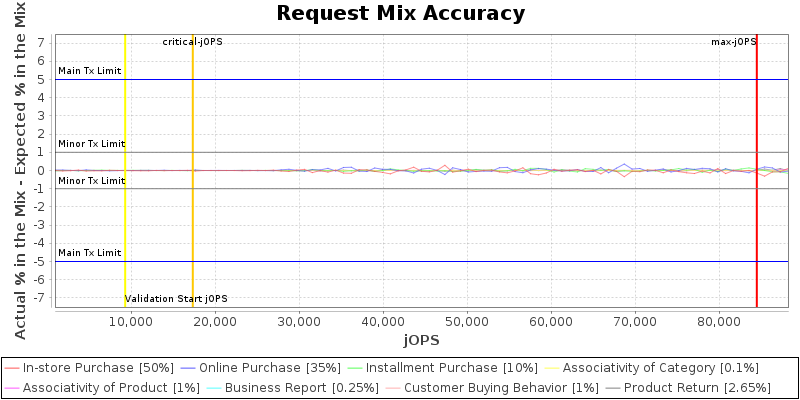

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

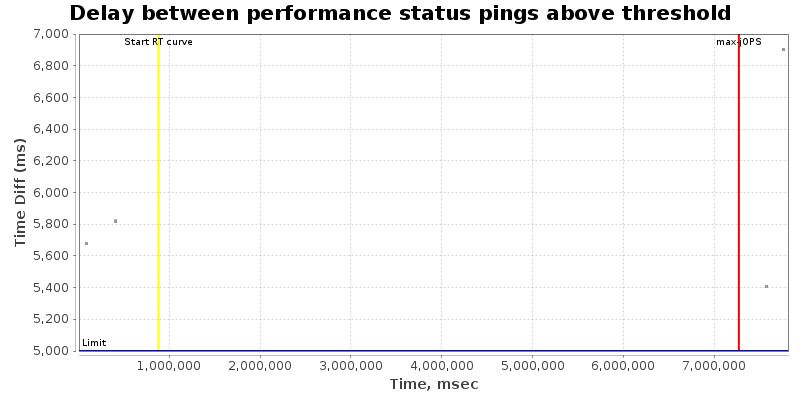

Delay between performance status pings during RT Curve (Response-Throughput Curve)

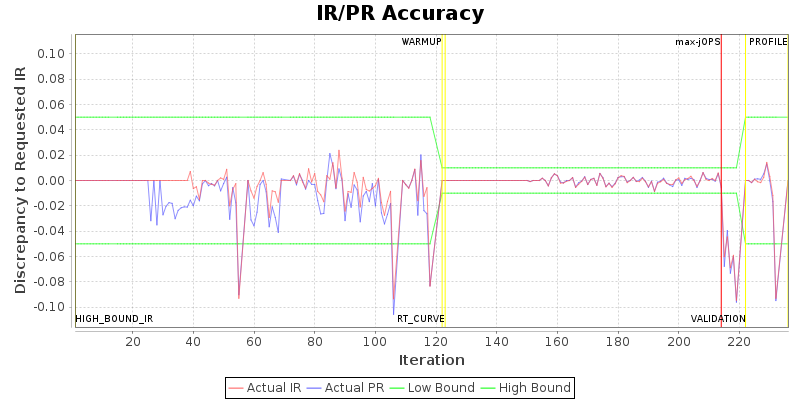

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM2	Group3.Backend.beJVM	Group3.TxInjector.txiJVM3	Group4.Backend.beJVM	Group4.TxInjector.txiJVM4
specjbb.comm.connect.client.pool.size	256	192	48	48	48	48	48	48	48	48
specjbb.comm.connect.selector.runner.count	0	1		0		0		0		0
specjbb.comm.connect.worker.pool.max	256	150	40	40	40	40	40	40	40	40
specjbb.comm.connect.worker.pool.min	1	16	40	40	40	40	40	40	40	40
specjbb.controller.host	localhost	192.168.0.16
specjbb.forkjoin.workers	64	{Tier1=215, Tier2=18, Tier3=32}
specjbb.group.count	1	4
specjbb.heartbeat.threshold	100000	600000
specjbb.mapreducer.pool.size	64	12
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 92837 IR

High-bound (settled) is 88420 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.04, Feb 16, 2024]

Dell Inc. PowerEdge R7715	84482 SPECjbb2015-Distributed max-jOPS 17333 SPECjbb2015-Distributed critical-jOPS
Tested by: Dell Inc.	Test Sponsor: Dell Inc.	Test location: Round Rock, TX	Test date: Sep 27,2024
SPEC license #: 6573	Hardware Availability: Nov-2024	Software Availability: Jul-2024	Publication: Thu Oct 10 13:03:35 EDT 2024
