SPECjbb2015 Report for jbb2015-20240930-01440 : 96137 max-jOPS ; 44868 critical-jOPS

SUT Description

Hardware hw_1
Name	Dell Inc. PowerEdge R7715
Vendor	Dell Inc.
Vendor URL	http://www.dell.com/
Available	Nov-2024
Model	PowerEdge R7715
Form Factor	2U Rack
CPU Name	AMD EPYC 9135
CPU Characteristics	16 core, 3.65 GHz, 64 MB (I+D) L3 Cache (Max. Boost Clock up to 4.30GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	1
Cores Per System	16
Cores Per Chip	16
Threads Per System	32
Threads Per Core	2
Version	0.2.4
CPU Frequency (MHz)	3650
Primary Cache	32 KB (I) + 48 KB (D) per core
Secondary Cache	1 MB (I+D) per core
Tertiary Cache	64 MB (I+D) on chip per chip
Other Cache	None
Disk	1 x M.2 SSD 480GB (Boss card)
File System	xfs
Memory Amount (GB)	768
# and size of DIMM(s)	12 x 64 GB
Memory Details	64 GB 2Rx4 PC5-6400B-R (slots A1-12 populated), running at 5200 MT/s
# and type of Network Interface Cards (NICs)	1 x Broadcom BCM57504 NetXtreme-E Ethernet 25Gbit/s quad port
Power Supply Quantity and Rating (W)	1 x 1500
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP6
Vendor	SUSE
Vendor URL	https://www.suse.com
Version	6.4.0-150600.21-default
Available	Jun-2024
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle JAVA SE 22.0.2
Vendor	Oracle
Vendor URL	https://www.oracle.com
Version	Java HotSpot 64-bit Server VM, version 22.0.2
Available	Jul-2024
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Driver Description

Hardware hw_2
Name	Dell Inc. PowerEdge R6715
Vendor	Dell Inc.
Vendor URL	http://www.dell.com/
Available	Nov-2024
Model	PowerEdge R6715
Form Factor	1U Rack
CPU Name	AMD EPYC 9355P
CPU Characteristics	32 core, 3.55 GHz, 256 MB L3 Cache (Max. Boost Clock up to 4.40GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	1
Cores Per System	32
Cores Per Chip	32
Threads Per System	64
Threads Per Core	2
Version	0.2.4
CPU Frequency (MHz)	3550
Primary Cache	32 KB (I) + 48 KB (D) per core
Secondary Cache	1 MB (I+D) per core
Tertiary Cache	256 MB (I+D) on chip per chip
Other Cache	None
Disk	1 x M.2 SSD 480GB (Boss card)
File System	xfs
Memory Amount (GB)	768
# and size of DIMM(s)	12 x 64 GB
Memory Details	64 GB 2Rx4 PC5-6400B-R (slots A1-12 populated), running at 6000 MT/s
# and type of Network Interface Cards (NICs)	1 x Broadcom BCM57504 NetXtreme-E Ethernet 25Gbit/s quad port
Power Supply Quantity and Rating (W)	1 x 1500
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_2
Name	SUSE Linux Enterprise Server 15 SP6
Vendor	SUSE
Vendor URL	https://www.suse.com
Version	6.4.0-150600.21-default
Available	Jun-2024
Bitness	64
Notes	None
Java Virtual Machine jvm_2
Name	Oracle JAVA SE 22.0.2
Vendor	Oracle
Vendor URL	https://www.oracle.com
Version	Java HotSpot 64-bit Server VM, version 22.0.2
Available	Jul-2024
Bitness	64
Notes	None
Other Software other_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Backend_1 : Backend
Driver
- Hardware config_2
  - OS Image os_Image_2
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	Non-virtual
Tuning	Dram Refresh Delay - Performance DIMM Self Healing (Post Package Repair) on Uncorrectable Memory Error - Disabled Correctable Error Logging - Disabled Virtualization Technology - Disabled L2 Stream HW Prefetcher - Disabled NUMA Nodes Per Socket - 4 L3 cache as NUMA Domain- Disabled TDP Control- Manual Customized cTDP - 280 Customized PPT - 280 System Profile - Custom CPU Power Management - Maximum Performance C-States - Disabled Determinism Control- Manual Determinism Slider - Power Determinism
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Backend_1(4)
OS Image Description	os_1
Tuning	echo 960000 > /proc/sys/kernel/sched_rt_runtime_us echo 800000000 > /proc/sys/kernel/sched_latency_ns echo 40000 > /proc/sys/kernel/sched_migration_cost_ns echo 410000000 > /proc/sys/kernel/sched_min_granularity_ns echo 2000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 9000 > /proc/sys/kernel/sched_nr_migrate echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/vm/numa_stat echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/enabled echo always > /sys/kernel/mm/transparent_hugepage/defrag
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms31g -Xmx31g -Xmn29g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:ParallelGCThreads=8 -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=12 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=11k -XX:MaxGCPauseMillis=100 -XX:LoopUnrollLimit=200 -XX:+UseTransparentHugePages -XX:TLABAllocationWeight=2 -XX:ThreadStackSize=140 -XX:CompileThresholdScaling=120 -XX:CICompilerCount=4 -XX:AutoBoxCacheMax=32 -XX:OnStackReplacePercentage=100 -XX:TLABSize=1m -XX:MinTLABSize=1m -XX:-ResizeTLAB -XX:TLABWasteTargetPercent=1 -XX:TLABWasteIncrement=1 -XX:YoungPLABSize=1m -XX:OldPLABSize=1m
Tuning	Used numactl to affinitize each Backend JVM to 4 Cores / 8 Threads: Group 1: numactl --physcpubind=0-3,16-19 --localalloc Group 2: numactl --physcpubind=4-7,20-23 --localalloc Group 3: numactl --physcpubind=8-11,24-27 --localalloc Group 4: numactl --physcpubind=12-15,28-31 --localalloc
Notes	None

Driver config_2 Configuration

Hardware
OS Images	os_Image_2(1)
Hardware Description	hw_2
Number of Systems	1
SW Environment	Non-virtual
Tuning	Dram Refresh Delay - Performance DIMM Self Healing (Post Package Repair) on Uncorrectable Memory Error - Disabled Correctable Error Logging - Disabled Virtualization Technology - Disabled L2 Stream HW Prefetcher - Disabled NUMA Nodes Per Socket - 4 L3 cache as NUMA Domain- Disabled TSP Control- Manual Customized cTDP - 280 Customized PPT - 280 System Profile - Custom CPU Power Management - Maximum Performance C-States - Disabled Determinism Control- Manual Determinism Slider - Power Determinism
Notes	None

OS Image os_Image_2
JVM Instances	jvm_Ctr_1(1), jvm_TxInjector_1(4)
OS Image Description	os_2
Tuning	echo 960000 > /proc/sys/kernel/sched_rt_runtime_us echo 800000000 > /proc/sys/kernel/sched_latency_ns echo 40000 > /proc/sys/kernel/sched_migration_cost_ns echo 410000000 > /proc/sys/kernel/sched_min_granularity_ns echo 2000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 9000 > /proc/sys/kernel/sched_nr_migrate echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/vm/numa_stat echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/enabled echo always > /sys/kernel/mm/transparent_hugepage/defrag
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_2
Command Line	-Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=2
Tuning	None
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_2
Command Line	-Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=2
Tuning	Used numactl to affinitize each TxInjector JVMs to a NUMA node: Group1: numactl --cpunodebind=0 --localalloc Group2: numactl --cpunodebind=1 --localalloc Group3: numactl --cpunodebind=2 --localalloc Group4: numactl --cpunodebind=3 --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Pass	Fail	Fail
jOPS	94047	95092	96137	97182	98227

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	30464	35814	47396	55801	63016	44868

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	- / 1045	- / 1045	- / 1045	- / 1045	- / 1045	- / 1045
1000us	16720 / 17764	3135 / 1045	- / 1045	- / 1045	- / 1045	- / 1045
5000us	82553 / 83598	39709 / 40754	25079 / 26124	22989 / 24034	18809 / 19854	2090 / 1045
10000us	83598 / 84643	77328 / 78373	56428 / 49114	44934 / 45979	32394 / 19854	4180 / 3135
25000us	83598 / 84643	82553 / 83598	77328 / 78373	75238 / 74193	41799 / 19854	4180 / 3135
50000us	84643 / 85688	82553 / 83598	77328 / 78373	75238 / 76283	52248 / 38664	4180 / 3135
75000us	84643 / 85688	82553 / 83598	77328 / 78373	77328 / 78373	61653 / 47024	4180 / 3135
100000us	85688 / 86733	83598 / 84643	77328 / 78373	77328 / 78373	70013 / 47024	4180 / 3135
200000us	89867 / 88822	85688 / 86733	79418 / 80463	79418 / 80463	77328 / 68968	37619 / 7315
500000us	95092 / 96137	91957 / 93002	85688 / 86733	83598 / 80463	81508 / 80463	70013 / 19854
1000000us	96137 / -	95092 / 96137	93002 / 94047	91957 / 88822	87777 / 80463	81508 / 65833

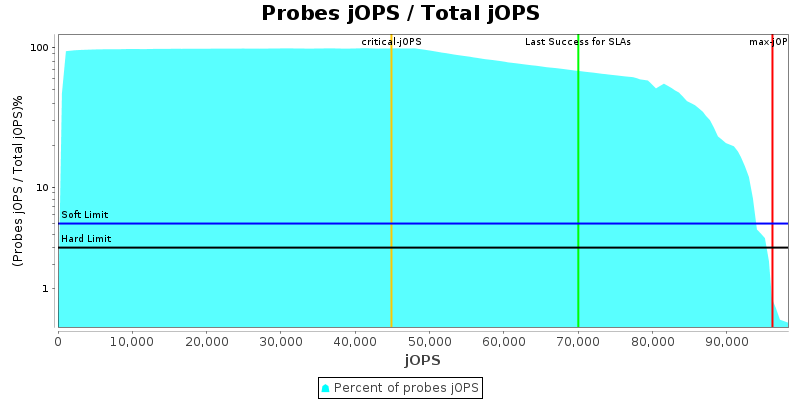

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

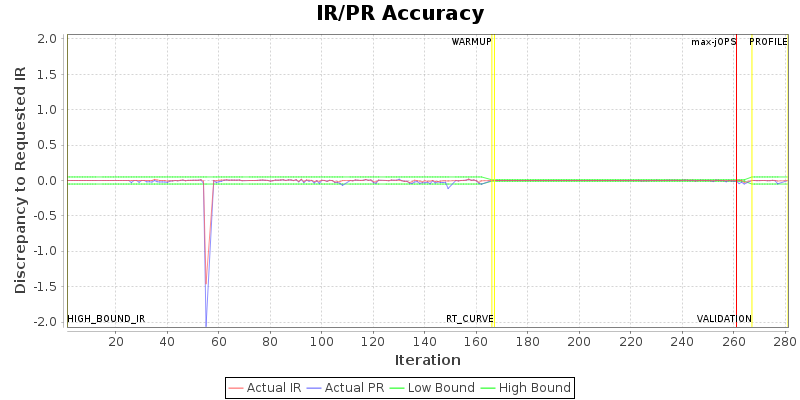

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	150	256	170	256	170	256	170	256	170
specjbb.comm.connect.selector.runner.count	0	10	20	5	20	5	20	5	20	5
specjbb.comm.connect.timeouts.connect	60000	900000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.read	60000	800000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.write	60000	800000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.worker.pool.max	256	150	256	200	256	200	256	200	256	200
specjbb.comm.connect.worker.pool.min	1	16	32	1	32	1	32	1	32	1
specjbb.controller.host	localhost	192.168.0.8
specjbb.controller.maxir.maxFailedPoints	3	1
specjbb.customerDriver.threads	64	{probe=120, saturate=120, service=70}
specjbb.forkjoin.workers	64	{Tier1=250, Tier2=10, Tier3=40}
specjbb.group.count	1	4
specjbb.heartbeat.period	10000	400000
specjbb.heartbeat.threshold	100000	4000000
specjbb.mapreducer.pool.size	64	10
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 104497 IR

High-bound (settled) is 101703 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.04, Feb 16, 2024]

Dell Inc. PowerEdge R7715	96137 SPECjbb2015-Distributed max-jOPS 44868 SPECjbb2015-Distributed critical-jOPS
Tested by: Dell Inc.	Test Sponsor: Dell Inc.	Test location: Round Rock, TX	Test date: Sep 28,2024
SPEC license #: 6573	Hardware Availability: Nov-2024	Software Availability: Jul-2024	Publication: Thu Oct 10 13:03:35 EDT 2024
