SPECjbb2015
Copyright © 2015-2024 Standard Performance Evaluation Corporation
Dell Inc. PowerEdge R7715 83909 SPECjbb2015-Distributed max-jOPS
54337 SPECjbb2015-Distributed critical-jOPS
Tested by: Dell Inc. Test Sponsor: Dell Inc. Test location: Round Rock, TX Test date: Sep 28,2024
SPEC license #: 6573 Hardware Availability: Nov-2024 Software Availability: Jul-2024 Publication: Thu Oct 10 13:03:35 EDT 2024
Benchmark Results Summary

SPECjbb2015-Distributed: Distributed JVMs/Single or Multi Hosts
(# of groups: 4)

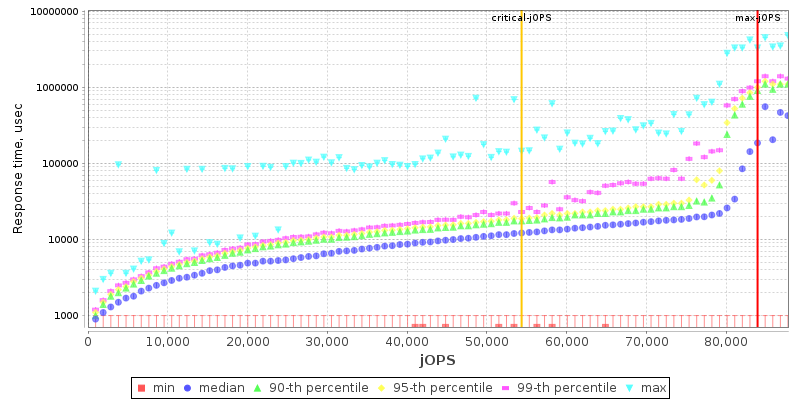

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorDell Inc.
Vendor URLhttp://www.dell.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores16
Total Threads32
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-Virtual

SUT Description
Hardware hw_1
NameDell Inc. PowerEdge R7715
VendorDell Inc.
Vendor URLhttp://www.dell.com/
AvailableNov-2024
ModelPowerEdge R7715
Form Factor2U Rack
CPU NameAMD EPYC 9135
CPU Characteristics16 core, 3.65 GHz, 64 MB (I+D) L3 Cache (Max. Boost Clock up to 4.30GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System16
Cores Per Chip16
Threads Per System32
Threads Per Core2
Version0.2.4
CPU Frequency (MHz)3650
Primary Cache32 KB (I) + 48 KB (D) per core
Secondary Cache1 MB (I+D) per core
Tertiary Cache64 MB (I+D) on chip per chip
Other CacheNone
Disk1 x M.2 SSD 480GB (Boss card)
File Systemntfs
Memory Amount (GB)768
# and size of DIMM(s)12 x 64 GB
Memory Details64 GB 2Rx4 PC5-6400B-R (slots A1-12 populated), running at 5200 MT/s
# and type of Network Interface Cards (NICs)1 x Broadcom BCM57504 NetXtreme-E Ethernet 25Gbit/s quad port
Power Supply Quantity and Rating (W)1 x 1500
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameWindows Server 2022 Standard
VendorMicrosoft
Vendor URLhttps://www.microsoft.com/
VersionVersion 21H2(OS Build 20348.1251)
AvailableNov-2022
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle JAVA SE 22.0.2
VendorOracle
Vendor URLhttp://www.oracle.com/
VersionJava HotSpot 64-bit Server VM, version 22.0.2
AvailableJul-2024
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Driver Description
Hardware hw_2
NameDell Inc. PowerEdge R6715
VendorDell Inc.
Vendor URLhttp://www.dell.com/
AvailableNov-2024
ModelPowerEdge R6715
Form Factor1U Rack
CPU NameAMD EPYC 9355P
CPU Characteristics32 core, 3.55 GHz, 256 MB L3 Cache (Max. Boost Clock up to 4.40GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System32
Cores Per Chip32
Threads Per System64
Threads Per Core2
Version0.2.4
CPU Frequency (MHz)3550
Primary Cache32 KB (I) + 48 KB (D) per core
Secondary Cache1 MB (I+D) per core
Tertiary Cache256 MB (I+D) on chip per chip
Other CacheNone
Disk1 x M.2 SSD 480GB (Boss card)
File Systemntfs
Memory Amount (GB)768
# and size of DIMM(s)12 x 64 GB
Memory Details64 GB 2Rx4 PC5-6400B-R (slots A1-12 populated), running at 6000 MT/s
# and type of Network Interface Cards (NICs)1 x Broadcom BCM57504 NetXtreme-E Ethernet 25Gbit/s quad port
Power Supply Quantity and Rating (W)1 x 1500
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_2
NameWindows Server 2022 Standard
VendorMicrosoft
Vendor URLhttps://www.microsoft.com/
VersionVersion 21H2(OS Build 20348.1251)
AvailableNov-2022
Bitness64
NotesNone
Java Virtual Machine jvm_2
NameOracle JAVA SE 22.0.2
VendorOracle
Vendor URLhttp://www.oracle.com/
VersionJava HotSpot 64-bit Server VM, version 22.0.2
AvailableJul-2024
Bitness64
NotesNone
Other Software other_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning
  • Dram Refresh Delay - Performance
  • DIMM Self Healing (Post Package Repair) on Uncorrectable Memory Error - Disabled
  • Correctable Error Logging - Disabled
  • Virtualization Technology - Disabled
  • L2 Stream HW Prefetcher - Disabled
  • NUMA Nodes Per Socket - 2
  • L3 cache as NUMA Domain- Disabled
  • TDP Control- Manual
  • Customized cTDP - 280
  • Customized PPT - 280
  • System Profile - Custom
  • CPU Power Management - Maximum Performance
  • C-States - Disabled
  • Determinism Control- Manual
  • Determinism Slider - Power Determinism
Notes None
OS Image os_Image_1
JVM Instances jvm_Backend_1(4)
OS Image Description os_1
Tuning
  • Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534
  • Power Options is set to High performance
  • Lock Pages in Memory is Enabled
  • Processor scheduling is set to Programs
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xms120g -Xmx120g -Xmn118g -server -XX:MetaspaceSize=256m -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:+UseParallelGC -XX:SurvivorRatio=100 -XX:TargetSurvivorRatio=100 -XX:ParallelGCThreads=16 -XX:MaxTenuringThreshold=15 -XX:InitialCodeCacheSize=25m -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=200 -XX:+UseCompressedOops -XX:ObjectAlignmentInBytes=32 -XX:ThreadStackSize=512 -XX:CompileThresholdScaling=120 -XX:CICompilerCount=4 -Xnoclassgc
Tuning Affinitized each Backend JVM to a single memory node:
  • Group1: start /b /NODE 0
  • Group2: start /b /NODE 0
  • Group3: start /b /NODE 1
  • Group4: start /b /NODE 1
Notes None
Driver config_2 Configuration
Hardware
OS Images os_Image_2(1)
Hardware Description hw_2
Number of Systems 1
SW Environment Non-virtual
Tuning
  • Dram Refresh Delay - Performance
  • DIMM Self Healing (Post Package Repair) on Uncorrectable Memory Error - Disabled
  • Correctable Error Logging - Disabled
  • Virtualization Technology - Disabled
  • L2 Stream HW Prefetcher - Disabled
  • NUMA Nodes Per Socket - 2
  • L3 cache as NUMA Domain- Disabled
  • TDP Control- Manual
  • Customized cTDP - 280
  • Customized PPT - 280
  • System Profile - Custom
  • CPU Power Management - Maximum Performance
  • C-States - Disabled
  • Determinism Control- Manual
  • Determinism Slider - Power Determinism
Notes None
OS Image os_Image_2
JVM Instances jvm_Ctr_1(1), jvm_TxInjector_1(4)
OS Image Description os_2
Tuning
  • Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534
  • Power Options is set to High performance
  • Lock Pages in Memory is Enabled
  • Processor scheduling is set to Programs
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_2
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=4
Tuning None
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_2
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=4
Tuning None
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 82955 83909 84862 85816 86769
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 24314 55848 63067 73897 74850 54337
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 954 - / 954 - / 954 - / 954 - / 954 - / 954
1000us 6675 / 7628 954 / 1907 954 / 1907 - / 954 - / 954 - / 954
5000us 42908 / 43861 20977 / 21931 13349 / 14303 12396 / 13349 10489 / 11442 5721 / 3814
10000us 69606 / 70560 45768 / 46722 28605 / 29559 27652 / 28605 23838 / 24791 16210 / 3814
25000us 83909 / - 79141 / 80095 70560 / 71513 66746 / 67699 59118 / 53397 23838 / 3814
50000us 83909 / - 81048 / 82002 78188 / 79141 75327 / 76281 63885 / 58164 23838 / 3814
75000us 83909 / - 81048 / 82002 79141 / 80095 78188 / 79141 74374 / 73420 23838 / 3814
100000us 83909 / - 82002 / 82955 79141 / 80095 79141 / 80095 74374 / 75327 41001 / 25745
200000us 83909 / - 83909 / - 79141 / 80095 79141 / 80095 79141 / 80095 63885 / 44815
500000us 83909 / - 83909 / - 81048 / 82002 80095 / 81048 79141 / 80095 75327 / 48629
1000000us 83909 / - 83909 / - 83909 / - 83909 / - 82955 / 83909 78188 / 79141

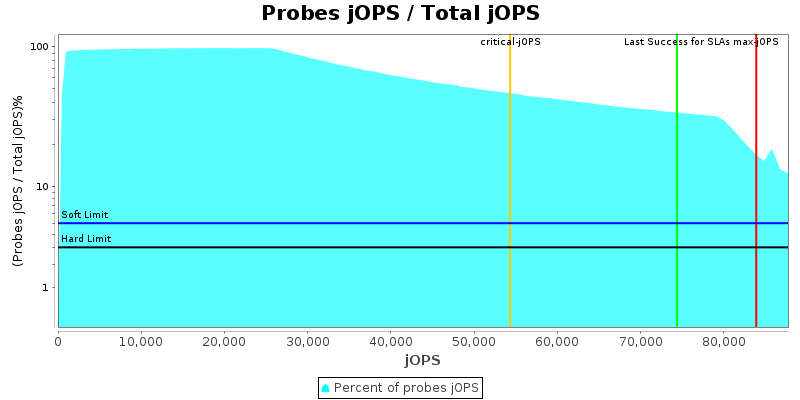

Number of probes
Probes jOPS / Total jOPS

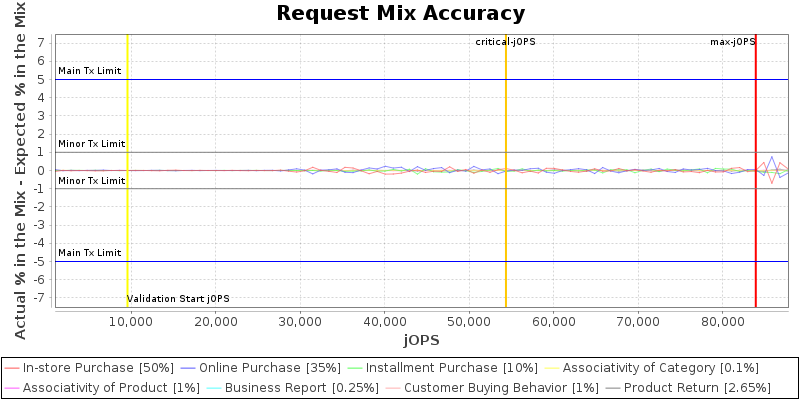

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

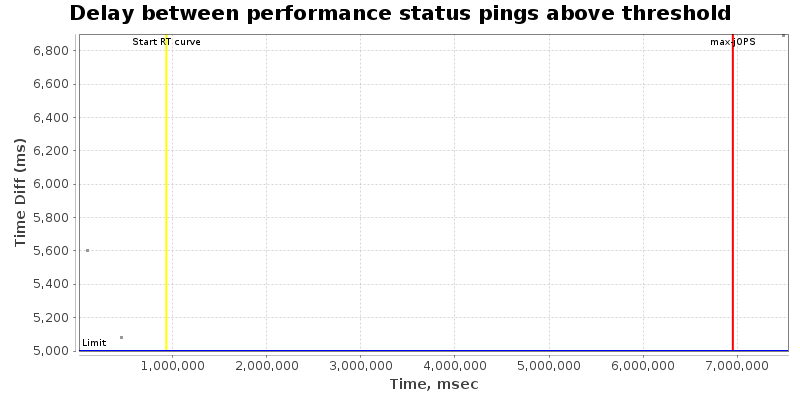

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

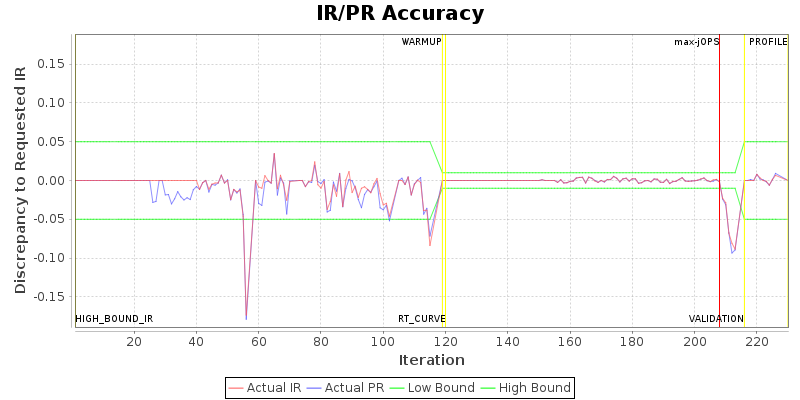

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group1.TxInjector.txiJVM1 Group2.Backend.beJVM Group2.TxInjector.txiJVM2 Group3.Backend.beJVM Group3.TxInjector.txiJVM3 Group4.Backend.beJVM Group4.TxInjector.txiJVM4
specjbb.comm.connect.client.pool.size 256 192 48 48 48 48 48 48 48 48
specjbb.comm.connect.selector.runner.count 0 1 0 0 0 0
specjbb.comm.connect.worker.pool.max 256 150 40 40 40 40 40 40 40 40
specjbb.comm.connect.worker.pool.min 1 16 40 40 40 40 40 40 40 40
specjbb.controller.host localhost 192.168.0.16
specjbb.forkjoin.workers 64 {Tier1=215, Tier2=18, Tier3=32}
specjbb.group.count 1 4
specjbb.heartbeat.threshold 100000 600000
specjbb.mapreducer.pool.size 64 12
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 95351 IR
High-bound (settled) is 88400 IR
