SPECjbb2015 Report for jbb2015-20240918-01410 : 530420 max-jOPS ; 266645 critical-jOPS

SUT Description

Hardware hw_1
Name	QuantaGrid S44NL-1U
Vendor	Quanta Cloud Technology
Vendor URL	http://qct.io
Available	Oct-2024
Model	QuantaGrid S44NL-1U
Form Factor	1U
CPU Name	AMD EPYC 9755
CPU Characteristics	128 core, 2.7GHz, 512MB L3 Cache (Max. Boost Clock up to 4.1GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	1
Cores Per System	128
Cores Per Chip	128
Threads Per System	256
Threads Per Core	2
Version	3B02 09/09/2024
CPU Frequency (MHz)	2700
Primary Cache	32KB(I)+48KB(D) per core
Secondary Cache	1MB (I+D) per core
Tertiary Cache	512MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 960 GB NVMe SSD
File System	btrfs
Memory Amount (GB)	768
# and size of DIMM(s)	12 x 64 GB
Memory Details	64GB 2Rx4 DDR5 6400 MHz, running at 5200 MHz.
# and type of Network Interface Cards (NICs)	Intel 10 Gigabit Ethernet X710-AT2 2-port
Power Supply Quantity and Rating (W)	1 x 1600
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP6
Vendor	SUSE
Vendor URL	http://suse.com/
Version	6.4.0-150600.21-default
Available	June-2024
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 22.0.2
Vendor	Oracle
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-bit Server VM, version 22.0.2
Available	Jul-2024
Bitness	64
Notes	note
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	L1 Stream HW Prefetcher : Disabled L2 Stream HW Prefetcher : Disabled NUMA Nodes Per Socket : NPS4 Power Profile Selection : High Performance Mode Determinism Slider : Power Determinism ACPI CST C2 Latency : 18 PPT Control : 500 TDP Control : 500
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(16), jvm_TxInjector_1(16)
OS Image Description	os_1
Tuning	cpupower -c all frequency-set -g performance tuned-adm profile throughput-performance echo 960000 > /proc/sys/kernel/sched_rt_runtime_us echo 800000000 > /proc/sys/kernel/sched_latency_ns echo 40000 > /proc/sys/kernel/sched_migration_cost_ns echo 910000000 > /proc/sys/kernel/sched_min_granularity_ns echo 2000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 9000 > /proc/sys/kernel/sched_nr_migrate echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo 0 > /proc/sys/vm/numa_stat echo always > /sys/kernel/mm/transparent_hugepage/enabled echo always > /sys/kernel/mm/transparent_hugepage/defrag
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xms8g -Xmx8g -Xmn6g -XX:+UseParallelGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=2
Tuning	Used numactl to interleave memory on all CPUs numactl --interleave=all
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms31g -Xmx31g -Xmn29g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:ParallelGCThreads=16 -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=12 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=11k -XX:MaxGCPauseMillis=100 -XX:LoopUnrollLimit=200 -XX:+UseTransparentHugePages -XX:TLABAllocationWeight=2 -XX:ThreadStackSize=140 -XX:CompileThresholdScaling=120 -XX:CICompilerCount=4 -XX:AutoBoxCacheMax=32 -XX:OnStackReplacePercentage=100 -XX:TLABSize=1m -XX:MinTLABSize=1m -XX:-ResizeTLAB -XX:TLABWasteTargetPercent=1 -XX:TLABWasteIncrement=1 -XX:YoungPLABSize=1m -XX:OldPLABSize=1m
Tuning	Used numactl to affinitize each Backend JVM to 8 Core / 16 Threads Group1: Group1: numactl --physcpubind=0-7,128-135 --localalloc Group2: numactl --physcpubind=8-15,136-143 --localalloc Group3: numactl --physcpubind=16-23,144-151 --localalloc Group4: numactl --physcpubind=24-31,152-159 --localalloc Group5: numactl --physcpubind=32-39,160-167 --localalloc Group6: numactl --physcpubind=40-47,168-175 --localalloc Group7: numactl --physcpubind=48-55,176-183 --localalloc Group8: numactl --physcpubind=56-63,184-191 --localalloc Group9: numactl --physcpubind=64-71,192-199 --localalloc Group10: numactl --physcpubind=72-79,200-207 --localalloc Group11: numactl --physcpubind=80-87,208-215 --localalloc Group12: numactl --physcpubind=88-95,216-223 --localalloc Group13: numactl --physcpubind=96-103,224-231 --localalloc Group14: numactl --physcpubind=104-111,232-239 --localalloc Group15: numactl --physcpubind=112-119,240-247 --localalloc Group16: numactl --physcpubind=120-127,248-255 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms8g -Xmx8g -Xmn6g -XX:+UseParallelGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=2
Tuning	Used numactl to affinitize each TxInjector JVM to 8 Core / 16 Threads Group1: Group1: numactl --physcpubind=0-7,128-135 --localalloc Group2: numactl --physcpubind=8-15,136-143 --localalloc Group3: numactl --physcpubind=16-23,144-151 --localalloc Group4: numactl --physcpubind=24-31,152-159 --localalloc Group5: numactl --physcpubind=32-39,160-167 --localalloc Group6: numactl --physcpubind=40-47,168-175 --localalloc Group7: numactl --physcpubind=48-55,176-183 --localalloc Group8: numactl --physcpubind=56-63,184-191 --localalloc Group9: numactl --physcpubind=64-71,192-199 --localalloc Group10: numactl --physcpubind=72-79,200-207 --localalloc Group11: numactl --physcpubind=80-87,208-215 --localalloc Group12: numactl --physcpubind=88-95,216-223 --localalloc Group13: numactl --physcpubind=96-103,224-231 --localalloc Group14: numactl --physcpubind=104-111,232-239 --localalloc Group15: numactl --physcpubind=112-119,240-247 --localalloc Group16: numactl --physcpubind=120-127,248-255 --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Pass	Fail	Fail
jOPS	519013	524716	530420	536123	541827

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	172370	230038	287246	327630	361218	266645

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	22814 / 28517	11407 / 17110	5703 / 11407	- / 5703	- / 5703	- / 5703
1000us	102662 / 108365	34221 / 39924	22814 / 28517	17110 / 22814	11407 / 17110	- / 5703
5000us	444868 / 450572	273765 / 279469	136883 / 142586	131179 / 136883	114069 / 119772	5703 / 11407
10000us	456275 / 461979	422055 / 427758	347910 / 342206	296579 / 302282	182510 / 136883	28517 / 11407
25000us	467682 / 473386	444868 / 450572	387834 / 393537	359317 / 365020	239544 / 211027	28517 / 11407
50000us	467682 / 473386	456275 / 461979	410648 / 416351	387834 / 382130	307986 / 250951	28517 / 11407
75000us	473386 / 479089	456275 / 461979	422055 / 427758	399241 / 404944	347910 / 302282	28517 / 11407
100000us	473386 / 479089	461979 / 467682	433461 / 439165	422055 / 416351	376427 / 330800	131179 / 22814
200000us	490496 / 496199	473386 / 479089	456275 / 461979	450572 / 456275	433461 / 382130	279469 / 68441
500000us	524716 / 530420	501903 / 507606	484792 / 490496	479089 / 484792	473386 / 467682	399241 / 96958
1000000us	530420 / -	524716 / 530420	513310 / 519013	513310 / 519013	501903 / 507606	444868 / 404944

Number of probes

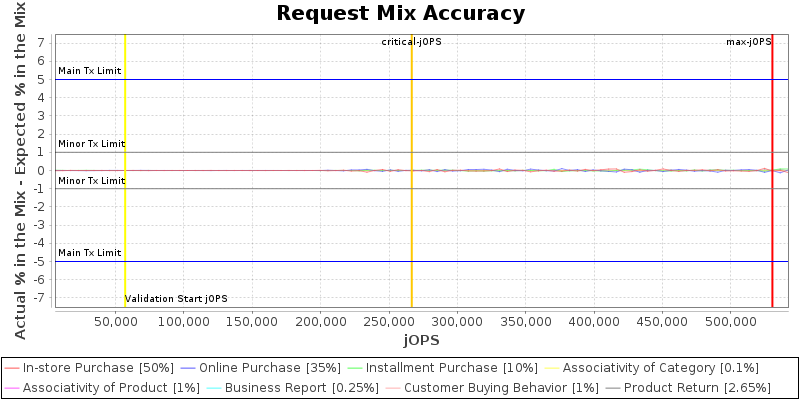

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

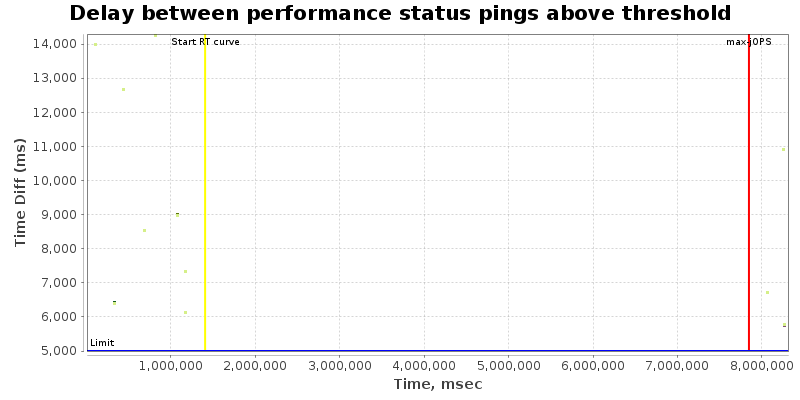

Delay between performance status pings during RT Curve (Response-Throughput Curve)

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group10.Backend.beJVM	Group10.TxInjector.txiJVM1	Group11.Backend.beJVM	Group11.TxInjector.txiJVM1	Group12.Backend.beJVM	Group12.TxInjector.txiJVM1	Group13.Backend.beJVM	Group13.TxInjector.txiJVM1	Group14.Backend.beJVM	Group14.TxInjector.txiJVM1	Group15.Backend.beJVM	Group15.TxInjector.txiJVM1	Group16.Backend.beJVM	Group16.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1	Group5.Backend.beJVM	Group5.TxInjector.txiJVM1	Group6.Backend.beJVM	Group6.TxInjector.txiJVM1	Group7.Backend.beJVM	Group7.TxInjector.txiJVM1	Group8.Backend.beJVM	Group8.TxInjector.txiJVM1	Group9.Backend.beJVM	Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	150	256	170	256	170	256	170	256	170	256	170	256	170	256	170	256	170	256	170	256	170	256	170	256	170	256	170	256	170	256	170	256	170
specjbb.comm.connect.selector.runner.count	0	5
specjbb.comm.connect.timeouts.connect	60000	900000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.read	60000	800000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.write	60000	800000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.worker.pool.max	256	150	256	200	256	200	256	200	256	200	256	200	256	200	256	200	256	200	256	200	256	200	256	200	256	200	256	200	256	200	256	200	256	200
specjbb.comm.connect.worker.pool.min	1	16	32		32		32		32		32		32		32		32		32		32		32		32		32		32		32		32
specjbb.controller.maxir.maxFailedPoints	3	1
specjbb.customerDriver.threads	64	{probe=120, saturate=120, service=70}
specjbb.forkjoin.workers	256	{Tier1=110, Tier2=8, Tier3=16}
specjbb.group.count	1	16
specjbb.mapreducer.pool.size	256	5
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 570344 IR

High-bound (settled) is 566236 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.04, Feb 16, 2024]

Quanta Cloud Technology, QuantaGrid S44NL-1U	530420 SPECjbb2015-MultiJVM max-jOPS 266645 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Quanta Computer Inc.	Test Sponsor: Quanta Computer Inc.	Test location: Taoyuan, TW, R.O.C	Test date: September 15, 2024
SPEC license #: 9050	Hardware Availability: Oct-2024	Software Availability: Sep-2024	Publication: Thu Oct 17 11:43:39 EDT 2024

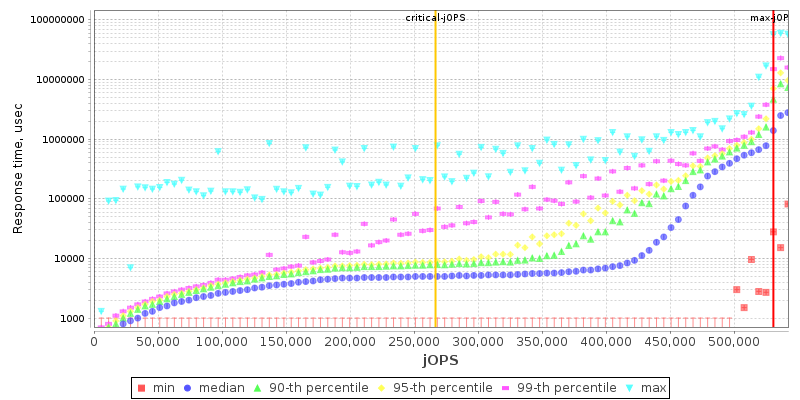

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host (# of groups: 16) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
