SPECjbb2015 Report for jbb2015-20240918-01408 : 1263805 max-jOPS ; 597602 critical-jOPS

SUT Description

Hardware hw_1
Name	RS720A-E13-RS8U
Vendor	ASUSTeK Computer Inc.
Vendor URL	https://www.asus.com/
Available	Nov-2024
Model	RS720A-E13-RS8U
Form Factor	2U
CPU Name	AMD EPYC 9965
CPU Characteristics	192 Core, 2.25 GHz, 384 MB L3 Cache (Max Boost Clock up to 3.70 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	384
Cores Per Chip	192
Threads Per System	768
Threads Per Core	2
Version	0202
CPU Frequency (MHz)	2250
Primary Cache	32 KB(I) + 48 KB(D) per core
Secondary Cache	1 MB (I+D) per core
Tertiary Cache	384 MB (I+D) per chip
Other Cache	None
Disk	1 x 4.0 TB PCIe NVMe SSD
File System	xfs
Memory Amount (GB)	2304
# and size of DIMM(s)	24 x 96 GB
Memory Details	96 GB 2Rx4 PC5-6400B-R, running at 6000 MHz.
# and type of Network Interface Cards (NICs)	1 x 2 ports Intel X710 10GbE
Power Supply Quantity and Rating (W)	2 x 3200W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP6
Vendor	SUSE
Vendor URL	https://www.suse.com/
Version	6.4.0-150600.21-default
Available	Jun-2024
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 22.0.2
Vendor	Oracle
Vendor URL	https://www.oracle.com
Version	Java HotSpot 64-bit Server VM, version 22.0.2
Available	Jul-2024
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Settings: SVM Mode = Disabled SR-IOV Support = Disabled Engine Boost = Aggressive NUMA nodes per socket = NPS4 L1 Stream HW Prefetcher = Disable L2 Stream HW Prefetcher = Disable TDP Control = Manual TDP = 500 PPT Control = Manual PPT = 500 Determinism Control = Manual Determinism Slider = Power ACPI SRAT L3 Cache as NUMA Domain = Enabled 4 Link xGMI max speed = 32Gbps 3 Link xGMI max speed = 32Gbps
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(24), jvm_TxInjector_1(24)
OS Image Description	os_1
Tuning	cpupower frequency-set -g performance tuned-adm profile throughput-performance ulimit -n 1024000 echo 960000 > /proc/sys/kernel/sched_rt_runtime_us echo 800000000 > /proc/sys/kernel/sched_latency_ns echo 40000 > /proc/sys/kernel/sched_migration_cost_ns echo 910000000 > /proc/sys/kernel/sched_min_granularity_ns echo 2000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 9000 > /proc/sys/kernel/sched_nr_migrate echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo 0 > /proc/sys/vm/numa_stat echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=2
Tuning	Used numactl to interleave memory on all CPUs numactl --interleave=all
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms31g -Xmx31g -Xmn28g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:ParallelGCThreads=32 -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=12 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=11k -XX:MaxGCPauseMillis=100 -XX:LoopUnrollLimit=200 -XX:+UseTransparentHugePages -XX:TLABAllocationWeight=2 -XX:ThreadStackSize=140 -XX:CompileThresholdScaling=120 -XX:CICompilerCount=4 -XX:AutoBoxCacheMax=32 -XX:OnStackReplacePercentage=100 -XX:TLABSize=1m -XX:MinTLABSize=1m -XX:-ResizeTLAB -XX:TLABWasteTargetPercent=1 -XX:TLABWasteIncrement=1 -XX:YoungPLABSize=1m -XX:OldPLABSize=1m
Tuning	Used numactl to affinitize each Backend JVM to 16 Cores / 32 Threads numactl --physcpubind=0-15,384-399 --localalloc numactl --physcpubind=16-31,400-415 --localalloc numactl --physcpubind=32-47,416-431 --localalloc numactl --physcpubind=48-63,432-447 --localalloc numactl --physcpubind=64-79,448-463 --localalloc numactl --physcpubind=80-95,464-479 --localalloc numactl --physcpubind=96-111,480-495 --localalloc numactl --physcpubind=112-127,496-511 --localalloc numactl --physcpubind=128-143,512-527 --localalloc numactl --physcpubind=144-159,528-543 --localalloc numactl --physcpubind=160-175,544-559 --localalloc numactl --physcpubind=176-191,560-575 --localalloc numactl --physcpubind=192-207,576-591 --localalloc numactl --physcpubind=208-223,592-607 --localalloc numactl --physcpubind=224-239,608-623 --localalloc numactl --physcpubind=240-255,624-639 --localalloc numactl --physcpubind=256-271,640-655 --localalloc numactl --physcpubind=272-287,656-671 --localalloc numactl --physcpubind=288-303,672-687 --localalloc numactl --physcpubind=304-319,688-703 --localalloc numactl --physcpubind=320-335,704-719 --localalloc numactl --physcpubind=336-351,720-735 --localalloc numactl --physcpubind=352-367,736-751 --localalloc numactl --physcpubind=368-383,752-767 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=2
Tuning	Used numactl to affinitize each TxInjector JVM to 16 Cores / 32 Threads numactl --physcpubind=0-15,384-399 --localalloc numactl --physcpubind=16-31,400-415 --localalloc numactl --physcpubind=32-47,416-431 --localalloc numactl --physcpubind=48-63,432-447 --localalloc numactl --physcpubind=64-79,448-463 --localalloc numactl --physcpubind=80-95,464-479 --localalloc numactl --physcpubind=96-111,480-495 --localalloc numactl --physcpubind=112-127,496-511 --localalloc numactl --physcpubind=128-143,512-527 --localalloc numactl --physcpubind=144-159,528-543 --localalloc numactl --physcpubind=160-175,544-559 --localalloc numactl --physcpubind=176-191,560-575 --localalloc numactl --physcpubind=192-207,576-591 --localalloc numactl --physcpubind=208-223,592-607 --localalloc numactl --physcpubind=224-239,608-623 --localalloc numactl --physcpubind=240-255,624-639 --localalloc numactl --physcpubind=256-271,640-655 --localalloc numactl --physcpubind=272-287,656-671 --localalloc numactl --physcpubind=288-303,672-687 --localalloc numactl --physcpubind=304-319,688-703 --localalloc numactl --physcpubind=320-335,704-719 --localalloc numactl --physcpubind=336-351,720-735 --localalloc numactl --physcpubind=352-367,736-751 --localalloc numactl --physcpubind=368-383,752-767 --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Pass	Fail	Fail
jOPS	1235405	1249605	1263805	1278005	1292205

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	359735	488482	661317	776269	844904	597602

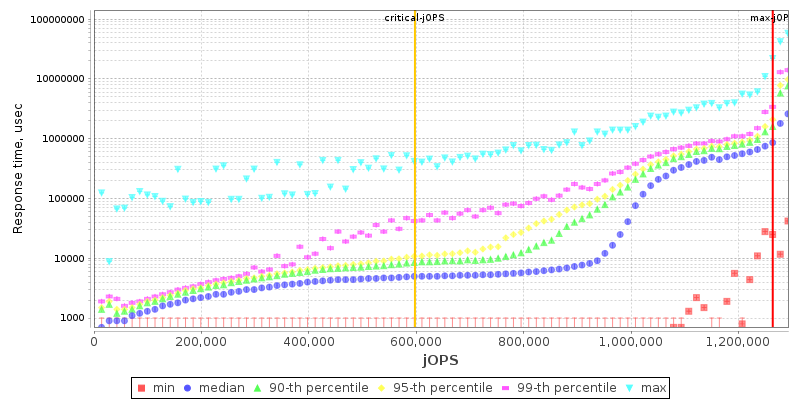

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	14200 / 28400	- / 14200	- / 14200	- / 14200	- / 14200	- / 14200
1000us	269801 / 284001	56800 / 71000	- / 14200	- / 14200	- / 14200	- / 14200
5000us	979804 / 994004	639003 / 653203	326601 / 340801	312401 / 326601	269801 / 284001	- / 14200
10000us	1008204 / 1022404	937204 / 951404	752603 / 766803	568002 / 582202	369202 / 340801	28400 / 14200
25000us	1022404 / 1036604	979804 / 994004	852004 / 866204	781003 / 795203	511202 / 454402	28400 / 14200
50000us	1022404 / 1036604	994004 / 1008204	908804 / 923004	852004 / 866204	710003 / 624803	28400 / 14200
75000us	1036604 / 1050804	994004 / 1008204	937204 / 951404	894604 / 908804	795203 / 766803	142001 / 14200
100000us	1050804 / 1065004	1008204 / 1022404	951404 / 965604	937204 / 951404	852004 / 837804	269801 / 14200
200000us	1093405 / 1107605	1036604 / 1050804	994004 / 1008204	994004 / 1008204	937204 / 951404	468602 / 156201
500000us	1263805 / -	1178605 / 1192805	1093405 / 1107605	1065004 / 1079205	1022404 / 1036604	710003 / 553802
1000000us	1263805 / -	1263805 / -	1235405 / 1249605	1221205 / 1235405	1178605 / 1192805	923004 / 894604

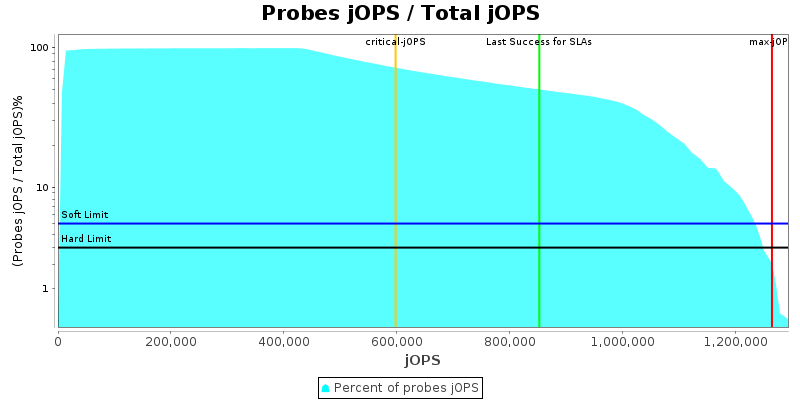

Number of probes

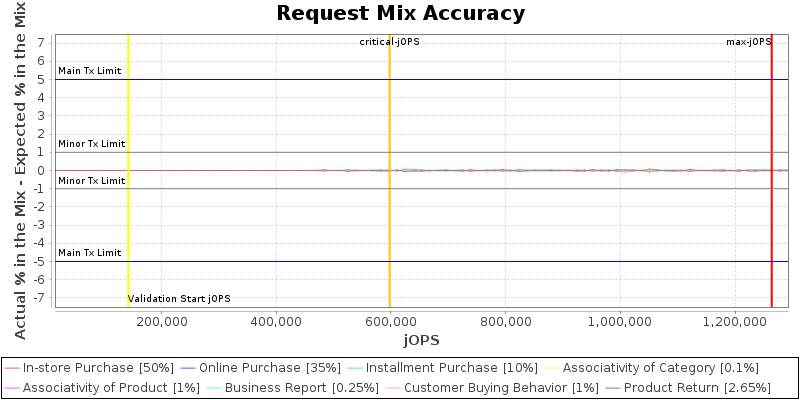

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group10.Backend.beJVM	Group10.TxInjector.txiJVM1	Group11.Backend.beJVM	Group11.TxInjector.txiJVM1	Group12.Backend.beJVM	Group12.TxInjector.txiJVM1	Group13.Backend.beJVM	Group13.TxInjector.txiJVM1	Group14.Backend.beJVM	Group14.TxInjector.txiJVM1	Group15.Backend.beJVM	Group15.TxInjector.txiJVM1	Group16.Backend.beJVM	Group16.TxInjector.txiJVM1	Group17.Backend.beJVM	Group17.TxInjector.txiJVM1	Group18.Backend.beJVM	Group18.TxInjector.txiJVM1	Group19.Backend.beJVM	Group19.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group20.Backend.beJVM	Group20.TxInjector.txiJVM1	Group21.Backend.beJVM	Group21.TxInjector.txiJVM1	Group22.Backend.beJVM	Group22.TxInjector.txiJVM1	Group23.Backend.beJVM	Group23.TxInjector.txiJVM1	Group24.Backend.beJVM	Group24.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1	Group5.Backend.beJVM	Group5.TxInjector.txiJVM1	Group6.Backend.beJVM	Group6.TxInjector.txiJVM1	Group7.Backend.beJVM	Group7.TxInjector.txiJVM1	Group8.Backend.beJVM	Group8.TxInjector.txiJVM1	Group9.Backend.beJVM	Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	150	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320
specjbb.comm.connect.selector.runner.count	0	7	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5
specjbb.comm.connect.timeouts.connect	60000	900000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.read	60000	800000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.write	60000	800000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.worker.pool.max	256	150	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320
specjbb.comm.connect.worker.pool.min	1	16	32		32		32		32		32		32		32		32		32		32		32		32		32		32		32		32		32		32		32		32		32		32		32		32
specjbb.controller.maxir.maxFailedPoints	3	1
specjbb.customerDriver.threads	64	{probe=180, saturate=350, service=90}
specjbb.forkjoin.workers	768	{Tier1=665, Tier2=20, Tier3=110}
specjbb.group.count	1	24
specjbb.mapreducer.pool.size	768	7
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 1420006 IR

High-bound (settled) is 1316233 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.04, Feb 16, 2024]

ASUSTeK Computer Inc. RS720A-E13-RS8U	1263805 SPECjbb2015-MultiJVM max-jOPS 597602 SPECjbb2015-MultiJVM critical-jOPS
Tested by: ASUSTeK Computer Inc.	Test Sponsor: ASUSTeK Computer Inc.	Test location: Taipei, Taiwan	Test date: Sep 16, 2024
SPEC license #: 9016	Hardware Availability: Nov-2024	Software Availability: Jul-2024	Publication: Thu Oct 10 13:03:35 EDT 2024


SPECjbb2015-MultiJVM: Multiple JVMs/Single Host (# of groups: 24) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
