SPECjbb2015 Report for jbb2015-20240918-01379 : 177771 max-jOPS ; 139369 critical-jOPS

SUT Description

Hardware hw_1
Name	Dell Inc. PowerEdge R7715
Vendor	Dell Inc.
Vendor URL	http://www.dell.com/
Available	Nov-2024
Model	PowerEdge R7715
Form Factor	2U Rack
CPU Name	AMD EPYC 9355P
CPU Characteristics	32 core, 3.55 GHz, 256 MB L3 Cache (Max. Boost Clock up to 4.40GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	1
Cores Per System	32
Cores Per Chip	32
Threads Per System	64
Threads Per Core	2
Version	0.2.4
CPU Frequency (MHz)	3550
Primary Cache	32 KB (I) + 48 KB (D) per core
Secondary Cache	1 MB (I+D) per core
Tertiary Cache	256 MB (I+D) on chip per chip
Other Cache	None
Disk	1 x M.2 SSD 480GB (Boss card)
File System	ntfs
Memory Amount (GB)	768
# and size of DIMM(s)	12 x 64 GB
Memory Details	64 GB 2Rx4 PC5-6400B-R (slots A1-12), running at 5200 MT/s
# and type of Network Interface Cards (NICs)	1 x Broadcom BCM57504 NetXtreme-E Ethernet 25Gbit/s Quad Port
Power Supply Quantity and Rating (W)	1 x 1500
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Windows Server 2022 Standard
Vendor	Microsoft
Vendor URL	https://www.microsoft.com
Version	Version 21H2(OS Build 20348.1251)
Available	Nov-2022
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 22.0.2
Vendor	Oracle
Vendor URL	https://www.oracle.com
Version	Java HotSpot 64-bit Server VM, version 22.0.2
Available	Jul-2024
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Composite_1 : Composite

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	Non-virtual
Tuning	Dram Refresh Delay - Performance DIMM Self Healing (Post Package Repair) on Uncorrectable Memory Error - Disabled Correctable Error Logging - Disabled Virtualization Technology - Disabled L2 Stream HW Prefetcher - Disabled NUMA Nodes Per Socket - 1 L3 cache as NUMA Domain- Disabled TDP Control- Manual Customized cTDP - 280 Customized PPT - 280 System Profile - Custom CPU Power Management - Maximum Performance C-States - Disabled Determinism Control- Manual Determinism Slider - Power Determinism
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Composite_1(2)
OS Image Description	os_1
Tuning	Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534 Power Options is set to High performance Lock Pages in Memory is Enabled Processor scheduling is set to Programs
Notes	None
JVM Instance jvm_Composite_1
Parts of Benchmark	Composite
JVM Instance Description	jvm_1
Command Line	-Xms720g -Xmx720g -Xmn710g -server -XX:+UseParallelGC -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:MaxTenuringThreshold=5 -XX:-UseAdaptiveSizePolicy -XX:ParallelGCThreads=32 -XX:SurvivorRatio=164 -XX:TargetSurvivorRatio=95 -XX:+UseNUMA -XX:-UseAdaptiveNUMAChunkSizing -XX:InlineSmallCode=11k -XX:TLABAllocationWeight=2 -XX:ThreadStackSize=140 -XX:AutoBoxCacheMax=32 -XX:OnStackReplacePercentage=100
Tuning	None
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Pass	Fail	Fail
jOPS	173685	175728	177771	179815	181858

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	86842	145661	159965	159965	162446	139369

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	91951 / 16347	4087 / 6130	4087 / 6130	4087 / 6130	2043 / 4087	- / 2043
1000us	171641 / 173685	36780 / 12260	6130 / 8173	6130 / 8173	4087 / 6130	4087 / 6130
5000us	177771 / -	167555 / 169598	91951 / 59257	89907 / 49040	79691 / 42910	24520 / 6130
10000us	177771 / -	171641 / 173685	124644 / 100124	122601 / 93994	89907 / 83777	55170 / 6130
25000us	177771 / -	173685 / 175728	167555 / 169598	163468 / 165511	149165 / 136904	57214 / 6130
50000us	177771 / -	173685 / 175728	169598 / 171641	167555 / 169598	163468 / 151208	89907 / 6130
75000us	177771 / -	173685 / 175728	169598 / 171641	169598 / 171641	163468 / 151208	96037 / 6130
100000us	177771 / -	173685 / 175728	169598 / 171641	169598 / 171641	163468 / 161425	112384 / 98081
200000us	177771 / -	175728 / 177771	171641 / 173685	169598 / 171641	169598 / 171641	145078 / 136904
500000us	177771 / -	175728 / 177771	173685 / 175728	173685 / 175728	169598 / 171641	169598 / 167555
1000000us	177771 / -	177771 / -	173685 / 175728	173685 / 175728	173685 / 175728	169598 / 171641

Number of probes

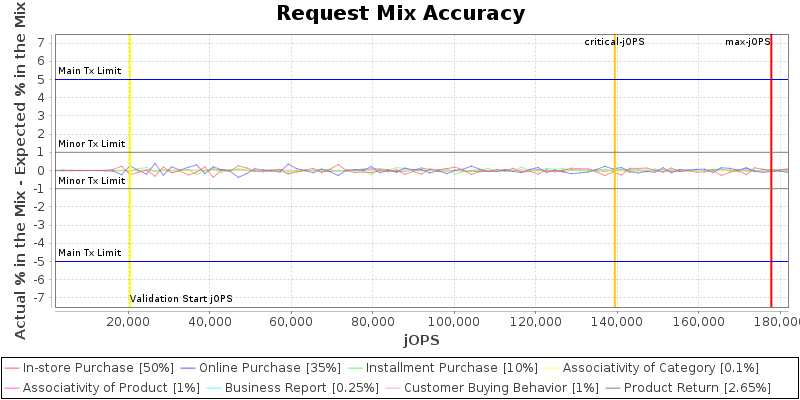

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.client.pool.size	256	96
specjbb.comm.connect.selector.runner.count	0	12
specjbb.comm.connect.worker.pool.max	256	60
specjbb.comm.connect.worker.pool.min	1	60
specjbb.controller.maxir.maxFailedPoints	3	1
specjbb.controller.rtcurve.warmup.step	0.1	0.2
specjbb.customerDriver.threads	64	{probe=72, saturate=72}
specjbb.forkjoin.workers	64	{Tier1=68, Tier2=1, Tier3=12}
specjbb.group.count	1	2
specjbb.heartbeat.period	10000	50000
specjbb.heartbeat.threshold	100000	500000
specjbb.mapreducer.pool.size	64	4

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 204335 IR

High-bound (settled) is 189392 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.04, Feb 16, 2024]

Dell Inc. PowerEdge R7715	177771 SPECjbb2015-Composite max-jOPS 139369 SPECjbb2015-Composite critical-jOPS
Tested by: Dell Inc.	Test Sponsor: Dell Inc.	Test location: Round Rock, TX	Test date: Sep 17,2024
SPEC license #: 6573	Hardware Availability: Nov-2024	Software Availability: Jul-2024	Publication: Thu Oct 10 13:03:35 EDT 2024


SPECjbb2015-Composite: Single JVM/Single Host (# of groups: 2) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
