SPECjbb2015 Report for jbb2015-20240918-01359 : 456566 max-jOPS ; 433979 critical-jOPS

SUT Description

Hardware hw_1
Name	ProLiant DL325 Gen11
Vendor	Hewlett Packard Enterprise
Vendor URL	http://hpe.com/
Available	Oct-2024
Model	ProLiant DL325 Gen11
Form Factor	1U Rack
CPU Name	AMD EPYC 9845
CPU Characteristics	160 Core, 2.1 GHz, 320 MB L3 Cache(Max. Boost Clock Up to 3.7 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	1
Cores Per System	160
Cores Per Chip	160
Threads Per System	320
Threads Per Core	2
Version	A56 v2.10 09/11/2024
CPU Frequency (MHz)	2100
Primary Cache	32 KB I + 48 KB D on chip per core
Secondary Cache	1024 KB I+D on chip per core
Tertiary Cache	320 MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 480 GB NVMe SSD
File System	btrfs
Memory Amount (GB)	768
# and size of DIMM(s)	12 x 64 GB
Memory Details	64GB 2Rx4 DDR5 RDIMM 6400 MHz, running at 6000 MHz
# and type of Network Interface Cards (NICs)	HPE Ethernet 1Gb 4-port
Power Supply Quantity and Rating (W)	2 x 800
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP6
Vendor	SUSE
Vendor URL	http://suse.com/
Version	6.4.0-150600.21-default
Available	Jun-2024
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 22.0.2
Vendor	Oracle
Vendor URL	http://www.oracle.com/
Version	Java HotSpot 64-bit Server VM, version 22.0.2
Available	Jul-2024
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	Non-virtual
Tuning	Workload Profile=High Performance Compute(HPC) Thermal Configuration=Enhanced Cooling Determinism Control=Manual Performance Determinism=Power Deterministic Memory Patrol Scrubbing=Disabled Numa Memory Domains Per Socket(NPS)=Two Memory Domains Per Socket L1 Stream HW Prefetcher=Enabled L2 Stream HW Prefetcher=Enabled Minimum Processor Idle Power Core C-State=No C-states Package Power Limit=390
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(6), jvm_TxInjector_1(6)
OS Image Description	os_1
Tuning	tuned-adm profile throughput-performance ulimit -n 1024000 echo 950000 > /proc/sys/kernel/sched_rt_runtime_us echo 100000000 > /proc/sys/kernel/sched_latency_ns echo 80000 > /proc/sys/kernel/sched_migration_cost_ns echo 300000 > /proc/sys/kernel/sched_min_granularity_ns echo 300000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 32 > /proc/sys/kernel/sched_nr_migrate echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo 0 > /proc/sys/vm/numa_stat echo always > /sys/kernel/mm/transparent_hugepage/enabled echo always > /sys/kernel/mm/transparent_hugepage/defrag
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning	Used numactl to interleave memory on all CPUs numactl --interleave=all
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms120g -Xmx120g -Xmn118g -server -XX:MetaspaceSize=256m -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:+UseParallelGC -XX:SurvivorRatio=100 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=50 -XX:MaxTenuringThreshold=15 -XX:InitialCodeCacheSize=25m -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=200 -XX:+UseCompressedOops -XX:ObjectAlignmentInBytes=32 -XX:+UseTransparentHugePages -XX:TLABAllocationWeight=55 -XX:ThreadStackSize=512 -XX:CompileThresholdScaling=120
Tuning	Used numactl to affinitize three Backend JVMs to a NUMA node Group1: numactl --cpunodebind=0 --localalloc Group2: numactl --cpunodebind=0 --localalloc Group3: numactl --cpunodebind=0 --localalloc Group4: numactl --cpunodebind=1 --localalloc Group5: numactl --cpunodebind=1 --localalloc Group6: numactl --cpunodebind=1 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning	Used numactl to affinitize three Transaction Injector JVMs to a NUMA node Group1: numactl --cpunodebind=0 --localalloc Group2: numactl --cpunodebind=0 --localalloc Group3: numactl --cpunodebind=0 --localalloc Group4: numactl --cpunodebind=1 --localalloc Group5: numactl --cpunodebind=1 --localalloc Group6: numactl --cpunodebind=1 --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	451319	456566	461814	467062	472310

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	401464	417207	443447	453942	456566	433979

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	73470 / 78718	10496 / 15744	- / 5248	- / 5248	- / 5248	- / 5248
1000us	446071 / 451319	320121 / 325369	31487 / 36735	26239 / 31487	20992 / 26239	- / 5248
5000us	456566 / -	456566 / -	440823 / 446071	419831 / 425079	356857 / 362104	31487 / 10496
10000us	456566 / -	456566 / -	456566 / -	451319 / 456566	398840 / 404088	31487 / 10496
25000us	456566 / -	456566 / -	456566 / -	456566 / -	419831 / 414583	31487 / 10496
50000us	456566 / -	456566 / -	456566 / -	456566 / -	440823 / 446071	220411 / 73470
75000us	456566 / -	456566 / -	456566 / -	456566 / -	451319 / 456566	320121 / 83966
100000us	456566 / -	456566 / -	456566 / -	456566 / -	456566 / -	362104 / 225659
200000us	456566 / -	456566 / -	456566 / -	456566 / -	456566 / -	446071 / 451319
500000us	456566 / -	456566 / -	456566 / -	456566 / -	456566 / -	456566 / -
1000000us	456566 / -	456566 / -	456566 / -	456566 / -	456566 / -	456566 / -

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

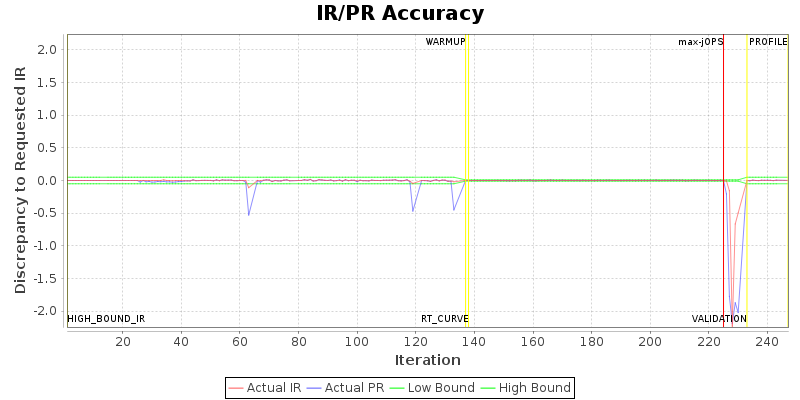

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1	Group5.Backend.beJVM	Group5.TxInjector.txiJVM1	Group6.Backend.beJVM	Group6.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	256	120	120	120	120	120	120	120	120	120	120	120	120
specjbb.comm.connect.selector.runner.count	0	4
specjbb.comm.connect.worker.pool.max	256	256	120	120	120	120	120	120	120	120	120	120	120	120
specjbb.comm.connect.worker.pool.min	1	1	24	24	24	24	24	24	24	24	24	24	24	24
specjbb.controller.handshake.period	5000	20000
specjbb.controller.handshake.timeout	600000	900000
specjbb.forkjoin.workers	320	{Tier1=110, Tier2=1, Tier3=8}
specjbb.group.count	1	6
specjbb.heartbeat.period	10000	2000
specjbb.heartbeat.threshold	100000	9000000
specjbb.mapreducer.pool.size	320	6
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 524789 IR

High-bound (settled) is 508304 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.04, Feb 16, 2024]

Hewlett Packard Enterprise ProLiant DL325 Gen11	456566 SPECjbb2015-MultiJVM max-jOPS 433979 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Hewlett Packard Enterprise	Test Sponsor: Hewlett Packard Enterprise	Test location: Houston, TX	Test date: September 17, 2024
SPEC license #: 3	Hardware Availability: Oct-2024	Software Availability: Jul-2024	Publication: Thu Oct 10 13:03:35 EDT 2024

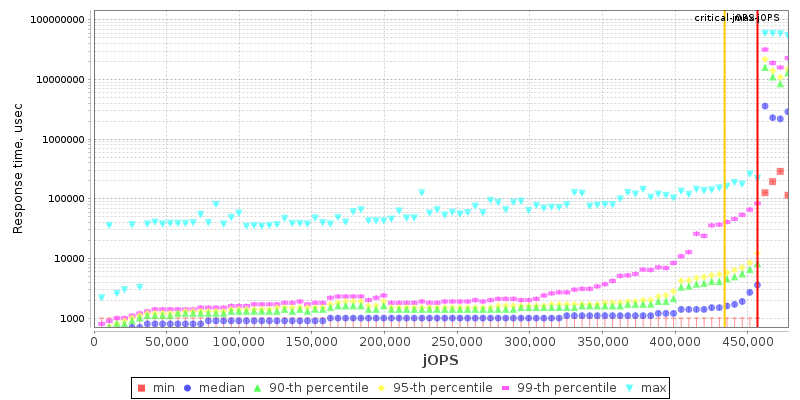

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host (# of groups: 6) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
