SPECjbb2015
Copyright © 2015-2024 Standard Performance Evaluation Corporation
Dell Inc. PowerEdge R6715 316259 SPECjbb2015-Composite max-jOPS
156522 SPECjbb2015-Composite critical-jOPS
Tested by: Dell Inc. Test Sponsor: Dell Inc. Test location: Round Rock, TX Test date: Sep 12,2024
SPEC license #: 6573 Hardware Availability: Nov-2024 Software Availability: Jul-2024 Publication: Thu Oct 10 13:03:35 EDT 2024
Benchmark Results Summary

SPECjbb2015-Composite: Single JVM/Single Host
(# of groups: 3)

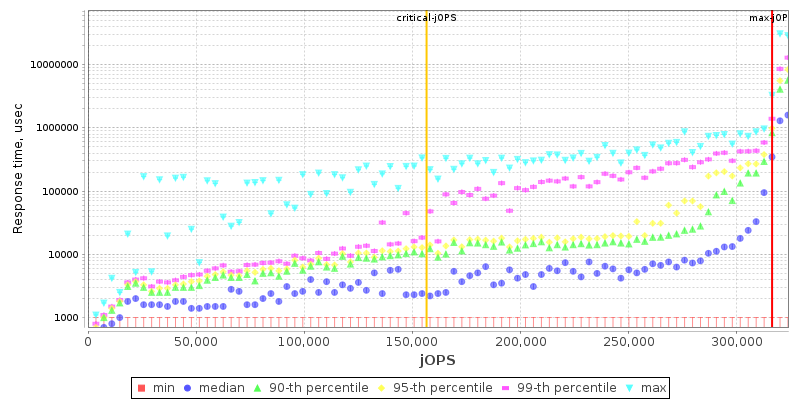

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorDell Inc.
Vendor URLhttps://www.dell.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores64
Total Threads128
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameDell Inc. PowerEdge R6715
VendorDell Inc.
Vendor URLhttp://www.dell.com/
AvailableNov-2024
ModelPowerEdge R6715
Form Factor1U Rack
CPU NameAMD EPYC 9575F
CPU Characteristics64 core, 3.30 GHz, 256 MB L3 Cache (Max. Boost Clock up to 5.00GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System64
Cores Per Chip64
Threads Per System128
Threads Per Core2
Version0.2.4
CPU Frequency (MHz)3300
Primary Cache32 KB (I) + 48 KB (D) per core
Secondary Cache1 MB (I+D) per core
Tertiary Cache256 MB (I+D) on chip per chip
Other CacheNone
Disk1 x M.2 SSD 480 GB (Boss card)
File Systemntfs
Memory Amount (GB)768
# and size of DIMM(s)12 x 64 GB
Memory Details64 GB 2Rx4 PC5-6400B-R (slots A1-12), running at 5200 MT/s
# and type of Network Interface Cards (NICs)1 x Broadcom BCM57504 NetXtreme-E Ethernet 25Gbit/s Quad Port
Power Supply Quantity and Rating (W)1 x 1500
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameWindows Server 2022 Standard
VendorMicrosoft
Vendor URLhttps://www.microsoft.com
VersionVersion 21H2(OS Build 20348.1251)
AvailableNov-2022
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 22.0.2
VendorOracle
Vendor URLhttps://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 22.0.2
AvailableJul-2024
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning
  • Dram Refresh Delay - Performance
  • DIMM Self Healing (Post Package Repair) on Uncorrectable Memory Error - Disabled
  • Correctable Error Logging - Disabled
  • Virtualization Technology - Disabled
  • L2 Stream HW Prefetcher - Disabled
  • NUMA Nodes Per Socket - 1
  • L3 cache as NUMA Domain- Disabled
  • Control- Manual
  • Customized cTDP - 400
  • Customized PPT - 400
  • System Profile - Custom
  • CPU Power Management - Maximum Performance
  • C-States - Disabled
  • Determinism Control- Manual
  • Determinism Slider - Power Determinism
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(3)
OS Image Description os_1
Tuning
  • Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534
  • Power Options is set to High performance
  • Lock Pages in Memory is Enabled
  • Processor scheduling is set to Programs
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -Xms720g -Xmx720g -Xmn710g -server -XX:+UseParallelGC -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:MaxTenuringThreshold=5 -XX:-UseAdaptiveSizePolicy -XX:ParallelGCThreads=128 -XX:SurvivorRatio=164 -XX:TargetSurvivorRatio=95 -XX:+UseNUMA -XX:-UseAdaptiveNUMAChunkSizing -XX:InlineSmallCode=11k -XX:TLABAllocationWeight=2 -XX:ThreadStackSize=140 -XX:AutoBoxCacheMax=32 -XX:OnStackReplacePercentage=100
Tuning None
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 308904 312582 316259 319936 323614
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 112529 152153 168752 172021 189020 156522
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 14710 / 18387 3677 / 7355 - / 3677 - / 3677 - / 3677 - / 3677
1000us 205936 / 110323 14710 / 18387 7355 / 11032 7355 / 11032 3677 / 7355 - / 3677
5000us 308904 / 312582 246388 / 132387 88258 / 84581 69871 / 62516 51484 / 55161 14710 / 18387
10000us 308904 / 312582 283162 / 286840 161807 / 147097 132387 / 117678 121355 / 106645 51484 / 18387
25000us 312582 / 316259 305227 / 308904 279485 / 283162 257420 / 253743 161807 / 136065 51484 / 25742
50000us 316259 / - 308904 / 312582 286840 / 290517 272130 / 268452 194904 / 165484 84581 / 25742
75000us 316259 / - 308904 / 312582 297872 / 290517 283162 / 286840 194904 / 165484 95613 / 25742
100000us 316259 / - 312582 / 316259 297872 / 301549 283162 / 286840 194904 / 180194 121355 / 25742
200000us 316259 / - 312582 / 316259 308904 / 312582 297872 / 294194 257420 / 253743 187549 / 125033
500000us 316259 / - 316259 / - 312582 / 316259 312582 / 316259 308904 / 312582 279485 / 239033
1000000us 316259 / - 316259 / - 316259 / - 316259 / - 312582 / 316259 312582 / 316259
Number of probes
Probes jOPS / Total jOPS

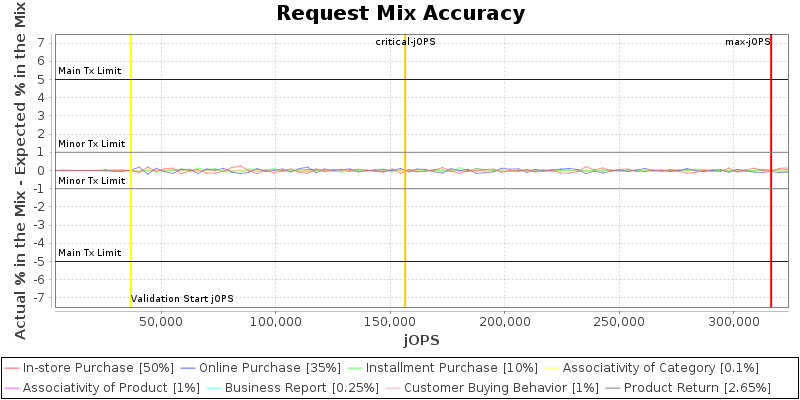

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

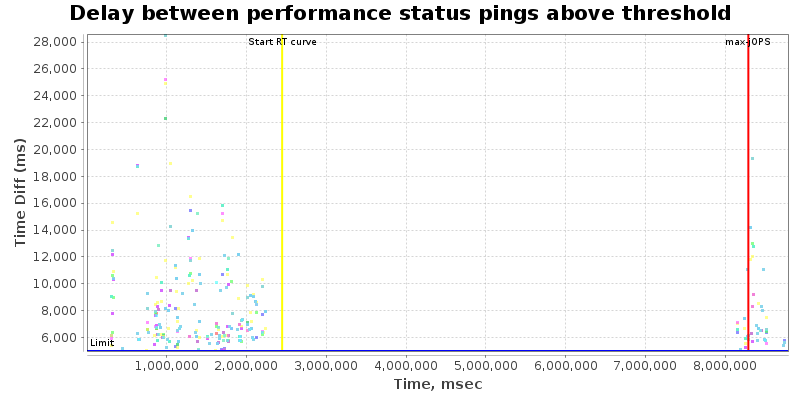

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

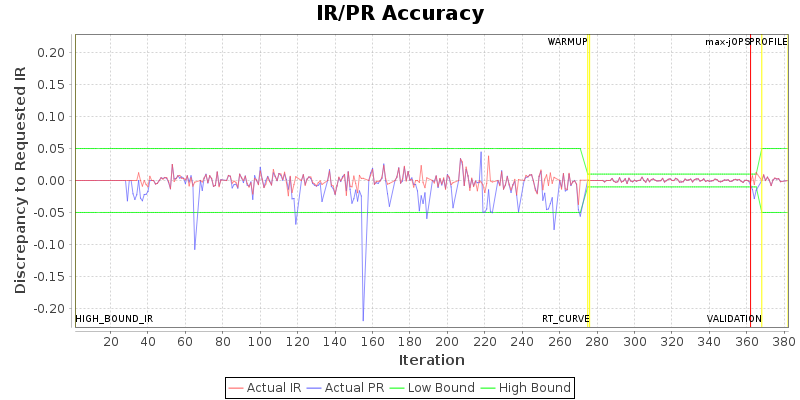

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 96
specjbb.comm.connect.selector.runner.count 0 12
specjbb.comm.connect.worker.pool.max 256 60
specjbb.comm.connect.worker.pool.min 1 60
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.controller.rtcurve.warmup.step 0.1 0.2
specjbb.customerDriver.threads 64 {probe=72, saturate=72}
specjbb.forkjoin.workers 64 {Tier1=68, Tier2=1, Tier3=12}
specjbb.group.count 1 3
specjbb.heartbeat.period 10000 50000
specjbb.heartbeat.threshold 100000 500000
specjbb.mapreducer.pool.size 64 4
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 367743 IR
High-bound (settled) is 338461 IR
