SPECjbb2015 Report for jbb2015-20240904-01330 : 917769 max-jOPS ; 482690 critical-jOPS

SUT Description

Hardware hw_1
Name	ProLiant DL385 Gen11
Vendor	Hewlett Packard Enterprise
Vendor URL	http://hpe.com/
Available	Jan-2025
Model	ProLiant DL385 Gen11
Form Factor	2U Rack
CPU Name	AMD EPYC 9655
CPU Characteristics	96 Core, 2.6 GHz, 384 MB L3 Cache(Max. Boost Clock Up to 4.5 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	192
Cores Per Chip	96
Threads Per System	384
Threads Per Core	2
Version	A55 v2.10 08/22/2024
CPU Frequency (MHz)	2600
Primary Cache	32 KB I + 48 KB D on chip per core
Secondary Cache	1024 KB I+D on chip per core
Tertiary Cache	384 MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 480 GB NVMe SSD
File System	btrfs
Memory Amount (GB)	1536
# and size of DIMM(s)	24 x 64 GB
Memory Details	64GB 2Rx4 DDR5 6400 MHz, running at 6000 MHz
# and type of Network Interface Cards (NICs)	HPE Ethernet 10Gb 2-port
Power Supply Quantity and Rating (W)	2 x 1600
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented Cabled the 4th xGMI (xGMI3)
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP6
Vendor	SUSE
Vendor URL	http://suse.com/
Version	6.4.0-150600.21-default
Available	May-2024
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 22.0.2
Vendor	Oracle
Vendor URL	http://www.oracle.com/
Version	Java HotSpot 64-bit Server VM, version 22.0.2
Available	Jul-2024
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	Non-virtual
Tuning	Workload Profile=High Performance Compute(HPC) Thermal Configuration=Enhanced Cooling Determinism Control=Manual Performance Determinism=Power Deterministic Memory Patrol Scrubbing=Disabled Numa Memory Domains Per Socket(NPS)=Four Memory Domains Per Socket L1 Stream HW Prefetcher=Enabled L2 Stream HW Prefetcher=Enabled Minimum Processor Idle Power Core C-State=No C-states xGMI Link Bandwidth=32Gbps Package Power Limit=400
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(24), jvm_TxInjector_1(24)
OS Image Description	os_1
Tuning	tuned-adm profile throughput-performance ulimit -n 1024000 echo 960000 > /proc/sys/kernel/sched_rt_runtime_us echo 800000000 > /proc/sys/kernel/sched_latency_ns echo 40000 > /proc/sys/kernel/sched_migration_cost_ns echo 910000000 > /proc/sys/kernel/sched_min_granularity_ns echo 2000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 9000 > /proc/sys/kernel/sched_nr_migrate echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo 0 > /proc/sys/vm/numa_stat echo always > /sys/kernel/mm/transparent_hugepage/enabled echo always > /sys/kernel/mm/transparent_hugepage/defrag
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=2
Tuning	Used numactl to interleave memory on all CPUs numactl --interleave=all
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms31g -Xmx31g -Xmn29g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:ParallelGCThreads=16 -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=12 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=11k -XX:MaxGCPauseMillis=100 -XX:LoopUnrollLimit=200 -XX:+UseTransparentHugePages -XX:TLABAllocationWeight=2 -XX:ThreadStackSize=140 -XX:CompileThresholdScaling=120 -XX:CICompilerCount=4 -XX:AutoBoxCacheMax=32 -XX:OnStackReplacePercentage=100 -XX:TLABSize=1m -XX:MinTLABSize=1m -XX:-ResizeTLAB -XX:TLABWasteTargetPercent=1 -XX:TLABWasteIncrement=1 -XX:YoungPLABSize=1m -XX:OldPLABSize=1m
Tuning	Used numactl to affinitize each Backend JVM to 8 Cores / 16 Threads Group1: numactl --physcpubind=0-7,192-199 --localalloc Group2: numactl --physcpubind=8-15,200-207 --localalloc Group3: numactl --physcpubind=16-23,208-215 --localalloc Group4: numactl --physcpubind=24-31,216-223 --localalloc Group5: numactl --physcpubind=32-39,224-231 --localalloc Group6: numactl --physcpubind=40-47,232-239 --localalloc Group7: numactl --physcpubind=48-55,240-247 --localalloc Group8: numactl --physcpubind=56-63,248-255 --localalloc Group9: numactl --physcpubind=64-71,256-263 --localalloc Group10: numactl --physcpubind=72-79,264-271 --localalloc Group11: numactl --physcpubind=80-87,272-279 --localalloc Group12: numactl --physcpubind=88-95,280-287 --localalloc Group13: numactl --physcpubind=96-103,288-295 --localalloc Group14: numactl --physcpubind=104-111,296-303 --localalloc Group15: numactl --physcpubind=112-119,304-311 --localalloc Group16: numactl --physcpubind=120-127,312-319 --localalloc Group17: numactl --physcpubind=128-135,320-327 --localalloc Group18: numactl --physcpubind=136-143,328-335 --localalloc Group19: numactl --physcpubind=144-151,336-343 --localalloc Group20: numactl --physcpubind=152-159,344-351 --localalloc Group21: numactl --physcpubind=160-167,352-359 --localalloc Group22: numactl --physcpubind=168-175,360-367 --localalloc Group23: numactl --physcpubind=176-183,368-375 --localalloc Group24: numactl --physcpubind=184-191,376-383 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=2
Tuning	Used numactl to affinitize each Transaction Injector JVM to 8 Cores / 16 Threads Group1: numactl --physcpubind=0-7,192-199 --localalloc Group2: numactl --physcpubind=8-15,200-207 --localalloc Group3: numactl --physcpubind=16-23,208-215 --localalloc Group4: numactl --physcpubind=24-31,216-223 --localalloc Group5: numactl --physcpubind=32-39,224-231 --localalloc Group6: numactl --physcpubind=40-47,232-239 --localalloc Group7: numactl --physcpubind=48-55,240-247 --localalloc Group8: numactl --physcpubind=56-63,248-255 --localalloc Group9: numactl --physcpubind=64-71,256-263 --localalloc Group10: numactl --physcpubind=72-79,264-271 --localalloc Group11: numactl --physcpubind=80-87,272-279 --localalloc Group12: numactl --physcpubind=88-95,280-287 --localalloc Group13: numactl --physcpubind=96-103,288-295 --localalloc Group14: numactl --physcpubind=104-111,296-303 --localalloc Group15: numactl --physcpubind=112-119,304-311 --localalloc Group16: numactl --physcpubind=120-127,312-319 --localalloc Group17: numactl --physcpubind=128-135,320-327 --localalloc Group18: numactl --physcpubind=136-143,328-335 --localalloc Group19: numactl --physcpubind=144-151,336-343 --localalloc Group20: numactl --physcpubind=152-159,344-351 --localalloc Group21: numactl --physcpubind=160-167,352-359 --localalloc Group22: numactl --physcpubind=168-175,360-367 --localalloc Group23: numactl --physcpubind=176-183,368-375 --localalloc Group24: numactl --physcpubind=184-191,376-383 --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Pass	Fail	Fail
jOPS	898032	907900	917769	927637	937506

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	299343	407897	547700	597043	656254	482690

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	29605 / 39474	9868 / 19737	- / 9868	- / 9868	- / 9868	- / 9868
1000us	177633 / 187501	49342 / 59211	29605 / 39474	19737 / 29605	19737 / 29605	- / 9868
5000us	750004 / 759873	503292 / 513161	217107 / 226975	207238 / 217107	177633 / 187501	19737 / 29605
10000us	769741 / 779610	710531 / 720399	582240 / 592109	523029 / 513161	315791 / 266449	19737 / 29605
25000us	779610 / 789478	750004 / 759873	661188 / 671057	621714 / 631583	424345 / 375002	19737 / 29605
50000us	789478 / 799347	759873 / 769741	710531 / 720399	680925 / 671057	562503 / 532898	19737 / 29605
75000us	799347 / 809215	769741 / 779610	730268 / 740136	700662 / 710531	621714 / 572372	19737 / 29605
100000us	809215 / 819084	779610 / 789478	750004 / 759873	730268 / 740136	680925 / 631583	19737 / 29605
200000us	838821 / 848689	799347 / 809215	769741 / 779610	759873 / 769741	750004 / 720399	523029 / 148027
500000us	907900 / 917769	878295 / 888163	828952 / 838821	819084 / 828952	789478 / 799347	680925 / 375002
1000000us	917769 / -	907900 / 917769	898032 / 907900	888163 / 898032	878295 / 888163	759873 / 769741

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group10.Backend.beJVM	Group10.TxInjector.txiJVM1	Group11.Backend.beJVM	Group11.TxInjector.txiJVM1	Group12.Backend.beJVM	Group12.TxInjector.txiJVM1	Group13.Backend.beJVM	Group13.TxInjector.txiJVM1	Group14.Backend.beJVM	Group14.TxInjector.txiJVM1	Group15.Backend.beJVM	Group15.TxInjector.txiJVM1	Group16.Backend.beJVM	Group16.TxInjector.txiJVM1	Group17.Backend.beJVM	Group17.TxInjector.txiJVM1	Group18.Backend.beJVM	Group18.TxInjector.txiJVM1	Group19.Backend.beJVM	Group19.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group20.Backend.beJVM	Group20.TxInjector.txiJVM1	Group21.Backend.beJVM	Group21.TxInjector.txiJVM1	Group22.Backend.beJVM	Group22.TxInjector.txiJVM1	Group23.Backend.beJVM	Group23.TxInjector.txiJVM1	Group24.Backend.beJVM	Group24.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1	Group5.Backend.beJVM	Group5.TxInjector.txiJVM1	Group6.Backend.beJVM	Group6.TxInjector.txiJVM1	Group7.Backend.beJVM	Group7.TxInjector.txiJVM1	Group8.Backend.beJVM	Group8.TxInjector.txiJVM1	Group9.Backend.beJVM	Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	128
specjbb.comm.connect.selector.runner.count	0	5
specjbb.comm.connect.timeouts.connect	60000	900000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.read	60000	800000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.write	60000	800000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.worker.pool.max	256	120
specjbb.comm.connect.worker.pool.min	1	16	32		32		32		32		32		32		32		32		32		32		32		32		32		32		32		32		32		32		32		32		32		32		32		32
specjbb.controller.maxir.maxFailedPoints	3	1
specjbb.customerDriver.threads	64	{probe=120, saturate=120, service=70}
specjbb.forkjoin.workers	384	{Tier1=260, Tier2=15, Tier3=25}
specjbb.group.count	1	24
specjbb.mapreducer.pool.size	384	5
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 986848 IR

High-bound (settled) is 955269 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.04, Feb 16, 2024]

Hewlett Packard Enterprise ProLiant DL385 Gen11	917769 SPECjbb2015-MultiJVM max-jOPS 482690 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Hewlett Packard Enterprise	Test Sponsor: Hewlett Packard Enterprise	Test location: Houston, TX	Test date: August 27, 2024
SPEC license #: 3	Hardware Availability: Jan-2025	Software Availability: Jul-2024	Publication: Thu Oct 10 13:03:35 EDT 2024

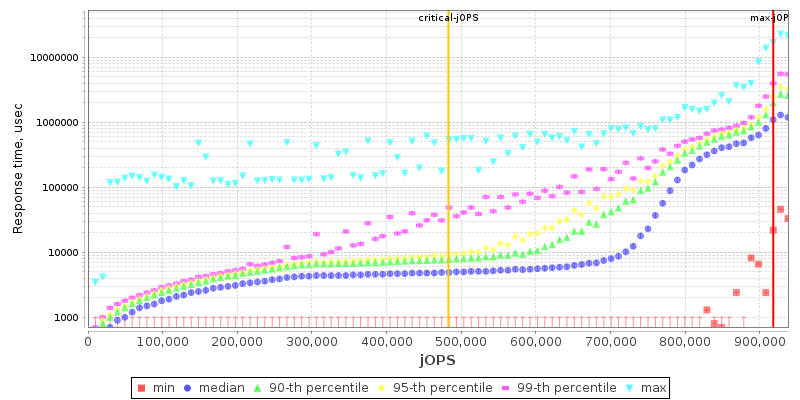

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host (# of groups: 24) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
