SPECjbb2015 Report for jbb2015-20240829-01324 : 134869 max-jOPS ; 59808 critical-jOPS

SUT Description

Hardware hw_1
Name	LKG2412
Vendor	LTechKorea
Vendor URL	http://www.ltechkorea.com/
Available	May-2024
Model	LKG2412
Form Factor	2U
CPU Name	Intel(R) Xeon(R) Gold 6426Y
CPU Characteristics	16 Core, 2.50 GHz, 37.5 MB L3 Cache (Turbo Boost Technology up to 4.10 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	32
Cores Per Chip	16
Threads Per System	64
Threads Per Core	2
Version	Version 1.0
CPU Frequency (MHz)	2500
Primary Cache	32KB(I)+48KB(D) per core
Secondary Cache	2048 KB (I+D) per core
Tertiary Cache	38400 KB (I+D) on chip per chip
Other Cache	None
Disk	240 GB SSD
File System	XFS
Memory Amount (GB)	448
# and size of DIMM(s)	14 x 32GB
Memory Details	32 GB RDIMM 2Rx8 PC5-4800
# and type of Network Interface Cards (NICs)	2x 10 Gbit NICs
Power Supply Quantity and Rating (W)	3 x 550
Other Hardware	4x Sun 8Gb FC Dual GbE HBA ExpressModule
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Red Hat Enterprise Linux release 8.4 (Ootpa)
Vendor	Red Hat Enterprise
Vendor URL	http://www.redhat.com/
Version	8.4-0.6.e18.x84_64
Available	May-2021
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 21.0.3
Vendor	Oracle
Vendor URL	http://oracle.com
Version	Java Hotspot 64-bit VM, version 21.0.3
Available	Apr-2024
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Settings: SNC = Enale SNC Patrol Scrub = Disabled SR-IOV Support = Disabled DCU Streamer Prefetching = Disable ENERGY_PERF_BIAS_CFG mode = Performance
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description	os_1
Tuning	tuned-adm profile=throughput-performance cpupower frequency-set -g performance ulimit -n 655360 echo 15000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 1000 > /proc/sys/kernel/sched_migration_cost_ns echo 16 > /proc/sys/kernel/sched_nr_migrate echo 990000 > /proc/sys/kernel/sched_rt_runtime_us echo 10000000 > /proc/sys/kernel/sched_latency_ns echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 1000 > /proc/sys/kernel/sched_migration_cost_ns echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 1 > /proc/sys/kernel/sched_compat_yield echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/dafrag echo always > /sys/kernel/mm/transparent_hugepage/enabled ulimit -v unlimited ulimit -m unlimited ulimit -l unlimited systemctl stop systemd-update-utmp-runlevel.service
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning	None
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-server -Xmx30g -Xms30g -Xmn28g -XX:+UseParallelGC -XX:ParallelGCThreads=64 -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+AlwaysPreTouch -XX:InlineSmallCode=10k -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:LoopUnrollLimit=20 -XX:MaxTenuringThreshold=15 -XX:TargetSurvivorRatio=95
Tuning	numactl --cpunodebind=0 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=3 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning	numactl --cpunodebind=0 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=3 --localalloc
Notes	None

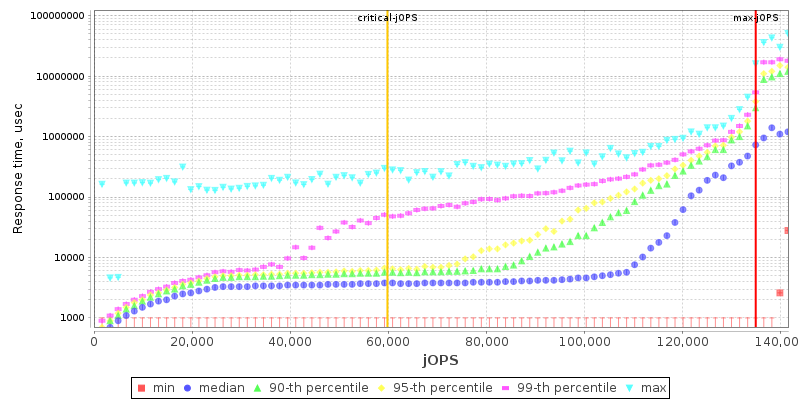

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	133225	134869	136514	138159	139804

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	41941	46875	61403	74836	84704	59808

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	3289 / 4934	1645 / 3289	- / 1645	- / 1645	- / 1645	- / 1645
1000us	14803 / 16447	4934 / 6579	3289 / 4934	3289 / 4934	1645 / 3289	- / 1645
5000us	123356 / 125001	103619 / 105264	37829 / 39474	27961 / 29605	21382 / 23026	4934 / 1645
10000us	125001 / 126646	110198 / 111843	87172 / 88816	75658 / 77303	42763 / 41119	4934 / 1645
25000us	128290 / 129935	116777 / 118422	100330 / 101974	90461 / 92106	47698 / 46053	4934 / 1645
50000us	129935 / 131580	118422 / 120067	105264 / 106909	97040 / 98685	62500 / 59211	4934 / 1645
75000us	131580 / 133225	120067 / 121711	108553 / 110198	100330 / 101974	74014 / 75658	4934 / 1645
100000us	133225 / 134869	120067 / 121711	110198 / 111843	105264 / 106909	83882 / 85527	4934 / 1645
200000us	134869 / -	125001 / 126646	116777 / 118422	113488 / 115132	105264 / 106909	64145 / 14803
500000us	134869 / -	133225 / 134869	125001 / 126646	123356 / 125001	118422 / 120067	108553 / 93751
1000000us	134869 / -	134869 / -	131580 / 133225	129935 / 131580	128290 / 129935	120067 / 121711

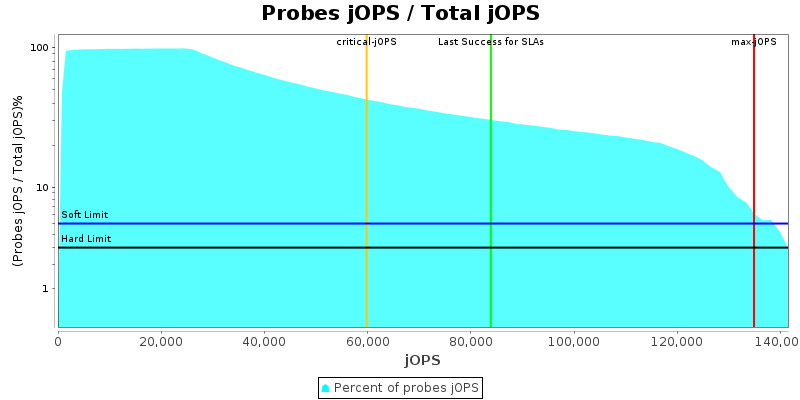

Number of probes

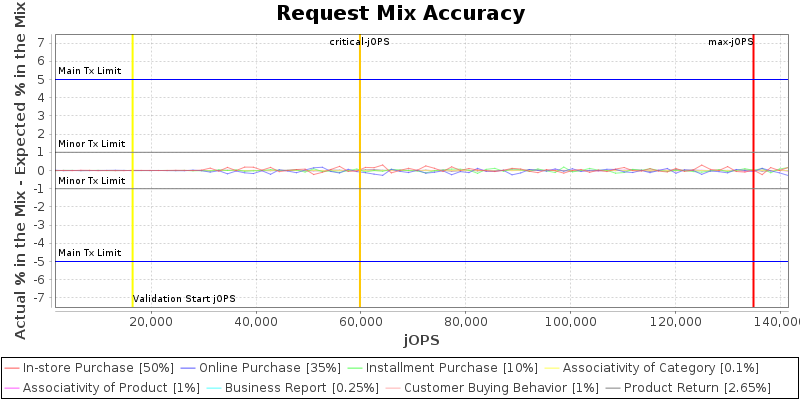

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

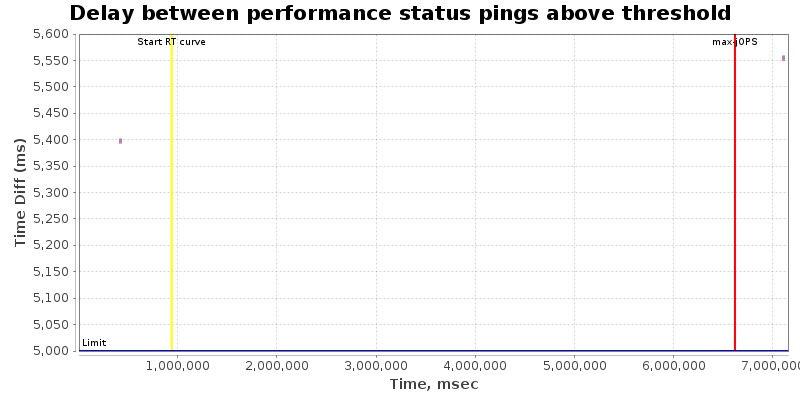

Delay between performance status pings during RT Curve (Response-Throughput Curve)

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	256
specjbb.comm.connect.selector.runner.count	0	4	0	0	0	0	0	0	0	0
specjbb.comm.connect.timeouts.connect	60000	600000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.read	60000	600000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.write	60000	600000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.worker.pool.max	256	112	256	256	256	256	256	256	256	256
specjbb.comm.connect.worker.pool.min	1	64	1	1	1	1	1	1	1	1
specjbb.forkjoin.workers	64	{Tier1=180, Tier2=56, Tier3=28}
specjbb.group.count	1	4
specjbb.mapreducer.pool.size	64	4
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 164475 IR

High-bound (settled) is 144524 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.04, Feb 16, 2024]

LTechKorea LKG2412	134869 SPECjbb2015-MultiJVM max-jOPS 59808 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Telecommunications Technology Association	Test Sponsor: Telecommunications Technology Association	Test location: TTA, Seongnam-city, Korea	Test date: Aug 27, 2024
SPEC license #: A83	Hardware Availability: May-2024	Software Availability: Apr-2024	Publication: Thu Sep 19 19:27:26 EDT 2024
