SPECjbb2015 Report for jbb2015-20240724-01302 : 488344 max-jOPS ; 334295 critical-jOPS

SUT Description

Hardware hw_1
Name	Dell Inc. PowerEdge R770
Vendor	Dell Inc.
Vendor URL	http://www.dell.com/
Available	Jul-2024
Model	PowerEdge R770
Form Factor	2U Rack
CPU Name	Intel Xeon 6780E
CPU Characteristics	144 core, 2.20 GHz, 108 MB L3 Cache (Turbo boost Technology up to 3.00 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	288
Cores Per Chip	144
Threads Per System	288
Threads Per Core	1
Version	1.0.1
CPU Frequency (MHz)	2200
Primary Cache	64 KB(I) + 32 KB(D) per core
Secondary Cache	4 MB (I+D) per core
Tertiary Cache	108 MB (I+D) on chip per chip
Other Cache	None
Disk	1 x Dell NVMe PM1743 RI E3.S 1.92TB
File System	xfs
Memory Amount (GB)	1024
# and size of DIMM(s)	16 x 64 GB
Memory Details	64 GB RDIMM 2Rx4 PC5-6400B-R (slots A1-8, B1-8 populated)
# and type of Network Interface Cards (NICs)	1 x Broadcom BCM57504 OCP NetXtreme-E Ethernet 25Gb/s Quad Port
Power Supply Quantity and Rating (W)	1 x 1500
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP6
Vendor	SUSE
Vendor URL	http://www.suse.com/
Version	6.4.0-150600.21-default
Available	Jun-2024
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 17.0.11
Vendor	Oracle
Vendor URL	http://www.oracle.com/
Version	Java HotSpot 64-bit Server VM, version 17.0.11+7-LTS-207
Available	Apr-2024
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	Non-virtual
Tuning	ADDDC Setting : Disabled DIMM Self Healing(Post Package Repair) on Uncorrectable Memory Error : Disabled DCU Streamer Prefetcher : Enabled MADT Core Enumeration : Linear LLC Prefetch : Disabled Dead Line LLC Alloc : Disabled System Profile : Custom CPU Power Management : Maximum Performance Energy Efficient Turbo : Disabled C1E : Disabled C-States : Autonomous Energy Efficient Policy : Performance CPU Interconnect Bus Link Power Management : Disabled PCI ASPM L1Link Power Management : Disabled
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description	os_1
Tuning	ulimit -n 131072 echo 10000 > /proc/sys/kernel/sched_cfs_bandwidth_slice_us echo 0 > /proc/sys/kernel/sched_child_runs_first echo 16000000 > /sys/kernel/debug/sched/latency_ns echo 1000 > /sys/kernel/debug/sched/migration_cost_ns echo 28000000 > /sys/kernel/debug/sched/min_granularity_ns echo 9 > /sys/kernel/debug/sched/nr_migrate echo 100 > /proc/sys/kernel/sched_rr_timeslice_ms echo 1000000 > /proc/sys/kernel/sched_rt_period_us echo 990000 > /proc/sys/kernel/sched_rt_runtime_us echo 0 > /proc/sys/kernel/sched_schedstats echo 1 > /sys/kernel/debug/sched/tunable_scaling echo 50000000 > /sys/kernel/debug/sched/wakeup_granularity_ns echo 3000 > /proc/sys/vm/dirty_expire_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled echo 300 > /sys/kernel/mm/hugepages/hugepages-1048576kB/nr_hugepages echo 300 > /sys/kernel/mm/hugepages/hugepages-2048kB/nr_hugepages
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	None
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-showversion -XX:+UseParallelGC -XX:+UseLargePages -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=10k -verbose:gc -XX:-UseCountedLoopSafepoints -XX:LoopUnrollLimit=20 -XX:MaxGCPauseMillis=500 -XX:TargetSurvivorRatio=95 -XX:LargePageSizeInBytes=1G -XX:AdaptiveSizeMajorGCDecayTimeScale=12 -XX:AdaptiveSizeDecrementScaleFactor=2 -server -XX:AllocatePrefetchLines=3 -XX:AllocateInstancePrefetchLines=2 -XX:AllocatePrefetchStepSize=128 -XX:AllocatePrefetchDistance=384 -Xms31744m -Xmx31744m -Xmn29696m -XX:ParallelGCThreads=36 -Xlog:pagesize=trace
Tuning	numactl used to affinitize four Backend JVM to a single Numa node Group(1-4) : numactl --cpunodebind=0 --localalloc Group(5-8) : numactl --cpunodebind=1 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	numactl used to affinitize four TxInjector JVM to a single Numa node Group(1-4) : numactl --cpunodebind=0 --localalloc Group(5-8) : numactl --cpunodebind=1 --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	482666	488344	494023	499701	505379

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	241333	286760	366258	394650	417364	334295

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	- / 5678	- / 5678	- / 5678	- / 5678	- / 5678	- / 5678
1000us	357740 / 11357	- / 5678	- / 5678	- / 5678	- / 5678	- / 5678
5000us	431560 / 437238	397489 / 403168	335027 / 340705	306635 / 312313	198745 / 204423	- / 5678
10000us	442917 / 448595	420203 / 425881	380454 / 386133	357740 / 363419	238494 / 244172	17035 / 11357
25000us	448595 / 454274	431560 / 437238	403168 / 408846	391811 / 397489	283921 / 289599	17035 / 11357
50000us	454274 / 459952	442917 / 448595	420203 / 425881	403168 / 408846	363419 / 369097	107890 / 22714
75000us	459952 / 465630	448595 / 454274	431560 / 437238	420203 / 425881	391811 / 397489	136282 / 22714
100000us	465630 / 471309	448595 / 454274	437238 / 442917	431560 / 437238	414525 / 420203	283921 / 39749
200000us	482666 / 476987	459952 / 465630	448595 / 454274	442917 / 448595	437238 / 442917	346384 / 323670
500000us	488344 / -	488344 / -	471309 / 476987	465630 / 471309	459952 / 465630	403168 / 408846
1000000us	488344 / -	488344 / -	488344 / -	488344 / -	482666 / 488344	442917 / 437238

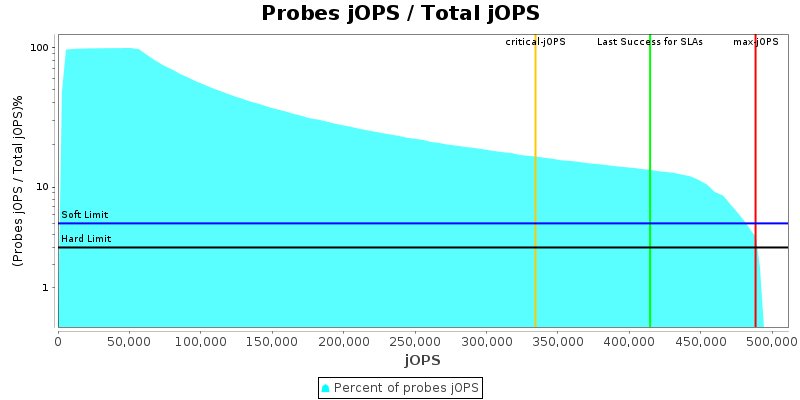

Number of probes

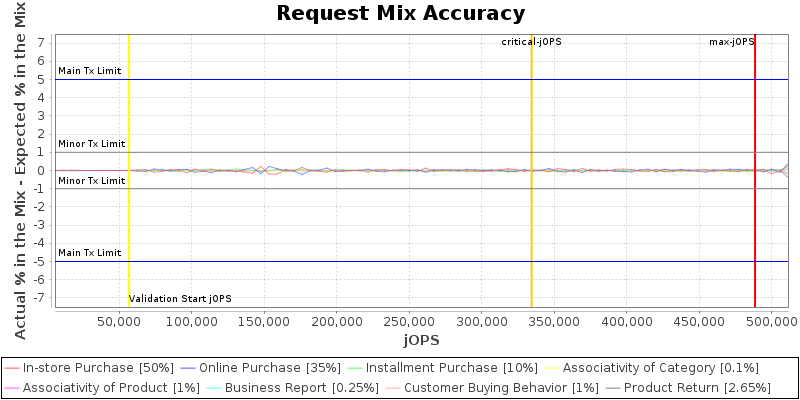

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

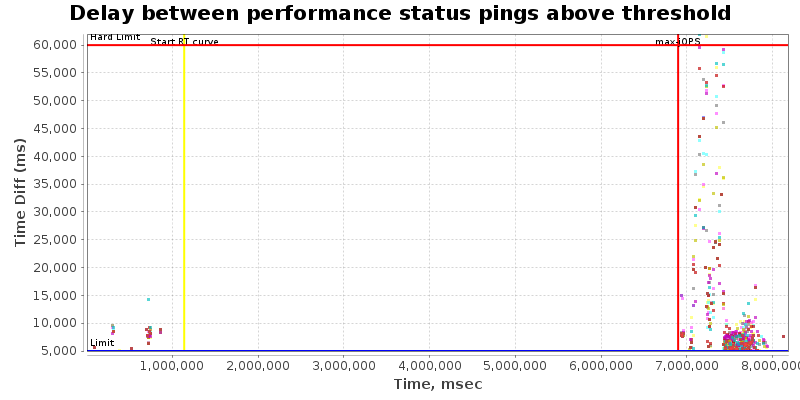

Delay between performance status pings during RT Curve (Response-Throughput Curve)

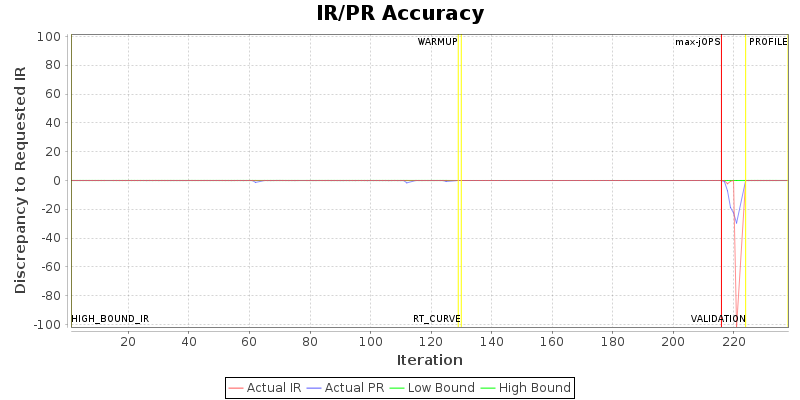

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1	Group5.Backend.beJVM	Group5.TxInjector.txiJVM1	Group6.Backend.beJVM	Group6.TxInjector.txiJVM1	Group7.Backend.beJVM	Group7.TxInjector.txiJVM1	Group8.Backend.beJVM	Group8.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	232	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256
specjbb.comm.connect.selector.runner.count	0	1	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
specjbb.comm.connect.timeouts.connect	60000	600000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.read	60000	600000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.write	60000	600000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.worker.pool.max	256	81	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256
specjbb.comm.connect.worker.pool.min	1	24	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1
specjbb.controller.type	HBIR_RT	HBIR_RT
specjbb.customerDriver.threads	64	{=75, probe=69, saturate=85}
specjbb.forkjoin.workers	288	{Tier1=324, Tier2=6, Tier3=36}
specjbb.group.count	1	8
specjbb.mapreducer.pool.size	288	223
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 567842 IR

High-bound (settled) is 510139 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.04, Feb 16, 2024]

Dell Inc. PowerEdge R770	488344 SPECjbb2015-MultiJVM max-jOPS 334295 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Dell Inc.	Test Sponsor: Dell Inc.	Test location: Round Rock, TX	Test date: Jul 23,2024
SPEC license #: 6573	Hardware Availability: Jul-2024	Software Availability: Jun-2024	Publication: Thu Aug 8 11:38:46 EDT 2024
