SPECjbb2015
Copyright © 2015-2024 Standard Performance Evaluation Corporation
Cisco Systems Cisco UCS C245 M8 416776 SPECjbb2015-MultiJVM max-jOPS
258123 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Cisco Systems Test Sponsor: Cisco Systems Test location: San Jose, CA Test date: May 11, 2024
SPEC license #: 9019 Hardware Availability: Jun-2024 Software Availability: Apr-2024 Publication: Fri May 31 10:28:18 EDT 2024
Benchmark Results Summary

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host
(# of groups: 4)
Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorCisco Systems
Vendor URLhttp://www.cisco.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores96
Total Threads192
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameCisco UCS C245 M8
VendorCisco Systems
Vendor URLhttp://www.cisco.com
AvailableJun-2024
ModelCisco UCS C245 M8
Form Factor2U
CPU NameAMD EPYC 9684X
CPU Characteristics96 core, 2.55 GHz, 1152 MB L3 Cache (Max Boost Clock up to 3.70 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System96
Cores Per Chip96
Threads Per System192
Threads Per Core2
VersionC245M8.4.3.4.284.0426241455
CPU Frequency (MHz)2550
Primary Cache32KB(I)+32KB(D) on chip per core
Secondary Cache1MB (I+D) on chip per core
Tertiary Cache1152MB (I+D) on chip per chip
Other CacheNone
Disk1 x 960GB SATA SSD
File SystemNTFS
Memory Amount (GB)768
# and size of DIMM(s)12 x 64 GB
Memory Details64 GB 2Rx4 PC5-5600B-R, running at 4800
# and type of Network Interface Cards (NICs)2 x 40/100/200-Gbps NIC
Power Supply Quantity and Rating (W)2 x 2300W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameWindows Server 2022 Datacenter
VendorMicrosoft
Vendor URLhttps://www.microsoft.com/
Version21H2(OS Build 20348.2227)
AvailableJan-2024
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 21.0.3
VendorOracle Corporation
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-Bit Server VM, version 21.0.3
AvailableApr-2024
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration
  • Logical Processor : Enabled
  • L1 Stream HW Prefetcher : Disabled
  • L2 Stream HW Prefetcher : Disabled
  • NUMA Nodes Per Socket : 4
  • Determinism Slider : Power
  • ABPDIS : 1
Notes notes
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • Power Options is set to High performance
  • Processor scheduling is set to Programs
  • Lock Pages in Memory is Enabled
  • HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters and add a new entry. Value Name: MaxUserPort Value Type: DWORD Value data: 65534
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -server -Xms120g -Xmx120g -Xmn118g -server -XX:MetaspaceSize=256m -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:+UseParallelGC -XX:SurvivorRatio=100 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=48 -XX:MaxTenuringThreshold=15 -Xnoclassgc -XX:InitialCodeCacheSize=25m -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=200 -XX:+UseCompressedOops -XX:ObjectAlignmentInBytes=32 -XX:TLABAllocationWeight=2 -XX:ThreadStackSize=512 -XX:CompileThresholdScaling=120
Tuning
    Affinitized each Backend JVM to a NUMA node
  • start /NODE [0-4]
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning
    Affinitized each Tx Injector JVM to a NUMA node
  • start /NODE [0-4]
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 411873 416776 421679 426583 431486
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 174065 237807 277033 306453 326066 258123
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 14710 / 19613 4903 / 9806 - / 4903 - / 4903 - / 4903 - / 4903
1000us 372647 / 63742 19613 / 24516 9806 / 14710 4903 / 9806 4903 / 9806 - / 4903
5000us 402066 / 406970 166710 / 171614 112775 / 117678 102968 / 107871 83355 / 88258 24516 / 4903
10000us 402066 / 406970 353034 / 343227 245162 / 240259 220646 / 225549 171614 / 176517 24516 / 4903
25000us 411873 / 416776 387357 / 392260 353034 / 357937 333421 / 338324 235356 / 240259 24516 / 9806
50000us 416776 / - 387357 / 392260 357937 / 362840 348131 / 343227 274582 / 279485 24516 / 9806
75000us 416776 / - 392260 / 397163 372647 / 367744 353034 / 357937 304001 / 308905 112775 / 53936
100000us 416776 / - 392260 / 397163 372647 / 377550 357937 / 362840 328518 / 323614 191227 / 58839
200000us 416776 / - 402066 / 397163 382453 / 387357 372647 / 377550 353034 / 357937 304001 / 308905
500000us 416776 / - 416776 / - 387357 / 392260 387357 / 392260 382453 / 387357 357937 / 362840
1000000us 416776 / - 416776 / - 416776 / - 416776 / - 416776 / - 406970 / 392260

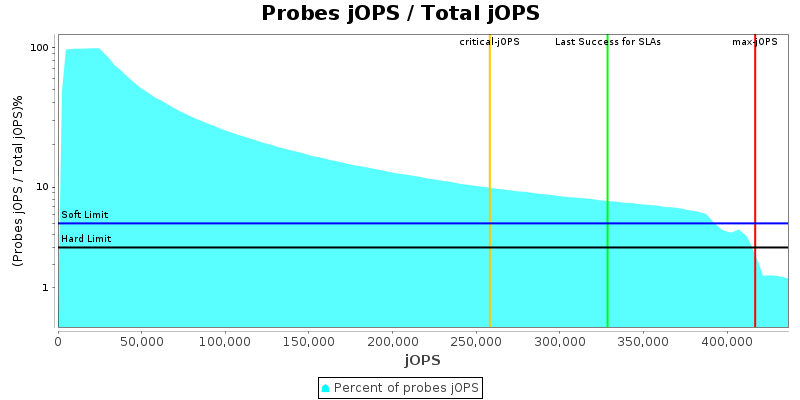

Number of probes
Probes jOPS / Total jOPS

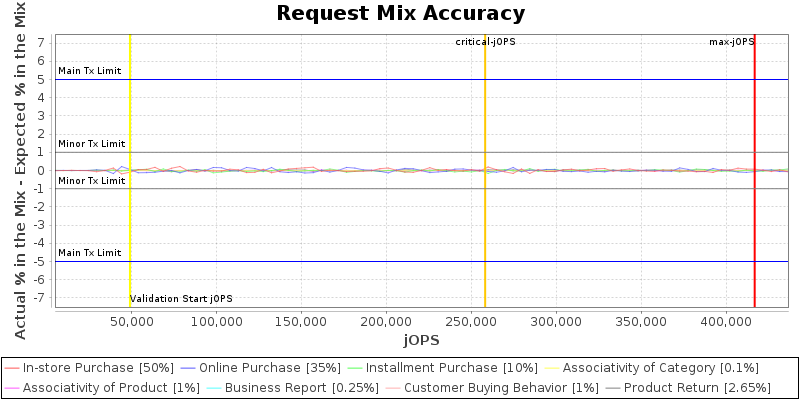

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

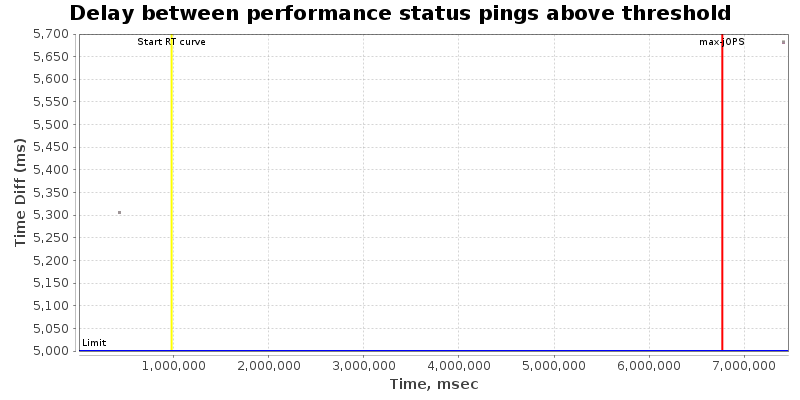

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 192
specjbb.comm.connect.selector.runner.count 0 8
specjbb.comm.connect.worker.pool.max 256 45
specjbb.comm.connect.worker.pool.min 1 40
specjbb.forkjoin.workers 48 {Tier1=210, Tier2=56, Tier3=32}
specjbb.group.count 1 4
specjbb.mapreducer.pool.size 48 12
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 490325 IR
High-bound (settled) is 440469 IR
