SPECjbb2015
Copyright © 2015-2023 Standard Performance Evaluation Corporation
ASUSTeK Computer Inc. RS720A-E12-RS12 988621 SPECjbb2015-MultiJVM max-jOPS
410550 SPECjbb2015-MultiJVM critical-jOPS
Tested by: ASUSTeK Computer Inc. Test Sponsor: ASUSTeK Computer Inc. Test location: Taipei, Taiwan Test date: Aug 17, 2023
SPEC license #: 9016 Hardware Availability: Jun-2023 Software Availability: Jul-2023 Publication: Tue Sep 26 12:30:28 EDT 2023
Benchmark Results Summary

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host
(# of groups: 24)

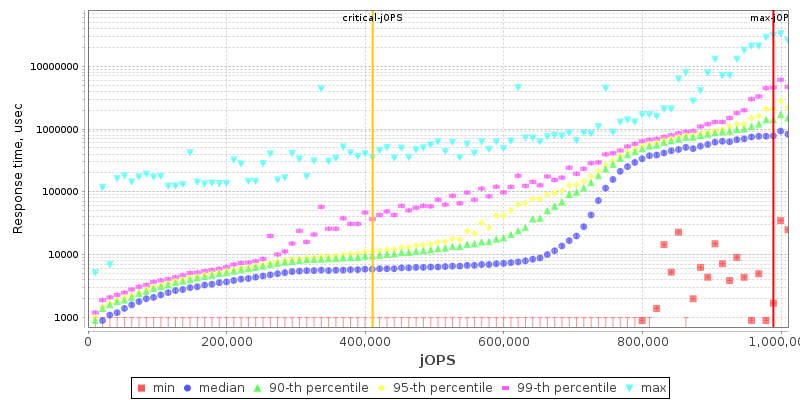

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorASUSTeK Computer Inc.
Vendor URLhttps://www.asus.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores192
Total Threads384
Total Memory Amount (GB)1536
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameRS720A-E12-RS12
VendorASUSTeK Computer Inc.
Vendor URLhttps://www.asus.com/
AvailableJun-2023
ModelRS720A-E12-RS12
Form Factor2U
CPU NameAMD EPYC 9684X
CPU Characteristics96 Core, 2.55 GHz, 1152 MB L3 Cache (Max Boost Clock up to 3.70 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System192
Cores Per Chip96
Threads Per System384
Threads Per Core2
Version0902
CPU Frequency (MHz)2550
Primary Cache32 KB(I) + 32 KB(D) per core
Secondary Cache1 MB (I+D) per core
Tertiary Cache1152 MB (I+D) per chip
Other CacheNone
Disk1 x 4.0 TB PCIe NVMe SSD
File Systemxfs
Memory Amount (GB)1536
# and size of DIMM(s)24 x 64 GB
Memory Details64 GB 2Rx4 PC5-4800B-R
# and type of Network Interface Cards (NICs)1 x 1 GbE NIC
Power Supply Quantity and Rating (W)2 x 1600W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP4
VendorSUSE
Vendor URLhttps://www.suse.com/
Version5.14.21-150400.22-default
AvailableJun-2022
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.8
VendorOracle
Vendor URLhttps://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 17.0.8
AvailableJul-2023
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Settings:
  • SVM Mode = Disabled
  • SR-IOV Support = Disabled
  • Engine Boost = Aggressive
  • NUMA nodes per socket = NPS4
  • L1 Stream HW Prefetcher = Disable
  • L2 Stream HW Prefetcher = Disable
  • TDP Control = Manual
  • TDP = 400
  • PPT Control = Manual
  • PPT = 400
  • Determinism Control = Manual
  • Determinism Slider = Power
  • ACPI SRAT L3 Cache as NUMA Domain = Enabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(24), jvm_TxInjector_1(24)
OS Image Description os_1
Tuning
  • cpupower frequency-set -g performance
  • tuned-adm profile throughput-performance
  • ulimit -n 1024000
  • echo 960000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 40000000 > /proc/sys/kernel/sched_latency_ns
  • echo 40000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 800000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 200000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo 0 > /proc/sys/vm/numa_stat
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning Used numactl to interleave memory on all CPUs
  • numactl --interleave=all
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xms31g -Xmx31g -Xmn29g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:ParallelGCThreads=16 -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=18 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=11k -XX:MaxGCPauseMillis=100 -XX:LoopUnrollLimit=200 -XX:+UseTransparentHugePages -XX:TLABAllocationWeight=2 -XX:ThreadStackSize=140 -XX:CompileThresholdScaling=120 -XX:CICompilerCount=4 -XX:AutoBoxCacheMax=32 -XX:OnStackReplacePercentage=100 -XX:TLABSize=1m -XX:MinTLABSize=1m -XX:-ResizeTLAB -XX:TLABWasteTargetPercent=1 -XX:TLABWasteIncrement=1 -XX:YoungPLABSize=1m -XX:OldPLABSize=1m
Tuning Used numactl to affinitize each Backend JVM to 8 Cores / 16 Threads
  • numactl --physcpubind=0-7,192-199 --localalloc
  • numactl --physcpubind=8-15,200-207 --localalloc
  • numactl --physcpubind=16-23,208-215 --localalloc
  • numactl --physcpubind=24-31,216-223 --localalloc
  • numactl --physcpubind=32-39,224-231 --localalloc
  • numactl --physcpubind=40-47,232-239 --localalloc
  • numactl --physcpubind=48-55,240-247 --localalloc
  • numactl --physcpubind=56-63,248-255 --localalloc
  • numactl --physcpubind=64-71,256-263 --localalloc
  • numactl --physcpubind=72-79,264-271 --localalloc
  • numactl --physcpubind=80-87,272-279 --localalloc
  • numactl --physcpubind=88-95,280-287 --localalloc
  • numactl --physcpubind=96-103,288-295 --localalloc
  • numactl --physcpubind=104-111,296-303 --localalloc
  • numactl --physcpubind=112-119,304-311 --localalloc
  • numactl --physcpubind=120-127,312-319 --localalloc
  • numactl --physcpubind=128-135,320-327 --localalloc
  • numactl --physcpubind=136-143,328-335 --localalloc
  • numactl --physcpubind=144-151,336-343 --localalloc
  • numactl --physcpubind=152-159,344-351 --localalloc
  • numactl --physcpubind=160-167,352-359 --localalloc
  • numactl --physcpubind=68-175,360-367 --localalloc
  • numactl --physcpubind=176-183,368-375 --localalloc
  • numactl --physcpubind=184-191,376-383 --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning Used numactl to affinitize each TxInjector JVM to 8 Cores / 16 Threads
  • numactl --physcpubind=0-7,192-199 --localalloc
  • numactl --physcpubind=8-15,200-207 --localalloc
  • numactl --physcpubind=16-23,208-215 --localalloc
  • numactl --physcpubind=24-31,216-223 --localalloc
  • numactl --physcpubind=32-39,224-231 --localalloc
  • numactl --physcpubind=40-47,232-239 --localalloc
  • numactl --physcpubind=48-55,240-247 --localalloc
  • numactl --physcpubind=56-63,248-255 --localalloc
  • numactl --physcpubind=64-71,256-263 --localalloc
  • numactl --physcpubind=72-79,264-271 --localalloc
  • numactl --physcpubind=80-87,272-279 --localalloc
  • numactl --physcpubind=88-95,280-287 --localalloc
  • numactl --physcpubind=96-103,288-295 --localalloc
  • numactl --physcpubind=104-111,296-303 --localalloc
  • numactl --physcpubind=112-119,304-311 --localalloc
  • numactl --physcpubind=120-127,312-319 --localalloc
  • numactl --physcpubind=128-135,320-327 --localalloc
  • numactl --physcpubind=136-143,328-335 --localalloc
  • numactl --physcpubind=144-151,336-343 --localalloc
  • numactl --physcpubind=152-159,344-351 --localalloc
  • numactl --physcpubind=160-167,352-359 --localalloc
  • numactl --physcpubind=68-175,360-367 --localalloc
  • numactl --physcpubind=176-183,368-375 --localalloc
  • numactl --physcpubind=184-191,376-383 --localalloc
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 967587 978104 988621 999139 1009656
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 257672 331293 432162 541638 583707 410550
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 10517 / 21034 - / 10517 - / 10517 - / 10517 - / 10517 - / 10517
1000us 115690 / 126207 21034 / 31552 10517 / 21034 10517 / 21034 - / 10517 - / 10517
5000us 704656 / 715173 273448 / 283966 189310 / 199828 178793 / 189310 136724 / 147241 - / 10517
10000us 725690 / 736207 652069 / 662587 420690 / 431207 368104 / 378621 252414 / 262931 31552 / 21034
25000us 736207 / 746725 704656 / 715173 620518 / 631035 557414 / 567931 326035 / 336552 31552 / 21034
50000us 746725 / 757242 725690 / 736207 662587 / 673104 599483 / 610000 441724 / 336552 31552 / 21034
75000us 757242 / 767759 736207 / 746725 683621 / 694138 631035 / 641552 557414 / 525862 31552 / 21034
100000us 767759 / 778276 736207 / 746725 704656 / 715173 673104 / 683621 599483 / 567931 31552 / 21034
200000us 830863 / 809828 757242 / 767759 736207 / 746725 725690 / 736207 704656 / 694138 315517 / 147241
500000us 988621 / - 872932 / 862414 799311 / 809828 788794 / 799311 767759 / 778276 599483 / 336552
1000000us 988621 / - 988621 / - 946552 / 957070 915001 / 925518 872932 / 883449 757242 / 336552

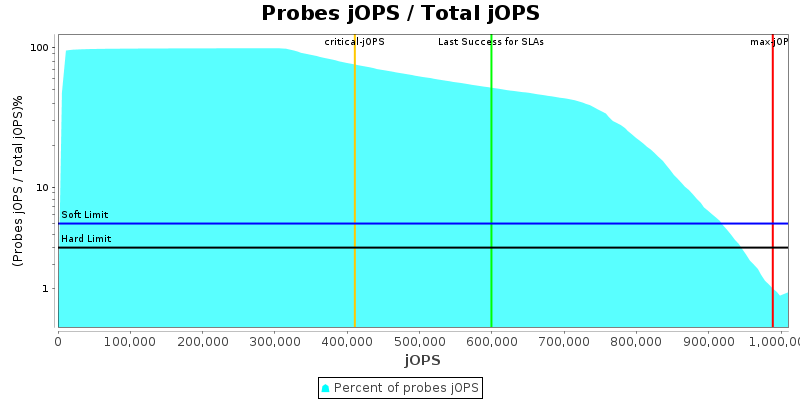

Number of probes
Probes jOPS / Total jOPS
Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

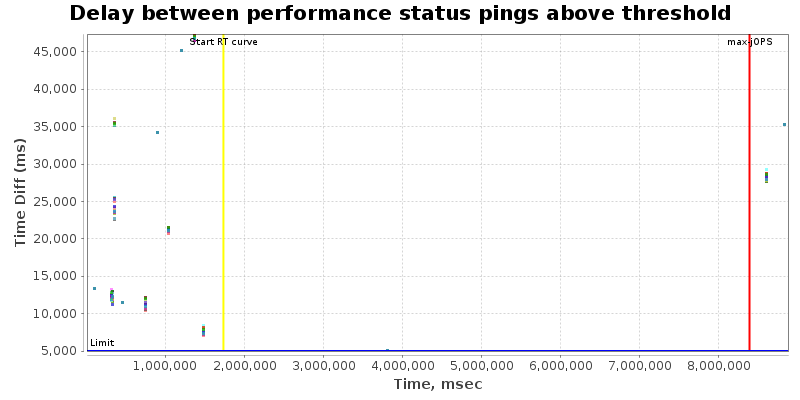

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

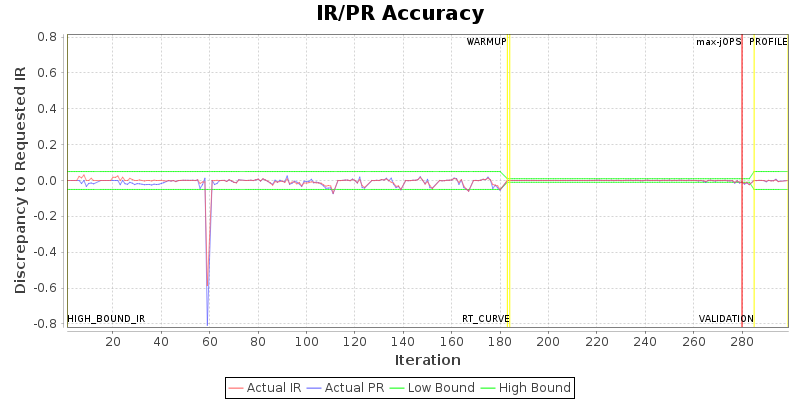

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group1.TxInjector.txiJVM1 Group10.Backend.beJVM Group10.TxInjector.txiJVM1 Group11.Backend.beJVM Group11.TxInjector.txiJVM1 Group12.Backend.beJVM Group12.TxInjector.txiJVM1 Group13.Backend.beJVM Group13.TxInjector.txiJVM1 Group14.Backend.beJVM Group14.TxInjector.txiJVM1 Group15.Backend.beJVM Group15.TxInjector.txiJVM1 Group16.Backend.beJVM Group16.TxInjector.txiJVM1 Group17.Backend.beJVM Group17.TxInjector.txiJVM1 Group18.Backend.beJVM Group18.TxInjector.txiJVM1 Group19.Backend.beJVM Group19.TxInjector.txiJVM1 Group2.Backend.beJVM Group2.TxInjector.txiJVM1 Group20.Backend.beJVM Group20.TxInjector.txiJVM1 Group21.Backend.beJVM Group21.TxInjector.txiJVM1 Group22.Backend.beJVM Group22.TxInjector.txiJVM1 Group23.Backend.beJVM Group23.TxInjector.txiJVM1 Group24.Backend.beJVM Group24.TxInjector.txiJVM1 Group3.Backend.beJVM Group3.TxInjector.txiJVM1 Group4.Backend.beJVM Group4.TxInjector.txiJVM1 Group5.Backend.beJVM Group5.TxInjector.txiJVM1 Group6.Backend.beJVM Group6.TxInjector.txiJVM1 Group7.Backend.beJVM Group7.TxInjector.txiJVM1 Group8.Backend.beJVM Group8.TxInjector.txiJVM1 Group9.Backend.beJVM Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size 256 150 256 170 256 170 256 170 256 170 256 170 256 170 256 170 256 170 256 170 256 170 256 170 256 170 256 170 256 170 256 170 256 170 256 170 256 170 256 170 256 170 256 170 256 170 256 170 256 170
specjbb.comm.connect.selector.runner.count 0 10 20 5 20 5 20 5 20 5 20 5 20 5 20 5 20 5 20 5 20 5 20 5 20 5 20 5 20 5 20 5 20 5 20 5 20 5 20 5 20 5 20 5 20 5 20 5 20 5
specjbb.comm.connect.timeouts.connect 60000 900000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.timeouts.read 60000 800000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.timeouts.write 60000 800000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.worker.pool.max 256 150 256 200 256 200 256 200 256 200 256 200 256 200 256 200 256 200 256 200 256 200 256 200 256 200 256 200 256 200 256 200 256 200 256 200 256 200 256 200 256 200 256 200 256 200 256 200 256 200
specjbb.comm.connect.worker.pool.min 1 16 32 1 32 1 32 1 32 1 32 1 32 1 32 1 32 1 32 1 32 1 32 1 32 1 32 1 32 1 32 1 32 1 32 1 32 1 32 1 32 1 32 1 32 1 32 1 32 1
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.customerDriver.threads 64 {probe=130, saturate=300, service=160}
specjbb.forkjoin.workers 384 {Tier1=800, Tier2=45, Tier3=160}
specjbb.group.count 1 24
specjbb.mapreducer.pool.size 384 10
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 1051725 IR
High-bound (settled) is 1018367 IR
