ASUSTeK Computer Inc. RS520A-E12-RS12U 494311 SPECjbb2015-MultiJVM max-jOPS
218746 SPECjbb2015-MultiJVM critical-jOPS
Tested by: ASUSTeK Computer Inc. Test Sponsor: ASUSTeK Computer Inc. Test location: Taipei, Taiwan Test date: Aug 17, 2023
SPEC license #: 9016 Hardware Availability: Jun-2023 Software Availability: Jul-2023 Publication: Tue Sep 26 12:30:28 EDT 2023
Benchmark Results Summary

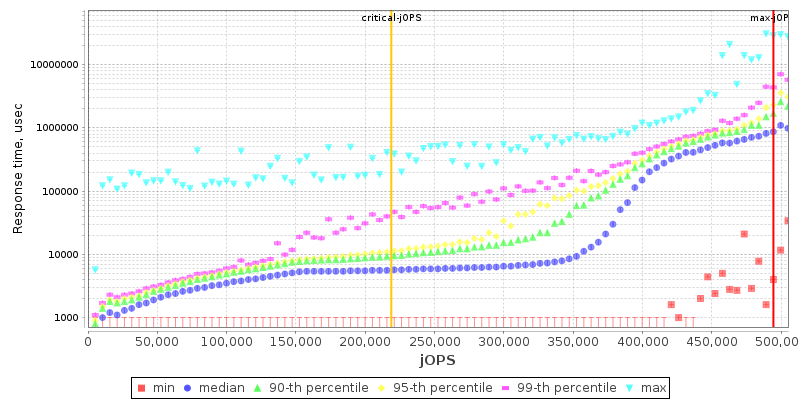

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorASUSTeK Computer Inc.
Vendor URLhttps://www.asus.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores96
Total Threads192
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameRS520A-E12-RS12U
VendorASUSTeK Computer Inc.
Vendor URLhttps://www.asus.com/
AvailableJun-2023
ModelRS520A-E12-RS12U
Form Factor2U
CPU NameAMD EPYC 9684X
CPU Characteristics96 Core, 2.55 GHz, 1152 MB L3 Cache (Max Boost Clock up to 3.70 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System96
Cores Per Chip96
Threads Per System192
Threads Per Core2
Version0901
CPU Frequency (MHz)2550
Primary Cache32 KB(I) + 32 KB(D) per core
Secondary Cache1 MB (I+D) per core
Tertiary Cache1152 MB (I+D) per chip
Other CacheNone
Disk1 x 1.6 TB PCIe NVMe SSD
File Systemxfs
Memory Amount (GB)768
# and size of DIMM(s)12 x 64 GB
Memory Details64 GB 2Rx4 PC5-4800B-R
# and type of Network Interface Cards (NICs)1 x 1 GbE NIC
Power Supply Quantity and Rating (W)2 x 1600W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP4
VendorSUSE
Vendor URLhttps://www.suse.com/
Version5.14.21-150400.22-default
AvailableJun-2022
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.8
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 17.0.8
AvailableJul-2023
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Settings:
  • SVM Mode = Disabled
  • SR-IOV Support = Disabled
  • Engine Boost = Aggressive
  • NUMA nodes per socket = NPS4
  • L1 Stream HW Prefetcher = Disable
  • L2 Stream HW Prefetcher = Disable
  • TDP Control = Manual
  • TDP = 400
  • PPT Control = Manual
  • PPT = 400
  • Determinism Control = Manual
  • Determinism Slider = Power
  • ACPI SRAT L3 Cache as NUMA Domain = Enabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(12), jvm_TxInjector_1(12)
OS Image Description os_1
Tuning
  • cpupower frequency-set -g performance
  • tuned-adm profile throughput-performance
  • ulimit -n 1024000
  • echo 960000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 40000000 > /proc/sys/kernel/sched_latency_ns
  • echo 40000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 900000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 200000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 9000 > /proc/sys/kernel/sched_nr_migrate
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo 0 > /proc/sys/vm/numa_stat
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=2
Tuning Used numactl to interleave memory on all CPUs
  • numactl --interleave=all
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xms31g -Xmx31g -Xmn29g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:ParallelGCThreads=16 -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=20 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=11k -XX:MaxGCPauseMillis=100 -XX:LoopUnrollLimit=200 -XX:+UseTransparentHugePages -XX:TLABAllocationWeight=2 -XX:ThreadStackSize=140 -XX:CompileThresholdScaling=120 -XX:CICompilerCount=4 -XX:AutoBoxCacheMax=32 -XX:OnStackReplacePercentage=100 -XX:TLABSize=1m -XX:MinTLABSize=1m -XX:-ResizeTLAB -XX:TLABWasteTargetPercent=1 -XX:TLABWasteIncrement=1 -XX:YoungPLABSize=1m -XX:OldPLABSize=1m
Tuning Used numactl to affinitize each Backend JVM to 8 Cores / 16 Threads
  • numactl --physcpubind=0-7,96-103 --localalloc
  • numactl --physcpubind=8-15,104-111 --localalloc
  • numactl --physcpubind=16-23,112-119 --localalloc
  • numactl --physcpubind=24-31,120-127 --localalloc
  • numactl --physcpubind=32-39,128-135 --localalloc
  • numactl --physcpubind=40-47,136-143 --localalloc
  • numactl --physcpubind=48-55,144-151 --localalloc
  • numactl --physcpubind=56-63,152-159 --localalloc
  • numactl --physcpubind=64-71,160-167 --localalloc
  • numactl --physcpubind=72-79,168-175 --localalloc
  • numactl --physcpubind=80-87,176-183 --localalloc
  • numactl --physcpubind=88-95,184-191 --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=2
Tuning Used numactl to affinitize each TxInjector JVM to 8 Cores / 16 Threads
  • numactl --physcpubind=0-7,96-103 --localalloc
  • numactl --physcpubind=8-15,104-111 --localalloc
  • numactl --physcpubind=16-23,112-119 --localalloc
  • numactl --physcpubind=24-31,120-127 --localalloc
  • numactl --physcpubind=32-39,128-135 --localalloc
  • numactl --physcpubind=40-47,136-143 --localalloc
  • numactl --physcpubind=48-55,144-151 --localalloc
  • numactl --physcpubind=56-63,152-159 --localalloc
  • numactl --physcpubind=64-71,160-167 --localalloc
  • numactl --physcpubind=72-79,168-175 --localalloc
  • numactl --physcpubind=80-87,176-183 --localalloc
  • numactl --physcpubind=88-95,184-191 --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 483794 489053 494311 499570 504828
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 139353 180546 234009 281336 302371 218746
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 5259 / 10517 - / 5259 - / 5259 - / 5259 - / 5259 - / 5259
1000us 63104 / 68362 10517 / 15776 5259 / 10517 5259 / 10517 - / 5259 - / 5259
5000us 373363 / 378621 141983 / 147242 99914 / 105173 94655 / 99914 84138 / 89397 - / 5259
10000us 383880 / 389139 352328 / 357587 226121 / 231380 194569 / 199828 141983 / 136724 5259 / 10517
25000us 389139 / 394397 373363 / 378621 331294 / 336552 294483 / 299742 184052 / 173535 5259 / 10517
50000us 394397 / 399656 378621 / 383880 347070 / 352328 320776 / 326035 236638 / 231380 5259 / 10517
75000us 399656 / 404915 389139 / 394397 357587 / 362845 331294 / 336552 294483 / 268190 5259 / 10517
100000us 399656 / 404915 389139 / 394397 368104 / 373363 357587 / 352328 305001 / 299742 5259 / 10517
200000us 436466 / 431208 399656 / 404915 389139 / 394397 383880 / 389139 373363 / 352328 210345 / 78879
500000us 494311 / - 446984 / 452242 420690 / 425949 415432 / 420690 404915 / 410173 315518 / 247156
1000000us 494311 / - 494311 / - 473277 / 478535 468018 / 473277 452242 / 457501 394397 / 399656

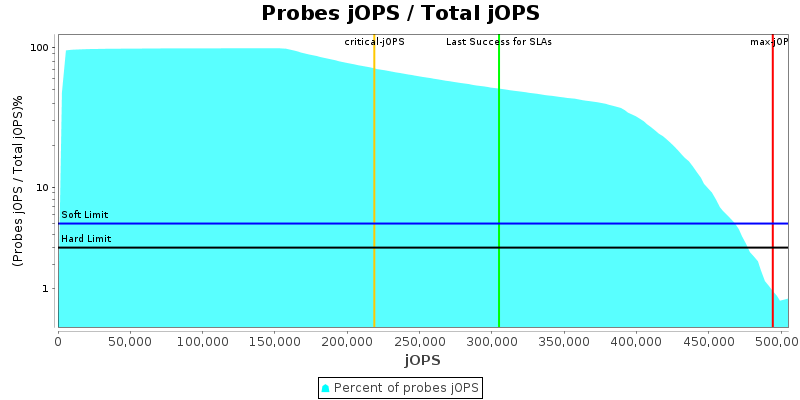

Probes jOPS / Total jOPS

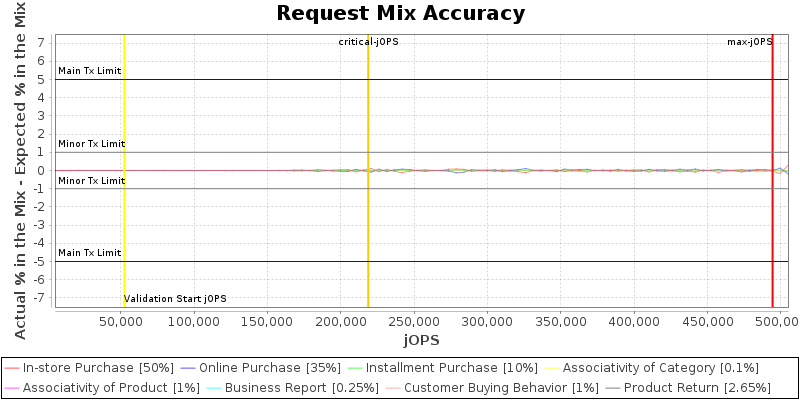

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group1.TxInjector.txiJVM1 Group10.Backend.beJVM Group10.TxInjector.txiJVM1 Group11.Backend.beJVM Group11.TxInjector.txiJVM1 Group12.Backend.beJVM Group12.TxInjector.txiJVM1 Group2.Backend.beJVM Group2.TxInjector.txiJVM1 Group3.Backend.beJVM Group3.TxInjector.txiJVM1 Group4.Backend.beJVM Group4.TxInjector.txiJVM1 Group5.Backend.beJVM Group5.TxInjector.txiJVM1 Group6.Backend.beJVM Group6.TxInjector.txiJVM1 Group7.Backend.beJVM Group7.TxInjector.txiJVM1 Group8.Backend.beJVM Group8.TxInjector.txiJVM1 Group9.Backend.beJVM Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size 256 150 256 170 256 170 256 170 256 170 256 170 256 170 256 170 256 170 256 170 256 170 256 170 256 170
specjbb.comm.connect.selector.runner.count 0 10 20 5 20 5 20 5 20 5 20 5 20 5 20 5 20 5 20 5 20 5 20 5 20 5
specjbb.comm.connect.timeouts.connect 60000 900000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.timeouts.read 60000 800000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.timeouts.write 60000 800000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.worker.pool.max 256 150 256 200 256 200 256 200 256 200 256 200 256 200 256 200 256 200 256 200 256 200 256 200 256 200
specjbb.comm.connect.worker.pool.min 1 16 32 1 32 1 32 1 32 1 32 1 32 1 32 1 32 1 32 1 32 1 32 1 32 1
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.customerDriver.threads 64 {probe=130, saturate=300, service=160}
specjbb.forkjoin.workers 192 {Tier1=800, Tier2=45, Tier3=160}
specjbb.group.count 1 12
specjbb.mapreducer.pool.size 192 10
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 525863 IR
High-bound (settled) is 506783 IR
