SPECjbb2015 Report for jbb2015-20230904-01158 : 213291 max-jOPS ; 122299 critical-jOPS

SUT Description

Hardware hw_1
Name	Dell Inc. PowerEdge C6615
Vendor	Dell Inc.
Vendor URL	http://www.dell.com/
Available	Sep-2023
Model	PowerEdge C6615
Form Factor	1U Modular
CPU Name	AMD EPYC 8534P
CPU Characteristics	64 Core, 2.3 GHz, 128MB L3 Cache (Max. Boost Clock up to 3.1GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	1
Cores Per System	64
Cores Per Chip	64
Threads Per System	128
Threads Per Core	2
Version	1.0.2
CPU Frequency (MHz)	2300
Primary Cache	32 KB (I) + 32 KB (D) per core
Secondary Cache	1 MB (I+D) per core
Tertiary Cache	128 MB (I+D) on chip per chip
Other Cache	None
Disk	1 x NVME M.2 480GB SSD
File System	xfs
Memory Amount (GB)	192
# and size of DIMM(s)	6 x 32 GB
Memory Details	32 GB 2Rx8 PC5-4800B-R (slots A1-A6 populated)
# and type of Network Interface Cards (NICs)	1 x Broadcom NetXtreme BCM5720 Gigabit Ethernet PCIe 1Gb/s Dual Port
Power Supply Quantity and Rating (W)	2 x 2400
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP4
Vendor	SUSE
Vendor URL	https://www.suse.com/
Version	5.14.21-150400.22-default
Available	Jun-2022
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle JDK v17.0.8
Vendor	Oracle
Vendor URL	http://www.oracle.com/
Version	Java HotSpot 64-bit Server VM, version 17.0.8
Available	Jul-2023
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Composite_1 : Composite

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	Non-virtual
Tuning	Logical Processor : Enabled L1 Stream HW Prefetcher : Disabled L2 Stream HW Prefetcher : Disabled MADT Core Enumeration : Linear NUMA Nodes Per Socket : 2 L3 cache as NUMA Domain : Disabled System Profile : Custom Determinism Slider : Power Determinism ACPI CST C2 Latency : 18
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Composite_1(2)
OS Image Description	os_1
Tuning	echo 950000 > /proc/sys/kernel/sched_rt_runtime_us echo 400000 > /proc/sys/kernel/sched_latency_ns echo 50000 > /proc/sys/kernel/sched_migration_cost_ns echo 400000000 > /proc/sys/kernel/sched_min_granularity_ns echo 50000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 128 > /proc/sys/kernel/sched_nr_migrate echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 1 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/enabled echo always > /sys/kernel/mm/transparent_hugepage/defrag
Notes	None
JVM Instance jvm_Composite_1
Parts of Benchmark	Composite
JVM Instance Description	jvm_1
Command Line	-Xms126g -Xmx126g -Xmn122g -server -XX:+UseParallelGC -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:MaxTenuringThreshold=15 -XX:+ScavengeBeforeFullGC -XX:-UseAdaptiveSizePolicy -XX:ParallelGCThreads=128 -XX:SurvivorRatio=42 -XX:TargetSurvivorRatio=95 -XX:+UseTransparentHugePages -XX:+PrintFlagsFinal -XX:InlineSmallCode=10k -XX:LoopUnrollLimit=1000 -XX:+UseNUMA -XX:-UseNUMAInterleaving -XX:-UseAdaptiveNUMAChunkSizing -XX:+UseCompressedOops -XX:ObjectAlignmentInBytes=32 -XX:CICompilerCount=32
Tuning	Used numactl to run on all available nodes numactl --cpunodebind=0-1 --interleave=0-1
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	210839	213291	215743	218194	220646

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	87032	101742	136065	145871	155678	122299

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	53936 / 44129	- / 2452	- / 2452	- / 2452	- / 2452	- / 2452
1000us	198581 / 201033	107871 / 90710	4903 / 7355	4903 / 7355	2452 / 4903	- / 2452
5000us	208388 / 210839	193678 / 196130	144646 / 147097	110323 / 112775	73549 / 76000	4903 / 7355
10000us	208388 / 210839	196130 / 198581	166710 / 169162	144646 / 147097	85807 / 88258	31871 / 7355
25000us	210839 / 213291	203484 / 201033	176517 / 178968	164259 / 161807	100516 / 102968	31871 / 7355
50000us	210839 / 213291	203484 / 205936	181420 / 183871	166710 / 169162	134839 / 137291	31871 / 7355
75000us	210839 / 213291	205936 / 208388	186323 / 188775	171613 / 174065	144646 / 147097	53936 / 49032
100000us	210839 / 213291	205936 / 208388	188775 / 191226	176517 / 178968	154452 / 156904	100516 / 95613
200000us	213291 / -	208388 / 210839	198581 / 201033	191226 / 193678	178968 / 181420	152000 / 154452
500000us	213291 / -	210839 / 213291	208388 / 210839	205936 / 208388	203484 / 201033	191226 / 193678
1000000us	213291 / -	213291 / -	210839 / 213291	210839 / 213291	208388 / 210839	205936 / 208388

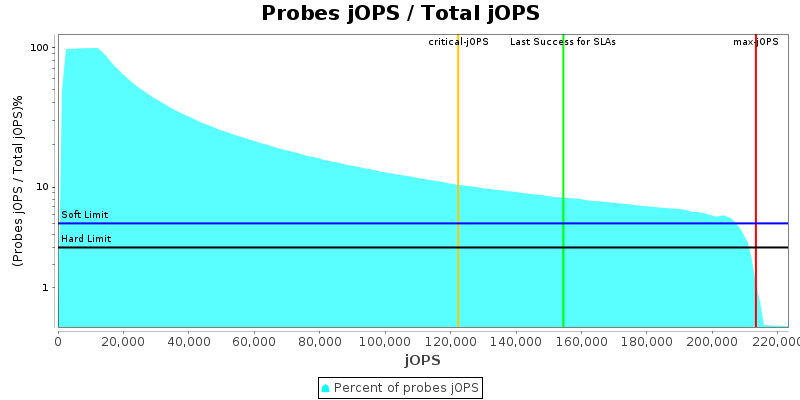

Number of probes

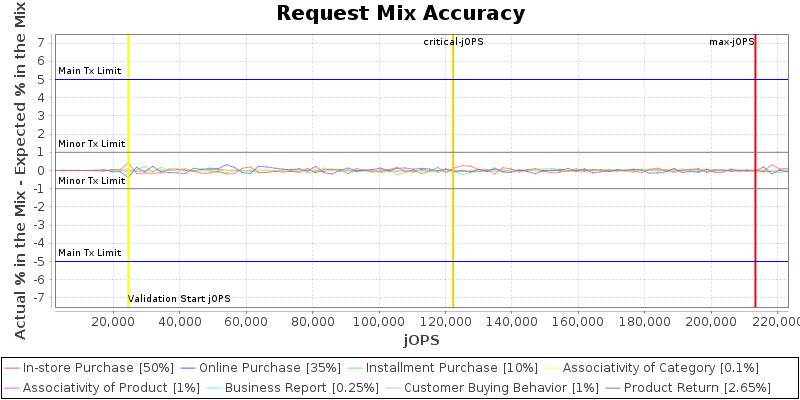

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

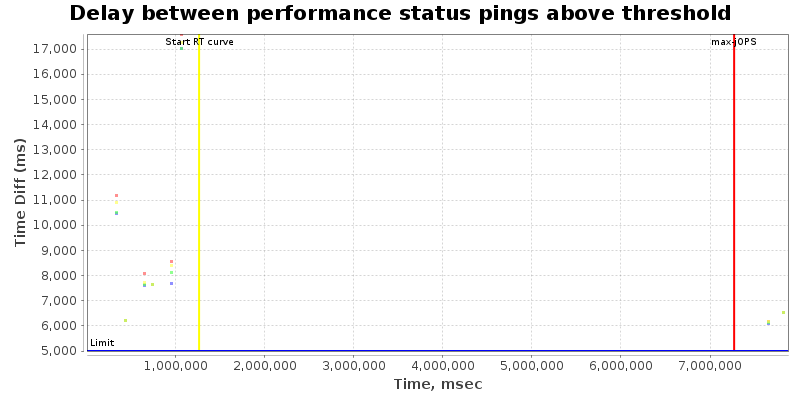

Delay between performance status pings during RT Curve (Response-Throughput Curve)

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.timeouts.connect	60000	800000
specjbb.comm.connect.timeouts.read	60000	800000
specjbb.comm.connect.timeouts.write	60000	800000
specjbb.customerDriver.threads	64	{saturate=95}
specjbb.forkjoin.workers	128	{Tier1=62, Tier2=1, Tier3=12}
specjbb.group.count	1	2
specjbb.mapreducer.pool.size	128	3

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 245162 IR

High-bound (settled) is 226495 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Dell Inc. PowerEdge C6615	213291 SPECjbb2015-Composite max-jOPS 122299 SPECjbb2015-Composite critical-jOPS
Tested by: Dell Inc.	Test Sponsor: Dell Inc.	Test location: Round Rock, TX	Test date: Aug 18,2023
SPEC license #: 6573	Hardware Availability: Sep-2023	Software Availability: Jul-2023	Publication: Tue Sep 26 12:30:28 EDT 2023


SPECjbb2015-Composite: Single JVM/Single Host (# of groups: 2) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
