SPECjbb2015
Copyright © 2015-2024 Standard Performance Evaluation Corporation
Supermicro A+ Server AS -1015SV-WTNRT 201033 SPECjbb2015-Composite max-jOPS
182905 SPECjbb2015-Composite critical-jOPS
Tested by: Supermicro Test Sponsor: Supermicro Test location: San Jose, California Test date: Aug 11, 2023
SPEC license #: 001176 Hardware Availability: Sep-2023 Software Availability: Aug-2023 Publication: Wed Sep 20 16:02:40 EDT 2023
Benchmark Results Summary

SPECjbb2015-Composite: Single JVM/Single Host
(# of groups: 2)

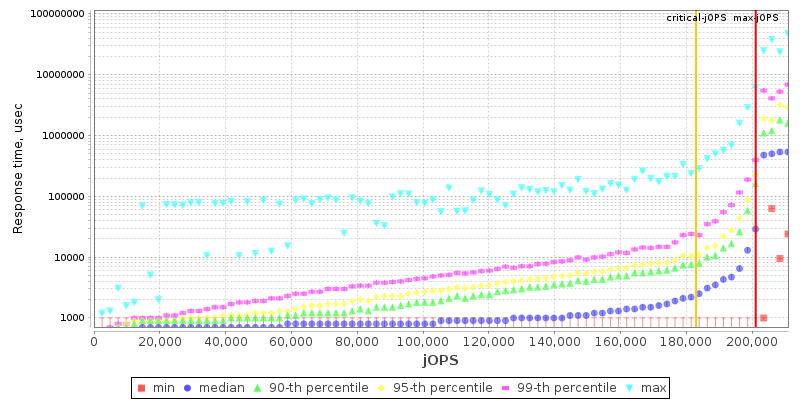

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorSupermicro
Vendor URLhttps://www.supermicro.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores64
Total Threads128
Total Memory Amount (GB)384
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameA+ Server AS -1015SV-WTNRT
VendorSupermicro
Vendor URLhttps://www.supermicro.com
AvailableSep-2023
ModelH13SVW-NT
Form Factor1U
CPU NameAMD EPYC 8534P
CPU Characteristics64 Core, 2.3 GHz, 128MB L3 Cache (Max. Boost Clock up to 3.1GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System64
Cores Per Chip64
Threads Per System128
Threads Per Core2
Version1.0 (08/08/2023)
CPU Frequency (MHz)2300
Primary Cache32 KB(I) + 32 KB(D) per core
Secondary Cache1 MB (I+D) per core
Tertiary Cache128 MB (I+D) on chip per chip
Other CacheNone
Disk1 x 256GB NVMe PCIe Gen3.0
File Systemxfs
Memory Amount (GB)384
# and size of DIMM(s)6 x 64 GB
Memory Details64 GB 2Rx4 PC5-4800B-R
# and type of Network Interface Cards (NICs)2 x 10 Gbit NICs
Power Supply Quantity and Rating (W)2 x 860W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP4
VendorSUSE
Vendor URLhttps://www.suse.com/
Version5.14.21-150400.22-default
AvailableJun-2022
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle JDK v17.0.8
VendorOracle
Vendor URLhttp://www.oracle.com/
VersionJava HotSpot 64-bit Server VM, version 17.0.8
AvailableJul-2023
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning

BIOS Settings:

  • NUMA nodes per socket = NPS2
  • Determinism Control = Manual
  • Determinism Slider = Power
  • L1 Stream HW Prefetcher = Disable
  • L2 Stream HW Prefetcher = Disable
  • TDP Control = Manual
  • TDP = 225
  • PPT Control = Manual
  • PPT = 225
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning

  • cpupower -c all frequency-set -g performance
  • tuned-adm profile throughput-performance

  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 1 > /proc/sys/kernel/numa_balancing
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line

-Xms330g -Xmx330g -Xmn325g -server -XX:+UseParallelGC -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:MaxTenuringThreshold=15 -XX:+ScavengeBeforeFullGC -XX:-UseAdaptiveSizePolicy -XX:ParallelGCThreads=128 -XX:SurvivorRatio=42 -XX:TargetSurvivorRatio=95 -XX:+UseTransparentHugePages -XX:+PrintFlagsFinal -XX:InlineSmallCode=10k -XX:LoopUnrollLimit=1000 -XX:+UseNUMA -XX:-UseNUMAInterleaving -XX:-UseAdaptiveNUMAChunkSizing -XX:CICompilerCount=32
Tuning

numactl --cpunodebind=0-1 --interleave=0-1
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 198581 201033 203484 205936 208388
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 153226 185097 190000 194904 194904 182905
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 142194 / 144646 7355 / 9806 2452 / 4903 2452 / 4903 - / 2452 - / 2452
1000us 188775 / 191226 142194 / 144646 56387 / 58839 36774 / 39226 19613 / 22065 - / 2452
5000us 198581 / 201033 193678 / 196130 161807 / 164259 144646 / 147097 105420 / 107871 19613 / 14710
10000us 201033 / - 196130 / 198581 186323 / 188775 176517 / 178968 152000 / 154452 19613 / 14710
25000us 201033 / - 198581 / 201033 193678 / 196130 191226 / 193678 183871 / 186323 76000 / 14710
50000us 201033 / - 201033 / - 196130 / 198581 196130 / 198581 188775 / 191226 88258 / 14710
75000us 201033 / - 201033 / - 198581 / 201033 196130 / 198581 193678 / 196130 125033 / 29419
100000us 201033 / - 201033 / - 198581 / 201033 198581 / 201033 193678 / 196130 125033 / 93162
200000us 201033 / - 201033 / - 201033 / - 198581 / 201033 198581 / 201033 171613 / 166710
500000us 201033 / - 201033 / - 201033 / - 201033 / - 201033 / - 186323 / 188775
1000000us 201033 / - 201033 / - 201033 / - 201033 / - 201033 / - 193678 / 196130

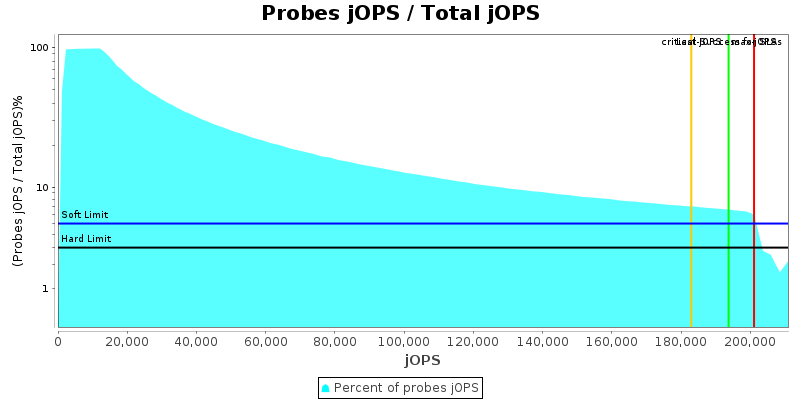

Number of probes
Probes jOPS / Total jOPS
Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

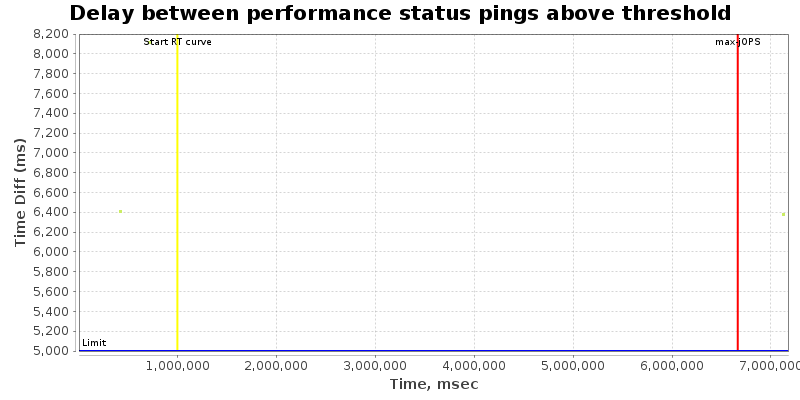

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

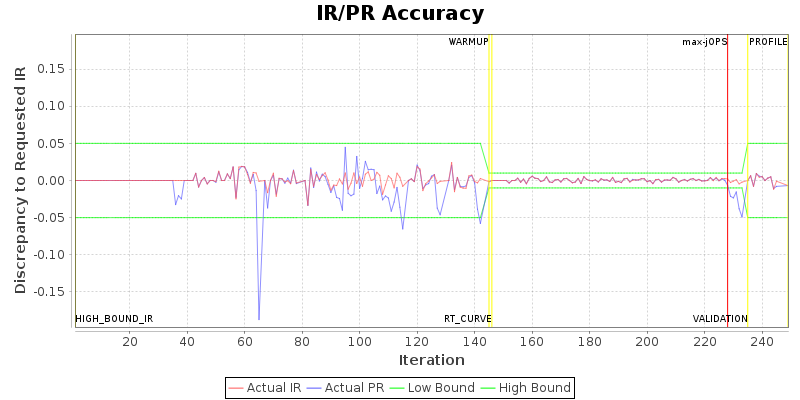

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.timeouts.connect 60000 800000
specjbb.comm.connect.timeouts.read 60000 800000
specjbb.comm.connect.timeouts.write 60000 800000
specjbb.customerDriver.threads 64 {saturate=95}
specjbb.forkjoin.workers 128 {Tier1=60, Tier2=1, Tier3=12}
specjbb.group.count 1 2
specjbb.mapreducer.pool.size 128 3
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 245162 IR
High-bound (settled) is 215376 IR
Copyright © 2015-2024 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]
