SPECjbb2015
Copyright © 2015-2023 Standard Performance Evaluation Corporation
Inspur Electronic Information Industry Co., Ltd. NF5180A7 883097 SPECjbb2015-MultiJVM max-jOPS
368813 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Inspur Electronic Information Industry Co., Ltd. Test Sponsor: Inspur Electronic Information Industry Co., Ltd. Test location: Jinan, China Test date: Jul 12, 2023
SPEC license #: 3358 Hardware Availability: Jun-2023 Software Availability: Apr-2023 Publication: Thu Jul 27 11:36:15 EDT 2023
Benchmark Results Summary

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host
(# of groups: 32)

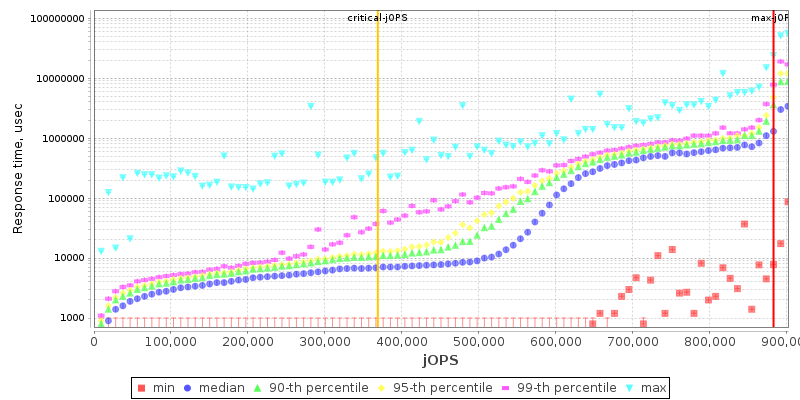

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorInspur Electronic Information Industry Co., Ltd.
Vendor URLhttps://www.ieisystem.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores256
Total Threads512
Total Memory Amount (GB)1536
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameNF5180A7
VendorInspur Electronic Information Industry Co., Ltd.
Vendor URLhttps://www.ieisystem.com/
AvailableJun-2023
ModelNF5180A7
Form Factor1U
CPU NameAMD EPYC 9754
CPU Characteristics128 Core, 2.25 GHz, 256 MB L3 Cache (Max Boost Clock up to 3.10 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System256
Cores Per Chip128
Threads Per System512
Threads Per Core2
Version04.02.23
CPU Frequency (MHz)2250
Primary Cache32 KB(I)+32 KB(D)on chip per core
Secondary Cache1MB (I+D) per core
Tertiary Cache256MB (I+D) on chip per chip
Other CacheNone
Disk1x 1TB NVMe SSD
File Systemxfs
Memory Amount (GB)1536
# and size of DIMM(s)24 x 64GB
Memory Details24 x 64 GB 2Rx4 PC5-4800B-R
# and type of Network Interface Cards (NICs)1 x 10 Gbit NIC
Power Supply Quantity and Rating (W)2 x 1600W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux release 9.0 (Plow)
VendorRed Hat
Vendor URLhttp://redhat.com/
Version5.14.0-70.13.1
AvailableMay-2022
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.7
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 17.0.7
AvailableApr-2023
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • L1 Stream HW Prefetcher = Disabled
  • L2 Stream HW Prefetcher = Disabled
  • TDP Control = Manual
  • TDP = 400
  • PPT Control = Manual
  • PPT = 400
  • Determinism Control = Manual
  • Determinism Slider = Power
  • NUMA nodes per socket = NPS4
  • ACPI SRAT L3 Cache as NUMA Domain = Enabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(32), jvm_TxInjector_1(32)
OS Image Description os_1
Tuning
  • ulimit -n 1024000
  • cpupower frequency-set -g performance
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 960000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 40000 > /sys/kernel/debug/sched/migration_cost_ns
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 0 > /proc/sys/vm/numa_stat
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo 10 > /proc/sys/vm/swappiness
  • echo 400000 > /sys/kernel/debug/sched/latency_ns
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 800000000 > /sys/kernel/debug/sched/min_granularity_ns
  • echo 200000000 > /sys/kernel/debug/sched/wakeup_granularity_ns
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=2
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xms28g -Xmx28g -Xmn25g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:ParallelGCThreads=16 -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=20 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=11k -XX:MaxGCPauseMillis=100 -XX:LoopUnrollLimit=200 -XX:+UseTransparentHugePages -XX:TLABAllocationWeight=2 -XX:ThreadStackSize=140 -XX:CompileThresholdScaling=120 -XX:CICompilerCount=4 -XX:AutoBoxCacheMax=32 -XX:OnStackReplacePercentage=100 -XX:TLABSize=1m -XX:MinTLABSize=1m -XX:-ResizeTLAB -XX:TLABWasteTargetPercent=1 -XX:TLABWasteIncrement=1 -XX:YoungPLABSize=1m -XX:OldPLABSize=1m
Tuning numactl used to affinitize each Backend JVM to a single NUMA node, eg:
  • numactl --cpunodebind=0 --localalloc
  • numactl --cpunodebind=1 --localalloc
  • numactl --cpunodebind=2 --localalloc
  • numactl --cpunodebind=3 --localalloc
  • numactl --cpunodebind=4 --localalloc
  • numactl --cpunodebind=5 --localalloc
  • numactl --cpunodebind=6 --localalloc
  • numactl --cpunodebind=7 --localalloc
  • numactl --cpunodebind=8 --localalloc
  • numactl --cpunodebind=9 --localalloc
  • numactl --cpunodebind=10 --localalloc
  • numactl --cpunodebind=11 --localalloc
  • numactl --cpunodebind=12 --localalloc
  • numactl --cpunodebind=13 --localalloc
  • numactl --cpunodebind=14 --localalloc
  • numactl --cpunodebind=15 --localalloc
  • numactl --cpunodebind=16 --localalloc
  • numactl --cpunodebind=17 --localalloc
  • numactl --cpunodebind=18 --localalloc
  • numactl --cpunodebind=19 --localalloc
  • numactl --cpunodebind=20 --localalloc
  • numactl --cpunodebind=21 --localalloc
  • numactl --cpunodebind=22 --localalloc
  • numactl --cpunodebind=23 --localalloc
  • numactl --cpunodebind=24 --localalloc
  • numactl --cpunodebind=25 --localalloc
  • numactl --cpunodebind=26 --localalloc
  • numactl --cpunodebind=27 --localalloc
  • numactl --cpunodebind=28 --localalloc
  • numactl --cpunodebind=29 --localalloc
  • numactl --cpunodebind=30 --localalloc
  • numactl --cpunodebind=31 --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=2
Tuning numactl used to affinitize each TxInjector JVM to a single NUMA node, eg:
  • numactl --cpunodebind=0 --localalloc
  • numactl --cpunodebind=1 --localalloc
  • numactl --cpunodebind=2 --localalloc
  • numactl --cpunodebind=3 --localalloc
  • numactl --cpunodebind=4 --localalloc
  • numactl --cpunodebind=5 --localalloc
  • numactl --cpunodebind=6 --localalloc
  • numactl --cpunodebind=7 --localalloc
  • numactl --cpunodebind=8 --localalloc
  • numactl --cpunodebind=9 --localalloc
  • numactl --cpunodebind=10 --localalloc
  • numactl --cpunodebind=11 --localalloc
  • numactl --cpunodebind=12 --localalloc
  • numactl --cpunodebind=13 --localalloc
  • numactl --cpunodebind=14 --localalloc
  • numactl --cpunodebind=15 --localalloc
  • numactl --cpunodebind=16 --localalloc
  • numactl --cpunodebind=17 --localalloc
  • numactl --cpunodebind=18 --localalloc
  • numactl --cpunodebind=19 --localalloc
  • numactl --cpunodebind=20 --localalloc
  • numactl --cpunodebind=21 --localalloc
  • numactl --cpunodebind=22 --localalloc
  • numactl --cpunodebind=23 --localalloc
  • numactl --cpunodebind=24 --localalloc
  • numactl --cpunodebind=25 --localalloc
  • numactl --cpunodebind=26 --localalloc
  • numactl --cpunodebind=27 --localalloc
  • numactl --cpunodebind=28 --localalloc
  • numactl --cpunodebind=29 --localalloc
  • numactl --cpunodebind=30 --localalloc
  • numactl --cpunodebind=31 --localalloc
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 864308 873702 883097 892492 901886
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 248958 321297 388312 454075 483824 368813
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 9395 / 18789 - / 9395 - / 9395 - / 9395 - / 9395 - / 9395
1000us 28184 / 37579 18789 / 28184 9395 / 18789 9395 / 18789 - / 9395 - / 9395
5000us 544890 / 554284 234866 / 244261 140920 / 150314 131525 / 140920 93946 / 103341 - / 9395
10000us 573074 / 582468 507311 / 516706 328813 / 338207 300629 / 310023 253656 / 244261 - / 9395
25000us 591863 / 601258 554284 / 563679 497916 / 507311 460338 / 469732 328813 / 291234 46973 / 18789
50000us 601258 / 610652 573074 / 582468 526100 / 535495 497916 / 507311 394575 / 375786 46973 / 18789
75000us 610652 / 620047 582468 / 591863 544890 / 554284 526100 / 535495 460338 / 441549 46973 / 18789
100000us 620047 / 629442 591863 / 601258 563679 / 573074 544890 / 554284 488522 / 479127 46973 / 18789
200000us 657625 / 667020 620047 / 629442 591863 / 601258 582468 / 591863 563679 / 554284 310023 / 37579
500000us 864308 / 873702 742177 / 732783 676415 / 685809 657625 / 667020 638836 / 648231 488522 / 169104
1000000us 883097 / - 864308 / 873702 836124 / 845518 826729 / 836124 770361 / 779756 610652 / 281839

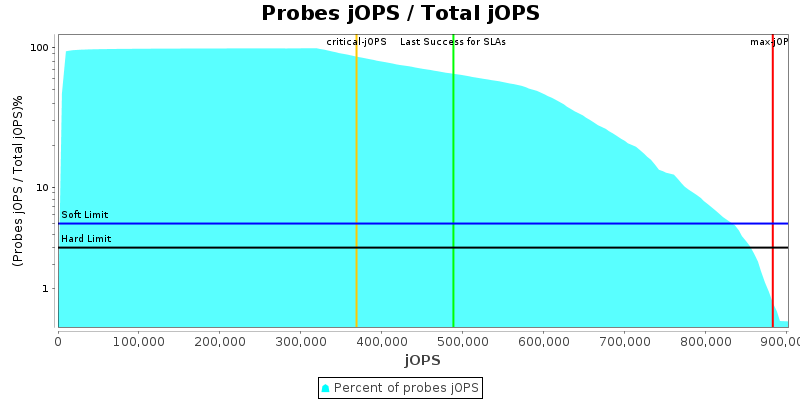

Number of probes
Probes jOPS / Total jOPS
Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group1.TxInjector.txiJVM1 Group10.Backend.beJVM Group10.TxInjector.txiJVM1 Group11.Backend.beJVM Group11.TxInjector.txiJVM1 Group12.Backend.beJVM Group12.TxInjector.txiJVM1 Group13.Backend.beJVM Group13.TxInjector.txiJVM1 Group14.Backend.beJVM Group14.TxInjector.txiJVM1 Group15.Backend.beJVM Group15.TxInjector.txiJVM1 Group16.Backend.beJVM Group16.TxInjector.txiJVM1 Group17.Backend.beJVM Group17.TxInjector.txiJVM1 Group18.Backend.beJVM Group18.TxInjector.txiJVM1 Group19.Backend.beJVM Group19.TxInjector.txiJVM1 Group2.Backend.beJVM Group2.TxInjector.txiJVM1 Group20.Backend.beJVM Group20.TxInjector.txiJVM1 Group21.Backend.beJVM Group21.TxInjector.txiJVM1 Group22.Backend.beJVM Group22.TxInjector.txiJVM1 Group23.Backend.beJVM Group23.TxInjector.txiJVM1 Group24.Backend.beJVM Group24.TxInjector.txiJVM1 Group25.Backend.beJVM Group25.TxInjector.txiJVM1 Group26.Backend.beJVM Group26.TxInjector.txiJVM1 Group27.Backend.beJVM Group27.TxInjector.txiJVM1 Group28.Backend.beJVM Group28.TxInjector.txiJVM1 Group29.Backend.beJVM Group29.TxInjector.txiJVM1 Group3.Backend.beJVM Group3.TxInjector.txiJVM1 Group30.Backend.beJVM Group30.TxInjector.txiJVM1 Group31.Backend.beJVM Group31.TxInjector.txiJVM1 Group32.Backend.beJVM Group32.TxInjector.txiJVM1 Group4.Backend.beJVM Group4.TxInjector.txiJVM1 Group5.Backend.beJVM Group5.TxInjector.txiJVM1 Group6.Backend.beJVM Group6.TxInjector.txiJVM1 Group7.Backend.beJVM Group7.TxInjector.txiJVM1 Group8.Backend.beJVM Group8.TxInjector.txiJVM1 Group9.Backend.beJVM Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size 256 700 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256
specjbb.comm.connect.selector.runner.count 0 10 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
specjbb.comm.connect.timeouts.connect 60000 900000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.timeouts.read 60000 800000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.timeouts.write 60000 800000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.worker.pool.max 256 700 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256
specjbb.comm.connect.worker.pool.min 1 16 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.customerDriver.threads 64 {probe=100, saturate=200, service=120}
specjbb.forkjoin.workers 512 {Tier1=525, Tier2=65, Tier3=140}
specjbb.group.count 1 32
specjbb.mapreducer.pool.size 512 10
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 939465 IR
High-bound (settled) is 910022 IR
