SPECjbb2015 Report for jbb2015-20230628-01137 : 1275052 max-jOPS ; 619608 critical-jOPS

SUT Description

Hardware hw_1
Name	TS860G7
Vendor	Inspur Electronic Information Industry Co., Ltd.
Vendor URL	https://www.ieisystem.com/
Available	Jul-2023
Model	TS860G7
Form Factor	6U
CPU Name	Intel Xeon Platinum 8490H
CPU Characteristics	60 Core, 1.90 GHz, 112.5 MB L3 Cache (Turbo Boost Technology up to 3.50 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	8
Cores Per System	480
Cores Per Chip	60
Threads Per System	960
Threads Per Core	2
Version	05.00.00
CPU Frequency (MHz)	1900
Primary Cache	32 KB(I)+48 KB(D)on chip per core
Secondary Cache	2MB (I+D) per core
Tertiary Cache	112.5MB (I+D) on chip per chip
Other Cache	None
Disk	1x 4TB NVMe SSD
File System	xfs
Memory Amount (GB)	2048
# and size of DIMM(s)	64 x 32GB
Memory Details	64 x 32 GB 2Rx8 PC5-4800B-R
# and type of Network Interface Cards (NICs)	1 x 10 Gbit NIC
Power Supply Quantity and Rating (W)	4 x 2000W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Red Hat Enterprise Linux release 9.0 (Plow)
Vendor	Red Hat
Vendor URL	http://redhat.com/
Version	5.14.0-70.13.1
Available	May-2022
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 17.0.7
Vendor	Oracle
Vendor URL	http://www.oracle.com
Version	Java HotSpot 64-bit Server VM, version 17.0.7
Available	Apr-2023
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Tuning SNC set to SNC2 Memory Patrol Scrub Disabled
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(16), jvm_TxInjector_1(16)
OS Image Description	os_1
Tuning	ulimit -n 131072 cpupower frequency-set -g performance tuned-adm profile throughput-performance
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	None
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-showversion -XX:+UseParallelGC -XX:+UseLargePages -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=10k -XX:-UseCountedLoopSafepoints -XX:LoopUnrollLimit=20 -server -XX:TargetSurvivorRatio=99 -XX:SurvivorRatio=28 -XX:LargePageSizeInBytes=1g -XX:UseAVX=0 -Xms100g -Xmx100g -Xmn95g -XX:ParallelGCThreads=30
Tuning	numactl used to affinitize each Backend JVM to a single memory node, eg: numactl --cpunodebind=0 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=3 --localalloc numactl --cpunodebind=4 --localalloc numactl --cpunodebind=5 --localalloc numactl --cpunodebind=6 --localalloc numactl --cpunodebind=7 --localalloc numactl --cpunodebind=8 --localalloc numactl --cpunodebind=9 --localalloc numactl --cpunodebind=10 --localalloc numactl --cpunodebind=11 --localalloc numactl --cpunodebind=12 --localalloc numactl --cpunodebind=13 --localalloc numactl --cpunodebind=14 --localalloc numactl --cpunodebind=15 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	numactl used to affinitize each TxInjector JVM to a single memory node, eg: numactl --cpunodebind=0 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=3 --localalloc numactl --cpunodebind=4 --localalloc numactl --cpunodebind=5 --localalloc numactl --cpunodebind=6 --localalloc numactl --cpunodebind=7 --localalloc numactl --cpunodebind=8 --localalloc numactl --cpunodebind=9 --localalloc numactl --cpunodebind=10 --localalloc numactl --cpunodebind=11 --localalloc numactl --cpunodebind=12 --localalloc numactl --cpunodebind=13 --localalloc numactl --cpunodebind=14 --localalloc numactl --cpunodebind=15 --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	1258705	1275052	1291399	1307746	1324092

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	384150	547618	678393	760127	841861	619608

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	16347 / 32694	- / 16347	- / 16347	- / 16347	- / 16347	- / 16347
1000us	392324 / 408670	32694 / 49040	- / 16347	- / 16347	- / 16347	- / 16347
5000us	1160624 / 1176971	686566 / 702913	392324 / 408670	294243 / 310590	179815 / 196162	- / 16347
10000us	1209665 / 1226011	899075 / 915422	621179 / 637526	555792 / 572139	375977 / 392324	- / 16347
25000us	1258705 / 1275052	1062543 / 1078890	768301 / 784647	686566 / 702913	539445 / 555792	- / 16347
50000us	1275052 / -	1095237 / 1111584	866381 / 882728	800994 / 817341	670220 / 686566	114428 / 49040
75000us	1275052 / -	1127931 / 1144277	931769 / 948116	866381 / 882728	768301 / 751954	343283 / 163468
100000us	1275052 / -	1160624 / 1176971	964462 / 980809	931769 / 948116	833688 / 850035	490405 / 474058
200000us	1275052 / -	1209665 / 1226011	1078890 / 1095237	1029850 / 1046196	964462 / 980809	768301 / 784647
500000us	1275052 / -	1258705 / 1275052	1193318 / 1209665	1176971 / 1193318	1144277 / 1160624	1013503 / 1029850
1000000us	1275052 / -	1275052 / -	1242358 / 1258705	1242358 / 1258705	1226011 / 1242358	1144277 / 1160624

Number of probes

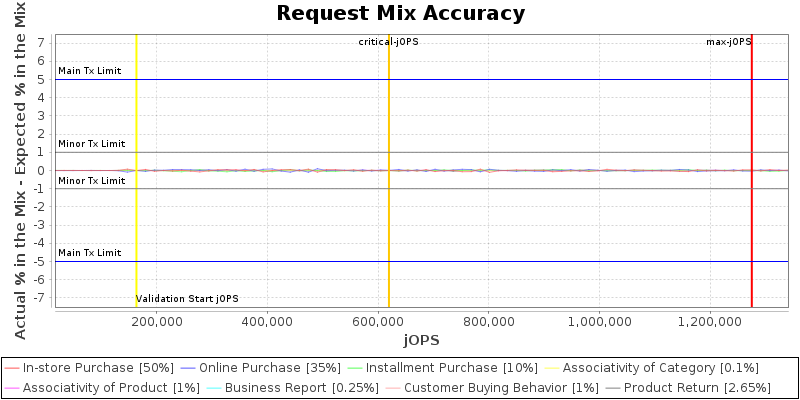

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

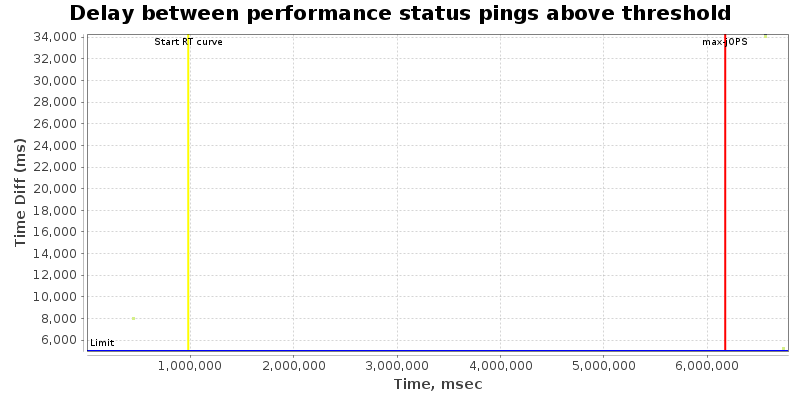

Delay between performance status pings during RT Curve (Response-Throughput Curve)

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.client.pool.size	256	232
specjbb.comm.connect.selector.runner.count	0	1
specjbb.comm.connect.timeouts.connect	60000	600000
specjbb.comm.connect.timeouts.read	60000	600000
specjbb.comm.connect.timeouts.write	60000	600000
specjbb.comm.connect.worker.pool.max	256	81
specjbb.comm.connect.worker.pool.min	1	24
specjbb.controller.handshake.period	5000	500000
specjbb.controller.handshake.timeout	600000	6000000
specjbb.customerDriver.threads	64	{=75, probe=69, saturate=85}
specjbb.forkjoin.workers	960	{Tier1=234, Tier2=7, Tier3=30}
specjbb.group.count	1	16
specjbb.heartbeat.threshold	100000	1000000
specjbb.mapreducer.pool.size	960	223
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 1634682 IR

High-bound (settled) is 1383045 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Inspur Electronic Information Industry Co., Ltd. TS860G7	1275052 SPECjbb2015-MultiJVM max-jOPS 619608 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Inspur Electronic Information Industry Co., Ltd.	Test Sponsor: Inspur Electronic Information Industry Co., Ltd.	Test location: Jinan, China	Test date: Jun 26, 2023
SPEC license #: 3358	Hardware Availability: Jul-2023	Software Availability: Apr-2023	Publication: Thu Jul 13 12:58:02 EDT 2023

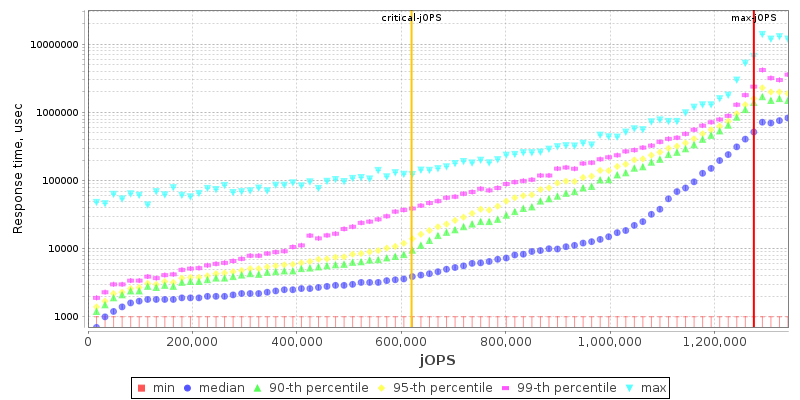

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host (# of groups: 16) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
