SPECjbb2015
Copyright © 2015-2023 Standard Performance Evaluation Corporation
Dell Inc. PowerEdge R7625 621185 SPECjbb2015-Composite max-jOPS
571538 SPECjbb2015-Composite critical-jOPS
Tested by: Dell Inc. Test Sponsor: Dell Inc. Test location: Round Rock, TX Test date: June 11,2023
SPEC license #: 6573 Hardware Availability: Jul-2023 Software Availability: Apr-2023 Publication: Thu Jul 13 12:58:02 EDT 2023
Benchmark Results Summary

SPECjbb2015-Composite: Single JVM/Single Host
(# of groups: 4)

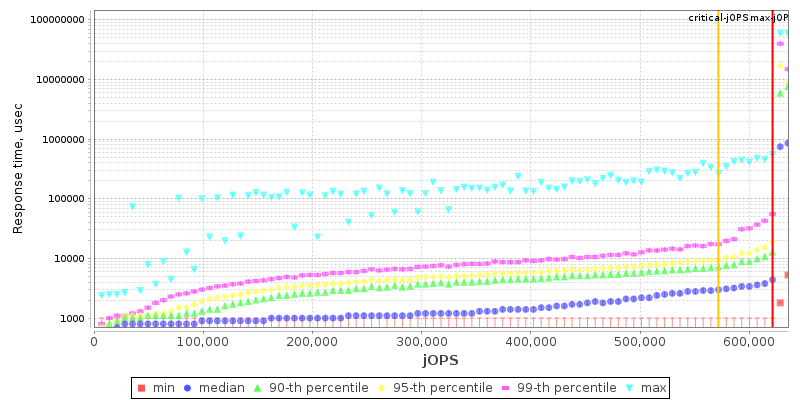

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorDell Inc.
Vendor URLhttp://www.dell.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores192
Total Threads384
Total Memory Amount (GB)1536
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameDell Inc. PowerEdge R7625
VendorDell Inc.
Vendor URLhttp://www.dell.com/
AvailableJul-2023
ModelPowerEdge R7625
Form Factor2U Rack
CPU NameAMD EPYC 9684X
CPU Characteristics96 core, 2.55 GHz, 1152 MB L3 Cache (Max. Boost Clock up to 3.70 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System192
Cores Per Chip96
Threads Per System384
Threads Per Core2
Version1.4.3
CPU Frequency (MHz)2550
Primary Cache32 KB (I) + 32 KB (D) per core
Secondary Cache1 MB (I+D) per core
Tertiary Cache1152 MB (I+D) on chip per chip
Other CacheNone
Disk1 x Dell Ent NVMe U.2 6.4TB
File Systemxfs
Memory Amount (GB)1536
# and size of DIMM(s)24 x 64 GB
Memory Details64 GB RDIMM 2Rx4 PC5-4800B-R (slots A1-12, B1-12 populated)
# and type of Network Interface Cards (NICs)1 x Broadcom NetXtreme BCM5720 Gigabit Ethernet PCIe 1Gb/s Dual Port
Power Supply Quantity and Rating (W)1 x 2400
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP4
VendorSUSE
Vendor URLhttp://www.suse.com/
Version5.14.21-150400.22-default
AvailableJun-2022
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.7
VendorOracle
Vendor URLhttp://www.oracle.com/
VersionJava HotSpot 64-bit Server VM, version 17.0.7
AvailableApr-2023
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning
  • Logical Processor : Enabled
  • L1 Stream HW Prefetcher : Disabled
  • L2 Stream HW Prefetcher : Disabled
  • MADT Core Enumeration : Linear
  • NUMA Nodes Per Socket : 2
  • L3 cache as NUMA Domain : Disabled
  • System Profile : Custom
  • Determinism Slider : Power Determinism
  • Algorithm Performance Boost Disable (ApbDis) : Enabled
  • ApbDis Fixed Socket P-State : P0
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(4)
OS Image Description os_1
Tuning
  • ulimit -n 1024000
  • echo 950000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 10000000 > /proc/sys/kernel/sched_latency_ns
  • echo 10000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 200000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 40000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 128 > /proc/sys/kernel/sched_nr_migrate
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 1 > /proc/sys/kernel/numa_balancing
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -Xms1440g -Xmx1440g -Xmn1425g -server -XX:+UseParallelGC -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:MaxTenuringThreshold=5 -XX:-UseAdaptiveSizePolicy -XX:ParallelGCThreads=384 -XX:SurvivorRatio=84 -XX:TargetSurvivorRatio=95 -XX:+UseNUMA -XX:-UseAdaptiveNUMAChunkSizing -XX:+UseTransparentHugePages -XX:InlineSmallCode=11k -XX:TLABAllocationWeight=2 -XX:ThreadStackSize=140 -XX:AutoBoxCacheMax=32 -XX:OnStackReplacePercentage=100
Tuning Used numactl to run on all available nodes
  • numactl --cpunodebind=0-3 --interleave=0-3
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 607067 614126 621185 628244 635303
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 434123 589419 617655 621185 621185 571538
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 197650 / 204709 7059 / 14118 - / 7059 - / 7059 - / 7059 - / 7059
1000us 529419 / 536478 225885 / 232944 42354 / 49412 21177 / 28236 14118 / 21177 - / 7059
5000us 621185 / - 621185 / - 430594 / 437653 324710 / 331769 183532 / 190591 70589 / 35295
10000us 621185 / - 621185 / - 607067 / 614126 571773 / 578831 430594 / 437653 91766 / 35295
25000us 621185 / - 621185 / - 621185 / - 621185 / - 585890 / 592949 204709 / 35295
50000us 621185 / - 621185 / - 621185 / - 621185 / - 614126 / 621185 232944 / 35295
75000us 621185 / - 621185 / - 621185 / - 621185 / - 621185 / - 324710 / 77648
100000us 621185 / - 621185 / - 621185 / - 621185 / - 621185 / - 324710 / 77648
200000us 621185 / - 621185 / - 621185 / - 621185 / - 621185 / - 501183 / 388241
500000us 621185 / - 621185 / - 621185 / - 621185 / - 621185 / - 614126 / 621185
1000000us 621185 / - 621185 / - 621185 / - 621185 / - 621185 / - 621185 / -

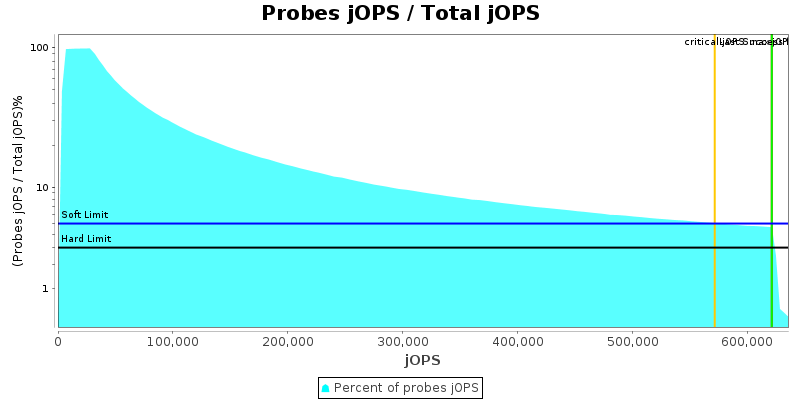

Number of probes
Probes jOPS / Total jOPS
Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

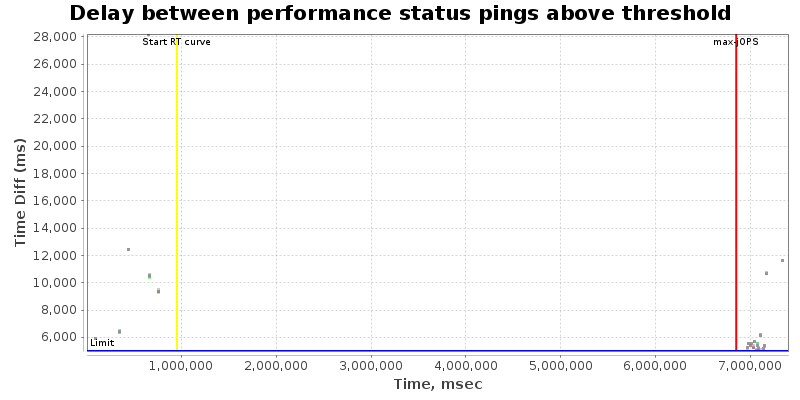

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

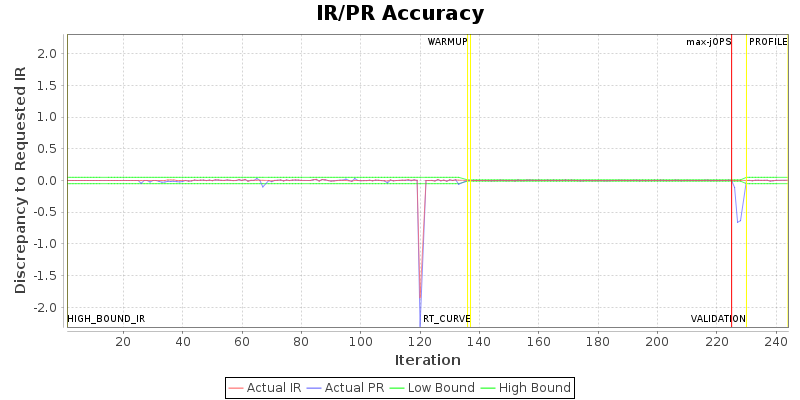

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 1
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.controller.rtcurve.warmup.step 0.1 0.2
specjbb.customerDriver.threads 64 {probe=72, saturate=128}
specjbb.forkjoin.workers 384 {Tier1=95, Tier2=1, Tier3=18}
specjbb.group.count 1 4
specjbb.heartbeat.period 10000 50000
specjbb.heartbeat.threshold 100000 500000
specjbb.mapreducer.pool.size 384 2
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 705892 IR
High-bound (settled) is 626469 IR
