SPECjbb2015 Report for jbb2015-20230517-01069 : 427457 max-jOPS ; 180880 critical-jOPS

SUT Description

Hardware hw_1
Name	ThinkSystem SR655 V3
Vendor	Lenovo Global Technology
Vendor URL	http://www.lenovo.com
Available	Aug-2023
Model	ThinkSystem SR655 V3
Form Factor	2U
CPU Name	AMD EPYC 9754
CPU Characteristics	128 core, 2.25GHz, 256MB L3 Cache (Max Boost Clock up to 3.10GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	1
Cores Per System	128
Cores Per Chip	128
Threads Per System	256
Threads Per Core	2
Version	KAE111I
CPU Frequency (MHz)	2250
Primary Cache	32KB(I)+32KB(D) on chip per core
Secondary Cache	1MB (I+D) on chip per core
Tertiary Cache	256MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 960GB SATA SSD
File System	XFS
Memory Amount (GB)	768
# and size of DIMM(s)	12 x 64 GB
Memory Details	64 GB 2Rx4 PC5-4800B-R
# and type of Network Interface Cards (NICs)	1 x 10/25 GbE PCIE NIC
Power Supply Quantity and Rating (W)	1 x 1800W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP4
Vendor	SUSE
Vendor URL	http://suse.com/
Version	5.14.21-150400.22-default
Available	Jun-2022
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 17.0.7
Vendor	Oracle Corporation
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-Bit Server VM, version 17.0.7
Available	Apr-2023
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Driver Description

Hardware hw_2
Name	ThinkSystem SR665 V3
Vendor	None
Vendor URL	None
Available	Aug-2023
Model	ThinkSystem SR665 V3
Form Factor	2U
CPU Name	AMD EPYC 9754
CPU Characteristics	128 core, 2.25GHz, 256MB L3 Cache (Max Boost Clock up to 3.10GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	256
Cores Per Chip	128
Threads Per System	512
Threads Per Core	2
Version	KAE111I
CPU Frequency (MHz)	2250
Primary Cache	32KB(I)+32KB(D) on chip per core
Secondary Cache	1MB (I+D) on chip per core
Tertiary Cache	256MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 960GB SATA SSD
File System	XFS
Memory Amount (GB)	1536
# and size of DIMM(s)	24 x 64 GB
Memory Details	64 GB 2Rx4 PC5-4800B-R
# and type of Network Interface Cards (NICs)	1 x 10/25 GbE PCIE NIC
Power Supply Quantity and Rating (W)	1 x 1800W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	None
Other Hardware network_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_2
Name	SUSE Linux Enterprise Server 15 SP4
Vendor	SUSE
Vendor URL	http://suse.com/
Version	5.14.21-150400.22-default
Available	Jun-2022
Bitness	64
Notes	None
Java Virtual Machine jvm_2
Name	Oracle Java SE 17.0.7
Vendor	Oracle Corporation
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-Bit Server VM, version 17.0.7
Available	Apr-2023
Bitness	64
Notes	None
Other Software other_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Backend_1 : Backend
Driver
- Hardware config_2
  - OS Image os_Image_2
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Configuration: Operating Mode set to Maximum Performance and then set to Custom Mode NUMA Nodes per Socket set to NPS4 L1 Stream HW Prefetcher set to Disabled L2 Stream HW Prefetcher set to Disabled ACPI SRAT L3 Cache as NUMA Domain set to Enabled
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Backend_1(16)
OS Image Description	os_1
Tuning	cpupower frequency-set -g performance tuned-adm profile throughput-performance echo 800000000 > /proc/sys/kernel/sched_min_granularity_ns echo 200000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 40000 > /proc/sys/kernel/sched_migration_cost_ns echo 64 > /proc/sys/kernel/sched_nr_migrate echo 960000 > /proc/sys/kernel/sched_rt_runtime_us echo 400000 > /proc/sys/kernel/sched_latency_ns echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/vm/numa_stat echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/enabled echo always > /sys/kernel/mm/transparent_hugepage/defrag ulimit -n 1024000 UserTasksMax=970000 DefaultTasksMax=970000
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms31g -Xmx31g -Xmn29g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:ParallelGCThreads=16 -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=18 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=11k -XX:MaxGCPauseMillis=100 -XX:LoopUnrollLimit=200 -XX:+UseTransparentHugePages -XX:TLABAllocationWeight=2 -XX:ThreadStackSize=140 -XX:CompileThresholdScaling=120 -XX:CICompilerCount=4 -XX:AutoBoxCacheMax=32 -XX:OnStackReplacePercentage=100 -XX:TLABSize=1m -XX:MinTLABSize=1m -XX:-ResizeTLAB -XX:TLABWasteTargetPercent=1 -XX:TLABWasteIncrement=1 -XX:YoungPLABSize=1m -XX:OldPLABSize=1m
Tuning	Used numactl to affinitize one Backend JVM (1 Group) to one NUMA node Group1: numactl --cpunodebind=0 --localalloc Group2: numactl --cpunodebind=1 --localalloc Group3: numactl --cpunodebind=2 --localalloc Group4: numactl --cpunodebind=3 --localalloc Group5: numactl --cpunodebind=4 --localalloc Group6: numactl --cpunodebind=5 --localalloc Group7: numactl --cpunodebind=6 --localalloc Group8: numactl --cpunodebind=7 --localalloc Group9: numactl --cpunodebind=8 --localalloc Group10: numactl --cpunodebind=9 --localalloc Group11: numactl --cpunodebind=10 --localalloc Group12: numactl --cpunodebind=11 --localalloc Group13: numactl --cpunodebind=12 --localalloc Group14: numactl --cpunodebind=13 --localalloc Group15: numactl --cpunodebind=14 --localalloc Group16: numactl --cpunodebind=15 --localalloc
Notes	None

Driver config_2 Configuration

Hardware
OS Images	os_Image_2(1)
Hardware Description	hw_2
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Configuration: Operating Mode set to Maximum Performance and then set to Custom Mode NUMA Nodes per Socket set to NPS2 L1 Stream HW Prefetcher set to Disabled L2 Stream HW Prefetcher set to Disabled
Notes	None

OS Image os_Image_2
JVM Instances	jvm_Ctr_1(1), jvm_TxInjector_1(16)
OS Image Description	os_2
Tuning	cpupower frequency-set -g performance tuned-adm profile throughput-performance echo 800000000 > /proc/sys/kernel/sched_min_granularity_ns echo 200000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 40000 > /proc/sys/kernel/sched_migration_cost_ns echo 64 > /proc/sys/kernel/sched_nr_migrate echo 960000 > /proc/sys/kernel/sched_rt_runtime_us echo 400000 > /proc/sys/kernel/sched_latency_ns echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/vm/numa_stat echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/enabled echo always > /sys/kernel/mm/transparent_hugepage/defrag ulimit -n 1024000 UserTasksMax=970000 DefaultTasksMax=970000
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_2
Command Line	-Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=4 -XX:CICompilerCount=2
Tuning	numactl --interleave=all
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_2
Command Line	-Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=4 -XX:CICompilerCount=2
Tuning	Used numactl to affinitize one Backend JVM (4 Group) to one NUMA node Group1: numactl --cpunodebind=0 --localalloc Group2: numactl --cpunodebind=0 --localalloc Group3: numactl --cpunodebind=0 --localalloc Group4: numactl --cpunodebind=0 --localalloc Group5: numactl --cpunodebind=1 --localalloc Group6: numactl --cpunodebind=1 --localalloc Group7: numactl --cpunodebind=1 --localalloc Group8: numactl --cpunodebind=1 --localalloc Group9: numactl --cpunodebind=2 --localalloc Group10: numactl --cpunodebind=2 --localalloc Group11: numactl --cpunodebind=2 --localalloc Group12: numactl --cpunodebind=2 --localalloc Group13: numactl --cpunodebind=3 --localalloc Group14: numactl --cpunodebind=3 --localalloc Group15: numactl --cpunodebind=3 --localalloc Group16: numactl --cpunodebind=3 --localalloc
Notes	None

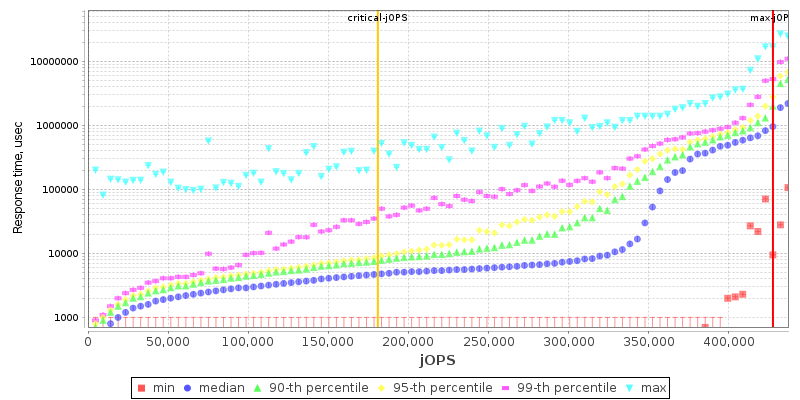

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Pass	Fail	Fail
jOPS	418062	422760	427457	432154	436852

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	100992	147183	204334	236432	269626	180880

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	9395 / 14092	4697 / 9395	- / 4697	- / 4697	- / 4697	- / 4697
1000us	70460 / 75157	18789 / 23487	9395 / 14092	9395 / 14092	4697 / 9395	- / 4697
5000us	342905 / 347602	187893 / 192591	112736 / 117433	103341 / 108039	70460 / 75157	- / 4697
10000us	352300 / 356997	324116 / 328813	225472 / 230169	192591 / 197288	98644 / 103341	- / 4697
25000us	356997 / 361694	342905 / 347602	295932 / 300629	253656 / 258353	150315 / 140920	- / 4697
50000us	356997 / 361694	347602 / 352300	324116 / 328813	300629 / 305326	211380 / 197288	- / 4697
75000us	361694 / 366392	352300 / 356997	328813 / 333510	314721 / 319418	239564 / 230169	- / 4697
100000us	371089 / 375786	356997 / 361694	333510 / 338208	324116 / 328813	277142 / 258353	65763 / 4697
200000us	375786 / 380484	371089 / 375786	352300 / 356997	338208 / 342905	324116 / 328813	169104 / 4697
500000us	422760 / 427457	399273 / 403970	375786 / 380484	371089 / 375786	352300 / 356997	263050 / 75157
1000000us	427457 / -	427457 / -	413365 / 418062	408668 / 413365	399273 / 403970	328813 / 291234

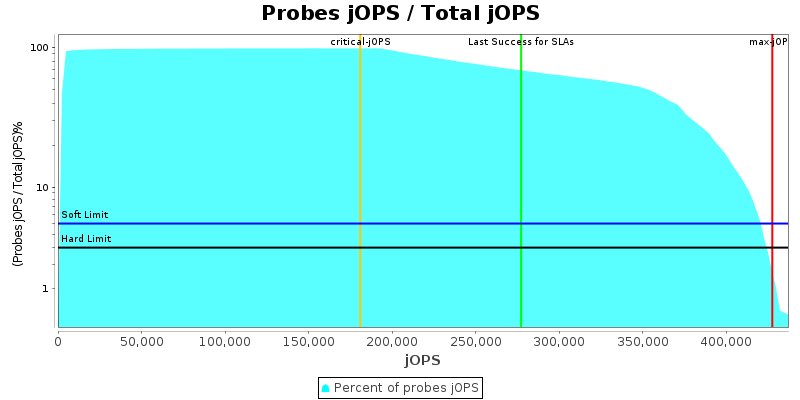

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

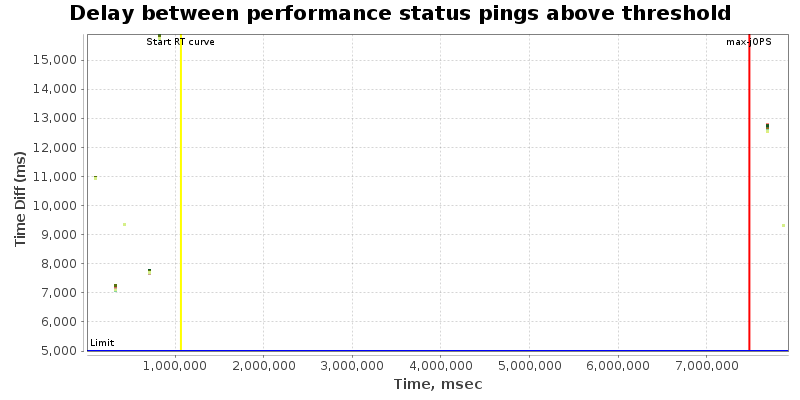

Delay between performance status pings during RT Curve (Response-Throughput Curve)

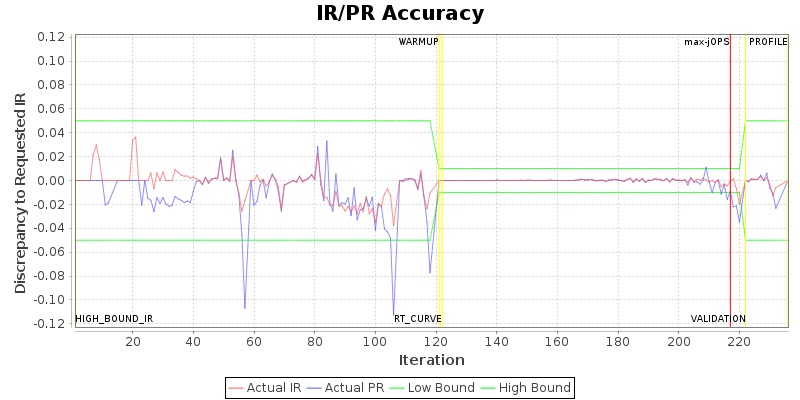

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group10.Backend.beJVM	Group10.TxInjector.txiJVM1	Group11.Backend.beJVM	Group11.TxInjector.txiJVM1	Group12.Backend.beJVM	Group12.TxInjector.txiJVM1	Group13.Backend.beJVM	Group13.TxInjector.txiJVM1	Group14.Backend.beJVM	Group14.TxInjector.txiJVM1	Group15.Backend.beJVM	Group15.TxInjector.txiJVM1	Group16.Backend.beJVM	Group16.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1	Group5.Backend.beJVM	Group5.TxInjector.txiJVM1	Group6.Backend.beJVM	Group6.TxInjector.txiJVM1	Group7.Backend.beJVM	Group7.TxInjector.txiJVM1	Group8.Backend.beJVM	Group8.TxInjector.txiJVM1	Group9.Backend.beJVM	Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	250	400	180	400	180	400	180	400	180	400	180	400	180	400	180	400	180	400	180	400	180	400	180	400	180	400	180	400	180	400	180	400	180
specjbb.comm.connect.selector.runner.count	0	10	15	5	15	5	15	5	15	5	15	5	15	5	15	5	15	5	15	5	15	5	15	5	15	5	15	5	15	5	15	5	15	5
specjbb.comm.connect.timeouts.connect	60000	900000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.read	60000	800000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.write	60000	800000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.worker.pool.max	256	250	400	180	400	180	400	180	400	180	400	180	400	180	400	180	400	180	400	180	400	180	400	180	400	180	400	180	400	180	400	180	400	180
specjbb.comm.connect.worker.pool.min	1	16	32		32		32		32		32		32		32		32		32		32		32		32		32		32		32		32
specjbb.controller.host	localhost	192.168.10.102		localhost		localhost		localhost		localhost		localhost		localhost		localhost		localhost		localhost		localhost		localhost		localhost		localhost		localhost		localhost		localhost
specjbb.controller.maxir.maxFailedPoints	3	1
specjbb.controller.rtcurve.warmup.step	0.1	0.25
specjbb.customerDriver.threads	64	{probe=120, saturate=180, service=80}
specjbb.forkjoin.workers	512	{Tier1=530, Tier2=15, Tier3=70}
specjbb.group.count	1	16
specjbb.mapreducer.pool.size	512	10
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 469733 IR

High-bound (settled) is 455011 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Lenovo Global Technology ThinkSystem SR655 V3	427457 SPECjbb2015-Distributed max-jOPS 180880 SPECjbb2015-Distributed critical-jOPS
Tested by: Lenovo Global Technology	Test Sponsor: Lenovo Global Technology	Test location: Beijing, China	Test date: May 12, 2023
SPEC license #: 9017	Hardware Availability: Aug-2023	Software Availability: Apr-2023	Publication: Wed Jul 5 10:41:44 EDT 2023
