SPECjbb2015 Report for jbb2015-20230526-01090 : 203484 max-jOPS ; 159712 critical-jOPS

SUT Description

Hardware hw_1
Name	Dell Inc. PowerEdge T550
Vendor	Dell Inc.
Vendor URL	http://www.dell.com/
Available	Oct-2021
Model	PowerEdge T550
Form Factor	5U
CPU Name	Intel Xeon Platinum 8352M
CPU Characteristics	32 core, 2.30 GHz, 48 MB L3 Cache (Turbo boost Technology up to 3.50 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	64
Cores Per Chip	32
Threads Per System	128
Threads Per Core	2
Version	1.8.2
CPU Frequency (MHz)	2300
Primary Cache	32 KB (I) + 48 KB (D) per core
Secondary Cache	1.25 MB (I+D) per core
Tertiary Cache	48 MB (I+D) on chip per chip
Other Cache	None
Disk	1 X Dell 1.92 TB SAS SSD 2.5 inch
File System	btrfs
Memory Amount (GB)	1024
# and size of DIMM(s)	16 x 64 GB
Memory Details	64 GB RDIMM 2Rx4 PC4-3200AA-R (slots A1-8, B1-8 populated)
# and type of Network Interface Cards (NICs)	1 x Broadcom NetXtreme BCM5720 Gigabit Ethernet PCIe 1Gb/s Dual Port
Power Supply Quantity and Rating (W)	1 x 1400
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP4
Vendor	SUSE
Vendor URL	http://www.suse.com/
Version	5.14.21-150400.22-default
Available	Jun-2022
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 17.0.6
Vendor	Oracle
Vendor URL	http://www.oracle.com/
Version	Java HotSpot 64-bit Server VM, version 17.0.6
Available	Jan-2023
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Driver Description

Hardware hw_2
Name	Dell Inc. PowerEdge T550
Vendor	Dell Inc.
Vendor URL	http://www.dell.com/
Available	Oct-2021
Model	PowerEdge T550
Form Factor	5U
CPU Name	Intel Xeon Platinum 8352M
CPU Characteristics	32 core, 2.30 GHz, 48 MB L3 Cache (Turbo boost Technology up to 3.50 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	64
Cores Per Chip	32
Threads Per System	128
Threads Per Core	2
Version	1.8.2
CPU Frequency (MHz)	2300
Primary Cache	32 KB (I) + 48 KB (D) per core
Secondary Cache	1.25 MB (I+D) per core
Tertiary Cache	48 MB (I+D) on chip per chip
Other Cache	None
Disk	1 X Dell 1.92 TB SAS SSD 2.5 inch
File System	btrfs
Memory Amount (GB)	1024
# and size of DIMM(s)	16 x 64 GB
Memory Details	64 GB RDIMM 2Rx4 PC4-3200AA-R (slots A1-8, B1-8 populated)
# and type of Network Interface Cards (NICs)	1 x Broadcom NetXtreme BCM5720 Gigabit Ethernet PCIe 1Gb/s Dual Port
Power Supply Quantity and Rating (W)	1 x 1400
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_2
Name	SUSE Linux Enterprise Server 15 SP4
Vendor	SUSE
Vendor URL	http://www.suse.com/
Version	5.14.21-150400.22-default
Available	Jun-2022
Bitness	64
Notes	None
Java Virtual Machine jvm_2
Name	Oracle Java SE 17.0.6
Vendor	Oracle
Vendor URL	http://www.oracle.com/
Version	Java HotSpot 64-bit Server VM, version 17.0.6
Available	Jan-2023
Bitness	64
Notes	None
Other Software other_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Backend_1 : Backend
Driver
- Hardware config_2
  - OS Image os_Image_2
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	Non-virtual
Tuning	Logical Processor : Enabled Virtualization Technology : Disabled DCU Streamer Prefetcher : Disabled MADT Core Enumeration : Linear Sub NUMA Cluster : Disabled System Profile : Custom CPU Power Management : Maximum Performance Turbo Boost : Enabled
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Backend_1(2)
OS Image Description	os_1
Tuning	echo 100000000 > /proc/sys/kernel/sched_latency_ns echo 600000 > /proc/sys/kernel/sched_min_granularity_ns echo 950000 > /proc/sys/kernel/sched_rt_runtime_us echo 80000 > /proc/sys/kernel/sched_migration_cost_ns echo 100000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled sysctl -w net.ipv4.icmp_echo_ignore_broadcasts=1 sysctl -w net.ipv4.conf.all.rp_filter=1 sysctl -w fs.inotify.max_user_watches=65536 sysctl -w net.ipv4.conf.default.promote_secondaries=1 sysctl -w net.ipv4.conf.all.promote_secondaries=1 sysctl -w vm.dirty_background_ratio=1 sysctl -w vm.swappiness=0 sysctl -w vm.overcommit_memory=0 sysctl -w net.ipv4.tcp_mtu_probing=1 sysctl -w net.core.wmem_max=12582912 sysctl -w net.core.rmem_max=12582912 sysctl -w net.ipv4.tcp_rmem='10240 87380 12582912' sysctl -w net.ipv4.tcp_wmem='10240 87380 12582912' sysctl -w net.core.netdev_max_backlog=655560 sysctl -w net.core.somaxconn=32768 sysctl -w net.ipv4.tcp_no_metrics_save=1
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-server -XX:AllocatePrefetchLines=3 -XX:+UseParallelGC -XX:ParallelGCThreads=32 -XX:LargePageSizeInBytes=2m -XX:+AlwaysPreTouch -XX:+UseLargePages -Xms225g -Xmx225g -Xmn215g -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=99 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=500 -XX:UseAVX=0 -XX:LoopUnrollLimit=20 -XX:AdaptiveSizeMajorGCDecayTimeScale=12 -XX:AdaptiveSizeDecrementScaleFactor=2 -XX:AllocatePrefetchDistance=384 -XX:AllocatePrefetchStepSize=128 -XX:AllocateInstancePrefetchLines=2
Tuning	numactl used to affinitize each Backend JVM to a single CPU memory node numactl --cpunodebind=$node --localalloc
Notes	None

Driver config_2 Configuration

Hardware
OS Images	os_Image_2(1)
Hardware Description	hw_2
Number of Systems	1
SW Environment	Non-virtual
Tuning	Logical Processor : Enabled Virtualization Technology : Disabled DCU Streamer Prefetcher : Disabled MADT Core Enumeration : Linear Sub NUMA Cluster : Disabled System Profile : Custom CPU Power Management : Maximum Performance Turbo Boost : Enabled
Notes	None

OS Image os_Image_2
JVM Instances	jvm_Ctr_1(1), jvm_TxInjector_1(2)
OS Image Description	os_2
Tuning	echo 100000000 > /proc/sys/kernel/sched_latency_ns echo 600000 > /proc/sys/kernel/sched_min_granularity_ns echo 950000 > /proc/sys/kernel/sched_rt_runtime_us echo 80000 > /proc/sys/kernel/sched_migration_cost_ns echo 100000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_2
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:CICompilerCount=2 -XX:ParallelGCThreads=2
Tuning	Used numactl to interleave memory on all CPUs numactl --interleave=all
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_2
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:CICompilerCount=2 -XX:ParallelGCThreads=2
Tuning	numactl used to affinitize each TxInjector JVM to a single CPU memory node numactl --cpunodebind=$node --localalloc
Notes	None

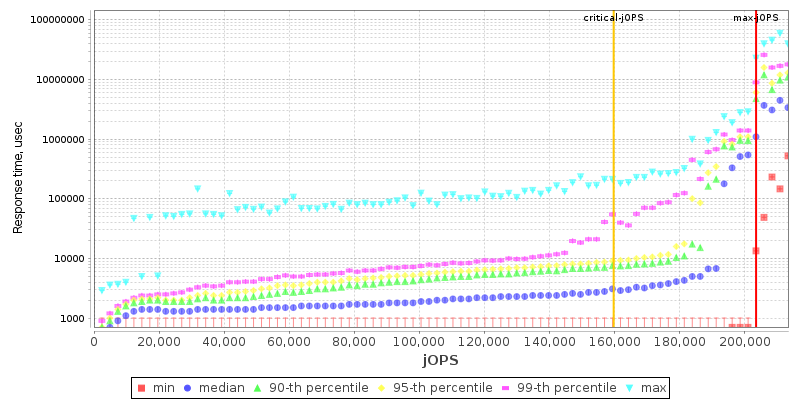

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	201033	203484	205936	208388	210839

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	133613	155678	162624	172839	177742	159712

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	2452 / 4903	- / 2452	- / 2452	- / 2452	- / 2452	- / 2452
1000us	122581 / 125033	7355 / 9806	4903 / 7355	4903 / 7355	2452 / 4903	- / 2452
5000us	193678 / 196130	186323 / 188775	115226 / 117678	90710 / 93162	63742 / 58839	14710 / 12258
10000us	196130 / 198581	191226 / 193678	176517 / 178968	166710 / 169162	132387 / 134839	19613 / 12258
25000us	196130 / 198581	191226 / 193678	186323 / 188775	181420 / 183871	154452 / 156904	19613 / 12258
50000us	196130 / 198581	191226 / 193678	186323 / 188775	181420 / 183871	164259 / 159355	19613 / 22065
75000us	198581 / 201033	191226 / 193678	186323 / 188775	181420 / 183871	171613 / 174065	76000 / 31871
100000us	198581 / 201033	191226 / 193678	186323 / 188775	186323 / 183871	176517 / 178968	105420 / 31871
200000us	201033 / 203484	193678 / 196130	188775 / 191226	186323 / 188775	181420 / 183871	164259 / 149549
500000us	203484 / -	196130 / 198581	191226 / 193678	191226 / 193678	186323 / 188775	186323 / 183871
1000000us	203484 / -	201033 / 203484	201033 / 203484	196130 / 198581	196130 / 193678	188775 / 191226

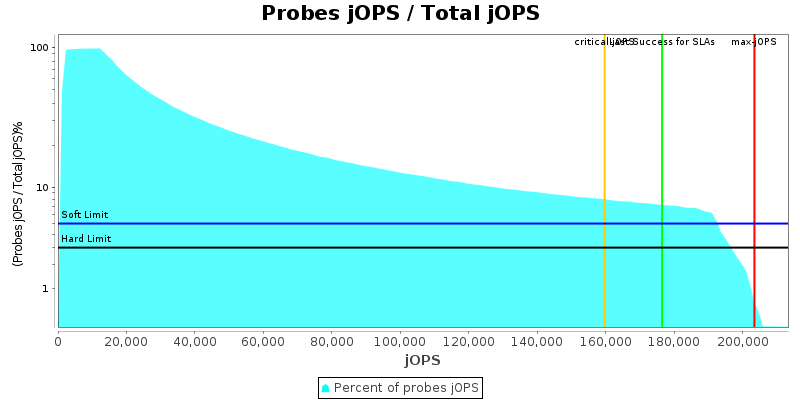

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

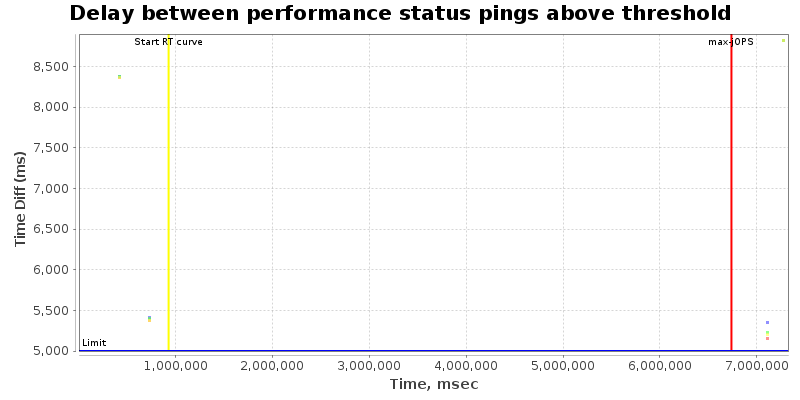

Delay between performance status pings during RT Curve (Response-Throughput Curve)

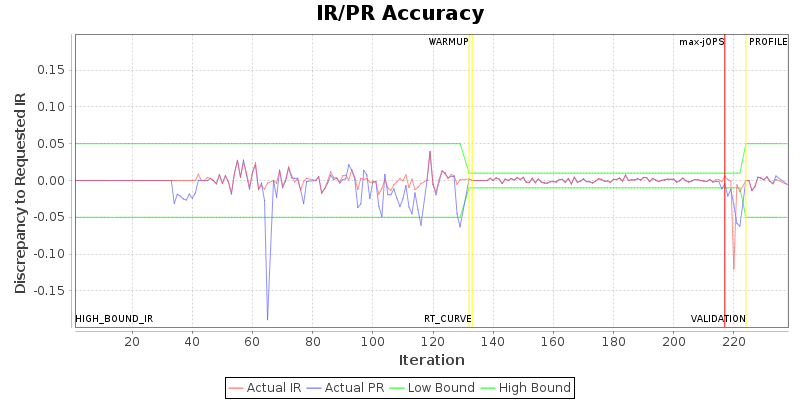

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	256	128	150	128	150
specjbb.comm.connect.selector.runner.count	0	16	4	4	4	4
specjbb.comm.connect.timeouts.connect	60000	600000	900000	900000	900000	900000
specjbb.comm.connect.timeouts.read	60000	600000	800000	800000	800000	800000
specjbb.comm.connect.timeouts.write	60000	600000	800000	800000	800000	800000
specjbb.comm.connect.worker.pool.max	256	256	128	150	128	150
specjbb.comm.connect.worker.pool.min	1	1	128	4	128	4
specjbb.controller.handshake.period	5000	20000
specjbb.controller.handshake.timeout	600000	900000
specjbb.controller.host	localhost	127.0.0.1
specjbb.forkjoin.workers	128	{Tier1=206, Tier2=48, Tier3=24}
specjbb.group.count	1	2
specjbb.heartbeat.period	10000	2000
specjbb.heartbeat.threshold	100000	9000000
specjbb.mapreducer.pool.size	128	26
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 245162 IR

High-bound (settled) is 217584 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Dell Inc. PowerEdge T550	203484 SPECjbb2015-Distributed max-jOPS 159712 SPECjbb2015-Distributed critical-jOPS
Tested by: Dell Inc.	Test Sponsor: Dell Inc.	Test location: Round Rock, TX	Test date: May 09,2023
SPEC license #: 6573	Hardware Availability: Oct-2021	Software Availability: Jan-2023	Publication: Thu Jun 15 12:31:48 EDT 2023
