SPECjbb2015 Report for jbb2015-20221215-00980 : 476987 max-jOPS ; 242846 critical-jOPS

SUT Description

Hardware hw_1
Name	FusionServer 2288H V7
Vendor	xFusion
Vendor URL	http://xfusion.com/
Available	Jan-2023
Model	FusionServer 2288H V7
Form Factor	2U
CPU Name	Intel Xeon Platinum 8480+
CPU Characteristics	56 Core, 2.0 GHz, 105 MB L3 Cache (Turbo Boost Technology up to 3.8 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	112
Cores Per Chip	56
Threads Per System	224
Threads Per Core	2
Version	2.00.35 released Nov-2022
CPU Frequency (MHz)	2000
Primary Cache	32KB(I)+ 48KB(D) per core
Secondary Cache	2MB (I+D) per core
Tertiary Cache	105MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 960 GB SATA SSD
File System	xfs
Memory Amount (GB)	512
# and size of DIMM(s)	16 x 32GB
Memory Details	16 x 32 GB 2Rx8 PC5-4800B-R;
# and type of Network Interface Cards (NICs)	1x 1 Gbit NIC
Power Supply Quantity and Rating (W)	2 x 2000W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Red Hat Enterprise Linux release 9.0 (Plow)
Vendor	Red Hat
Vendor URL	http://redhat.com/
Version	5.14.0-70.13.1.el9_0.x86_64
Available	May-2022
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 17.0.5
Vendor	Oracle
Vendor URL	http://www.oracle.com
Version	Java HotSpot(TM) 64-Bit Server VM, version 17.0.5
Available	Oct-2022
Bitness	64
Notes	note
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Tuning Performance Profile Set to Performance SNC Set to Enabled SNC4 (4-clusters)
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description	os_1
Tuning	systemctl stop systemd-update-utmp-runlevel.service echo 0 > /proc/sys/kernel/sched_schedstats echo 1 > /sys/kernel/debug/sched/tunable_scaling echo 50000000 > /sys/kernel/debug/sched/wakeup_granularity_ns echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled ulimit -n 131072 ulimit -v 800000000 ulimit -m 800000000 ulimit -l 800000000 tuned-adm profile throughput-performance
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	None
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms31744m -Xmx31744m -Xmn29696m -XX:ParallelGCThreads=28 -XX:+UseParallelGC -XX:+UseLargePages -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=10k -XX:-UseCountedLoopSafepoints -XX:LoopUnrollLimit=20 -server -XX:TargetSurvivorRatio=99 -XX:SurvivorRatio=28 -XX:LargePageSizeInBytes=1g -XX:UseAVX=0
Tuning	numactl used to affinitize each Backend JVM to a single memory node, eg: numactl --cpunodebind=$node --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	numactl used to affinitize each TxInjector JVM to a single memory node, eg: numactl --cpunodebind=$node --localalloc
Notes	None

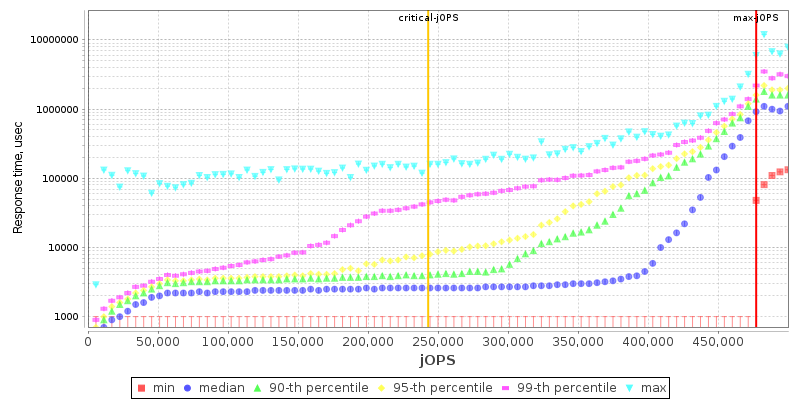

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	471309	476987	482666	488344	494023

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	156156	195905	264046	309474	337866	242846

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	5678 / 11357	5678 / 11357	- / 5678	- / 5678	- / 5678	- / 5678
1000us	181709 / 187388	22714 / 28392	11357 / 17035	11357 / 17035	5678 / 11357	- / 5678
5000us	442917 / 448595	397489 / 403168	295278 / 300956	193066 / 198745	90855 / 96533	5678 / 11357
10000us	448595 / 454274	408846 / 414525	317992 / 323670	266886 / 272564	153317 / 158996	5678 / 11357
25000us	448595 / 454274	425881 / 431560	369097 / 374776	329348 / 335027	193066 / 198745	5678 / 11357
50000us	454274 / 459952	431560 / 437238	380454 / 386133	357740 / 363419	261207 / 266886	5678 / 11357
75000us	459952 / 465630	437238 / 442917	397489 / 403168	369097 / 374776	306635 / 312313	62463 / 11357
100000us	459952 / 465630	437238 / 442917	403168 / 408846	380454 / 386133	335027 / 340705	136282 / 11357
200000us	465630 / 471309	448595 / 454274	431560 / 437238	420203 / 425881	397489 / 403168	317992 / 289599
500000us	471309 / 476987	465630 / 471309	454274 / 459952	448595 / 454274	442917 / 448595	414525 / 420203
1000000us	476987 / -	476987 / -	465630 / 471309	465630 / 471309	459952 / 465630	442917 / 448595

Number of probes

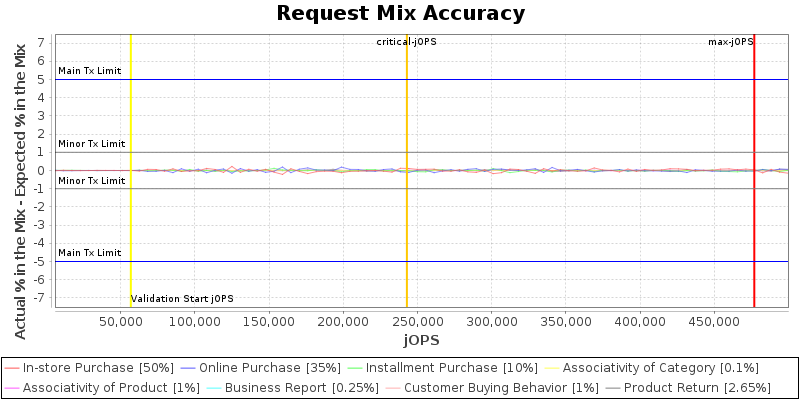

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

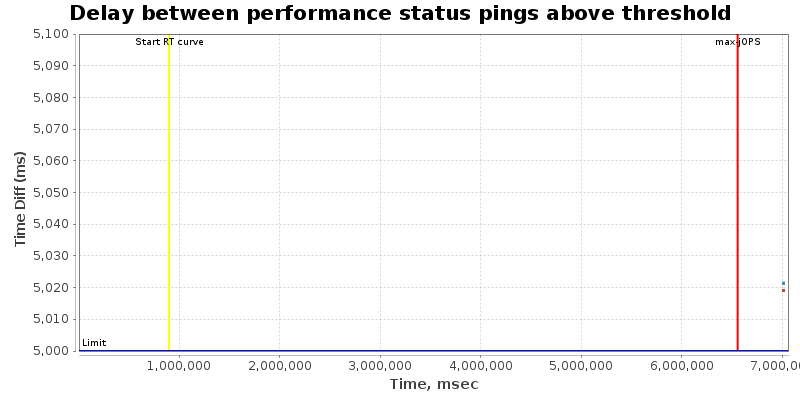

Delay between performance status pings during RT Curve (Response-Throughput Curve)

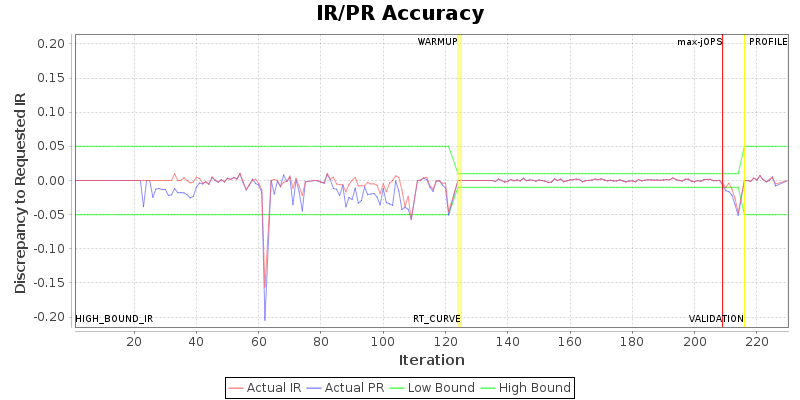

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.client.pool.size	256	232
specjbb.comm.connect.selector.runner.count	0	1
specjbb.comm.connect.timeouts.connect	60000	6000000
specjbb.comm.connect.timeouts.read	60000	6000000
specjbb.comm.connect.timeouts.write	60000	6000000
specjbb.comm.connect.worker.pool.max	256	81
specjbb.comm.connect.worker.pool.min	1	24
specjbb.controller.type	HBIR_RT	HBIR_RT
specjbb.customerDriver.threads	64	{=75, probe=69, saturate=85}
specjbb.forkjoin.workers	224	{Tier1=218, Tier2=6, Tier3=28}
specjbb.group.count	1	8
specjbb.mapreducer.pool.size	224	223
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 567842 IR

High-bound (settled) is 498893 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

xFusion FusionServer 2288H V7	476987 SPECjbb2015-MultiJVM max-jOPS 242846 SPECjbb2015-MultiJVM critical-jOPS
Tested by: xFusion	Test Sponsor: xFusion	Test location: Shenzhen, China	Test date: Dec 14, 2022
SPEC license #: 6488	Hardware Availability: Jan-2023	Software Availability: Oct-2022	Publication: Thu Jan 12 11:42:47 EST 2023
