SPECjbb2015
Copyright © 2015-2022 Standard Performance Evaluation Corporation
Lenovo Global Technology ThinkSystem SR665 V3 629353 SPECjbb2015-Distributed max-jOPS
453381 SPECjbb2015-Distributed critical-jOPS
Tested by: Lenovo Global Technology Test Sponsor: Lenovo Global Technology Test location: Beijing, China Test date: Oct 18, 2022
SPEC license #: 9017 Hardware Availability: Dec-2022 Software Availability: Oct-2022 Publication: Thu Nov 10 10:32:32 EST 2022
Benchmark Results Summary

SPECjbb2015-Distributed: Distributed JVMs/Single or Multi Hosts
(# of groups: 8)
Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores192
Total Threads384
Total Memory Amount (GB)1536
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameThinkSystem SR665 V3
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
AvailableDec-2022
ModelThinkSystem SR665 V3
Form Factor2U
CPU NameAMD EPYC 9654
CPU Characteristics96 core, 2.40GHz, 384 MB L3 Cache (Max Boost Clock up to 3.70GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System192
Cores Per Chip96
Threads Per System384
Threads Per Core2
VersionKAE103A
CPU Frequency (MHz)2400
Primary Cache32KB(I)+32KB(D) on chip per core
Secondary Cache1MB (I+D) on chip per core
Tertiary Cache384MB (I+D) on chip per chip
Other CacheNone
Disk1 x 480GB SATA SSD
File SystemNTFS
Memory Amount (GB)1536
# and size of DIMM(s)24 x 64 GB
Memory Details64 GB 2Rx4 PC5-4800B-R
# and type of Network Interface Cards (NICs)1 x 10/25 GbE PCIE NIC
Power Supply Quantity and Rating (W)1 x 1800W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameWindows Server 2022 Datacenter
VendorMicrosoft
Vendor URLhttps://www.microsoft.com/
VersionVersion 21H2(OS Build 20348.1129)
AvailableOct-2022
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 19
VendorOracle Corporation
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-Bit Server VM, version 19
AvailableSep-2022
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Driver Description
Hardware hw_2
NameThinkSystem SR665
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
AvailableAug-2022
ModelThinkSystem SR665
Form Factor2U
CPU NameAMD EPYC 7773X
CPU Characteristics64 core, 2.20GHz, 768 MB L3 Cache (Max Boost Clock up to 3.50GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System128
Cores Per Chip64
Threads Per System256
Threads Per Core2
VersionD8E125J
CPU Frequency (MHz)2200
Primary Cache32KB(I)+32KB(D) on chip per core
Secondary Cache512KB (I+D) on chip per core
Tertiary Cache768MB (I+D) on chip per chip
Other CacheNone
Disk1 x 960GB SATA SSD
File SystemNTFS
Memory Amount (GB)2048
# and size of DIMM(s)32 x 64 GB
Memory Details64GB 2Rx4 PC4-3200AA-R
# and type of Network Interface Cards (NICs)1 x 10/25 GbE PCIE NIC
Power Supply Quantity and Rating (W)1 x 1800W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_2
NameWindows Server 2022 Datacenter
VendorMicrosoft
Vendor URLhttps://www.microsoft.com/
VersionVersion 21H2(OS Build 20348.1129)
AvailableOct-2022
Bitness64
NotesNone
Java Virtual Machine jvm_2
NameOracle Java SE 19
VendorOracle Corporation
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-Bit Server VM, version 19
AvailableSep-2022
Bitness64
NotesNone
Other Software other_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Operating Mode set to Maximum Performance and then set to Custom Mode
  • Global C-state Control set to Disabled
  • NUMA Nodes per Socket set to NPS4
  • L1 Stream HW Prefetcher set to Disabled
  • L2 Stream HW Prefetcher set to Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Backend_1(8)
OS Image Description os_1
Tuning
  • Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534
  • Power Options is set to High performance
  • Processor scheduling is set to Programs
  • Visual Effects Adjust for best performance
  • Lock Pages in Memory is Enabled
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xms120g -Xmx120g -Xmn118g -server -XX:MetaspaceSize=256m -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:+UseParallelGC -XX:SurvivorRatio=100 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=32 -XX:MaxTenuringThreshold=15 -Xnoclassgc -XX:InitialCodeCacheSize=25m -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=200 -XX:+UseCompressedOops -XX:ObjectAlignmentInBytes=32 -XX:TLABAllocationWeight=55 -XX:ThreadStackSize=512 -XX:CompileThresholdScaling=120
Tuning Affinitized each Backend JVM to a single memory node.
  • start /b /NODE 0
  • start /b /NODE 1
  • start /b /NODE 2
  • start /b /NODE 3
  • start /b /NODE 4
  • start /b /NODE 5
  • start /b /NODE 6
  • start /b /NODE 7
Notes None
Driver config_2 Configuration
Hardware
OS Images os_Image_2(1)
Hardware Description hw_2
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Operating Mode set to Maximum Performance and then set to Custom Mode
  • NUMA Nodes per Socket set to NPS4
  • L1 Stream HW Prefetcher set to Disable
  • L2 Stream HW Prefetcher set to Disable
Notes None
OS Image os_Image_2
JVM Instances jvm_Ctr_1(1), jvm_TxInjector_1(8)
OS Image Description os_2
Tuning
  • Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534
  • Power Options is set to High performance
  • Processor scheduling is set to Programs
  • Visual Effects Adjust for best performance
  • Lock Pages in Memory is Enabled
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_2
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning None
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_2
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning None
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 621179 629353 637526 645699 653873
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 371890 420930 461797 502664 527185 453381
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 8173 / 16347 - / 8173 - / 8173 - / 8173 - / 8173 - / 8173
1000us 318763 / 326936 32694 / 40867 16347 / 24520 16347 / 24520 8173 / 16347 - / 8173
5000us 621179 / 629353 563965 / 572139 318763 / 326936 286069 / 294243 220682 / 228855 16347 / 24520
10000us 621179 / 629353 604832 / 613006 498578 / 506751 457711 / 465884 367803 / 375977 40867 / 24520
25000us 629353 / - 604832 / 613006 580312 / 588486 563965 / 572139 416844 / 425017 40867 / 24520
50000us 629353 / - 613006 / 621179 588486 / 596659 572139 / 580312 457711 / 465884 40867 / 32694
75000us 629353 / - 613006 / 621179 588486 / 596659 580312 / 588486 498578 / 506751 196162 / 49040
100000us 629353 / - 613006 / 621179 596659 / 604832 580312 / 588486 523098 / 531272 261549 / 49040
200000us 629353 / - 621179 / 629353 604832 / 613006 596659 / 604832 572139 / 580312 457711 / 351457
500000us 629353 / - 629353 / - 604832 / 613006 604832 / 613006 604832 / 613006 572139 / 580312
1000000us 629353 / - 629353 / - 629353 / - 629353 / - 621179 / 629353 588486 / 596659
Number of probes
Probes jOPS / Total jOPS

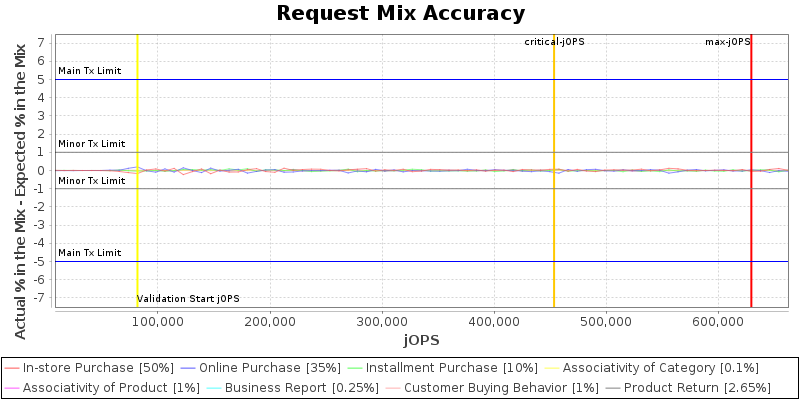

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group2.Backend.beJVM Group3.Backend.beJVM Group4.Backend.beJVM Group5.Backend.beJVM Group6.Backend.beJVM Group7.Backend.beJVM Group8.Backend.beJVM
specjbb.comm.connect.client.pool.size 256 256 160 160 160 160 160 160 160 160
specjbb.comm.connect.selector.runner.count 0 1
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 45
specjbb.comm.connect.worker.pool.min 1 30
specjbb.controller.host localhost 192.168.5.4
specjbb.forkjoin.workers 64 {Tier1=124, Tier2=10, Tier3=28}
specjbb.group.count 1 8
specjbb.heartbeat.threshold 100000 600000
specjbb.mapreducer.pool.size 64 12
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 817341 IR
High-bound (settled) is 681251 IR
