SPECjbb2015 Report for jbb2015-20221019-00884 : 785886 max-jOPS ; 401361 critical-jOPS

SUT Description

Hardware hw_1
Name	ThinkSystem SR665 V3
Vendor	Lenovo Global Technology
Vendor URL	http://www.lenovo.com
Available	Dec-2022
Model	ThinkSystem SR665 V3
Form Factor	2U
CPU Name	AMD EPYC 9654
CPU Characteristics	96 core, 2.40GHz, 384MB L3 Cache (Max Boost Clock up to 3.70GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	192
Cores Per Chip	96
Threads Per System	384
Threads Per Core	2
Version	KAE103A
CPU Frequency (MHz)	2400
Primary Cache	32KB(I)+32KB(D) on chip per core
Secondary Cache	1MB (I+D) on chip per core
Tertiary Cache	384MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 480GB SATA SSD
File System	XFS
Memory Amount (GB)	1536
# and size of DIMM(s)	24 x 64 GB
Memory Details	64 GB 2Rx4 PC5-4800B-R
# and type of Network Interface Cards (NICs)	1 x 10/25 GbE PCIE NIC
Power Supply Quantity and Rating (W)	1 x 1800W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Red Hat Enterprise Linux release 8.6 (Ootpa)
Vendor	Red Hat
Vendor URL	https://www.redhat.com/
Version	4.18.0-372.9.1
Available	May-2022
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 17.0.4.1
Vendor	Oracle Corporation
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-Bit Server VM, version 17.0.4.1
Available	Aug-2022
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Driver Description

Hardware hw_2
Name	ThinkSystem SR665
Vendor	Lenovo Global Technology
Vendor URL	http://www.lenovo.com
Available	Aug-2022
Model	ThinkSystem SR665
Form Factor	2U
CPU Name	AMD EPYC 7773X
CPU Characteristics	64 core, 2.20GHz, 768 MB L3 Cache (Max Boost Clock up to 3.50GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	128
Cores Per Chip	64
Threads Per System	256
Threads Per Core	2
Version	D8E125J
CPU Frequency (MHz)	2200
Primary Cache	32KB I + 32KB D on chip per core
Secondary Cache	512KB I+D on chip per core
Tertiary Cache	768MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 960GB SATA SSD
File System	XFS
Memory Amount (GB)	1024
# and size of DIMM(s)	16 x 64 GB
Memory Details	64 GB 2Rx4 PC4-3200AA-R
# and type of Network Interface Cards (NICs)	1 x 10/25 GbE PCIE NIC
Power Supply Quantity and Rating (W)	1 x 1800W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented
Other Hardware network_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_2
Name	SUSE Linux Enterprise Server 15 SP4
Vendor	SUSE
Vendor URL	http://suse.com/
Version	5.14.21-150400.22-default
Available	June-2022
Bitness	64
Notes	None
Java Virtual Machine jvm_2
Name	Oracle Java SE 17.0.4.1
Vendor	Oracle Corporation
Vendor URL	http://oracle.com/
Version	ava HotSpot 64-Bit Server VM, version 17.0.4.1
Available	Aug-2022
Bitness	64
Notes	note
Other Software other_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Backend_1 : Backend
Driver
- Hardware config_2
  - OS Image os_Image_2
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Configuration: Operating Mode set to Maximum Performance and then set to Custom Mode NUMA Nodes per Socket set to NPS4 L1 Stream HW Prefetcher set to Disabled L2 Stream HW Prefetcher set to Disabled ACPI SRAT L3 Cache as NUMA Domain set to Enabled SOC P-states set to P0
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Backend_1(24)
OS Image Description	os_1
Tuning	cpupower frequency-set -g performance tuned-adm profile throughput-performance echo 800000000 > /proc/sys/kernel/sched_min_granularity_ns echo 200000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 40000 > /proc/sys/kernel/sched_migration_cost_ns echo 64 > /proc/sys/kernel/sched_nr_migrate echo 960000 > /proc/sys/kernel/sched_rt_runtime_us echo 400000 > /proc/sys/kernel/sched_latency_ns echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/vm/numa_stat echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/enabled echo always > /sys/kernel/mm/transparent_hugepage/defrag ulimit -n 1024000 UserTasksMax=970000 DefaultTasksMax=970000
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms30g -Xmx30g -Xmn27g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:ParallelGCThreads=16 -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=11k -XX:MaxGCPauseMillis=300 -XX:AdaptiveSizeMajorGCDecayTimeScale=12 -XX:AdaptiveSizeDecrementScaleFactor=2 -XX:+UseTransparentHugePages -XX:-UseFastStosb
Tuning	None
Notes	Used numactl to affinitize one Backend JVM (1 Group) to one NUMA node Group1: numactl --cpunodebind=0 --localalloc Group2: numactl --cpunodebind=1 --localalloc Group3: numactl --cpunodebind=2 --localalloc Group4: numactl --cpunodebind=3 --localalloc Group5: numactl --cpunodebind=4 --localalloc Group6: numactl --cpunodebind=5 --localalloc Group7: numactl --cpunodebind=6 --localalloc Group8: numactl --cpunodebind=7 --localalloc Group9: numactl --cpunodebind=8 --localalloc Group10: numactl --cpunodebind=9 --localalloc Group11: numactl --cpunodebind=10 --localalloc Group12: numactl --cpunodebind=11 --localalloc Group13: numactl --cpunodebind=12 --localalloc Group14: numactl --cpunodebind=13 --localalloc Group15: numactl --cpunodebind=14 --localalloc Group16: numactl --cpunodebind=15 --localalloc Group17: numactl --cpunodebind=16 --localalloc Group18: numactl --cpunodebind=17 --localalloc Group19: numactl --cpunodebind=18 --localalloc Group20: numactl --cpunodebind=19 --localalloc Group21: numactl --cpunodebind=20 --localalloc Group22: numactl --cpunodebind=21 --localalloc Group23: numactl --cpunodebind=22 --localalloc Group24: numactl --cpunodebind=23 --localalloc

Driver config_2 Configuration

Hardware
OS Images	os_Image_2(1)
Hardware Description	hw_2
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Configuration: Operating Mode set to Maximum Performance and then set to Custom Mode NUMA Nodes per Socket set to NPS2 L1 Stream HW Prefetcher set to Disable L2 Stream HW Prefetcher set to Disable SOC P-states set to P0
Notes	None

OS Image os_Image_2
JVM Instances	jvm_Ctr_1(1), jvm_TxInjector_1(24)
OS Image Description	os_2
Tuning	cpupower frequency-set -g performance echo 950000 > /proc/sys/kernel/sched_rt_runtime_us echo 100000000 > /proc/sys/kernel/sched_latency_ns echo 80000 > /proc/sys/kernel/sched_migration_cost_ns echo 600000 > /proc/sys/kernel/sched_min_granularity_ns echo 100000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/enabled echo always > /sys/kernel/mm/transparent_hugepage/defrag
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_2
Command Line	-Xms10g -Xmx10g -Xmn8g -XX:+UseParallelGC -XX:ParallelGCThreads=4
Tuning	None
Notes	Used numactl to run all available nodes numactl --interleave=all
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_2
Command Line	-Xms4g -Xmx4g -Xmn3680m -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	None
Notes	Used numactl to affinitize one TxInjector JVM (6 Groups) to one NUMA node Group1: numactl --cpunodebind=0 --localalloc Group2: numactl --cpunodebind=0 --localalloc Group3: numactl --cpunodebind=0 --localalloc Group4: numactl --cpunodebind=0 --localalloc Group5: numactl --cpunodebind=0 --localalloc Group6: numactl --cpunodebind=0 --localalloc Group7: numactl --cpunodebind=1 --localalloc Group8: numactl --cpunodebind=1 --localalloc Group9: numactl --cpunodebind=1 --localalloc Group10: numactl --cpunodebind=1 --localalloc Group11: numactl --cpunodebind=1 --localalloc Group12: numactl --cpunodebind=2 --localalloc Group13: numactl --cpunodebind=2 --localalloc Group14: numactl --cpunodebind=2 --localalloc Group15: numactl --cpunodebind=2 --localalloc Group16: numactl --cpunodebind=2 --localalloc Group17: numactl --cpunodebind=2 --localalloc Group18: numactl --cpunodebind=2 --localalloc Group19: numactl --cpunodebind=3 --localalloc Group20: numactl --cpunodebind=3 --localalloc Group21: numactl --cpunodebind=3 --localalloc Group22: numactl --cpunodebind=3 --localalloc Group23: numactl --cpunodebind=3 --localalloc Group24: numactl --cpunodebind=3 --localalloc

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	777436	785886	794337	802787	811237

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	283088	333790	409844	485897	553500	401361

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	8450 / 16901	- / 8450	- / 8450	- / 8450	- / 8450	- / 8450
1000us	101405 / 109855	25351 / 33802	8450 / 16901	8450 / 16901	- / 8450	- / 8450
5000us	667581 / 676031	312664 / 321115	202809 / 211260	177458 / 185909	126756 / 135206	- / 8450
10000us	718283 / 726734	633779 / 642230	439420 / 447871	363367 / 371817	278863 / 287313	- / 8450
25000us	726734 / 735184	692932 / 701382	591527 / 599978	557726 / 566176	329565 / 338016	- / 8450
50000us	735184 / 743634	709833 / 718283	625329 / 633779	591527 / 599978	405619 / 414069	25351 / 8450
75000us	743634 / 752085	718283 / 726734	642230 / 650680	608428 / 616878	481672 / 490123	25351 / 8450
100000us	743634 / 752085	726734 / 735184	667581 / 676031	625329 / 633779	549275 / 557726	25351 / 16901
200000us	760535 / 768985	735184 / 743634	709833 / 718283	684482 / 692932	625329 / 633779	346466 / 76054
500000us	785886 / -	760535 / 768985	743634 / 752085	735184 / 743634	659130 / 667581	566176 / 557726
1000000us	785886 / -	777436 / 785886	768985 / 777436	752085 / 760535	676031 / 684482	650680 / 633779

Number of probes

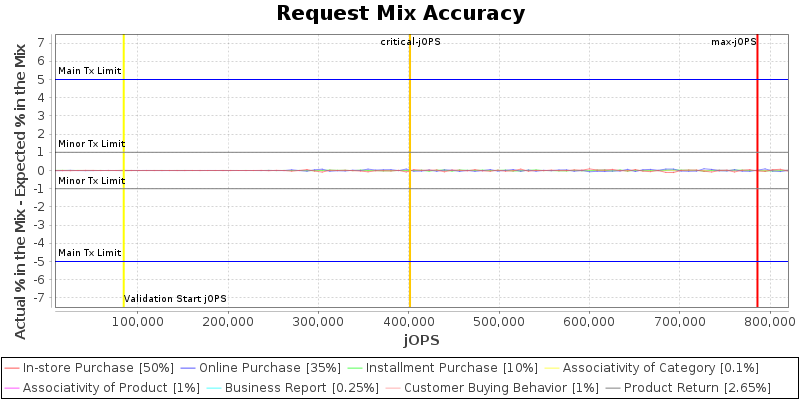

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group10.Backend.beJVM	Group11.Backend.beJVM	Group12.Backend.beJVM	Group13.Backend.beJVM	Group14.Backend.beJVM	Group15.Backend.beJVM	Group16.Backend.beJVM	Group17.Backend.beJVM	Group18.Backend.beJVM	Group19.Backend.beJVM	Group2.Backend.beJVM	Group20.Backend.beJVM	Group21.Backend.beJVM	Group22.Backend.beJVM	Group23.Backend.beJVM	Group24.Backend.beJVM	Group3.Backend.beJVM	Group4.Backend.beJVM	Group5.Backend.beJVM	Group6.Backend.beJVM	Group7.Backend.beJVM	Group8.Backend.beJVM	Group9.Backend.beJVM
specjbb.comm.connect.client.pool.size	256	384
specjbb.comm.connect.selector.runner.count	0	24
specjbb.comm.connect.timeouts.connect	60000	900000
specjbb.comm.connect.timeouts.read	60000	900000
specjbb.comm.connect.timeouts.write	60000	900000
specjbb.comm.connect.worker.pool.max	256	120	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160
specjbb.controller.host	localhost	192.168.10.44
specjbb.customerDriver.threads	64	{probe=96, saturate=96}
specjbb.forkjoin.workers	256	{Tier1=210, Tier2=1, Tier3=20}
specjbb.group.count	1	24
specjbb.mapreducer.pool.size	256	4
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 845039 IR

High-bound (settled) is 818540 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Lenovo Global Technology ThinkSystem SR665 V3	785886 SPECjbb2015-Distributed max-jOPS 401361 SPECjbb2015-Distributed critical-jOPS
Tested by: Lenovo Global Technology	Test Sponsor: Lenovo Global Technology	Test location: Beijing, China	Test date: Oct 19, 2022
SPEC license #: 9017	Hardware Availability: Dec-2022	Software Availability: Aug-2022	Publication: Thu Nov 10 10:32:32 EST 2022
