SPECjbb2015
Copyright © 2015-2022 Standard Performance Evaluation Corporation
Inspur Corporation NP3020M7 36185 SPECjbb2015-Composite max-jOPS
22201 SPECjbb2015-Composite critical-jOPS
Tested by: Inspur Corporation Test Sponsor: Inspur Corporation Test location: Jinan, China Test date: Sep 14, 2022
SPEC license #: 3358 Hardware Availability: Nov-2022 Software Availability: Aug-2022 Publication: Tue Nov 8 10:43:37 EST 2022
Benchmark Results Summary

SPECjbb2015-Composite: Single JVM/Single Host
(# of groups: 1)

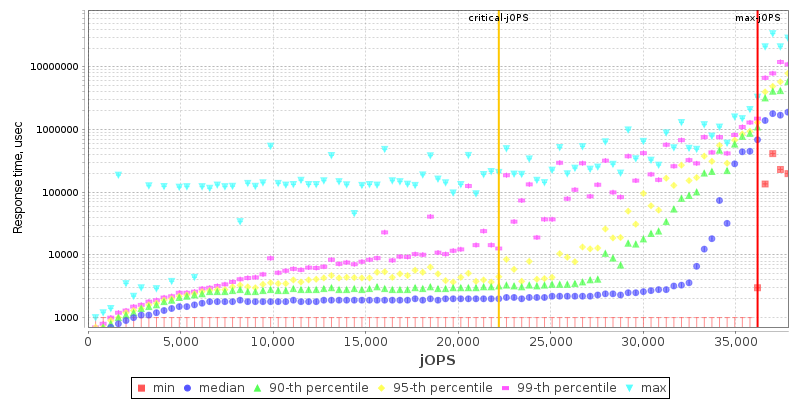

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores8
Total Threads16
Total Memory Amount (GB)128
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameNP3020M7
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
AvailableNov-2022
ModelNP3020M7
Form FactorTower
CPU NameIntel Xeon E-2388G
CPU Characteristics8 core, 3.20GHz, 16MB L3 Cache (Turbo Boost Technology up to 5.10 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System8
Cores Per Chip8
Threads Per System16
Threads Per Core2
Version1.1
CPU Frequency (MHz)3200
Primary Cache32KB(I)+48KB(D) on chip per core
Secondary Cache512KB (I+D) on chip per core
Tertiary Cache16MB (I+D) on chip per chip
Other CacheNone
Disk1 x 480GB SATA SSD
File Systemxfs
Memory Amount (GB)128
# and size of DIMM(s)4 x 32GB
Memory Details4 x 32GB 2Rx8 PC4-2933P-R; each slot populated
# and type of Network Interface Cards (NICs)4 x 1 Gbit NIC
Power Supply Quantity and Rating (W)1 x 500W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux release 8.3 (Ootpa)
VendorRed Hat
Vendor URLhttp://redhat.com/
Version4.18.0-240
AvailableNov-2020
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.4.1
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 17.0.4.1
AvailableAug-2022
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning None
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning None
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -server -Xms100g -Xmx100g -Xmn90g -XX:+UseLargePages -XX:+UseParallelGC -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:+UseTransparentHugePages -XX:ParallelGCThreads=16 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=1 -XX:+AlwaysPreTouch
Tuning None
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 35774 36185 36596 37007 37418
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 16961 21957 23575 23952 25650 22201
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 1645 / 2056 411 / 822 - / 411 - / 411 - / 411 - / 411
1000us 30839 / 31250 2467 / 2878 1645 / 2056 1645 / 2056 1234 / 1645 411 / 822
5000us 34540 / 34951 32484 / 32895 27550 / 27961 25083 / 15625 9457 / 9869 5757 / 1645
10000us 34540 / 34951 32895 / 33306 28783 / 27961 26316 / 25494 17270 / 16036 5757 / 1645
25000us 35362 / 34951 33718 / 34129 30839 / 31250 28783 / 27961 24260 / 18504 5757 / 1645
50000us 35362 / 35774 34540 / 34129 31250 / 31662 29606 / 30017 25083 / 20559 14392 / 1645
75000us 35362 / 35774 34540 / 34951 31662 / 32073 30839 / 30017 25083 / 20559 14392 / 1645
100000us 35362 / 35774 34540 / 34951 32484 / 32895 30839 / 31250 28783 / 20559 20971 / 1645
200000us 35774 / 36185 34540 / 34951 32895 / 33306 32895 / 32073 30839 / 25494 25905 / 9869
500000us 36185 / - 35774 / 36185 34540 / 34951 34540 / 34129 34540 / 31250 32895 / 9869
1000000us 36185 / - 36185 / - 35774 / 36185 35774 / 36185 34951 / 35362 34540 / 32073
Number of probes
Probes jOPS / Total jOPS

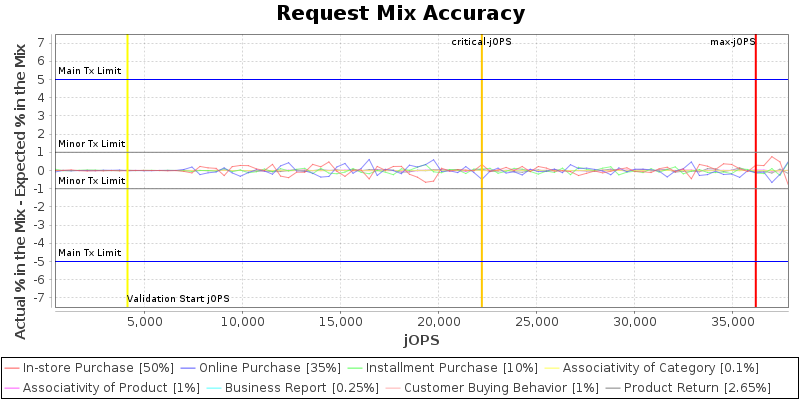

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

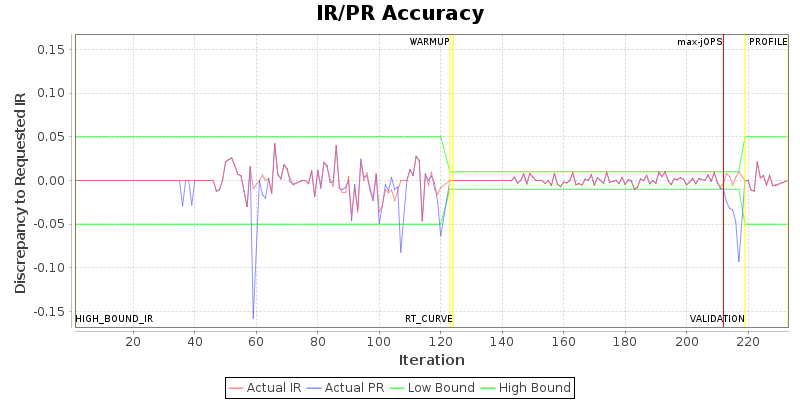

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
User did not set any property for this run
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 41119 IR
High-bound (settled) is 38116 IR
Copyright © 2015-2022 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]
