SPECjbb2015
Copyright © 2015-2022 Standard Performance Evaluation Corporation
Hewlett Packard Enterprise ProLiant DL325 Gen11 368441 SPECjbb2015-Composite max-jOPS
350671 SPECjbb2015-Composite critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Houston, TX Test date: October 17, 2022
SPEC license #: 3 Hardware Availability: Nov-2022 Software Availability: Aug-2022 Publication: Thu Nov 10 10:29:34 EST 2022
Benchmark Results Summary

SPECjbb2015-Composite: Single JVM/Single Host
(# of groups: 2)

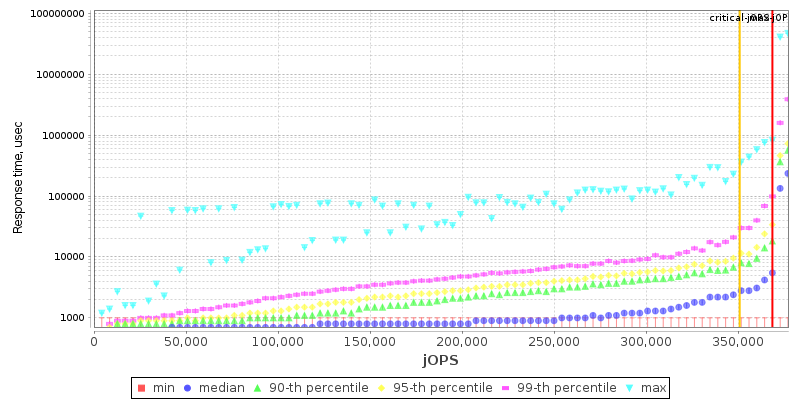

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://www.hpe.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores96
Total Threads192
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameProLiant DL325 Gen11
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableNov-2022
ModelProLiant DL325 Gen11
Form Factor1U Rack
CPU NameAMD EPYC 9654P
CPU Characteristics96 Core, 2.4 GHz, 384 MB L3 Cache(Max. Boost Clock Up to 3.7 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System96
Cores Per Chip96
Threads Per System192
Threads Per Core2
VersionA56 v1.10 10/14/2022
CPU Frequency (MHz)2400
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache1024 KB I+D on chip per core
Tertiary Cache384 MB (I+D) on chip per chip
Other CacheNone
Disk1 x 1.6 TB NVMe SSD
File SystemXFS
Memory Amount (GB)768
# and size of DIMM(s)12 x 64 GB
Memory Details64GB 2Rx4 PC5-38400R , running at 4800 MHz
# and type of Network Interface Cards (NICs)HPE Ethernet 10Gb 2-port
Power Supply Quantity and Rating (W)2 x 800
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP4
VendorSUSE
Vendor URLhttp://suse.com/
Version5.14.21-150400.22-default
AvailableJul-2022
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 18.0.2.1
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 18.0.2.1
AvailableAug-2022
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • Workload Profile=High Performance Compute(HPC)
  • Thermal Configuration=Maximum Cooling
  • Determinism Control=Manual
  • Performance Determinism=Power Deterministic
  • Memory Patrol Scrubbing=Disabled
  • Numa Memory Domains Per Socket(NPS)=Two Memory Domains Per Socket
  • Last-Level Cache(LLC) As NUMA Node=Disabled
  • L1 Stream HW Prefetcher=Disabled
  • L2 Stream HW Prefetcher=Disabled
  • Minimum Processor Idle Power Core C-State=No C-states
  • Package Power Limit=400
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • ulimit -n 1024000
  • UserTasksMax=970000
  • DefaultTasksMax=970000
  • tuned-adm profile throughput-performance
  • write_schedstat rt_runtime_us 950000
  • write_schedstat latency_ns 6000000
  • write_schedstat migration_cost_ns 40000
  • write_schedstat min_granularity_ns 800000
  • write_schedstat wakeup_granularity_ns 40000
  • write_schedstat nr_migrate 128
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 1 > /proc/sys/kernel/numa_balancing
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line

-Xms740g -Xmx740g -Xmn730g -server -XX:+UseParallelGC -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:MaxTenuringThreshold=5 -XX:-UseAdaptiveSizePolicy -XX:ParallelGCThreads=192 -XX:SurvivorRatio=280 -XX:TargetSurvivorRatio=95 -XX:+UseNUMA -XX:+UseTransparentHugePages -XX:InlineSmallCode=11k -XX:TLABAllocationWeight=2 -XX:ThreadStackSize=140 -XX:AutoBoxCacheMax=32
Tuning

Used numactl to bind the JVM to all NUMA nodes available on the SUT

  • numactl --cpunodebind=0-1 --interleave=0-1
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 359971 364206 368441 372676 376911
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 310562 349383 362088 366323 368441 350671
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 275272 / 271037 8470 / 12705 4235 / 8470 - / 4235 - / 4235 - / 4235
1000us 359971 / 364206 275272 / 271037 105874 / 110109 71994 / 76229 33880 / 38115 - / 4235
5000us 368441 / - 364206 / 368441 317621 / 321856 283742 / 287977 207513 / 211747 38115 / 25410
10000us 368441 / - 368441 / - 359971 / 364206 347266 / 351501 313386 / 304916 80464 / 25410
25000us 368441 / - 368441 / - 368441 / - 364206 / 368441 347266 / 351501 160928 / 25410
50000us 368441 / - 368441 / - 368441 / - 368441 / - 359971 / 364206 215982 / 42349
75000us 368441 / - 368441 / - 368441 / - 368441 / - 364206 / 368441 254097 / 127048
100000us 368441 / - 368441 / - 368441 / - 368441 / - 368441 / - 292212 / 245627
200000us 368441 / - 368441 / - 368441 / - 368441 / - 368441 / - 343031 / 317621
500000us 368441 / - 368441 / - 368441 / - 368441 / - 368441 / - 355736 / 359971
1000000us 368441 / - 368441 / - 368441 / - 368441 / - 368441 / - 368441 / -
Number of probes
Probes jOPS / Total jOPS

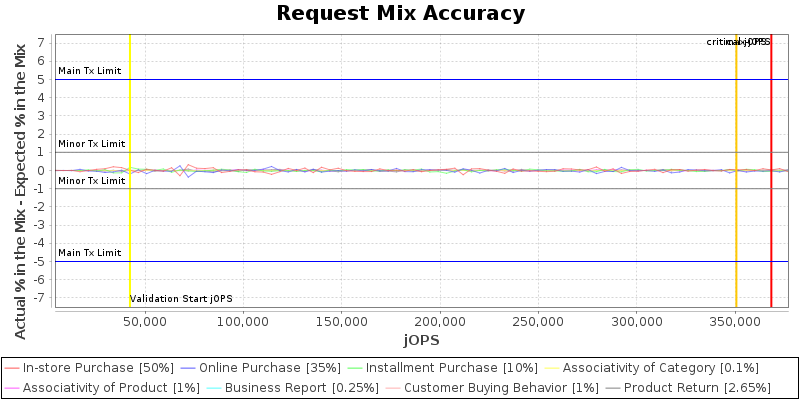

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

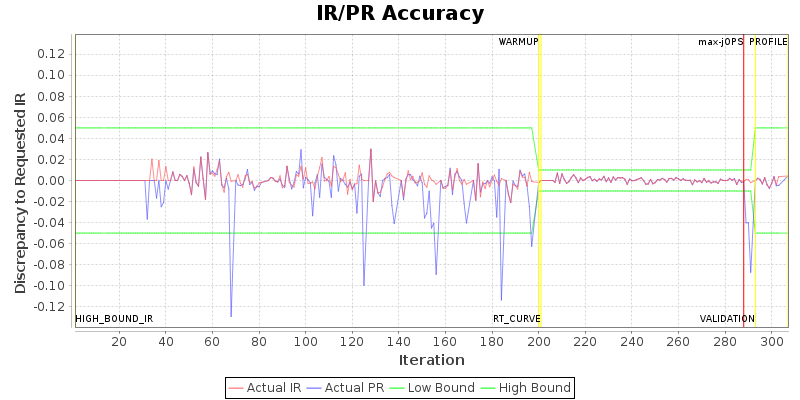

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 16
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.controller.rtcurve.warmup.step 0.1 0.2
specjbb.customerDriver.threads 64 {probe=72, saturate=128}
specjbb.forkjoin.workers 192 {Tier1=92, Tier2=1, Tier3=14}
specjbb.group.count 1 2
specjbb.heartbeat.period 10000 50000
specjbb.heartbeat.threshold 100000 500000
specjbb.mapreducer.pool.size 192 4
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 423495 IR
High-bound (settled) is 393055 IR
Copyright © 2015-2022 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]
