SPECjbb2015
Copyright © 2015-2022 Standard Performance Evaluation Corporation
Inspur Corporation NF3180A6 102968 SPECjbb2015-Composite max-jOPS
85114 SPECjbb2015-Composite critical-jOPS
Tested by: Inspur Corporation Test Sponsor: Inspur Corporation Test location: Jinan, China Test date: Aug 19, 2022
SPEC license #: 3358 Hardware Availability: Aug-2021 Software Availability: Jul-2022 Publication: Fri Sep 9 11:57:15 EDT 2022
Benchmark Results Summary

SPECjbb2015-Composite: Single JVM/Single Host
(# of groups: 1)

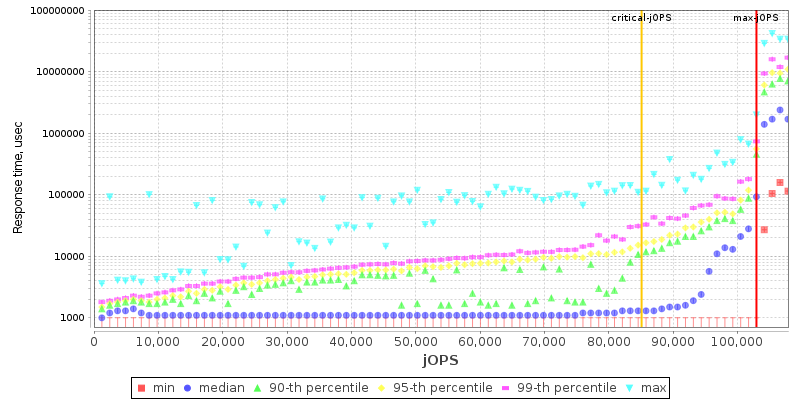

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores24
Total Threads48
Total Memory Amount (GB)512
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameNF3180A6
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
AvailableAug-2021
ModelNF3180A6
Form Factor1U
CPU NameAMD EPYC 7443P
CPU Characteristics24 core, 2.85GHz, 128MB L3 Cache (Max Boost Clock up to 4.00 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System24
Cores Per Chip24
Threads Per System48
Threads Per Core2
Version3.4.0
CPU Frequency (MHz)2850
Primary Cache32KB(I)+32KB(D) on chip per core
Secondary Cache512KB (I+D) on chip per core
Tertiary Cache128MB (I+D) on chip per chip
Other CacheNone
Disk1 x 480GB SATA SSD
File Systemxfs
Memory Amount (GB)512
# and size of DIMM(s)16 x 32GB
Memory Details16 x 32GB 2Rx8 PC4-3200AA-R; each slot populated
# and type of Network Interface Cards (NICs)1 x 10 Gbit NIC
Power Supply Quantity and Rating (W)1 x 1600W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux release 8.3 (Ootpa)
VendorRed Hat
Vendor URLhttp://redhat.com/
Version4.18.0-240
AvailableNov-2020
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 18.0.2
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 18.0.2
AvailableJul-2022
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • NUMA Nodes per socket=NPS4
  • APBDIS=1
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • ulimit -n 655360
  • echo 50000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 28000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 9 > /proc/sys/kernel/sched_nr_migrate
  • echo 990000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 3000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -server -Xms480g -Xmx480g -Xmn450g -XX:+UseLargePages -XX:+UseParallelGC -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:+UseTransparentHugePages -XX:ParallelGCThreads=128 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=1 -XX:+AlwaysPreTouch
Tuning None
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 101742 102968 104194 105420 106645
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 60677 82742 92549 96226 99903 85114
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 71097 / 1226 - / 1226 - / 1226 - / 1226 - / 1226 - / 1226
1000us 98065 / 99291 1226 / 2452 - / 1226 - / 1226 - / 1226 - / 1226
5000us 100516 / 101742 94387 / 95613 82129 / 49032 35548 / 36774 25742 / 26968 12258 / 2452
10000us 101742 / 102968 95613 / 96839 83355 / 84581 76000 / 77226 60065 / 61290 30645 / 2452
25000us 102968 / - 100516 / 101742 93162 / 94387 90710 / 91936 82129 / 83355 45355 / 2452
50000us 102968 / - 101742 / 102968 99291 / 100516 99291 / 96839 91936 / 93162 52710 / 2452
75000us 102968 / - 101742 / 102968 100516 / 101742 99291 / 100516 95613 / 96839 76000 / 2452
100000us 102968 / - 102968 / - 101742 / 102968 100516 / 101742 99291 / 100516 76000 / 8581
200000us 102968 / - 102968 / - 101742 / 102968 101742 / 102968 101742 / 102968 94387 / 87033
500000us 102968 / - 102968 / - 102968 / - 101742 / 102968 101742 / 102968 99291 / 100516
1000000us 102968 / - 102968 / - 102968 / - 102968 / - 102968 / - 101742 / 102968
Number of probes
Probes jOPS / Total jOPS

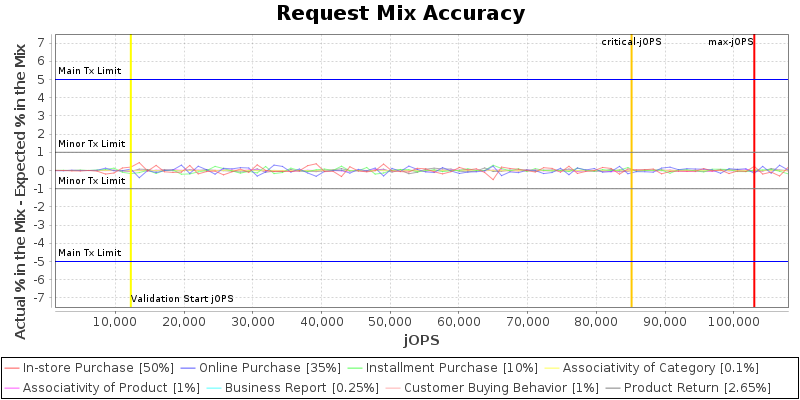

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

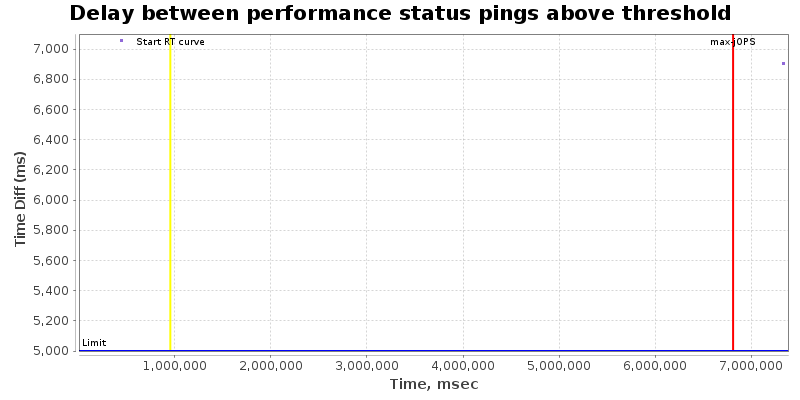

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.forkjoin.workers 48 {Tier1=100, Tier2=1, Tier3=20}
specjbb.group.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 122581 IR
High-bound (settled) is 106002 IR
Copyright © 2015-2022 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]
