SPECjbb2015
Copyright © 2015-2022 Standard Performance Evaluation Corporation
Lenovo Global Technology ThinkSystem SN550 V2 2518144 SPECjbb2015-Distributed max-jOPS
1492860 SPECjbb2015-Distributed critical-jOPS
Tested by: Lenovo Global Technology Test Sponsor: Lenovo Global Technology Test location: Beijing, China Test date: May 2, 2022
SPEC license #: 9017 Hardware Availability: Jul-2021 Software Availability: Apr-2022 Publication: Fri May 20 13:10:44 EDT 2022
Benchmark Results Summary

SPECjbb2015-Distributed: Distributed JVMs/Single or Multi Hosts
(# of groups: 56)

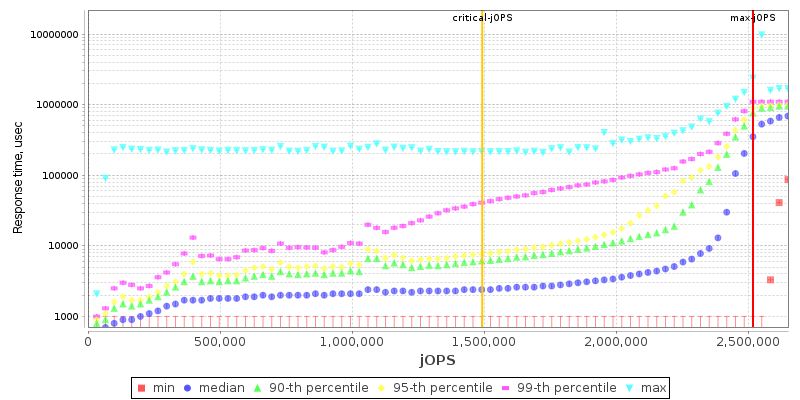

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes14
All Nodes IdenticalYES
Nodes Per System14
Total Chips28
Total Cores896
Total Threads1792
Total Memory Amount (GB)14336
Total OS Images14
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameThinkSystem SN550 V2
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
AvailableJul-2021
ModelThinkSystem SN550 V2
Form Factor10U
CPU NameIntel Xeon Platinum 8352M
CPU Characteristics32 Core, 2.30 GHz, 48 MB L3 Cache (Turbo Boost Technology up to 3.50 GHz)
Number of Systems1
Nodes Per System14
Chips Per System28
Cores Per System896
Cores Per Chip32
Threads Per System1792
Threads Per Core2
VersionU8E115M
CPU Frequency (MHz)2300
Primary Cache32 KB I + 48 KB D on chip per core
Secondary Cache1.25 MB I+D on chip per core
Tertiary Cache48 MB I+D on chip per chip
Other CacheNone
Disk14 x 480GB M.2 SSD
File SystemNTFS
Memory Amount (GB)14336
# and size of DIMM(s)224 x 64GB
Memory Details64GB 2Rx4 PC4-3200AA-R
# and type of Network Interface Cards (NICs)1 x 10 GbE Virtual Fabric NIC
Power Supply Quantity and Rating (W)6 x 2500W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameWindows Server 2019 Datacenter
VendorMicrosoft
Vendor URLhttps://www.microsoft.com/
VersionVersion 1809(OS Build 17763.2867)
AvailableApr-2022
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.3
VendorOracle Corporation
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-Bit Server VM, version 17.0.3
AvailableApr-2022
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Driver Description
Hardware hw_2
NameThinkSystem SR665
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
AvailableMar-2021
ModelThinkSystem SR665
Form Factor2U
CPU NameAMD EPYC 7763
CPU Characteristics64 core, 2.45GHz, 256MB L3 Cache (Max Boost Clock up to 3.50 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System128
Cores Per Chip64
Threads Per System256
Threads Per Core2
VersionD8E123I
CPU Frequency (MHz)2450
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache512 KB I+D on chip per core
Tertiary Cache256 MB I+D on chip per chip
Other CacheNone
Disk1 x 960GB SATA SSD
File SystemNTFS
Memory Amount (GB)512
# and size of DIMM(s)16 x 32GB
Memory Details32GB 2Rx4 PC4-3200AA-R
# and type of Network Interface Cards (NICs)1 x 10/25 GbE OCP NIC
Power Supply Quantity and Rating (W)1 x 1800W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_2
NameWindows Server 2019 Datacenter
VendorMicrosoft
Vendor URLhttps://www.microsoft.com/
VersionVersion 1809(OS Build 17763.2867)
AvailableApr-2022
Bitness64
NotesNone
Java Virtual Machine jvm_2
NameOracle Java SE 17.0.3
VendorOracle Corporation
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-Bit Server VM, version 17.0.3
AvailableApr-2022
Bitness64
NotesNone
Other Software other_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Operating Mode set to Maximum Performance
  • SNC set to Enabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Backend_1(56)
OS Image Description os_1
Tuning
  • Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534
  • Power Options is set to High performance
  • Visual Effects Adjust for best performance
  • Lock Pages in Memory is Enabled
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -server -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:ParallelGCThreads=32 -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+UseLargePages -Xms30g -Xmx30g -Xmn27g -XX:SurvivorRatio=32 -XX:InlineSmallCode=10k -XX:UseAVX=0 -XX:+UseRTMLocking -XX:TargetSurvivorRatio=95
Tuning Affinitized each Backend JVM to a single memory node in every node in SuT.
  • start /b /NODE 0
  • start /b /NODE 1
  • start /b /NODE 2
  • start /b /NODE 3
Notes None
Driver config_2 Configuration
Hardware
OS Images os_Image_2(1)
Hardware Description hw_2
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Operating Mode set to Maximum Performance and then set to Custom Mode
  • NUMA Nodes per Sockert set to NPS4
Notes None
OS Image os_Image_2
JVM Instances jvm_Ctr_1(1), jvm_TxInjector_1(56)
OS Image Description os_2
Tuning
  • Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534
  • Power Options is set to High performance
  • Visual Effects Adjust for best performance
  • Lock Pages in Memory is Enabled
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_2
Command Line -Xms10g -Xmx10g -Xmn8g
Tuning None
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_2
Command Line -Xms4g -Xmx4g -Xmn3g
Tuning None
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 2485010 2518144 2551277 2584411 2617544
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 898285 1275638 1640106 1905174 2070842 1492860
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 66267 / 99400 33133 / 66267 - / 33133 - / 33133 - / 33133 - / 33133
1000us 960871 / 994004 198801 / 231934 66267 / 99400 33133 / 66267 33133 / 66267 - / 33133
5000us 2418743 / 2451877 2186809 / 2219942 1225938 / 1060271 960871 / 397602 298201 / 331335 33133 / 66267
10000us 2451877 / 2485010 2352476 / 2385610 1921741 / 1954875 1722940 / 1756074 960871 / 397602 33133 / 66267
25000us 2451877 / 2485010 2385610 / 2418743 2219942 / 2253076 2054275 / 2087409 1259072 / 1292205 33133 / 66267
50000us 2485010 / 2518144 2418743 / 2451877 2286209 / 2319343 2153676 / 2186809 1623540 / 1656673 33133 / 66267
75000us 2485010 / 2518144 2418743 / 2451877 2319343 / 2352476 2219942 / 2253076 1888608 / 1921741 33133 / 66267
100000us 2485010 / 2518144 2418743 / 2451877 2352476 / 2385610 2286209 / 2319343 2054275 / 2087409 66267 / 99400
200000us 2518144 / - 2451877 / 2485010 2418743 / 2451877 2385610 / 2418743 2319343 / 2352476 66267 / 99400
500000us 2518144 / - 2518144 / - 2485010 / 2518144 2451877 / 2485010 2418743 / 2451877 2286209 / 2319343
1000000us 2518144 / - 2518144 / - 2518144 / - 2518144 / - 2485010 / 2518144 2418743 / 2451877

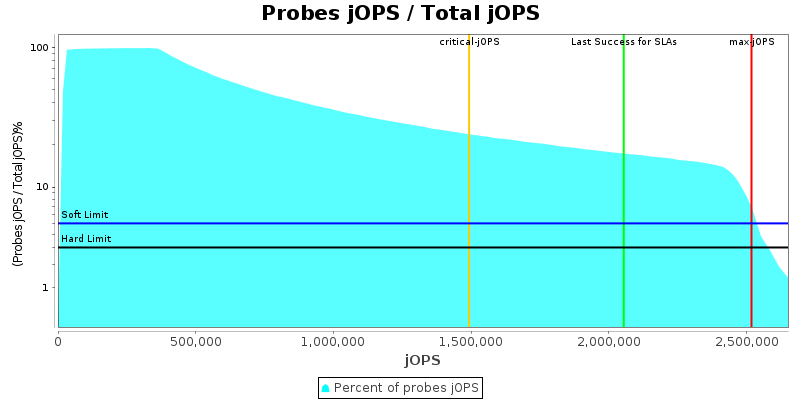

Number of probes
Probes jOPS / Total jOPS
Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

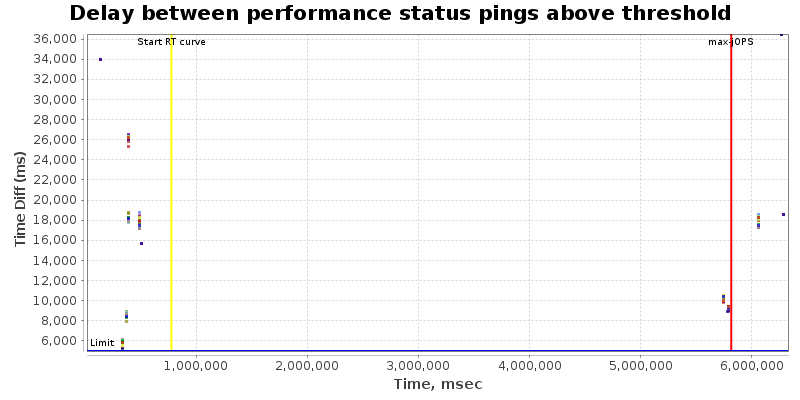

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group10.Backend.beJVM Group11.Backend.beJVM Group12.Backend.beJVM Group13.Backend.beJVM Group14.Backend.beJVM Group15.Backend.beJVM Group16.Backend.beJVM Group17.Backend.beJVM Group18.Backend.beJVM Group19.Backend.beJVM Group2.Backend.beJVM Group20.Backend.beJVM Group21.Backend.beJVM Group22.Backend.beJVM Group23.Backend.beJVM Group24.Backend.beJVM Group25.Backend.beJVM Group26.Backend.beJVM Group27.Backend.beJVM Group28.Backend.beJVM Group29.Backend.beJVM Group3.Backend.beJVM Group30.Backend.beJVM Group31.Backend.beJVM Group32.Backend.beJVM Group33.Backend.beJVM Group34.Backend.beJVM Group35.Backend.beJVM Group36.Backend.beJVM Group37.Backend.beJVM Group38.Backend.beJVM Group39.Backend.beJVM Group4.Backend.beJVM Group40.Backend.beJVM Group41.Backend.beJVM Group42.Backend.beJVM Group43.Backend.beJVM Group44.Backend.beJVM Group45.Backend.beJVM Group46.Backend.beJVM Group47.Backend.beJVM Group48.Backend.beJVM Group49.Backend.beJVM Group5.Backend.beJVM Group50.Backend.beJVM Group51.Backend.beJVM Group52.Backend.beJVM Group53.Backend.beJVM Group54.Backend.beJVM Group55.Backend.beJVM Group56.Backend.beJVM Group6.Backend.beJVM Group7.Backend.beJVM Group8.Backend.beJVM Group9.Backend.beJVM
specjbb.comm.connect.client.pool.size 256 192 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64
specjbb.comm.connect.selector.runner.count 0 1
specjbb.comm.connect.timeouts.connect 60000 800000
specjbb.comm.connect.timeouts.read 60000 800000
specjbb.comm.connect.timeouts.write 60000 800000
specjbb.comm.connect.worker.pool.max 256 60 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45
specjbb.comm.connect.worker.pool.min 1 10 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40
specjbb.controller.host localhost 172.30.98.20
specjbb.customerDriver.threads 64 {probe=64, saturate=64}
specjbb.forkjoin.workers 64 {Tier1=224, Tier2=70, Tier3=28}
specjbb.group.count 1 56
specjbb.heartbeat.threshold 100000 600000
specjbb.mapreducer.pool.size 64 6
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 3313347 IR
High-bound (settled) is 2762055 IR
