SPECjbb2015 Report for jbb2015-20220504-00804 : 2059699 max-jOPS ; 1901837 critical-jOPS

SUT Description

Hardware hw_1
Name	ThinkSystem SN550 V2
Vendor	Lenovo Global Technology
Vendor URL	http://www.lenovo.com
Available	Jul-2021
Model	ThinkSystem SN550 V2
Form Factor	10U
CPU Name	Intel Xeon Platinum 8352M
CPU Characteristics	32 Core, 2.30 GHz, 48 MB L3 Cache (Turbo Boost Technology up to 3.50 GHz)
Number of Systems	1
Nodes Per System	14
Chips Per System	28
Cores Per System	896
Cores Per Chip	32
Threads Per System	1792
Threads Per Core	2
Version	U8E115M
CPU Frequency (MHz)	2300
Primary Cache	32 KB I + 48 KB D on chip per core
Secondary Cache	1.25 MB I+D on chip per core
Tertiary Cache	48 MB I+D on chip per chip
Other Cache	None
Disk	14 x 128GB M.2 SSD
File System	btrfs
Memory Amount (GB)	14336
# and size of DIMM(s)	224 x 64GB
Memory Details	64GB 2Rx4 PC4-3200AA-R
# and type of Network Interface Cards (NICs)	1 x 10 GbE Virtual Fabric NIC
Power Supply Quantity and Rating (W)	6 x 2500W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 12 SP5
Vendor	SUSE
Vendor URL	http://suse.com/
Version	4.12.14-120-default
Available	Dec-2019
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 17.0.3
Vendor	Oracle Corporation
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-Bit Server VM, version 17.0.3
Available	Apr-2022
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Driver Description

Hardware hw_2
Name	ThinkSystem SR860 V2
Vendor	Lenovo Global Technology
Vendor URL	http://www.lenovo.com
Available	Nov-2020
Model	ThinkSystem SR860 V2
Form Factor	4U
CPU Name	Intel Xeon Platinum 8380H
CPU Characteristics	28 Core, 2.90 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 4.30 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	4
Cores Per System	112
Cores Per Chip	28
Threads Per System	224
Threads Per Core	2
Version	M5E113F
CPU Frequency (MHz)	2900
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	1 MB I+D on chip per core
Tertiary Cache	38.5 MB I+D on chip per chip
Other Cache	None
Disk	1 x 960GB SATA SSD
File System	XFS
Memory Amount (GB)	1536
# and size of DIMM(s)	24 x 64GB
Memory Details	64GB 2Rx4 PC4-3200AA-R
# and type of Network Interface Cards (NICs)	1 x 10/25 GbE PCIE NIC
Power Supply Quantity and Rating (W)	2 x 1800W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_2
Name	SUSE Linux Enterprise Server 15 SP2
Vendor	SUSE
Vendor URL	http://suse.com/
Version	5.3.18-22-default
Available	July-2020
Bitness	64
Notes	None
Java Virtual Machine jvm_2
Name	Oracle Java SE 17.0.3
Vendor	Oracle Corporation
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-Bit Server VM, version 17.0.3
Available	Apr-2022
Bitness	64
Notes	None
Other Software other_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Backend_1 : Backend
Driver
- Hardware config_2
  - OS Image os_Image_2
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Configuration: Operating Mode set to Maximum Performance Patrol Scrub set to Disabled
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Backend_1(28)
OS Image Description	os_1
Tuning	ulimit -n 819200 echo 950000 > /proc/sys/kernel/sched_rt_runtime_us echo 100000000 > /proc/sys/kernel/sched_latency_ns echo 80000 > /proc/sys/kernel/sched_migration_cost_ns echo 600000 > /proc/sys/kernel/sched_min_granularity_ns echo 100000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-server -Xms350g -Xmx350g -Xmn340g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:ParallelGCThreads=64 -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+UseLargePages -XX:SurvivorRatio=28 -XX:InlineSmallCode=10k -XX:UseAVX=0 -XX:+UseRTMLocking -XX:TargetSurvivorRatio=95
Tuning	None
Notes	Used numactl to run on all available nodes in every node in SUT numactl --cpunodebind=0 --localalloc numactl --cpunodebind=1 --localalloc

Driver config_2 Configuration

Hardware
OS Images	os_Image_2(1)
Hardware Description	hw_2
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Configuration: Operating Mode set to Maximum Performance SNC set to Enabled Patrol Scrub set to Disabled
Notes	None

OS Image os_Image_2
JVM Instances	jvm_Ctr_1(1), jvm_TxInjector_1(28)
OS Image Description	os_2
Tuning	ulimit -n 819200 cpupower frequency-set -g performance tuned-adm profile throughput-performance echo 950000 > /proc/sys/kernel/sched_rt_runtime_us echo 100000000 > /proc/sys/kernel/sched_latency_ns echo 80000 > /proc/sys/kernel/sched_migration_cost_ns echo 600000 > /proc/sys/kernel/sched_min_granularity_ns echo 100000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/enabled echo always > /sys/kernel/mm/transparent_hugepage/defrag
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_2
Command Line	-Xms10g -Xmx10g -Xmn8g -XX:+UseParallelGC -XX:ParallelGCThreads=4
Tuning	None
Notes	Used numactl to run all available nodes numactl --interleave=all
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_2
Command Line	-Xms4g -Xmx4g -Xmn3680m -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	None
Notes	Used numactl to run all available nodes numactl --interleave=all

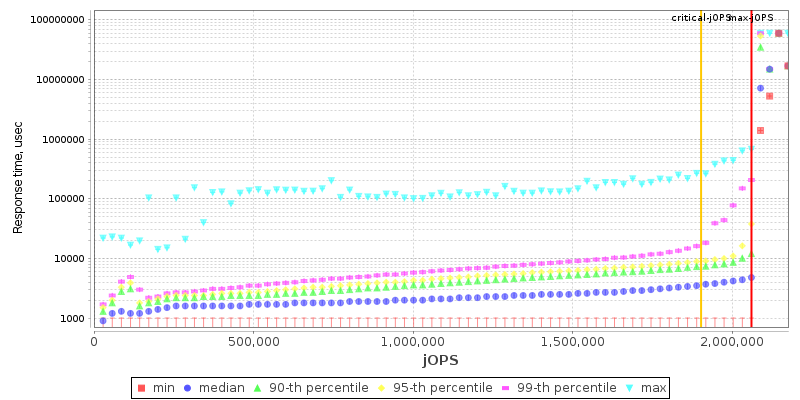

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	2031092	2059699	2088306	2116913	2145520

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	1616291	1930967	1988181	1988181	2016788	1901837

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	- / 28607	- / 28607	- / 28607	- / 28607	- / 28607	- / 28607
1000us	1115670 / 1144277	28607 / 57214	- / 28607	- / 28607	- / 28607	- / 28607
5000us	2059699 / -	2059699 / -	1430346 / 1458953	1172884 / 1201491	858208 / 886815	- / 28607
10000us	2059699 / -	2059699 / -	2002485 / 2031092	1973878 / 2002485	1601988 / 1630595	- / 28607
25000us	2059699 / -	2059699 / -	2059699 / -	2031092 / 2059699	1916664 / 1945271	286069 / 171642
50000us	2059699 / -	2059699 / -	2059699 / -	2059699 / -	1973878 / 2002485	343283 / 171642
75000us	2059699 / -	2059699 / -	2059699 / -	2059699 / -	1973878 / 2002485	343283 / 171642
100000us	2059699 / -	2059699 / -	2059699 / -	2059699 / -	2002485 / 2031092	429104 / 171642
200000us	2059699 / -	2059699 / -	2059699 / -	2059699 / -	2031092 / 2059699	1745023 / 743780
500000us	2059699 / -	2059699 / -	2059699 / -	2059699 / -	2059699 / -	2002485 / 2031092
1000000us	2059699 / -	2059699 / -	2059699 / -	2059699 / -	2059699 / -	2059699 / -

Number of probes

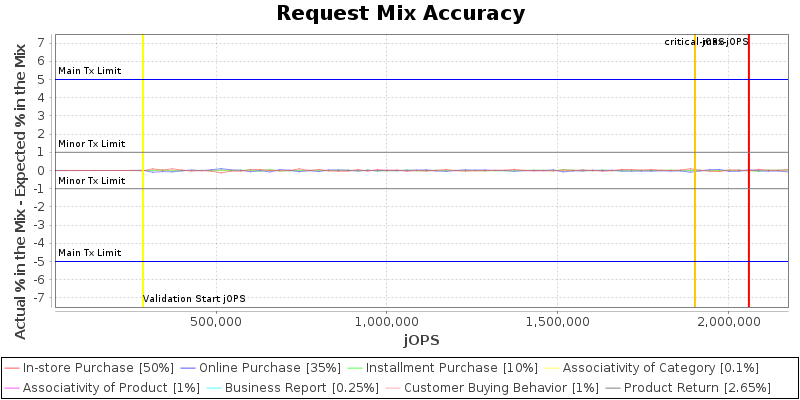

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

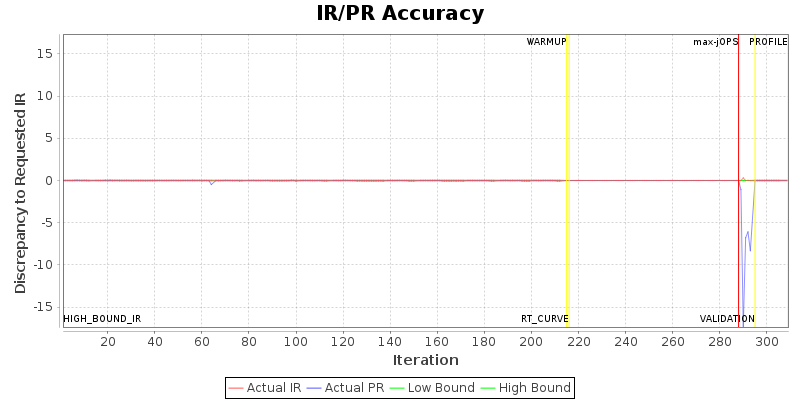

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group10.Backend.beJVM	Group11.Backend.beJVM	Group12.Backend.beJVM	Group13.Backend.beJVM	Group14.Backend.beJVM	Group15.Backend.beJVM	Group16.Backend.beJVM	Group17.Backend.beJVM	Group18.Backend.beJVM	Group19.Backend.beJVM	Group2.Backend.beJVM	Group20.Backend.beJVM	Group21.Backend.beJVM	Group22.Backend.beJVM	Group23.Backend.beJVM	Group24.Backend.beJVM	Group25.Backend.beJVM	Group26.Backend.beJVM	Group27.Backend.beJVM	Group28.Backend.beJVM	Group3.Backend.beJVM	Group4.Backend.beJVM	Group5.Backend.beJVM	Group6.Backend.beJVM	Group7.Backend.beJVM	Group8.Backend.beJVM	Group9.Backend.beJVM
specjbb.comm.connect.client.pool.size	256	192	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256
specjbb.comm.connect.selector.runner.count	0	12	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
specjbb.comm.connect.timeouts.connect	60000	900000
specjbb.comm.connect.timeouts.read	60000	900000
specjbb.comm.connect.timeouts.write	60000	900000
specjbb.comm.connect.worker.pool.max	256	112	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256
specjbb.comm.connect.worker.pool.min	1	1
specjbb.controller.host	localhost	172.29.2.123
specjbb.customerDriver.threads	64	{probe=80, saturate=80}
specjbb.forkjoin.workers	224	{Tier1=198, Tier2=53, Tier3=23}
specjbb.group.count	1	28
specjbb.mapreducer.pool.size	224	4
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 2860693 IR

High-bound (settled) is 2422025 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Lenovo Global Technology ThinkSystem SN550 V2	2059699 SPECjbb2015-Distributed max-jOPS 1901837 SPECjbb2015-Distributed critical-jOPS
Tested by: Lenovo Global Technology	Test Sponsor: Lenovo Global Technology	Test location: Beijing, China	Test date: Apr 26, 2022
SPEC license #: 9017	Hardware Availability: Jul-2021	Software Availability: Apr-2022	Publication: Fri May 20 13:10:44 EDT 2022
