SPECjbb2015 Report for jbb2015-20220223-00757 : 435468 max-jOPS ; 177330 critical-jOPS

SUT Description

Hardware hw_1
Name	ThinkSystem SR645
Vendor	Lenovo Global Technology
Vendor URL	http://www.lenovo.com
Available	May-2022
Model	ThinkSystem SR645
Form Factor	1U
CPU Name	AMD EPYC 7773X
CPU Characteristics	64 core, 2.20GHz, 768MB L3 Cache (Max Boost Clock up to 3.50 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	128
Cores Per Chip	64
Threads Per System	256
Threads Per Core	2
Version	D8E125A
CPU Frequency (MHz)	2200
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	512 KB I+D on chip per core
Tertiary Cache	768 MB I+D on chip per chip
Other Cache	None
Disk	1 x 960GB SATA SSD
File System	NTFS
Memory Amount (GB)	2048
# and size of DIMM(s)	32 x 64 GB
Memory Details	64GB 2Rx4 PC4-3200AA-R
# and type of Network Interface Cards (NICs)	1 x 10/25 GbE PCIE NIC
Power Supply Quantity and Rating (W)	1 x 1800W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Windows Server 2019 Datacenter
Vendor	Microsoft
Vendor URL	https://www.microsoft.com/
Version	Version 1809(OS Build 17763.2628)
Available	Feb-2022
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 17.0.2
Vendor	Oracle Corporation
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-Bit Server VM, version 17.0.2
Available	Jan-2022
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Driver Description

Hardware hw_2
Name	ThinkSystem SR860 V2
Vendor	Lenovo Global Technology
Vendor URL	http://www.lenovo.com
Available	Nov-2020
Model	ThinkSystem SR860 V2
Form Factor	4U
CPU Name	Intel Xeon Platinum 8376H
CPU Characteristics	28 Core, 2.60 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 4.30 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	4
Cores Per System	112
Cores Per Chip	28
Threads Per System	224
Threads Per Core	2
Version	M5E113F
CPU Frequency (MHz)	2600
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	1 MB I+D on chip per core
Tertiary Cache	38.5 MB I+D on chip per chip
Other Cache	None
Disk	1 x 960GB SATA SSD
File System	NTFS
Memory Amount (GB)	768
# and size of DIMM(s)	48 x 16 GB
Memory Details	16 GB 2Rx8 PC4-3200AA-R
# and type of Network Interface Cards (NICs)	1 x 10/25 GbE PCIE NIC
Power Supply Quantity and Rating (W)	2 x 1800W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_2
Name	Windows Server 2019 Datacenter
Vendor	Microsoft
Vendor URL	https://www.microsoft.com/
Version	Version 1809(OS Build 17763.2628)
Available	Feb-2022
Bitness	64
Notes	None
Java Virtual Machine jvm_2
Name	Oracle Java SE 17.0.2
Vendor	Oracle Corporation
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-Bit Server VM, version 17.0.2
Available	Jan-2022
Bitness	64
Notes	None
Other Software other_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Backend_1 : Backend
Driver
- Hardware config_2
  - OS Image os_Image_2
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Configuration: Operating Mode set to Maximum Performance and then set to Custom Mode SOC P-states set to P0 NUMA Nodes per Sockert = NPS4 L1 Stream HW Prefetcher set to Disable L2 Stream HW Prefetcher set to Disable
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Backend_1(8)
OS Image Description	os_1
Tuning	Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534 Power Options is set to High performance Visual Effects Adjust for best performance Lock Pages in Memory is Enabled
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-server -Xms29g -Xmx29g -Xmn27g -XX:SurvivorRatio=28 -XX:+UseParallelGC -XX:ParallelGCThreads=32 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -Xnoclassgc -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15
Tuning	Affinitized each Backend JVM to a single memory node. start /b /NODE 0 start /b /NODE 1 start /b /NODE 2 start /b /NODE 3 start /b /NODE 4 start /b /NODE 5 start /b /NODE 6 start /b /NODE 7
Notes	None

Driver config_2 Configuration

Hardware
OS Images	os_Image_2(1)
Hardware Description	hw_2
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Configuration: Operating Mode set to Maximum Performance SNC set to Enabled Patrol Scrub set to Disabled
Notes	None

OS Image os_Image_2
JVM Instances	jvm_Ctr_1(1), jvm_TxInjector_1(8)
OS Image Description	os_2
Tuning	Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534 Power Options is set to High performance Visual Effects Adjust for best performance Lock Pages in Memory is Enabled
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_2
Command Line	-Xms2g -Xmx2g -Xmn1536m
Tuning	None
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_2
Command Line	-Xms2g -Xmx2g -Xmn1536m
Tuning	None
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	430735	435468	440202	444935	449668

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	120700	139633	177500	215367	272167	177330

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	4733 / 9467	- / 4733	- / 4733	- / 4733	- / 4733	- / 4733
1000us	179867 / 89934	18933 / 23667	9467 / 14200	- / 4733	- / 4733	- / 4733
5000us	388135 / 336068	302934 / 217734	165667 / 113600	104134 / 108867	71000 / 75734	4733 / 9467
10000us	402335 / 407068	364468 / 336068	246134 / 236667	213001 / 217734	118334 / 123067	4733 / 9467
25000us	416535 / 421268	402335 / 407068	355001 / 359735	307668 / 312401	137267 / 142000	4733 / 9467
50000us	421268 / 426001	402335 / 407068	364468 / 369201	321868 / 326601	175134 / 179867	4733 / 9467
75000us	421268 / 426001	407068 / 411801	373935 / 378668	340801 / 345535	213001 / 217734	4733 / 9467
100000us	421268 / 426001	407068 / 411801	383401 / 388135	355001 / 359735	269801 / 274534	4733 / 9467
200000us	430735 / 435468	416535 / 421268	397601 / 402335	388135 / 392868	364468 / 369201	208267 / 170401
500000us	435468 / -	430735 / 435468	416535 / 421268	411801 / 416535	407068 / 411801	383401 / 364468
1000000us	435468 / -	435468 / -	435468 / -	435468 / -	435468 / -	411801 / 416535

Number of probes

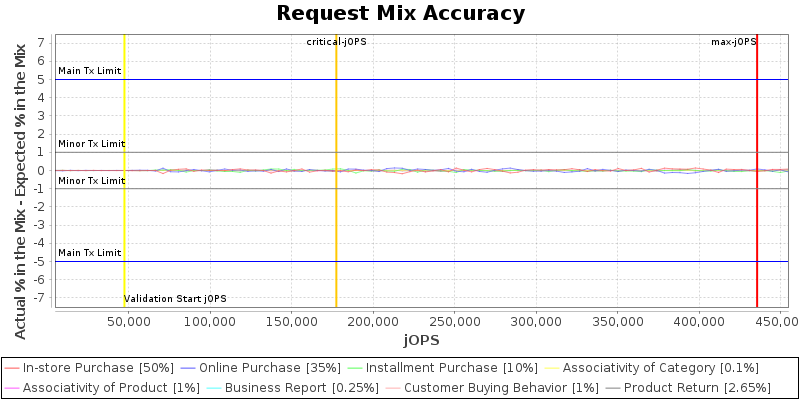

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

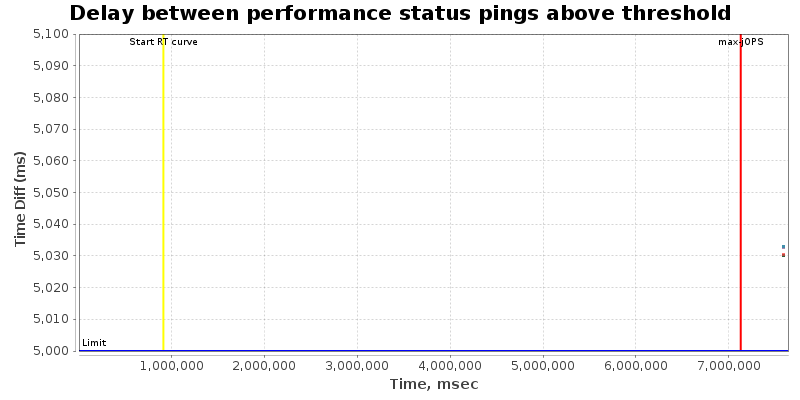

Delay between performance status pings during RT Curve (Response-Throughput Curve)

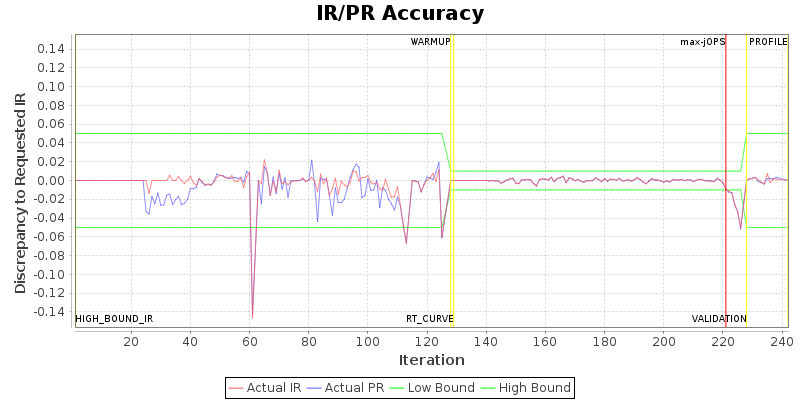

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.client.pool.size	256	192
specjbb.comm.connect.selector.runner.count	0	8
specjbb.comm.connect.timeouts.connect	60000	600000
specjbb.comm.connect.timeouts.read	60000	600000
specjbb.comm.connect.timeouts.write	60000	600000
specjbb.comm.connect.worker.pool.max	256	45
specjbb.comm.connect.worker.pool.min	1	40
specjbb.controller.host	localhost	192.168.5.4
specjbb.forkjoin.workers	56	{Tier1=210, Tier2=28, Tier3=28}
specjbb.group.count	1	8
specjbb.heartbeat.threshold	100000	600000
specjbb.mapreducer.pool.size	56	12
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 473335 IR

High-bound (settled) is 458177 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Lenovo Global Technology ThinkSystem SR645	435468 SPECjbb2015-Distributed max-jOPS 177330 SPECjbb2015-Distributed critical-jOPS
Tested by: Lenovo Global Technology	Test Sponsor: Lenovo Global Technology	Test location: Beijing, China	Test date: Feb 22, 2022
SPEC license #: 9017	Hardware Availability: May-2022	Software Availability: Feb-2022	Publication: Mon Mar 21 09:38:43 EDT 2022
