SPECjbb2015
Copyright © 2015-2022 Standard Performance Evaluation Corporation
Cisco Systems Cisco UCS C245 M6 355736 SPECjbb2015-Composite max-jOPS
324329 SPECjbb2015-Composite critical-jOPS
Tested by: Cisco Systems Test Sponsor: Cisco Systems Test location: San Jose, CA Test date: Feb 22, 2022
SPEC license #: 9019 Hardware Availability: Mar-2022 Software Availability: June-2021 Publication: Mon Mar 21 09:38:43 EDT 2022
Benchmark Results Summary

SPECjbb2015-Composite: Single JVM/Single Host
(# of groups: 2)

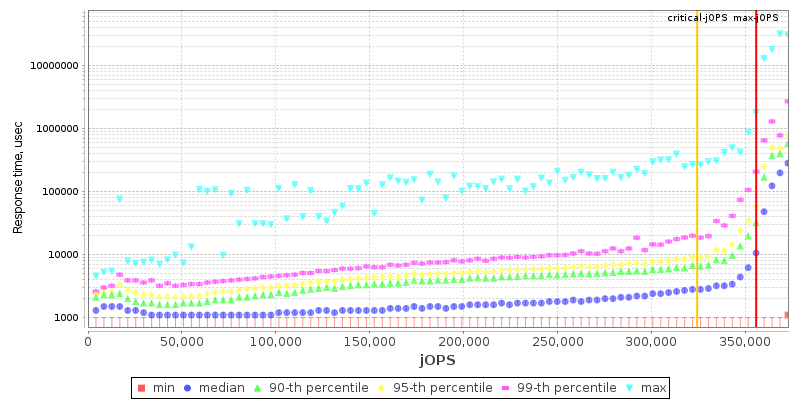

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorCisco Systems
Vendor URLhttps://www.cisco.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores128
Total Threads256
Total Memory Amount (GB)2048
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameCisco UCS C245 M6
VendorCisco Systems
Vendor URLhttp://www.cisco.com/
AvailableMar-2022
ModelCisco UCS C245 M6
Form Factor2U Rack
CPU NameAMD EPYC 7773X
CPU Characteristics64-Core, 2.2GHz, 768MB L3 Cache (Max Boost Clock up to 3.5 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System128
Cores Per Chip64
Threads Per System256
Threads Per Core2
VersionC245M6.4.2.1.28
CPU Frequency (MHz)2200
Primary Cache32 KB I+32 KB D per core
Secondary Cache512 KB I+D per core
Tertiary Cache768 MB I+D per chip
Other CacheNone
Disk1 x 960 GB M.2 SSD SATA
File SystemXFS
Memory Amount (GB)2048
# and size of DIMM(s)16 x 128 GB 4Rx4
Memory Details128 GB 4Rx4 PC4-3200V-L
# and type of Network Interface Cards (NICs)2x 10 Gbit NIC
Power Supply Quantity and Rating (W)2 x 2300W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
Bitnessn/a
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP3
VendorSUSE
Vendor URLhttp://suse.com/
Version5.3.18-57-default
AvailableJune-2021
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.2
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-Bit Server VM,version 17.0.2
AvailableJan-2022
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning
  • L1 Stream HW Prefetcher: Disable
  • L2 Stream HW Prefetcher: Disable
  • Global C-state Control: Enabled
  • Enhanced REP MOVSB/STOSB: Disabled
  • Fast Short REP MOVSB: Disabled
  • NUMA Nodes per socket: NPS2
  • ACPI SRAT L3 Cache As NUMA Domain: Disabled
  • 4 Link xGMI max speed: 18Gbps
  • Determinism Control: Manual
  • Determinism Slider: Power
  • EDC Control: Manual
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(2)
OS Image Description os_1
Tuning
  • echo 400000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 40000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 40000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 128 > /proc/sys/kernel/sched_nr_migrate
  • echo 950000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 400000 > /proc/sys/kernel/sched_latency_ns
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/vm/numa_stat
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag>
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -Xms970g -Xmx970g -Xmn965g -server -XX:+UseParallelGC -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:MaxTenuringThreshold=5 -XX:-UseAdaptiveSizePolicy -XX:ParallelGCThreads=128 -XX:SurvivorRatio=200 -XX:TargetSurvivorRatio=99 -XX:+UseNUMA -XX:-UseNUMAInterleaving -XX:+UseTransparentHugePages
Tuning Used numactl to run on all available nodes
  • numactl --cpunodebind=0-3 --interleave=0-3
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 351501 355736 359971 364206 368441
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 256214 332443 345148 349383 349383 324329
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 4235 - / 4235 - / 4235 - / 4235 - / 4235 - / 4235
1000us 296446 / 300681 - / 4235 - / 4235 - / 4235 - / 4235 - / 4235
5000us 355736 / - 347266 / 351501 271037 / 275272 190573 / 194808 110109 / 114344 4235 / 8470
10000us 355736 / - 351501 / 355736 343031 / 347266 330326 / 334561 254097 / 258332 71994 / 16940
25000us 355736 / - 355736 / - 351501 / 355736 347266 / 351501 330326 / 334561 71994 / 16940
50000us 355736 / - 355736 / - 355736 / - 351501 / 355736 343031 / 347266 152458 / 16940
75000us 355736 / - 355736 / - 355736 / - 355736 / - 347266 / 351501 177868 / 16940
100000us 355736 / - 355736 / - 355736 / - 355736 / - 347266 / 351501 190573 / 59289
200000us 355736 / - 355736 / - 355736 / - 355736 / - 351501 / 355736 296446 / 249862
500000us 355736 / - 355736 / - 355736 / - 355736 / - 355736 / - 347266 / 351501
1000000us 355736 / - 355736 / - 355736 / - 355736 / - 355736 / - 351501 / 355736

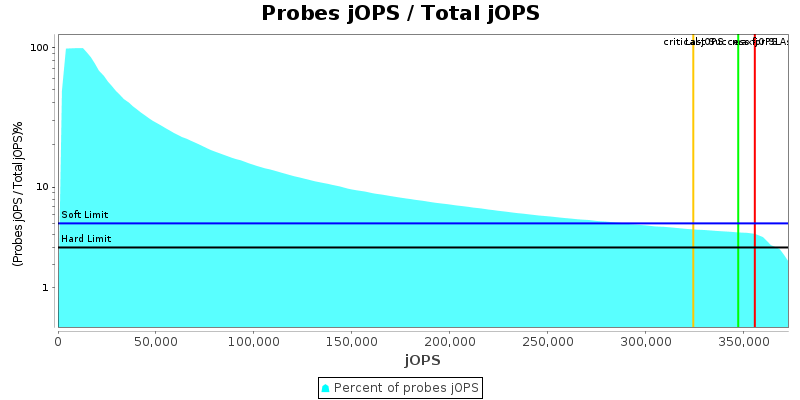

Number of probes
Probes jOPS / Total jOPS

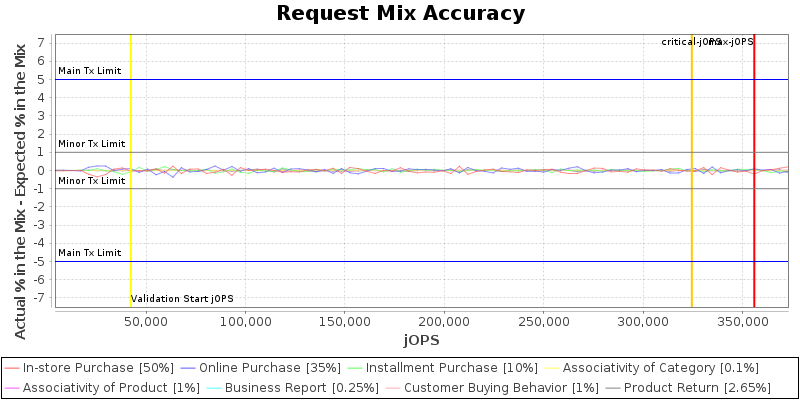

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 10
specjbb.comm.connect.timeouts.connect 60000 800000
specjbb.comm.connect.timeouts.read 60000 800000
specjbb.comm.connect.timeouts.write 60000 800000
specjbb.customerDriver.threads 64 {probe=72, saturate=256}
specjbb.forkjoin.workers 256 {Tier1=112, Tier2=1, Tier3=18}
specjbb.group.count 1 2
specjbb.mapreducer.pool.size 256 8
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 423495 IR
High-bound (settled) is 380918 IR
