SPECjbb2015 Report for jbb2015-20220223-00746 : 369201 max-jOPS ; 345033 critical-jOPS

SUT Description

Hardware hw_1
Name	ProLiant DL385 Gen10 Plus v2
Vendor	Hewlett Packard Enterprise
Vendor URL	http://hpe.com/
Available	Mar-2022
Model	ProLiant DL385 Gen10 Plus v2
Form Factor	2U Rack
CPU Name	AMD EPYC 7773X
CPU Characteristics	64 Core, 2.2 GHz, 768 MB L3 Cache(Max. Boost Clock Up to 3.5 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	128
Cores Per Chip	64
Threads Per System	256
Threads Per Core	2
Version	A42 v2.56 02/10/2022
CPU Frequency (MHz)	2200
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	512 KB I+D on chip per core
Tertiary Cache	768 MB (I+D) on chip per chip
Other Cache	None
Disk	3 x 800 GB SSD SAS
File System	XFS
Memory Amount (GB)	2048
# and size of DIMM(s)	16 x 128 GB
Memory Details	128 GB 4Rx4 PC4-3200AA-L
# and type of Network Interface Cards (NICs)	HPE Ethernet 10Gb 2-port
Power Supply Quantity and Rating (W)	2 x 1600
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP2
Vendor	SUSE
Vendor URL	http://suse.com/
Version	5.3.18.22-default
Available	Jul-2020
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 17.0.2
Vendor	Oracle
Vendor URL	http://www.oracle.com/
Version	Java HotSpot 64-bit Server VM, version 17.0.2
Available	Jan-2022
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Driver Description

Hardware hw_2
Name	ProLiant DL325 Gen10 Plus v2
Vendor	Hewlett Packard Enterprise
Vendor URL	http://hpe.com/
Available	Mar-2022
Model	ProLiant DL325 Gen10 Plus v2
Form Factor	1U Rack
CPU Name	AMD EPYC 7773X
CPU Characteristics	64 Core, 2.2 GHz, 768 MB L3 Cache(Max. Boost Clock Up to 3.5 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	1
Cores Per System	64
Cores Per Chip	64
Threads Per System	128
Threads Per Core	2
Version	A43 v2.56 02/10/2022
CPU Frequency (MHz)	2200
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	512 KB I+D on chip per core
Tertiary Cache	768 MB (I+D) on chip per chip
Other Cache	None
Disk	2 x 480 GB SSD SATA
File System	XFS
Memory Amount (GB)	1024
# and size of DIMM(s)	8 x 128 GB
Memory Details	128 GB 4Rx4 PC4-3200AA-L
# and type of Network Interface Cards (NICs)	HPE Ethernet 10Gb 2-port
Power Supply Quantity and Rating (W)	2 x 1600
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_2
Name	SUSE Linux Enterprise Server 15 SP2
Vendor	SUSE
Vendor URL	http://suse.com/
Version	5.3.18.22-default
Available	Jul-2020
Bitness	64
Notes	None
Java Virtual Machine jvm_2
Name	Oracle Java SE 17.0.2
Vendor	Oracle
Vendor URL	http://www.oracle.com/
Version	Java HotSpot 64-bit Server VM, version 17.0.2
Available	Jan-2022
Bitness	64
Notes	note
Other Software other_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Backend_1 : Backend
Driver
- Hardware config_2
  - OS Image os_Image_2
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	Non-virtual
Tuning	Workload Profile=High Performance Compute(HPC) Thermal Configuration=Maximum Cooling Determinism Control=Manual Performance Determinism=Power Deterministic Memory Patrol Scrubbing=Disabled Numa Memory Domains Per Socket(NPS)=Two Memory Domains Per Socket Last-Level Cache(LLC) As NUMA Node=Disabled L1 Stream HW Prefetcher=Disabled L2 Stream HW Prefetcher=Disabled Minimum Processor Idle Power Core C-State=C6 state
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Backend_1(8)
OS Image Description	os_1
Tuning	ulimit -n 1024000 tuned-adm profile throughput-performance echo 950000 > /proc/sys/kernel/sched_rt_runtime_us echo 100000000 > /proc/sys/kernel/sched_latency_ns echo 80000 > /proc/sys/kernel/sched_migration_cost_ns echo 600000 > /proc/sys/kernel/sched_min_granularity_ns echo 100000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/vm/numa_stat echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/enabled echo always > /sys/kernel/mm/transparent_hugepage/defrag
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms120g -Xmx120g -Xmn117g -server -XX:MetaspaceSize=256m -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:+UseParallelGC -XX:SurvivorRatio=100 -XX:TargetSurvivorRatio=80 -XX:ParallelGCThreads=32 -XX:MaxTenuringThreshold=15 -XX:InitialCodeCacheSize=25m -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=200 -XX:+UseCompressedOops -XX:ObjectAlignmentInBytes=32 -XX:+UseTransparentHugePages -XX:CompileThresholdScaling=15
Tuning	Used numactl to affinitize two Backend JVMs to a NUMA node numactl --cpunodebind=0 --localalloc numactl --cpunodebind=0 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=3 --localalloc numactl --cpunodebind=3 --localalloc
Notes	None

Driver config_2 Configuration

Hardware
OS Images	os_Image_2(1)
Hardware Description	hw_2
Number of Systems	1
SW Environment	Non-virtual
Tuning	Workload Profile=High Performance Compute(HPC) Thermal Configuration=Maximum Cooling Determinism Control=Manual Performance Determinism=Power Deterministic Memory Patrol Scrubbing=Disabled Numa Memory Domains Per Socket(NPS)=Two Memory Domains Per Socket Last-Level Cache(LLC) As NUMA Node=Disabled L1 Stream HW Prefetcher=Disabled L2 Stream HW Prefetcher=Disabled Minimum Processor Idle Power Core C-State=No C-states
Notes	None

OS Image os_Image_2
JVM Instances	jvm_Ctr_1(1), jvm_TxInjector_1(8)
OS Image Description	os_2
Tuning	ulimit -n 1024000 tuned-adm profile throughput-performance echo 950000 > /proc/sys/kernel/sched_rt_runtime_us echo 100000000 > /proc/sys/kernel/sched_latency_ns echo 80000 > /proc/sys/kernel/sched_migration_cost_ns echo 600000 > /proc/sys/kernel/sched_min_granularity_ns echo 100000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/vm/numa_stat echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/enabled echo always > /sys/kernel/mm/transparent_hugepage/defrag
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_2
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning	Used numactl to interleave memory on all CPUs numactl --interleave=all
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_2
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning	Used numactl to affinitize 4 Transaction Injector JVMs to a NUMA node numactl --cpunodebind=0 --localalloc numactl --cpunodebind=0 --localalloc numactl --cpunodebind=0 --localalloc numactl --cpunodebind=0 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=1 --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	364468	369201	373935	378668	383401

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	296307	343168	357368	366834	366834	345033

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	- / 4733	- / 4733	- / 4733	- / 4733	- / 4733	- / 4733
1000us	227201 / 33133	9467 / 14200	- / 4733	- / 4733	- / 4733	- / 4733
5000us	369201 / -	369201 / -	317134 / 52067	260334 / 52067	42600 / 37867	- / 4733
10000us	369201 / -	369201 / -	369201 / -	369201 / -	307668 / 288734	- / 4733
25000us	369201 / -	369201 / -	369201 / -	369201 / -	340801 / 345535	47333 / 4733
50000us	369201 / -	369201 / -	369201 / -	369201 / -	359735 / 355001	47333 / 4733
75000us	369201 / -	369201 / -	369201 / -	369201 / -	364468 / 369201	132534 / 4733
100000us	369201 / -	369201 / -	369201 / -	369201 / -	364468 / 369201	208267 / 4733
200000us	369201 / -	369201 / -	369201 / -	369201 / -	369201 / -	350268 / 326601
500000us	369201 / -	369201 / -	369201 / -	369201 / -	369201 / -	369201 / -
1000000us	369201 / -	369201 / -	369201 / -	369201 / -	369201 / -	369201 / -

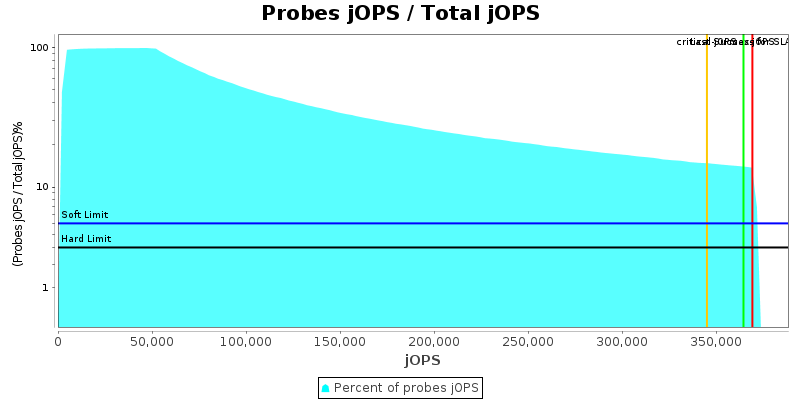

Number of probes

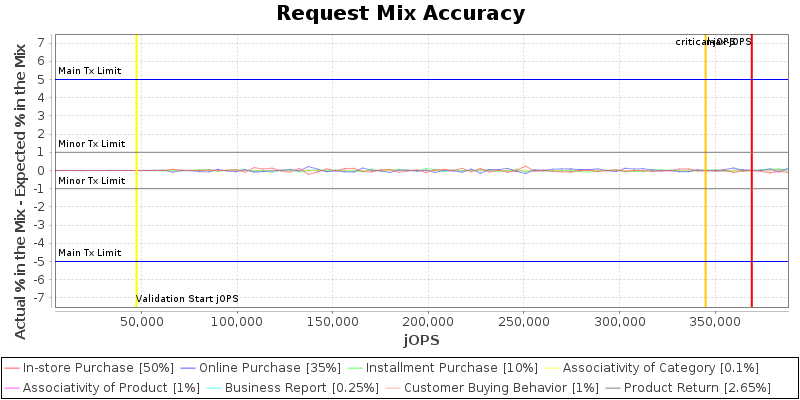

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

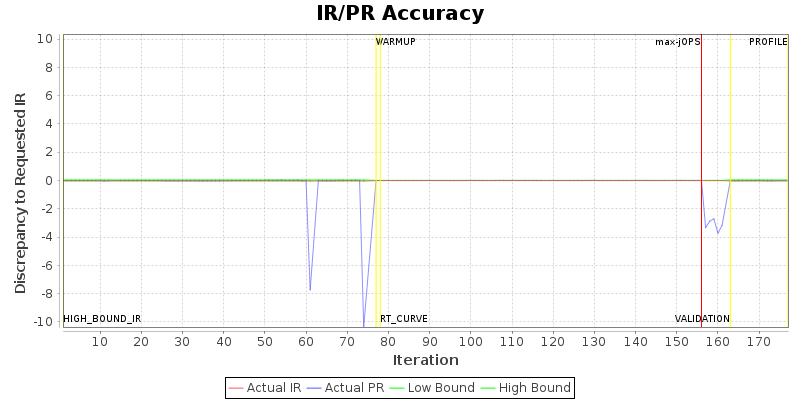

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1	Group5.Backend.beJVM	Group5.TxInjector.txiJVM1	Group6.Backend.beJVM	Group6.TxInjector.txiJVM1	Group7.Backend.beJVM	Group7.TxInjector.txiJVM1	Group8.Backend.beJVM	Group8.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	256	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150
specjbb.comm.connect.selector.runner.count	0	16	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8
specjbb.comm.connect.timeouts.connect	60000	900000
specjbb.comm.connect.timeouts.read	60000	800000
specjbb.comm.connect.timeouts.write	60000	800000
specjbb.comm.connect.worker.pool.max	256	256	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150
specjbb.comm.connect.worker.pool.min	1	1	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4
specjbb.controller.host	localhost	10.115.54.124
specjbb.forkjoin.workers	128	{Tier1=124, Tier2=1, Tier3=8}
specjbb.group.count	1	8
specjbb.heartbeat.period	10000	400000
specjbb.heartbeat.threshold	100000	4000000
specjbb.mapreducer.pool.size	128	64
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 473335 IR

High-bound (settled) is 394579 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Hewlett Packard Enterprise ProLiant DL385 Gen10 Plus v2	369201 SPECjbb2015-Distributed max-jOPS 345033 SPECjbb2015-Distributed critical-jOPS
Tested by: Hewlett Packard Enterprise	Test Sponsor: Hewlett Packard Enterprise	Test location: Houston, TX	Test date: Feb 23, 2022
SPEC license #: 3	Hardware Availability: Mar-2022	Software Availability: Jan-2022	Publication: Mon Mar 21 09:14:17 EDT 2022
