SPECjbb2015
Copyright © 2015-2022 Standard Performance Evaluation Corporation
Hewlett Packard Enterprise ProLiant DL325 Gen10 Plus v2 223097 SPECjbb2015-Composite max-jOPS
196428 SPECjbb2015-Composite critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Houston, TX Test date: Feb 14, 2022
SPEC license #: 3 Hardware Availability: Mar-2022 Software Availability: Jan-2022 Publication: Mon Mar 21 09:14:17 EDT 2022
Benchmark Results Summary

SPECjbb2015-Composite: Single JVM/Single Host
(# of groups: 2)

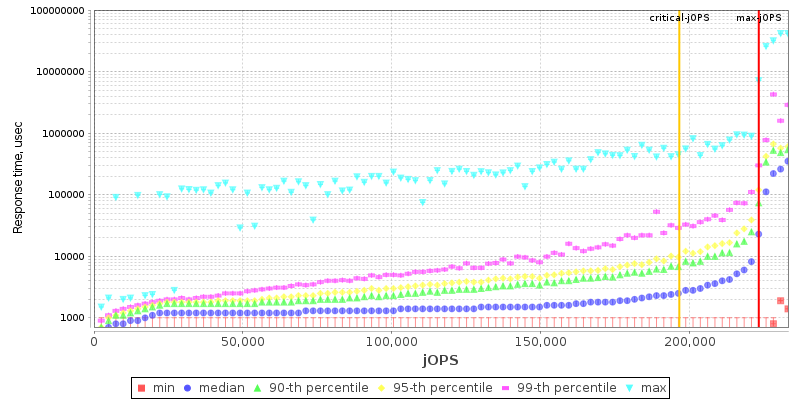

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://www.hpe.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores64
Total Threads128
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameProLiant DL325 Gen10 Plus v2
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableMar-2022
ModelProLiant DL325 Gen10 Plus v2
Form Factor1U Rack
CPU NameAMD EPYC 7773X
CPU Characteristics64 Core, 2.2 GHz, 768 MB L3 Cache(Max. Boost Clock Up to 3.5 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System64
Cores Per Chip64
Threads Per System128
Threads Per Core2
VersionA43 v2.56 02/10/2022
CPU Frequency (MHz)2200
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache512 KB I+D on chip per core
Tertiary Cache768 MB (I+D) on chip per chip
Other CacheNone
Disk2 x 480 GB SSD SATA
File SystemXFS
Memory Amount (GB)1024
# and size of DIMM(s)8 x 128 GB
Memory Details128 GB 4Rx4 PC4-3200AA-L
# and type of Network Interface Cards (NICs)HPE Ethernet 10Gb 2-port
Power Supply Quantity and Rating (W)2 x 800
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP2
VendorSUSE
Vendor URLhttp://suse.com/
Version5.3.18.22-default
AvailableJul-2020
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.2
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 17.0.2
AvailableJan-2022
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • Workload Profile=High Performance Compute(HPC)
  • Thermal Configuration=Maximum Cooling
  • Determinism Control=Manual
  • Performance Determinism=Power Deterministic
  • Memory Patrol Scrubbing=Disabled
  • Numa Memory Domains Per Socket(NPS)=Two Memory Domains Per Socket
  • Last-Level Cache(LLC) As NUMA Node=Disabled
  • L1 Stream HW Prefetcher=Disabled
  • L2 Stream HW Prefetcher=Disabled
  • Minimum Processor Idle Power Core C-State=No-States
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • ulimit -n 1024000
  • tuned-adm profile throughput-performance
  • echo 400000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 40000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 40000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 128 > /proc/sys/kernel/sched_nr_migrate
  • echo 950000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 400000 > /proc/sys/kernel/sched_latency_ns
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 1 > /proc/sys/kernel/numa_balancing
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line

-Xms490g -Xmx490g -Xmn485g -server -XX:+UseParallelGC -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:MaxTenuringThreshold=5 -XX:+ScavengeBeforeFullGC -XX:-UseAdaptiveSizePolicy -XX:ParallelGCThreads=128 -XX:SurvivorRatio=180 -XX:TargetSurvivorRatio=95 -XX:+UseNUMA -XX:-UseNUMAInterleaving -XX:+UseTransparentHugePages
Tuning

Used numactl to bind the JVM to all NUMA nodes available on the SUT

  • numactl --cpunodebind=0-1 --interleave=0-1
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 220646 223097 225549 228001 230452
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 153226 190000 208632 219420 219420 196428
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 14710 / 17161 2452 / 4903 - / 2452 - / 2452 - / 2452 - / 2452
1000us 193678 / 196130 17161 / 19613 4903 / 7355 4903 / 7355 2452 / 4903 - / 2452
5000us 220646 / 223097 213291 / 215743 176517 / 178968 154452 / 156904 102968 / 105420 26968 / 7355
10000us 223097 / - 220646 / 223097 208388 / 210839 196130 / 193678 152000 / 154452 26968 / 7355
25000us 223097 / - 223097 / - 220646 / 223097 215743 / 218194 191226 / 188775 26968 / 7355
50000us 223097 / - 223097 / - 220646 / 223097 220646 / 223097 210839 / 188775 73549 / 7355
75000us 223097 / - 223097 / - 223097 / - 220646 / 223097 218194 / 220646 110323 / 7355
100000us 223097 / - 223097 / - 223097 / - 220646 / 223097 218194 / 220646 110323 / 22065
200000us 223097 / - 223097 / - 223097 / - 223097 / - 220646 / 223097 144646 / 100516
500000us 223097 / - 223097 / - 223097 / - 223097 / - 223097 / - 203484 / 178968
1000000us 223097 / - 223097 / - 223097 / - 223097 / - 223097 / - 220646 / 223097

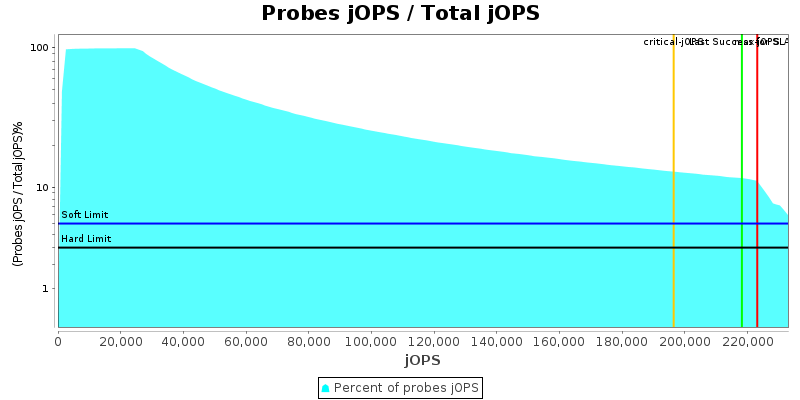

Number of probes
Probes jOPS / Total jOPS

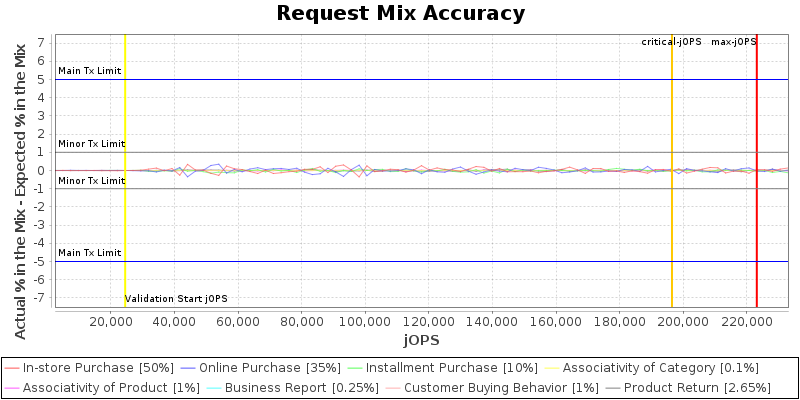

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

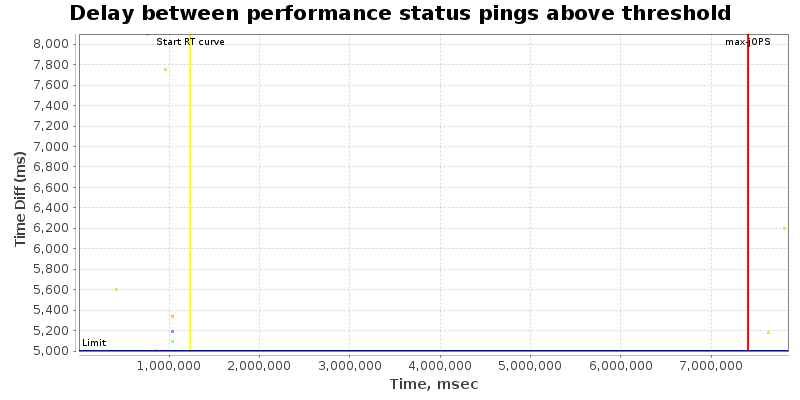

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

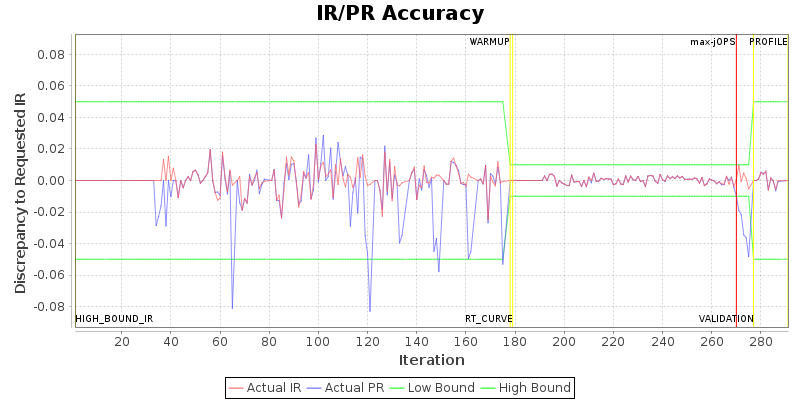

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 32
specjbb.comm.connect.timeouts.connect 60000 800000
specjbb.comm.connect.timeouts.read 60000 800000
specjbb.comm.connect.timeouts.write 60000 800000
specjbb.customerDriver.threads 64 {probe=128, saturate=96}
specjbb.forkjoin.workers 128 {Tier1=70, Tier2=1, Tier3=20}
specjbb.group.count 1 2
specjbb.mapreducer.pool.size 128 8
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 245162 IR
High-bound (settled) is 237504 IR
