SPECjbb2015 Report for jbb2015-20220222-00729 : 188939 max-jOPS ; 166587 critical-jOPS

SUT Description

Hardware hw_1
Name	A+ SuperBlade Server System SBS-820H-4114S (SBA-4114S-T2N)
Vendor	Super Micro Computer, Inc
Vendor URL	https://www.supermicro.com
Available	Mar-2022
Model	BH12SSi-M25
Form Factor	8U
CPU Name	AMD EPYC 7773X
CPU Characteristics	64 core, 2.2GHz, 768MB L3 Cache (Max. Boost Clock up to 3.5GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	1
Cores Per System	64
Cores Per Chip	64
Threads Per System	128
Threads Per Core	2
Version	2.3a 01/27/2022
CPU Frequency (MHz)	2200
Primary Cache	32 KB I + 32 KB D per core
Secondary Cache	512 KB I+D per core
Tertiary Cache	768 MB (I+D) on chip per chip
Other Cache	None
Disk	20 x 2TB M.2 PCIe Gen3.1
File System	btrfs
Memory Amount (GB)	512
# and size of DIMM(s)	8 x 64GB
Memory Details	64GB 2Rx4 PC4-3200AA
# and type of Network Interface Cards (NICs)	Onboard 1x25GbE dual-port NIC
Power Supply Quantity and Rating (W)	8 x 2200W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP3
Vendor	SUSE
Vendor URL	http://suse.com/
Version	5.3.18-57-default
Available	June-2021
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 17.0.2
Vendor	Oracle
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-bit Server VM, version 17.0.2
Available	Jan-2022
Bitness	64
Notes	note
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Driver Description

Hardware hw_2
Name	A+ Server 2124US-TNRP
Vendor	Super Micro Computer, Inc
Vendor URL	https://www.supermicro.com
Available	Mar-2021
Model	H12DSU-iN
Form Factor	2U
CPU Name	AMD EPYC 7713
CPU Characteristics	64 Core, 2.0 GHz, 256 MB L3 cache (Max. Boost Clock up to 3.7 GHz)
Number of Systems	2
Nodes Per System	1
Chips Per System	2
Cores Per System	128
Cores Per Chip	64
Threads Per System	256
Threads Per Core	2
Version	2.1 05/07/2021
CPU Frequency (MHz)	2000
Primary Cache	32KB(I)+32KB(D) per core
Secondary Cache	512KB (I+D) per core
Tertiary Cache	256MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 3.8 TB NVMe PCIe Gen4.0
File System	btrfs
Memory Amount (GB)	1024
# and size of DIMM(s)	16 x 64GB
Memory Details	64GB 2RX4 PC4-3200AA
# and type of Network Interface Cards (NICs)	2 x 100GbE NIC
Power Supply Quantity and Rating (W)	2 x 1600W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_2
Name	SUSE Linux Enterprise Server 15 SP3
Vendor	SUSE
Vendor URL	http://suse.com/
Version	5.3.18-57-default
Available	June-2021
Bitness	64
Notes	None
Java Virtual Machine jvm_2
Name	Oracle Java SE 17.0.2
Vendor	Oracle
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-bit Server VM, version 17.0.2
Available	Jan-2022
Bitness	64
Notes	note
Other Software other_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Backend_1 : Backend
Driver
- Hardware config_2
  - OS Image os_Image_2
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Settings: NUMA nodes per socket = NPS1 Determinism Control = Manual Determinism Slider = Power L1 Stream HW Prefetcher = Disable L2 Stream HW Prefetcher = Disable EDC Control = Manual EDC = 300 EDC Platform Limit = 300
Notes	notes

OS Image os_Image_1
JVM Instances	jvm_Backend_1(4)
OS Image Description	os_1
Tuning	cpupower -c all frequency-set -g performance tuned-adm profile throughput-performance echo 950000 > /proc/sys/kernel/sched_rt_runtime_us echo 100000000 > /proc/sys/kernel/sched_latency_ns echo 80000 > /proc/sys/kernel/sched_migration_cost_ns echo 600000 > /proc/sys/kernel/sched_min_granularity_ns echo 100000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo 0 > /proc/sys/vm/numa_stat echo always > /sys/kernel/mm/transparent_hugepage/enabled echo always > /sys/kernel/mm/transparent_hugepage/defrag ulimit -n 1024000 UserTasksMax=970000 DefaultTasksMax=970000
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms122g -Xmx122g -Xmn119g -server -XX:MetaspaceSize=256m -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:+UseParallelGC -XX:SurvivorRatio=90 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=32 -XX:MaxTenuringThreshold=15 -XX:InitialCodeCacheSize=25m -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=200 -XX:+UseCompressedOops -XX:ObjectAlignmentInBytes=32 -XX:+UseTransparentHugePages -XX:CompileThresholdScaling=15
Tuning	None
Notes	Used numactl to affinitize each Backend JVM to 16 Core / 32 Threads in BH12SSi-M25 SuT Group1:numactl --physcpubind=0-15,64-79 --localalloc Group2:numactl --physcpubind=16-31,80-95 --localalloc Group3:numactl --physcpubind=32-47,96-111 --localalloc Group4:numactl --physcpubind=48-63,112-127 --localalloc

Driver config_2 Configuration

Hardware
OS Images	os_Image_2(1)
Hardware Description	hw_2
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Settings: NUMA nodes per socket = NPS2 Determinism Control = Manual Determinism Slider = Power L1 Stream HW Prefetcher = Disable L2 Stream HW Prefetcher = Disable
Notes	notes

OS Image os_Image_2
JVM Instances	jvm_Ctr_1(1), jvm_TxInjector_1(4)
OS Image Description	os_2
Tuning	cpupower -c all frequency-set -g performance tuned-adm profile throughput-performance echo 950000 > /proc/sys/kernel/sched_rt_runtime_us echo 100000000 > /proc/sys/kernel/sched_latency_ns echo 80000 > /proc/sys/kernel/sched_migration_cost_ns echo 600000 > /proc/sys/kernel/sched_min_granularity_ns echo 100000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo 0 > /proc/sys/vm/numa_stat echo always > /sys/kernel/mm/transparent_hugepage/enabled echo always > /sys/kernel/mm/transparent_hugepage/defrag ulimit -n 1024000 UserTasksMax=970000 DefaultTasksMax=970000
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_2
Command Line	-Xms10g -Xmx10g -Xmn8g -XX:+UseParallelGC -XX:CICompilerCount=4 -XX:ParallelGCThreads=4
Tuning	None
Notes	Used numactl to interleave memory on all Nodes in Driver system numactl --interleave=all
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:CICompilerCount=2 -XX:ParallelGCThreads=2
Tuning	None
Notes	Used numactl to affinitize 1 Transaction Injector JVM to one NUMA node in Driver system Group1:numactl --cpunodebind=0 --membind=0 Group2:numactl --cpunodebind=1 --membind=1 Group3:numactl --cpunodebind=2 --membind=2 Group4:numactl --cpunodebind=3 --membind=3

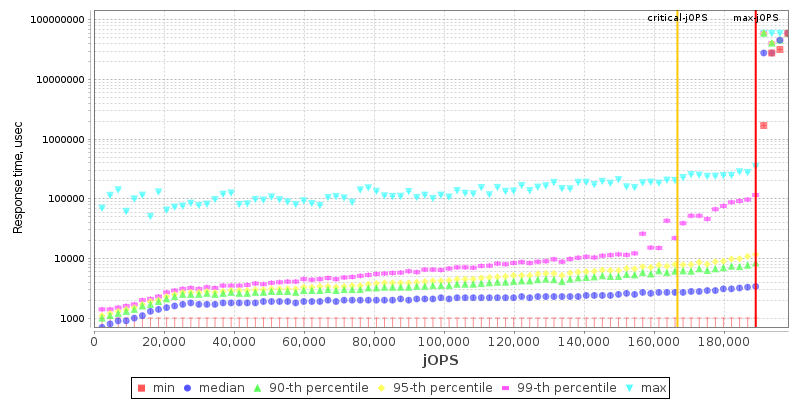

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	186635	188939	191243	193547	195851

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	137096	162210	172042	178570	187787	166587

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	- / 2304	- / 2304	- / 2304	- / 2304	- / 2304	- / 2304
1000us	135944 / 129031	11521 / 13825	2304 / 4608	- / 2304	- / 2304	- / 2304
5000us	188939 / -	188939 / -	149768 / 145160	117511 / 119815	73732 / 76036	- / 2304
10000us	188939 / -	188939 / -	188939 / -	184330 / 186635	135944 / 138248	- / 2304
25000us	188939 / -	188939 / -	188939 / -	188939 / -	165897 / 156681	- / 2304
50000us	188939 / -	188939 / -	188939 / -	188939 / -	175114 / 170506	- / 2304
75000us	188939 / -	188939 / -	188939 / -	188939 / -	177418 / 179722	23041 / 4608
100000us	188939 / -	188939 / -	188939 / -	188939 / -	186635 / 188939	73732 / 4608
200000us	188939 / -	188939 / -	188939 / -	188939 / -	188939 / -	161289 / 149768
500000us	188939 / -	188939 / -	188939 / -	188939 / -	188939 / -	188939 / -
1000000us	188939 / -	188939 / -	188939 / -	188939 / -	188939 / -	188939 / -

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

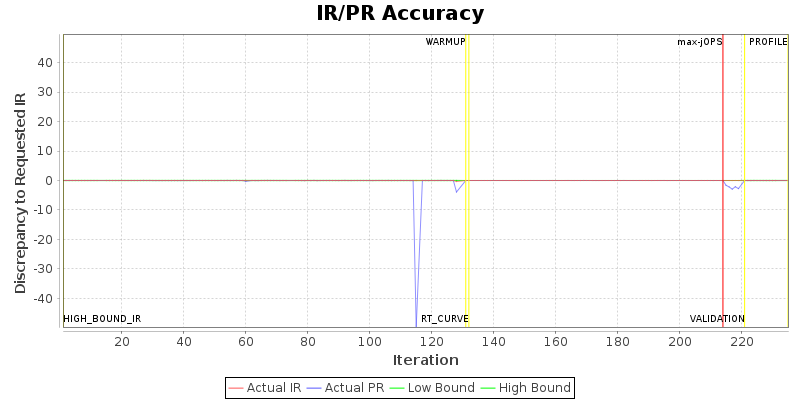

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	256	150	150	150	150	150	150	150	150
specjbb.comm.connect.selector.runner.count	0	16		1		1		1		1
specjbb.comm.connect.timeouts.connect	60000	60000	900000	900000	900000	900000	900000	900000	900000	900000
specjbb.comm.connect.timeouts.read	60000	60000	800000	800000	800000	800000	800000	800000	800000	800000
specjbb.comm.connect.timeouts.write	60000	60000	800000	800000	800000	800000	800000	800000	800000	800000
specjbb.comm.connect.worker.pool.max	256	256	150	150	150	150	150	150	150	150
specjbb.comm.connect.worker.pool.min	1	1	4	4	4	4	4	4	4	4
specjbb.controller.handshake.period	5000	20000
specjbb.controller.handshake.timeout	600000	900000
specjbb.controller.host	localhost	172.24.118.226
specjbb.forkjoin.workers	128	{Tier1=124, Tier2=1, Tier3=8}
specjbb.group.count	1	4
specjbb.heartbeat.period	10000	2000
specjbb.heartbeat.threshold	100000	9000000
specjbb.mapreducer.pool.size	128	64
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 230413 IR

High-bound (settled) is 219423 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Super Micro Computer, Inc A+ SuperBlade Server System SBS-820H-4114S (SBA-4114S-T2N)	188939 SPECjbb2015-Distributed max-jOPS 166587 SPECjbb2015-Distributed critical-jOPS
Tested by: Super Micro Computer, Inc	Test Sponsor: Super Micro Computer, Inc	Test location: San Jose, California	Test date: February 18, 2022
SPEC license #: 001176	Hardware Availability: Mar-2022	Software Availability: Jan-2022	Publication: Mon Mar 21 09:10:57 EDT 2022
