SPECjbb2015 Report for jbb2015-20210630-00684 : 171642 max-jOPS ; 87175 critical-jOPS

SUT Description

Hardware hw_1
Name	Inspur NF5484M6
Vendor	Inspur Corporation
Vendor URL	http://www.inspur.com/
Available	Apr-2021
Model	Inspur NF5484M6
Form Factor	Blade Node in Chassis
CPU Name	Intel Xeon Gold 6330N
CPU Characteristics	28 Core, 2.2 GHz, 42 MB L3 Cache (Turbo Boost Technology up to 3.4 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	56
Cores Per Chip	28
Threads Per System	112
Threads Per Core	2
Version	5.00.02 released Jun-2021
CPU Frequency (MHz)	2200
Primary Cache	32 KB(I)+48 KB(D)on chip per core
Secondary Cache	1.25MB (I+D) per core
Tertiary Cache	42MB (I+D) on chip per chip
Other Cache	None
Disk	1x 1TB NVMe SSD
File System	xfs
Memory Amount (GB)	512
# and size of DIMM(s)	16 x 32GB
Memory Details	16 x 32GB 2Rx4 PC4-3200AA-R; each slot populated; running at 2666MHz
# and type of Network Interface Cards (NICs)	1 x 10 Gbit NIC
Power Supply Quantity and Rating (W)	4 x 1600W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Red Hat Enterprise Linux release 8.2 (Ootpa)
Vendor	Red Hat
Vendor URL	http://redhat.com/
Version	4.18.0-193.el8.x86_64
Available	Apr-2020
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 16.0.1
Vendor	Oracle
Vendor URL	http://www.oracle.com
Version	Java HotSpot 64-bit Server VM, version 16.0.1
Available	Apr-2021
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Tuning Energy Performance set to Performance SNC Enabled Memory Patrol Scrub Disabled
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description	os_1
Tuning	ulimit -n 655360 tuned-adm profile throughput-performance echo 15000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 80000000 > /proc/sys/kernel/sched_min_granularity_ns echo 1000 > /proc/sys/kernel/sched_migration_cost_ns echo 16 > /proc/sys/kernel/sched_nr_migrate echo 950000 > /proc/sys/kernel/sched_rt_runtime_us echo 10000000 > /proc/sys/kernel/sched_latency_ns echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xmn1536m -Xms2g -Xmx2g
Tuning	None
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-server -Xmx30g -Xms30g -Xmn27g -XX:+UseParallelGC -XX:ParallelGCThreads=28 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+AlwaysPreTouch -XX:InlineSmallCode=10k -XX:+UseRTMLocking -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:LoopUnrollLimit=20 -XX:MaxTenuringThreshold=15 -XX:TargetSurvivorRatio=95 -XX:+UseRTMDeopt -XX:AllocatePrefetchInstr=2 -XX:UseAVX=0
Tuning	numactl used to affinitize each Backend JVM to each NUMA node, eg: numactl --cpunodebind=0 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=3 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xmn1536m -Xms2g -Xmx2g
Tuning	numactl used to affinitize each TxInjector JVM to each NUMA node, eg: numactl --cpunodebind=0 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=3 --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	169669	171642	173615	175588	177561

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	60173	73983	89766	105550	119360	87175

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	1973 / 3946	- / 1973	- / 1973	- / 1973	- / 1973	- / 1973
1000us	41431 / 43404	7892 / 9864	3946 / 5919	3946 / 5919	1973 / 3946	- / 1973
5000us	151913 / 153886	138103 / 140076	98645 / 100618	57214 / 59187	33539 / 35512	- / 1973
10000us	153886 / 155859	144022 / 145995	116401 / 118374	98645 / 100618	59187 / 61160	1973 / 3946
25000us	155859 / 157832	147967 / 149940	134157 / 136130	124293 / 122320	72997 / 74970	3946 / 5919
50000us	157832 / 159805	151913 / 153886	138103 / 140076	128238 / 130211	88780 / 90753	3946 / 5919
75000us	157832 / 159805	151913 / 153886	142049 / 144022	132184 / 134157	106537 / 104564	27621 / 5919
100000us	157832 / 159805	153886 / 155859	144022 / 145995	136130 / 138103	118374 / 120347	65106 / 5919
200000us	163751 / 165724	157832 / 159805	151913 / 153886	147967 / 149940	144022 / 145995	118374 / 100618
500000us	169669 / 171642	163751 / 165724	159805 / 161778	157832 / 159805	155859 / 157832	147967 / 149940
1000000us	171642 / -	169669 / 171642	165724 / 167696	165724 / 167696	163751 / 165724	157832 / 159805

Number of probes

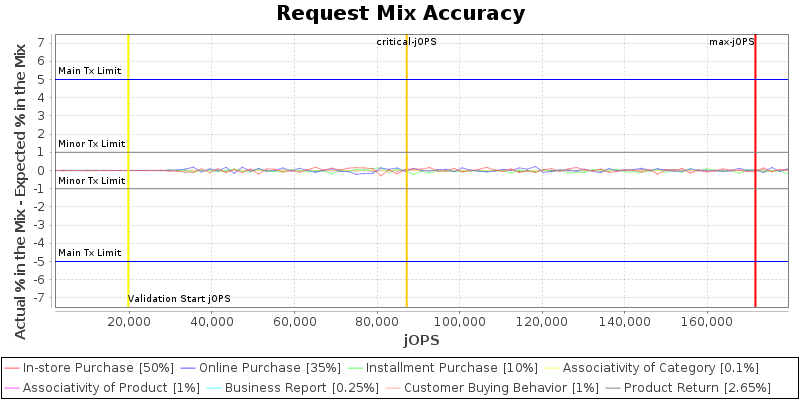

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

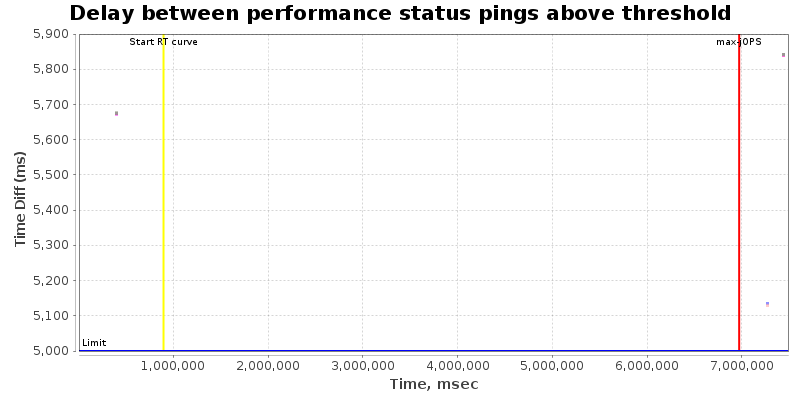

Delay between performance status pings during RT Curve (Response-Throughput Curve)

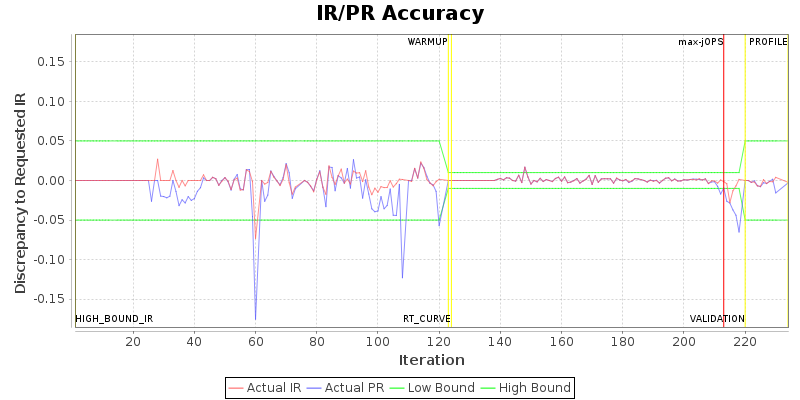

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.client.pool.size	256	224
specjbb.comm.connect.selector.runner.count	0	4
specjbb.comm.connect.worker.pool.max	256	112
specjbb.comm.connect.worker.pool.min	1	64
specjbb.forkjoin.workers	112	{Tier1=180, Tier2=56, Tier3=28}
specjbb.group.count	1	4
specjbb.mapreducer.pool.size	112	4
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 197290 IR

High-bound (settled) is 179810 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Inspur Corporation NF5484M6	171642 SPECjbb2015-MultiJVM max-jOPS 87175 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Inspur Corporation	Test Sponsor: Inspur Corporation	Test location: Jinan, China	Test date: Jun 22, 2021
SPEC license #: 3358	Hardware Availability: Apr-2021	Software Availability: Apr-2021	Publication: Thu Jul 15 13:09:44 EDT 2021

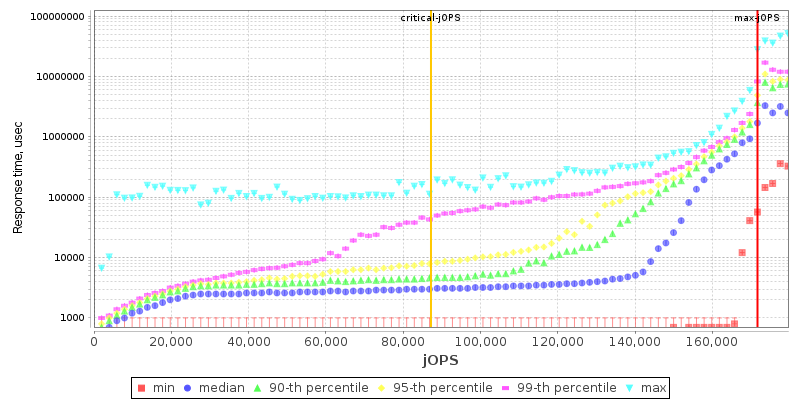

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host (# of groups: 4) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
