SPECjbb2015
Copyright © 2015-2021 Standard Performance Evaluation Corporation
Cisco Systems Cisco UCS C245 M6 330326 SPECjbb2015-Composite max-jOPS
293968 SPECjbb2015-Composite critical-jOPS
Tested by: Cisco Systems Test Sponsor: Cisco Systems Test location: San Jose, CA Test date: June 2, 2021
SPEC license #: 9019 Hardware Availability: June-2021 Software Availability: April-2021 Publication: Fri Jul 2 12:59:05 EDT 2021
Benchmark Results Summary

SPECjbb2015-Composite: Single JVM/Single Host
(# of groups: 2)

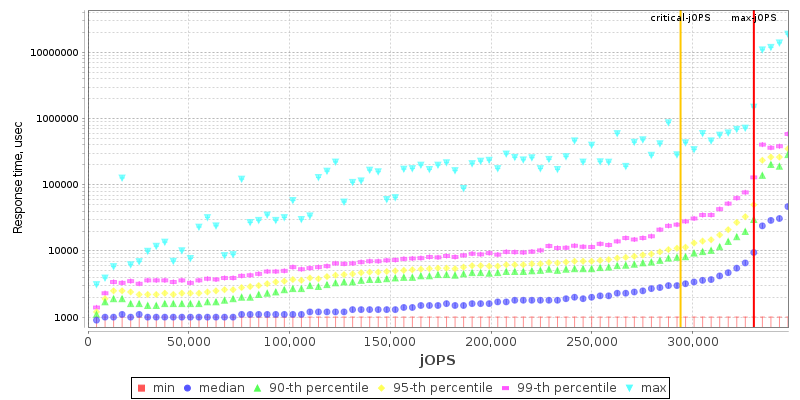

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorCisco Systems
Vendor URLhttps://www.cisco.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores128
Total Threads256
Total Memory Amount (GB)2048
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameCisco UCS C245 M6
VendorCisco Systems
Vendor URLhttp://www.cisco.com/
AvailableJune-2021
ModelCisco UCS C245 M6
Form Factor2U Rack
CPU NameAMD EPYC 7763
CPU Characteristics64-Core, 2.45GHz, 256MB L3 Cache (Max Boost Clock up to 3.5 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System128
Cores Per Chip64
Threads Per System256
Threads Per Core2
VersionC245M6.4.2.200.3.0518212014
CPU Frequency (MHz)2450
Primary Cache32 KB I+32 KB D per core
Secondary Cache512 KB I+D per core
Tertiary Cache256 MB I+D per chip
Other CacheNone
Disk1 x 960 GB M.2 SSD SATA
File SystemXFS
Memory Amount (GB)2048
# and size of DIMM(s)16 x 128 GB 4Rx4
Memory Details128 GB 4Rx4 PC4-3200V-L
# and type of Network Interface Cards (NICs)2x 10 Gbit NIC
Power Supply Quantity and Rating (W)2 x 2300W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
Bitnessn/a
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP2
VendorSUSE
Vendor URLhttp://suse.com/
Version5.3.18-22-default
AvailableJuly-2020
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 16.0.1
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-Bit Server VM,version 16.0.1
AvailableApril-2021
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
Bitness64
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning
  • L1 Stream HW Prefetcher: Disable
  • L2 Stream HW Prefetcher: Disable
  • Global C-state Control: Enabled
  • Enhanced REP MOVSB/STOSB: Disabled
  • Fast Short REP MOVSB: Disabled
  • NUMA Nodes per socket: NPS2
  • ACPI SRAT L3 Cache As NUMA Domain: Disabled
  • 4 Link xGMI max speed: 18Gbps
  • Determinism Control: Manual
  • Determinism Slider: Power
  • EDC Control: Manual
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(2)
OS Image Description os_1
Tuning
  • echo 400000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 40000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 40000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 128 > /proc/sys/kernel/sched_nr_migrate
  • echo 950000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 400000 > /proc/sys/kernel/sched_latency_ns
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/vm/numa_stat
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag>
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -Xms975g -Xmx975g -Xmn965g -server -XX:+UseParallelGC -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:MaxTenuringThreshold=5 -XX:-UseAdaptiveSizePolicy -XX:ParallelGCThreads=192 -XX:SurvivorRatio=180 -XX:TargetSurvivorRatio=95 -XX:+UseNUMA -XX:+UseTransparentHugePages -XX:-UseFastStosb -XX:+UseUnalignedLoadStores -XX:+UseXMMForArrayCopy -XX:+UseXMMForObjInit -XX:+UseFPUForSpilling
Tuning Used numactl to run on all available nodes
  • numactl --cpunodebind=0-3 --interleave=0-3
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 326091 330326 334561 338796 343031
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 222334 294329 315503 323973 328208 293968
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 4235 - / 4235 - / 4235 - / 4235 - / 4235 - / 4235
1000us 275272 / 262567 71994 / 16940 - / 4235 - / 4235 - / 4235 - / 4235
5000us 330326 / - 317621 / 321856 220217 / 224452 152458 / 156693 97404 / 101639 8470 / 12705
10000us 330326 / - 330326 / - 304916 / 309151 283742 / 287977 220217 / 224452 71994 / 16940
25000us 330326 / - 330326 / - 326091 / 330326 317621 / 321856 292212 / 296446 71994 / 16940
50000us 330326 / - 330326 / - 330326 / - 330326 / - 313386 / 317621 110109 / 16940
75000us 330326 / - 330326 / - 330326 / - 330326 / - 321856 / 326091 152458 / 16940
100000us 330326 / - 330326 / - 330326 / - 330326 / - 326091 / 330326 186338 / 16940
200000us 330326 / - 330326 / - 330326 / - 330326 / - 330326 / - 266802 / 122814
500000us 330326 / - 330326 / - 330326 / - 330326 / - 330326 / - 309151 / 262567
1000000us 330326 / - 330326 / - 330326 / - 330326 / - 330326 / - 326091 / 330326
Number of probes
Probes jOPS / Total jOPS
Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

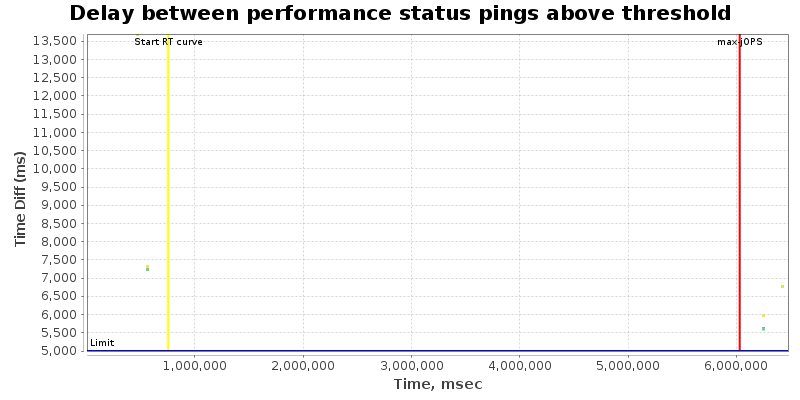

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 32
specjbb.forkjoin.workers 256 {Tier1=124, Tier2=1, Tier3=20}
specjbb.group.count 1 2
specjbb.mapreducer.pool.size 256 8
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 423495 IR
High-bound (settled) is 352946 IR
Copyright © 2015-2021 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]
