Supermicro SYS-620P-TRT Server 232382 SPECjbb2015-Composite max-jOPS
163586 SPECjbb2015-Composite critical-jOPS
Tested by: Supermicro Test Sponsor: Supermicro Test location: San Jose, California Test date: June 4, 2021
SPEC license #: 001176 Hardware Availability: Apr-2021 Software Availability: Apr-2021 Publication: Thu Jul 8 20:30:53 EDT 2021
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorSupermicro
Vendor URLhttps://www.supermicro.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores80
Total Threads160
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameSupermicro SYS-620P-TRT Server
VendorSupermicro
Vendor URLhttp://www.supermicro.com/
AvailableApril-2021
ModelX12DPI-NT6
Form Factor2U
CPU NameIntel(R) Xeon(R) Platinum 8380 CPU @ 2.30GHz
CPU Characteristics40core, 2.3GHz, 60MB L3 Cache (Turbo Boost Technology up to 3.4GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System80
Cores Per Chip40
Threads Per System160
Threads Per Core2
Version1.0b
CPU Frequency (MHz)2300
Primary Cache32KB(I)+48KB(D) per core
Secondary Cache1.25MB (I+D) per core
Tertiary Cache60MB (I+D) on chip per chip
Other CacheNone
Disk1 x 240GB SATA SSD
File SystemXFS
Memory Amount (GB)1024
# and size of DIMM(s)16 x 64GB
Memory Details64GB 2Rx4 DDR4 3200MHz RDIMM
# and type of Network Interface Cards (NICs)2 x 10 Gbit NICs
Power Supply Quantity and Rating (W)2 x 1200w
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux release 8.2 (Ootpa)
VendorRed Hat
Vendor URLhttp://redhat.com/
Version4.18.0-193
AvailableApr-2020
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 16.0.1
VendorOracle
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-bit Server VM, version 16.0.1
AvailableApr-2021
Bitness64
Notesnote
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning

BIOS Settings:

  • LLC prefetch = Disable
  • Power Technology = Custom
  • Hardware P-state = Out of Band Mode
  • SNC = Disable
  • XPT Prefetch = Disable
  • Stale AtoS = Disable
  • LLC dead line alloc = Enable
  • Partial Cache Line Sparing PCLS = Disable
  • ADDDC Sparing = Disable
  • Patrol Scrub = Disable

Notes notes
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning

  • ulimit -n 655350
  • tuned-adm profile throughput-performance
  • echo 15000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 80000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 16 > /proc/sys/kernel/sched_nr_migrate
  • echo 950000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 10000000 > /proc/sys/kernel/sched_latency_ns
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line

-Xms975g -Xmx975g -Xmn965g -server -XX:+UseParallelGC -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:MaxTenuringThreshold=5 -XX:-UseAdaptiveSizePolicy -XX:ParallelGCThreads=192 -XX:SurvivorRatio=180 -XX:TargetSurvivorRatio=95 -XX:+UseNUMA -XX:+UseTransparentHugePages -XX:-UseFastStosb -XX:+UseUnalignedLoadStores -XX:+UseXMMForArrayCopy -XX:+UseXMMForObjInit -XX:+UseFPUForSpilling

Tuning None
Notes

Used numactl to run on all available nodes

    max-jOPS = jOPS passed before the First Failure
    Pass/Fail Pass Pass Fail Fail Fail
    jOPS 229441 232382 235324 238266 241207
    critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
    Response time percentile is 99-th
    SLA (us) 10000 25000 50000 75000 100000 Geomean
    jOPS 127222 162520 175512 177964 181395 163586
      Percentile
      10-th 50-th 90-th 95-th 99-th 100-th
    500us - / 2942 - / 2942 - / 2942 - / 2942 - / 2942 - / 2942
    1000us 202967 / 5883 - / 2942 - / 2942 - / 2942 - / 2942 - / 2942
    5000us 217675 / 220616 194142 / 197084 76480 / 79422 61773 / 64714 35299 / 38240 5883 / 8825
    10000us 220616 / 223558 211792 / 214733 191201 / 194142 182376 / 185318 129428 / 120604 47065 / 20591
    25000us 223558 / 226499 214733 / 217675 202967 / 205908 197084 / 200025 164727 / 155902 61773 / 44123
    50000us 223558 / 226499 217675 / 220616 208850 / 205908 202967 / 200025 179435 / 173551 94130 / 50006
    75000us 226499 / 229441 217675 / 220616 211792 / 214733 202967 / 205908 179435 / 176493 117662 / 50006
    100000us 226499 / 229441 223558 / 220616 211792 / 214733 208850 / 211792 191201 / 176493 129428 / 50006
    200000us 226499 / 229441 223558 / 226499 217675 / 220616 214733 / 217675 197084 / 200025 158844 / 135311
    500000us 232382 / - 226499 / 229441 223558 / 226499 223558 / 226499 217675 / 220616 211792 / 202967
    1000000us 232382 / - 232382 / - 232382 / - 232382 / - 229441 / 232382 223558 / 220616

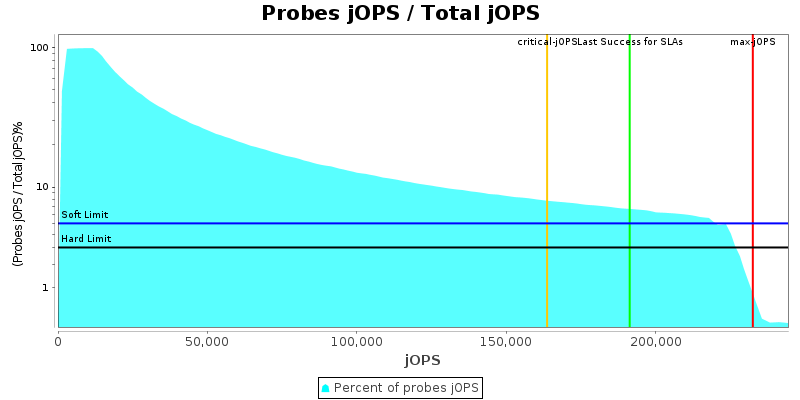

    Probes jOPS / Total jOPS

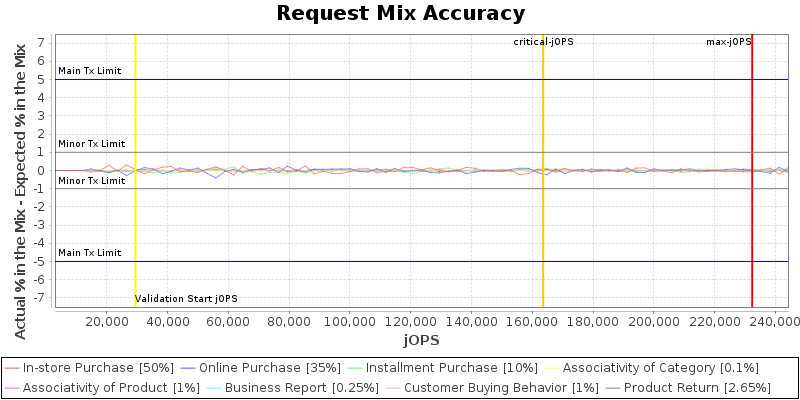

    Request Mix Accuracy
    Note
    (Actual % in the Mix - Expected % in the Mix) must be within:
    'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
    'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
    There were no non-critical failures in Response Time curve building
    Delay between status pings

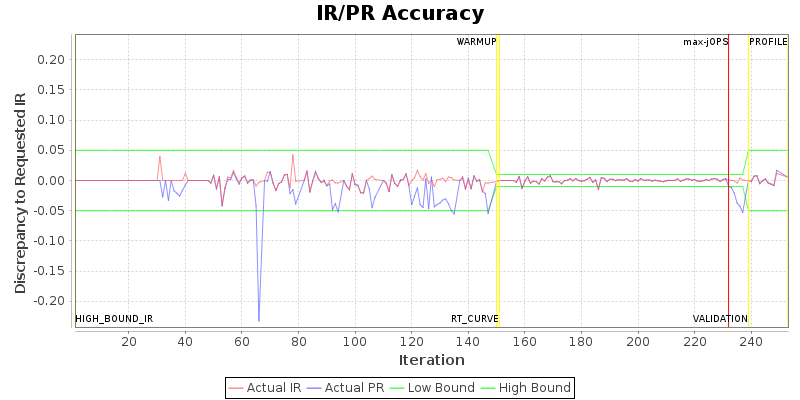

    IR/PR Accuracy
    This section lists properties only set by user
    Property Name Default Controller
    specjbb.comm.connect.client.pool.size 256 300
    specjbb.comm.connect.timeouts.connect 60000 600000
    specjbb.comm.connect.timeouts.read 60000 600000
    specjbb.comm.connect.timeouts.write 60000 600000
    specjbb.comm.connect.worker.pool.max 256 300
    specjbb.customerDriver.threads 64 {probe=64, saturate=192, service=64}
    specjbb.forkjoin.workers 160 {Tier1=200, Tier2=60, Tier3=30}
    specjbb.group.count 1 2
    specjbb.heartbeat.threshold 100000 800000
    View table in csv format

    Level: COMPLIANCE
    Check Agent Result
    Check properties on compliance All PASSED

    Level: CORRECTNESS
    Check Agent Result
    Compare SM and HQ Inventory All PASSED
    High-bound (max attempted) is 294155 IR
    High-bound (settled) is 247502 IR
