SPECjbb2015 Report for jbb2015-20210610-00677 : 272500 max-jOPS ; 140362 critical-jOPS

SUT Description

Hardware hw_1
Name	QuantaGrid D53XQ-2U
Vendor	Quanta Cloud Technology
Vendor URL	https://www.qct.io/
Available	Apr-2021
Model	QuantaGrid D53XQ-2U
Form Factor	2U
CPU Name	Intel Xeon Platinum 8380
CPU Characteristics	40 Core, 2.3 GHz, 60 MB L3 Cache (Turbo Boost Technology up to 3.4 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	80
Cores Per Chip	40
Threads Per System	160
Threads Per Core	2
Version	3A12 released May-2021
CPU Frequency (MHz)	2300
Primary Cache	32 KB I + 48 KB D on chip per core
Secondary Cache	1.25 MB I+D on chip per core
Tertiary Cache	60 MB I+D on chip per chip
Other Cache	None
Disk	1 x 1TB NVME M.2 SSD
File System	xfs
Memory Amount (GB)	1024
# and size of DIMM(s)	16 x 64GB
Memory Details	2Rx4 PC4-3200AA-R
# and type of Network Interface Cards (NICs)	1 x 1 GbE four ports OCP3.0 PCIE NIC
Power Supply Quantity and Rating (W)	2 x 1600W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Red Hat Enterprise Linux release 8.2 (Ootpa)
Vendor	RedHat
Vendor URL	http://redhat.com/
Version	4.18.0-193.el8.x86_64
Available	Apr-2020
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 16.0.1
Vendor	Oracle Corporation
Vendor URL	https://www.oracle.com/
Version	Java HotSpot 64-Bit Server VM,version 16.0.1
Available	Apr-2021
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Configuration: SNC (Sub NUMA) set to Disabled Hardware Prefetcher = Enabled Adjacent Cache Prefetch = Enabled DCU Streamer Prefetcher = Disabled DCU IP Prefetcher = Enabled Patrol Scrub set to Disabled Energy Performance Bias set to Performance
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description	os_1
Tuning	ulimit -n 131072 echo 10000 > /proc/sys/kernel/sched_cfs_bandwidth_slice_us echo 0 > /proc/sys/kernel/sched_child_runs_first echo 16000000 > /proc/sys/kernel/sched_latency_ns echo 1000 > /proc/sys/kernel/sched_migration_cost_ns echo 28000000 > /proc/sys/kernel/sched_min_granularity_ns echo 9 > /proc/sys/kernel/sched_nr_migrate echo 100 > /proc/sys/kernel/sched_rr_timeslice_ms echo 1000000 > /proc/sys/kernel/sched_rt_period_us echo 990000 > /proc/sys/kernel/sched_rt_runtime_us echo 0 > /proc/sys/kernel/sched_schedstats echo 1 > /proc/sys/kernel/sched_tunable_scaling echo 50000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 3000 > /proc/sys/vm/dirty_expire_centisecs echo 500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/dafrag echo always > /sys/kernel/mm/transparent_hugepage/enabled ulimit -v 800000000 ulimit -m 800000000 ulimit -l 800000000
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:UseAVX=0 -XX:+UseLargePages XX:LargePageSizeInBytes=2M -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	numactl used to interleave the controller amongst all available nodes, eg: numactl --interleave=all
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-showversion -XX:+UseParallelGC -XX:+UseLargePages -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=10k -verbose:gc -XX:UseAVX=0 -XX:-UseCountedLoopSafepoints -XX:LoopUnrollLimit=20 -XX:MaxGCPauseMillis=500 -XX:AdaptiveSizeMajorGCDecayTimeScale=12 -XX:AdaptiveSizeDecrementScaleFactor=2 -server -XX:TargetSurvivorRatio=95 -XX:LargePageSizeInBytes=2M -XX:AllocatePrefetchLines=3 -XX:AllocateInstancePrefetchLines=2 -XX:AllocatePrefetchStepSize=128 -XX:AllocatePrefetchDistance=384 -Xms31744m -Xmx31744m -Xmn29696m -XX:ParallelGCThreads=40 -XX:-PrintGCDetails
Tuning	numactl used to affinitize each Backend JVM to a single CPU memory node, eg: numactl --cpunodebind=$node --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:UseAVX=0 -XX:+UseLargePages XX:LargePageSizeInBytes=2M -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	Used numactl to affinitize two Transaction Injector JVM (2 Groups) to one NUMA node Group1: numactl --cpunodebind=0 --localalloc Group2: numactl --cpunodebind=0 --localalloc Group3: numactl --cpunodebind=1 --localalloc Group4: numactl --cpunodebind=1 --localalloc
Notes	None

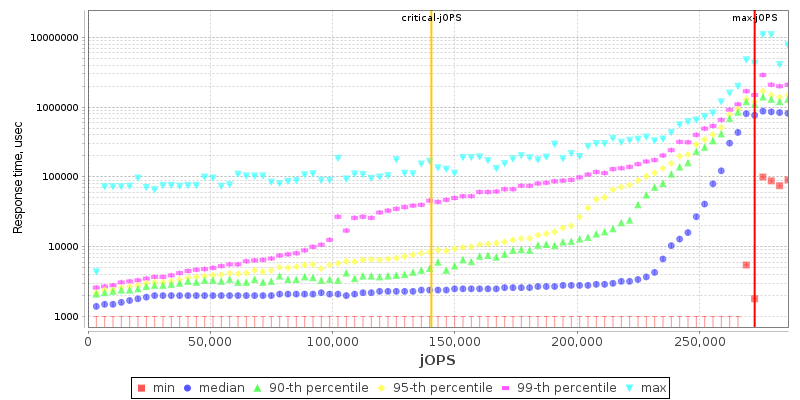

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	269094	272500	275906	279312	282719

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	93672	103890	151578	182234	202672	140362

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	- / 3406	- / 3406	- / 3406	- / 3406	- / 3406	- / 3406
1000us	132844 / 136250	- / 3406	- / 3406	- / 3406	- / 3406	- / 3406
5000us	255469 / 258875	231625 / 235031	146469 / 143062	95375 / 78344	51094 / 54500	3406 / 6812
10000us	258875 / 262281	235031 / 238437	180531 / 183937	156687 / 160094	91969 / 95375	3406 / 6812
25000us	258875 / 262281	245250 / 248656	221406 / 224812	197562 / 200969	105594 / 102187	3406 / 6812
50000us	262281 / 265687	252062 / 255469	224812 / 228219	207781 / 211187	149875 / 153281	3406 / 6812
75000us	262281 / 265687	252062 / 255469	231625 / 235031	218000 / 221406	180531 / 183937	54500 / 20437
100000us	265687 / 269094	255469 / 258875	235031 / 238437	224812 / 228219	200969 / 204375	119219 / 61312
200000us	265687 / 269094	258875 / 262281	245250 / 248656	241844 / 245250	231625 / 235031	200969 / 177125
500000us	272500 / -	265687 / 269094	258875 / 262281	255469 / 258875	252062 / 255469	238437 / 241844
1000000us	272500 / -	272500 / -	265687 / 269094	265687 / 269094	262281 / 265687	255469 / 258875

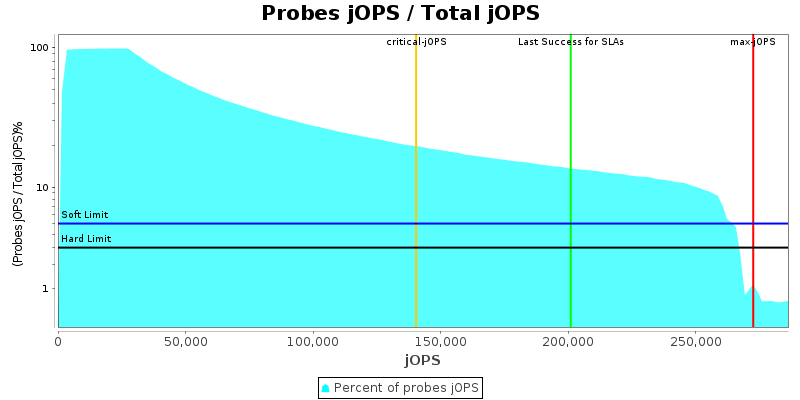

Number of probes

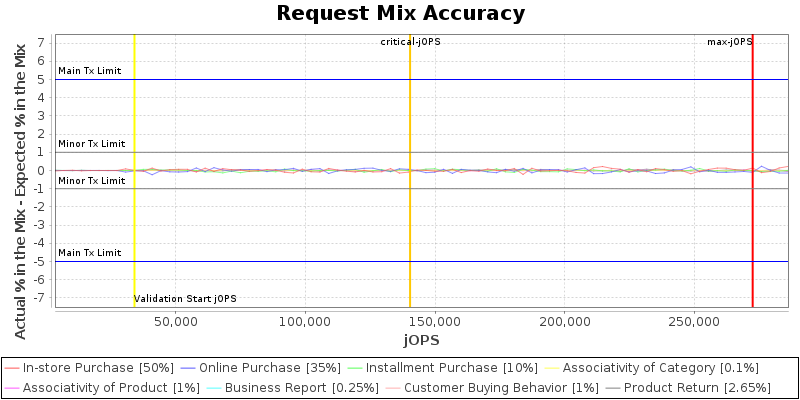

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

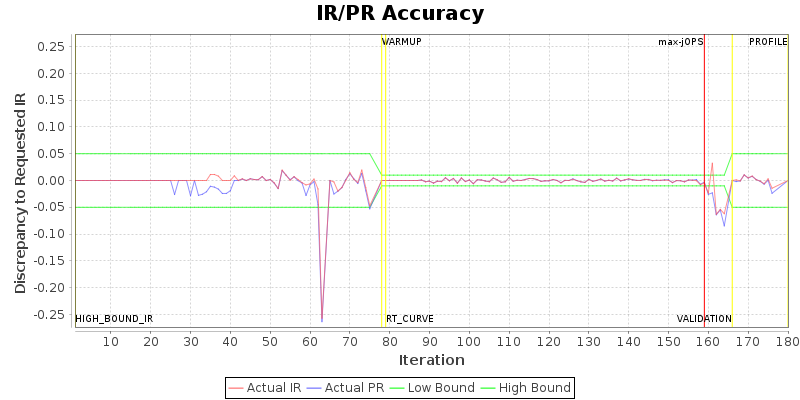

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.client.pool.size	256	232
specjbb.comm.connect.selector.runner.count	0	1
specjbb.comm.connect.timeouts.connect	60000	600000
specjbb.comm.connect.timeouts.read	60000	600000
specjbb.comm.connect.timeouts.write	60000	600000
specjbb.comm.connect.worker.pool.max	256	81
specjbb.comm.connect.worker.pool.min	1	24
specjbb.controller.rtcurve.start	0.0	0.0
specjbb.controller.type	HBIR_RT	HBIR_RT
specjbb.customerDriver.threads	64	{=75, probe=69, saturate=85}
specjbb.forkjoin.workers	160	{Tier1=248, Tier2=8, Tier3=50}
specjbb.group.count	1	4
specjbb.mapreducer.pool.size	160	223
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 340625 IR

High-bound (settled) is 283921 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Quanta Cloud Technology QuantaGrid D53XQ-2U	272500 SPECjbb2015-MultiJVM max-jOPS 140362 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Quanta Computer Inc.	Test Sponsor: Quanta Computer Inc.	Test location: Taoyuan, TW	Test date: Jun 04, 2021
SPEC license #: 9050	Hardware Availability: Apr-2021	Software Availability: Apr-2021	Publication: Fri Jul 2 12:59:05 EDT 2021
